7 Critical CNC Machine Use Mistakes That Are Silently Killing Your Productivity
This guide is for process engineers, machinists and shop managers who run production every day. It walks through the seven most common CNC machine use mistakes, shows what each one does to cycle time and scrap, and gives you a way to judge whether your own process has the same problem.
What these mistakes have in common
None of the seven mistakes below stops the spindle. That is exactly why they survive for years.
Running on Unverified Calibration and Thermal Drift
A machine that cut in tolerance at 8 a.m. can be out of tolerance by 3 p.m. Ball screws, spindles and linear guides expand as they warm up. Across a 5-axis machining center, that shift is often 6–8 μm over a working shift. It is small enough that nobody calls the service engineer, and large enough to fail a ±0.005 mm bore.
The usual reaction makes it worse. The operator nudges a tool offset to bring the part back, the next batch runs on the corrected offset, and the machine keeps drifting. By evening the offset no longer matches the thermal state of the machine, so first-article parts pass and the middle of the run fails.
Verification is cheap compared with the fallout. Laser interferometry on the linear axes and a ballbar test on the circular paths will show whether the machine still moves where the control says it moves. A shop that checks geometry monthly, and checks spindle growth daily, catches drift before it reaches the part.
- 1DailyWarm-up cycle plus spindle growth check at the nose
- 2MonthlyBallbar test on circular interpolation and squareness
- 3QuarterlyLaser interferometry on linear axis positioning
- 4EnvironmentHold the metrology area and coolant at 20 ±1 °C
Treating Fixturing as an Afterthought
Workholding is where most dimensional problems actually start. A vise jaw that clamps unevenly will bow a thin-wall aluminium frame by 0.03 mm before the cutter touches it. The part measures fine on the bench, then springs back once it is released, and the sealing face no longer seals.
Chatter is the second cost. Loose or overhung setups let the tool and the part talk to each other, and carbide edges micro-chip instead of wearing gradually. Tool changes come twice as often, and the shop quietly slows the program down to keep the noise away. That slower feed rate tends to stay in the program forever.
Good fixturing is a design task, not a clamping task. Decide where the part is supported, where it is clamped, and where the cutting force goes before you write the program. For thin walls, support the wall from behind or machine it in two passes with a stress-relief step between them.
Soft jaws bored in place, vacuum plates for flat parts, and dedicated fixtures for repeat runs all pay back within a few batches. Setup time drops, and so does the re-indicating that eats into spindle hours.
- 1Best fitThin-wall frames, long shafts, parts with tight flatness
- 2Poor fitOne-off parts where fixture cost exceeds the run
- 3Watch forClamp marks, spring-back after unclamping, chatter at corners
Pushing Tools Past the End of Useful Life
Tool wear is not linear. A coated carbide end mill holds size for most of its life, then the edge breaks down quickly. If the shop changes tools on a fixed count rather than on measured wear, it either throws away good cutters or runs the last 10 percent and scrapped parts come out of it.
The tell is usually in the chip and the sound. Chips that turn from silver to straw to blue mean the heat has moved into the part. A rising spindle load at the same feed and speed means the edge is rubbing rather than cutting. Neither signal shows up on a finished-part inspection until the dimensions move.
Schedule changes by material volume cut, not by part count. Aluminium 6061 and 7075 wear a cutter differently than 316L stainless or Ti-6Al-4V, and Inconel is harder on edges than any of them. Track actual cutting minutes per tool and set the change point with a margin.
Regrinding is worth it for larger solid carbide and for roughing tools, provided the geometry is checked after grinding. For finishing tools, a worn corner radius is the first thing to go, and it is the thing that sets your surface finish.
- 1AluminiumLong tool life, watch built-up edge at low speed
- 2Stainless 316LNotch wear at the depth-of-cut line
- 3Titanium and InconelThermal cracking, keep coolant on the edge
Which signal points to which mistake
Use this to decide where to look first when parts start drifting.
| Symptom | Likely mistake | First check |
|---|---|---|
| Bore size drifts through the shift | Thermal drift | Spindle growth at the nose |
| Flatness fails after unclamping | Fixturing | Clamp force and support points |
| Spindle load climbs at fixed feed | Tool wear | Edge condition under magnification |
| Chatter at corners only | Speeds and feeds | Radial engagement and tool overhang |
| Chips recut in the pocket | Coolant and chip evacuation | Nozzle aim and through-tool pressure |
| Good first article, bad mid-run | In-process inspection | Sampling interval and probe routine |
Raising Speeds and Feeds Without Checking the Kinematics
A feed rate that works in a straight line can fail in a corner. The control has to decelerate into the arc, and if the look-ahead and acceleration limits are not set for the actual machine, the tool dwells. Rubbing replaces cutting, and the corner burns.
The other failure mode is tool deflection. A long, small-diameter end mill pushed at a high feed will bend before it breaks, so the wall tapers and the floor is not flat. The part is still in tolerance at the top of the feature and out at the bottom.
Validate with the tool you will actually run. Measure deflection on a test cut, check the acceleration limits in the control, and look at the actual feed rate the machine achieves through the corners rather than the feed rate in the program. Then set the cutting parameters from that data.
High-feed toolpaths with low radial engagement suit small machines and long tools. They are a poor choice for deep pockets in hard material where the tool needs the rigidity that only a larger diameter provides.
- 1Good fitTrochoidal paths on 6061 and 7075 with 8–10% radial engagement
- 2Poor fitLong reach tools in Inconel at high feed per tooth
- 3CheckActual feed through corners, not programmed feed
Leaving Coolant and Chip Evacuation Alone
Coolant is a process variable, not a utility. Concentration drifts, tramp oil builds up, and nozzles get knocked out of aim during a tool change. A week later the same program is producing a different surface finish and nobody knows why.
Chip evacuation matters more than most shops admit. Recut chips in a deep pocket double the cutting load at the edge and wreck the finish on the wall. Through-tool coolant at the right pressure clears the pocket and lets you keep the feed rate instead of backing off.
Set a maintenance interval that matches the material. Aluminium produces a large, light chip volume and needs flow more than pressure. Stainless and titanium need pressure aimed at the cutting edge, because the heat leaves with the chip and the coolant.
Check concentration with a refractometer weekly and log it. When the reading drifts, top up with the correct mix rather than adding water alone.
- 1AluminiumHigh flow, watch for chip packing in deep pockets
- 2Stainless and titaniumHigh pressure at the edge, coolant on the insert
- 3WeeklyRefractometer reading and nozzle aim check
Underestimating Programming Inefficiency
An inefficient program costs you on every part in the run. A toolpath that takes a longer route through the material, a tool change that could have been avoided, or a retract that lifts the tool too far adds seconds. Multiply those seconds by a few thousand parts and the loss is visible on the schedule.
Simulation catches the other half of the problem. A program verified only by the operator watching the first cut will eventually drive a tool into a fixture. That is one spindle crash, one scrapped fixture, and one lost day.
Run the simulation with the fixture model included, not just the part. Check remaining stock after each operation and confirm that every tool can reach the feature without the holder touching the wall. Then look at the cycle time and ask which moves can be removed.
Roughing strategy is usually where the biggest saving sits. Adaptive paths that keep constant chip load let you use more of the tool flute and cut the number of passes, which shortens cycle time without raising the load on the spindle.
- 1Include in simulationFixture, holder, stock, and the previous operation
- 2Cut firstAir moves, unnecessary retracts, extra tool changes
- 3Leave aloneFinishing passes that protect a tight tolerance
Relying Only on Final Inspection
Final inspection tells you a batch is bad. It does not tell you when the process started to drift. By the time the parts reach the inspection bench, the whole run has already been cut on a machine that was moving away from the target.
In-process checks close that gap. A probe check on a critical bore every twenty parts, or a quick measurement at the machine after each tool change, catches the trend while there is still time to correct the offset. The cost is a few seconds per check.

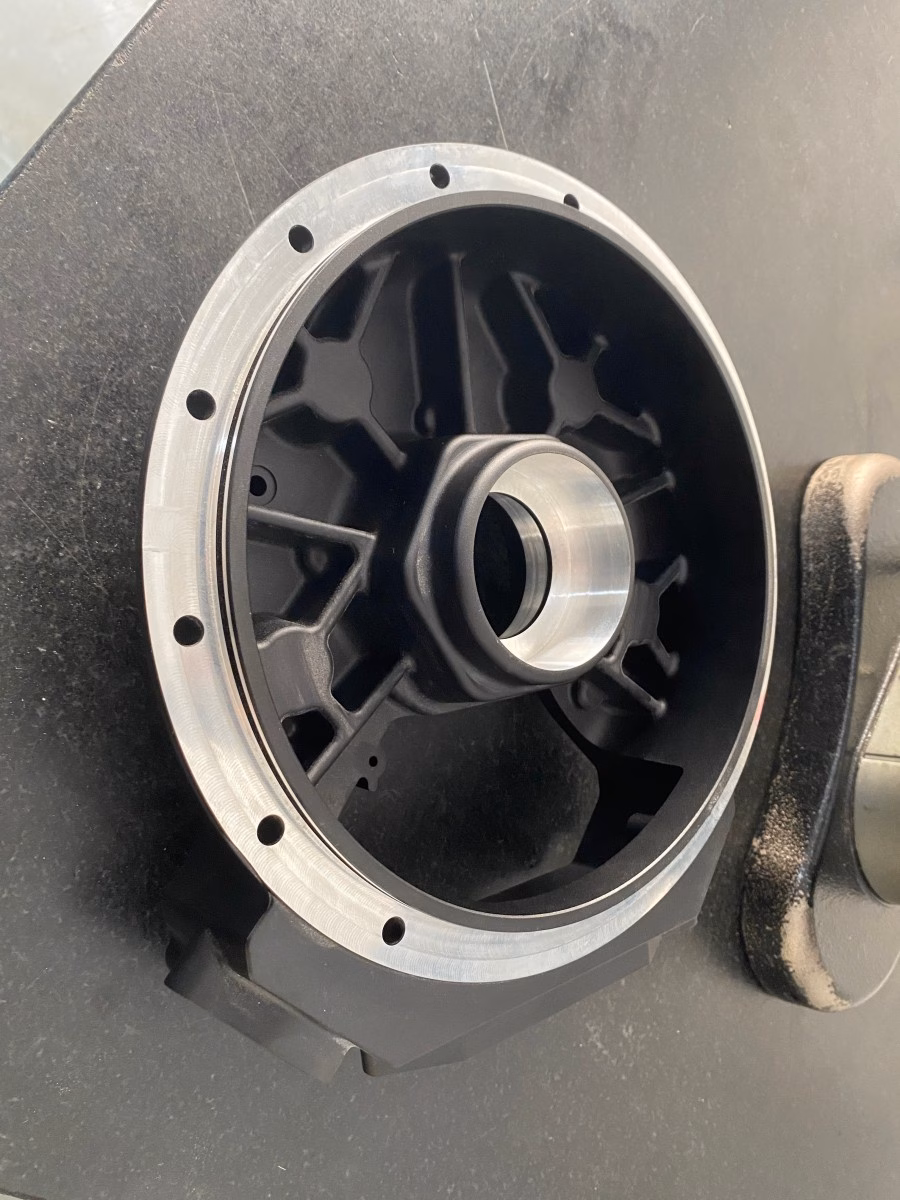

Pick the feature that carries the function, not the one that is easiest to measure. On a housing, that is usually the bore or the sealing face. On a bracket, it is the hole pattern. Measure that one often, and let the rest of the print be covered by final inspection.
Log the readings. A simple chart of the measured value against part number shows whether the process is stable or wandering, and it gives you evidence when a customer asks how you controlled the run.
- 1Every tool changeQuick check on the feature the tool just cut
- 2Every 20 partsProbe or gauge check on the critical feature
- 3WeeklyReview the chart for trend, not just pass or fail
Questions engineers ask about CNC machine use
How do we know whether thermal drift is our problem?
Run the same part at the start and the end of a shift and compare the critical dimensions. If the size moves in one direction through the day and returns after a cool-down, thermal growth is the cause.
A spindle growth check at the nose takes a few minutes and gives you a number to work with. If the machine has no warm-up cycle, add one before the first production part.
When is a fixture worth the cost for a low-volume run?
When the part cannot be held without distortion, or when setup time on a general-purpose vise is longer than the cycle itself. Thin walls, long shafts and parts with a tight flatness call for a dedicated fixture even at low quantity.
For simple prismatic parts in a short run, soft jaws bored in place are usually enough.
Should we change tools on a fixed schedule or on measured wear?
Measured wear is more accurate, but it needs a way to inspect the edge. Many shops compromise: set a conservative change interval by cutting minutes, then inspect the tool at each change to confirm the interval is right.
The interval depends on the material. Inconel and titanium will need shorter intervals than 6061 aluminium for the same tool.
What should a simulation include before the first cut?
The part, the stock, the fixture and the tool holder. Without the holder in the model, the simulation will not show a collision between the holder and the wall.
Check remaining stock after each operation, and confirm the tool can reach every feature before you send the program to the machine.
How often should coolant concentration be checked?
Weekly is a practical interval for most shops, with a refractometer and a written log. Check more often if the shop runs a lot of aluminium, because the fine chip load carries coolant away and changes the mix.
If the reading drifts, top up with the correct concentration rather than adding water alone.
Does in-process inspection slow the cycle too much?
A probe check on one feature takes seconds. Compared with scrapping a batch or stopping the run to investigate, it is cheap. The key is to measure the feature that carries the function and not every dimension on the print.
Put the readings on a chart so the trend is visible. Pass or fail alone will not tell you that the process is moving.
