Can Cincinnati CNC Machines 3asix Making Cuts Still Hold Tolerance?
A 2000 Cincinnati 3-axis vertical still earns money if you know its envelope. This page explains where the iron is sound, where the control and spindle fall short, and how to decide between keeping a job on the machine or moving it out. Written for engineers and shop owners running legacy verticals.
What a 2000 Cincinnati 3-Axis Does Well

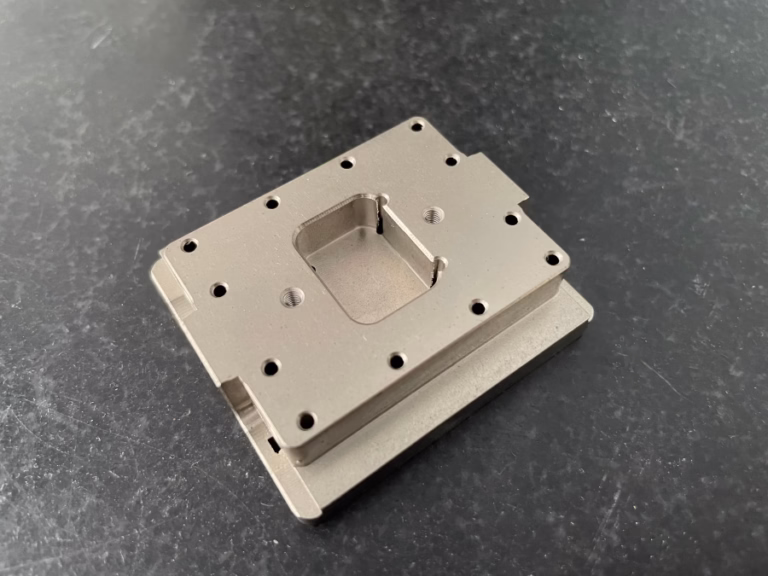

The frame on a late Cincinnati vertical is heavy cast iron or weldment, ribbed for stiffness. That matters more than the control generation. A stiff frame holds geometry under a roughing load, so the machine still removes material in aluminum, mild steel and plastics at a competitive rate. For 2.5D work such as plates, brackets and housings, the iron is not the bottleneck.
The second strength is simplicity. Three linear axes, one spindle, a tool changer. There is no rotary table to calibrate, no fifth-axis kinematic model to verify. Setup is fast and predictable. An operator who knows the control can go from drawing to first cut in a short window, which is why these machines survive in job shops and maintenance departments.
The third is cost per cubic inch of chip removal. A worn but serviceable vertical with a 40-taper spindle still roughs aluminum and low-carbon steel cheaply. If your part tolerance sits at ±0.05 mm or looser and the geometry is prismatic, the 2000 machine is often the lowest-cost route you own.
None of this is about nostalgia. It is about matching a machine's real capability to a part's real requirement. The rest of this page is about finding that line.
Where Cincinnati CNC Machines 3asix Making Cuts Start to Drift
Accuracy loss on a 25-year-old vertical rarely comes from one failed part. It comes from stacked wear. Ballscrew backlash grows, thrust bearings loosen, and the control's backlash compensation table no longer matches reality. The result is a part that measures well on a straight cut and drifts on a reversal. Circular interpolation is where you see it first.
Thermal growth is the second cause. A spindle that runs for two hours grows in Z. On a cold morning, the first ten parts may sit at nominal; by mid-afternoon the same program cuts 0.03 mm deeper. That is not a control fault. It is heat. Shops that hold tight tolerance on legacy iron either warm up the spindle for 20–30 minutes or run a probing cycle to reset the work offset.
Spindle taper condition caps the whole system. A 40-taper spindle with fretting or a scored taper will not repeat tool length, and no amount of compensation fixes it. Check taper contact with bluing. If contact is under roughly 80 percent, regrind or replace before chasing other errors.
Finally, the control. A 2000-era controller may not read modern CAM output without a post-processor tuned to its arc and cutter-comp behavior. Feedrate limits and block look-ahead are lower. High-speed trochoidal paths will not run at the rates a new machine accepts.
- 1BacklashMeasure at reversal, not mid-travel. Re-shim or re-ball the screw before touching compensation tables.
- 2Thermal driftWarm up 20–30 minutes or probe the work offset each shift.
- 3Taper contactBluing check. Under about 80 percent contact, regrind.
- 4Control limitsLower look-ahead and feedrate caps rule out aggressive trochoidal roughing.
Material and Geometry Boundaries
Aluminum is the natural home for these machines. 6061, 7075 and 2024 cut cleanly at 40-taper power levels. Surface finish of Ra 1.6–3.2 μm is realistic with a sharp cutter and a rigid setup. If you need Ra 0.8–1.6 μm on a cosmetic face, slow the finishing pass and accept the cycle time.
Low-carbon and alloy steels, 1018 and 4140, are fine at moderate depth of cut. The trouble starts with 4340 in a hardened state, tool steels, and anything in the titanium or nickel family such as Ti-6Al-4V or Inconel. These need low surface speed, high pressure coolant and a stiff, high-torque spindle. A legacy vertical can make the cut, but tool life drops and the part may move from heat.
Geometry is the other boundary. Three axes cannot reach an undercut or a compound angle without a re-fixture. Every additional setup adds stack-up error. On a machine with ±0.02 mm positioning repeatability, three setups can easily consume your whole tolerance budget.
Deep pockets and thin walls behave badly on a light, worn machine. Chatter shows up as a pattern you cannot polish out. If the wall is under about 1.5 mm, a stiffer machine or a different process is usually the better answer.
Reading the Symptoms Before You Spend Money
Before any repair, cut a test part that exposes the machine. A circular boss and a square pocket in the same block will show backlash and squareness errors in one setup. Measure the boss at four points and the pocket at the corners. A round boss that measures oval points to axis reversal, not to the spindle.
Then check the level and foundation. A machine that has sat on a settling floor for twenty years is often out of level, and twist in the bed shows up as taper in a bored hole. Re-leveling is cheap and occasionally restores more accuracy than a repair.
Ballbar testing, if you can borrow the kit, gives a clean picture of backlash, servo mismatch and squareness in one run. It separates mechanical faults from control tuning faults, which is the difference between a repair bill and a parameter change.
Only after that should you look at the spindle. Measure runout at the taper and tool-holder interface, and check drawbar force. Weak drawbar force causes tool pull-out under load, and operators often misread it as a programming problem.
When the Part Outgrows the Machine
There is a point where keeping a job on a legacy vertical costs more than moving it. It is not when the machine breaks. It is when inspection rejects parts, when a second setup keeps eating tolerance, or when the material fights the spindle. At that point the machine is not the problem; the part is simply outside its design envelope.
Outsourcing a run does not mean scrapping the machine. Many shops keep the Cincinnati for roughing, fixtures and repair work, and send the tight-tolerance or hard-material parts to a supplier with the right capacity. The legacy machine keeps earning, and the difficult part goes where the process is stable.
If that route makes sense, look for a supplier with a spread of machine types rather than one big machine. A shop with a range of 3-axis, 4-axis and simultaneous 5-axis centers can match the process to the part instead of forcing one platform. That is the same logic you apply internally, just with more options.
Ask about inspection too. A supplier that inspects 100 percent of parts before shipment and reports on request gives you something a legacy machine rarely does: evidence. For hard-material or tight-tolerance work, that evidence is worth more than a lower hourly rate.
Keep the Job on the Legacy Machine or Move It Out
Match part requirement to machine state. If two or more rows fall in the right column, quote the job elsewhere.
| Part requirement | Stay on the 2000 Cincinnati | Move to a modern shop |
|---|---|---|
| Tolerance | ±0.05 mm or looser | Tighter than ±0.02 mm |
| Geometry | 2.5D prismatic, 1–2 setups | Undercuts, compound angles, 4+ setups |
| Material | Aluminum, mild and alloy steel | Titanium, Inconel, hardened tool steel |
| Volume | Low to mid, prototype and repair | 10,000+ parts needing repeatability |
| Finish | Ra 1.6–3.2 μm as machined | Ra 0.2–0.8 μm or cosmetic Class A |
| Wall thickness | Above roughly 1.5 mm | Thin walls prone to chatter |
| Spindle taper | Good bluing contact, strong drawbar | Fretted taper or weak drawbar |
Verdict
Keep prismatic aluminum and mild-steel work inside ±0.05 mm on the 2000 Cincinnati. Move anything in titanium, Inconel, hardened steel, thin walls or below ±0.02 mm to a shop with 5-axis capacity and full inspection.
Common Questions
Can a 2000 Cincinnati 3-axis still hold ±0.005 mm?
In ideal conditions, on a short cut, in aluminum, with a warm spindle, it can approach that on a single feature. It will not hold it across a full shift or across multiple setups.
Stacked backlash, thermal growth and taper wear push real capability toward ±0.02 mm to ±0.05 mm for production work. Treat any tighter number as a special case that needs probing and temperature control.
What is the first thing to check when parts start drifting?
Cut a circular boss and measure it at four points. Ovality points to axis reversal and backlash. Consistent oversize or undersize on one axis points to calibration or thermal growth.
Check level and foundation before spending on repairs. Twist in the bed is more common than people expect on a machine that has sat for two decades.
Is it worth retrofitting a modern control?
A control retrofit fixes the interface, not the iron. If the ballscrews, thrust bearings and spindle taper are worn, a new control will still cut to the old mechanical limits.
Retrofit makes sense when the mechanics pass a ballbar test and the only real gap is CAM compatibility and look-ahead. Otherwise the money is better spent on the mechanical rebuild first.
How do I know a part is outside the machine's envelope?
Three signals: inspection rejects that trace to setup stack-up, chatter you cannot tune out, and tool life that collapses on hard material. Any two of those together usually mean the part has outgrown the platform.
At that point, moving the job to a supplier with 5-axis capacity and documented inspection is cheaper than fighting the machine.
Does outsourcing tight-tolerance parts mean retiring the machine?
No. Many shops keep the legacy vertical for roughing, fixtures, repair work and loose-tolerance production, and send only the difficult parts out.
That keeps utilization high on the asset you already own while removing the jobs that cause scrap and schedule risk.
