A Brief Analysis of CNC Machining Technology for High-End Precision Manufacturing
Here we look at CNC machining as a production method for high-end precision parts. The page targets design engineers and sourcing engineers who need to judge whether a part belongs on a CNC machine, which machine type fits, and what tolerance and finish are realistic.

How CNC machining removes material, step by step
CNC machining is subtractive. A cutting tool rotates or turns against a solid block, and material leaves as chips. The path of that tool is driven by numerical control code, which comes from a CAM file built on your CAD model. Nothing about the shape is fixed by a mold or a die, so the same machine can run one part or ten thousand without new tooling.
The workflow starts with your model. We check the geometry for tool reach, wall thickness, and features that a cutter cannot enter. Then we choose stock, workholding, and tool sequence. A first article comes off the machine and goes to inspection. Only after that do we release the run.
That order matters. A part with a deep pocket and a 0.5 mm corner radius may look simple on screen but need a small cutter with long reach, which deflects. We would rather flag that at the DFM stage than scrap a batch later.
- 1Cutting toolDiameter, flute count, and coating decide surface finish and cycle time.
- 2WorkholdingVise, fixture, or vacuum chuck; weak clamping causes chatter.
- 3ToolpathRoughing clears bulk, finishing sets size and Ra.
- 4InspectionCMM or optical check against the drawing before release.
3-axis, 4-axis, or 5-axis: what actually decides the choice
Axis count is not a quality label. It is a question of how many faces you can reach in one setup. A 3-axis mill cuts from one direction. Add a fourth axis and the part rotates, so you reach four sides without re-clamping. A 5-axis center tilts the tool or the table, so undercuts, compound angles, and deep cavities open up.
Every re-clamp adds stack-up error. If your part has tight true position between two perpendicular faces, 5-axis is often cheaper in the end because the second setup disappears. If the part is a flat plate with holes, 3-axis does the job and does it faster.

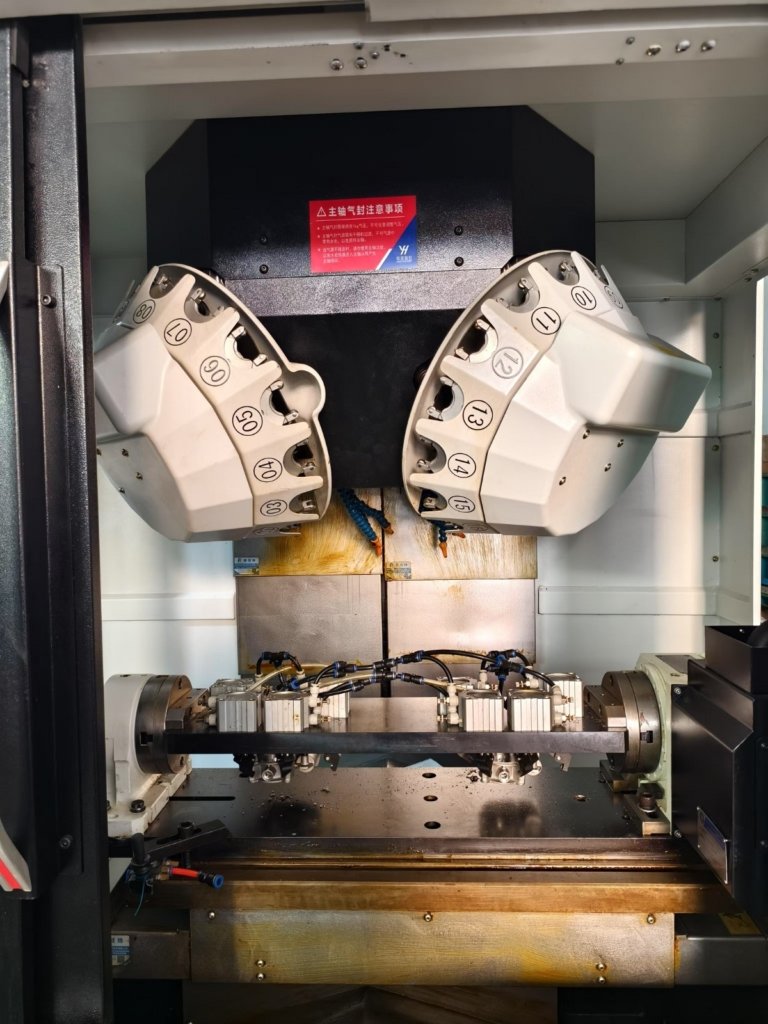

Our floor runs 16 simultaneous 5-axis machining centers, 12 four-axis mills, 27 three-axis machines, and 16 mill-turn centers. Maximum processing size is 4,000 mm. Common travels include 4,000 × 400 × 150 mm, 750 × 1,150 × 550 mm, 600 × 600 × 600 mm, and compact 500 × 500 × 450 mm. A Ø400 mm rotary table handles round work.
Mill-turn is the one people forget. If a part is turned and then milled, doing both on one spindle removes a transfer and holds concentricity better than two machines.
Matching part features to machine type
Use this as a starting point, not a rulebook. Geometry and quantity still decide the final route.
| Part feature | Typical machine | Why |
|---|---|---|
| Flat plate, through holes, pockets | 3-axis | One face, no re-clamp needed |
| Four sides of a prismatic block | 4-axis | Rotary index replaces second setup |
| Compound angles, undercuts, deep cavities | 5-axis | Tool tilt reaches in one setup |
| Shaft with cross holes or flats | Mill-turn | Turning and milling on one spindle |
| Large frame or long beam | 3-axis, 4,000 mm travel | Bed length suits long parts |
| Round flange with bolt pattern | 4-axis with Ø400 mm table | Indexing around the bore |
| Thin wall under 1 mm | 5-axis, light finishing passes | Lower radial force, less deflection |
Tolerance and surface finish: what is realistic
A drawing that says ±0.005 mm everywhere is expensive. That number is achievable, and we hold it on critical features, but applying it to a non-critical bolt clearance hole buys nothing. Tight tolerance drives slower feeds, more passes, more inspection, and higher cost.
A practical drawing splits features into groups. Critical bores and mating faces carry the tight callout. Clearance holes, chamfers, and cosmetic surfaces stay loose. This is the single biggest cost lever a designer controls.
Surface finish behaves the same way. As-machined aluminum sits around Ra 1.6–3.2 μm. A good finishing pass reaches Ra 0.8–1.6 μm. Fine work, such as seal faces or optical mounts, gets to Ra 0.2–0.8 μm, usually with a dedicated finishing tool and a light radial cut.
Material matters here. Aluminum 6061 and 7075 cut cleanly and hold finish. Stainless 304 and 316 work-harden, so a rubbing pass ruins both finish and tool life. Titanium Ti-6Al-4V and Inconel need slower speeds and rigid setups. None of this is a reason to avoid the material. It is a reason to say so early.
Material range, heat treat, and post-machining
We machine aluminum 6061, 6061-T6, 2024, 5052, 5083, 6063, 6082, 7075, and ADC12. Stainless covers 303, 304, 316, 316L, 420, 430, 431, 440C, and 17-4PH. Steels run from 1018 and 1045 through 4130, 4140, 4340, A36, and tool steel. Copper and brass include C101, C103, C110, beryllium copper, C27400, C28000, and C36000. Titanium and special alloys cover TA1, TA2, TC4, Inconel, and magnesium AZ31B and AZ91D. Plastics include ABS, PC, PMMA, POM, PA, PEEK, PP, HDPE, and carbon fibre.
Heat treat changes the plan. A part machined soft and then hardened will move. We leave stock for the hardening step, then finish-grind or finish-mill to final size. If your part needs 17-4PH to H900 or 4140 to a specific hardness, put it on the drawing so the sequence is built around it.
Finishes we run in-house or through qualified partners: anodizing in clear, colour, hardcoat, and conductive; electroless nickel, zinc, silver, and gold plating; powder coating and black oxide; bead blasting, tumbling, brushing, and polishing; laser marking and engraving with a minimum character height of 1.5 mm.
One caution on anodizing. It builds a layer, typically a few microns per side, and it can round a sharp corner. If a bore must stay within ±0.005 mm after hardcoat, mask it or machine undersize on purpose. Tell us the finish before we cut.
When CNC machining is the wrong call
CNC wins on precision and on change. It loses on unit cost at volume for simple shapes. A plastic housing at 50,000 pieces belongs in injection molding, not on a mill. A thin-wall sheet metal bracket belongs in a press brake. We say this before quoting.
Very hard materials are another limit. Machining above roughly 60 HRC is a grinding job, not a milling job. We will tell you if your part crosses that line.
Hollow internal channels are the third case. A cutter cannot reach inside a closed cavity. If the part needs internal cooling passages that no tool can enter, additive manufacturing followed by finish machining is the realistic route, not pure CNC.
For everything between a prototype and a few thousand precision parts, CNC is usually the fastest path to a part that matches the drawing. No minimum order quantity, from one piece to 10,000+ runs. Quotation and free DFM analysis come back within 12 hours, and the 100% inspection before shipment is standard, not an add-on.
Questions engineers ask before releasing a part
What file format do you need for a quote?
STEP or IGES for 3D geometry, plus a 2D PDF drawing with tolerance, material, finish, and any critical callouts. Native SolidWorks, Pro/E, or DXF files also work.
If the drawing is incomplete, we mark the gaps in the DFM report rather than guessing.
How do you hold ±0.005 mm across a batch?
By controlling the setup, not just the cut. Rigid workholding, temperature-stable coolant, and in-process probing keep the tool on size. We check raw material on arrival, monitor during the run, and inspect 100% before shipment.
Inspection reports are available on request.
Can you machine a part that needs heat treatment after cutting?
Yes. We leave stock for the hardening step and finish-machine or grind after heat treat so the final size is set on the hardened part, not before it moves.
What is the minimum order quantity?
There is none. We run from one prototype to 10,000+ part runs on the same floor.
How do you handle confidentiality?
Uploads are secure and confidential. We can sign an NDA on request before any file is shared. Our information security management is certified to ISO 27001:2022, alongside ISO 9001:2015, IATF 16949:2016, and ISO 13485:2016.
What lead time should I plan for?
Quotation and free DFM analysis come back within 12 hours. Production can start within 24 hours of release, and parts typically ship in 3–5 days depending on complexity and finish.
Historical late-delivery probability is below 2%.
