CNC Systems for CNC Machine Tools: How the Controller Actually Runs a Cut
This page explains what a CNC system does inside a machine tool, where the real limits sit, and how the choice of controller shows up in your part. It is written for engineers and buyers who specify machined parts and want to understand the machine behind the quote.
In this article
- 1
- 2
- 3
- 4
- 5
How CNC systems for CNC machine tools turn code into motion

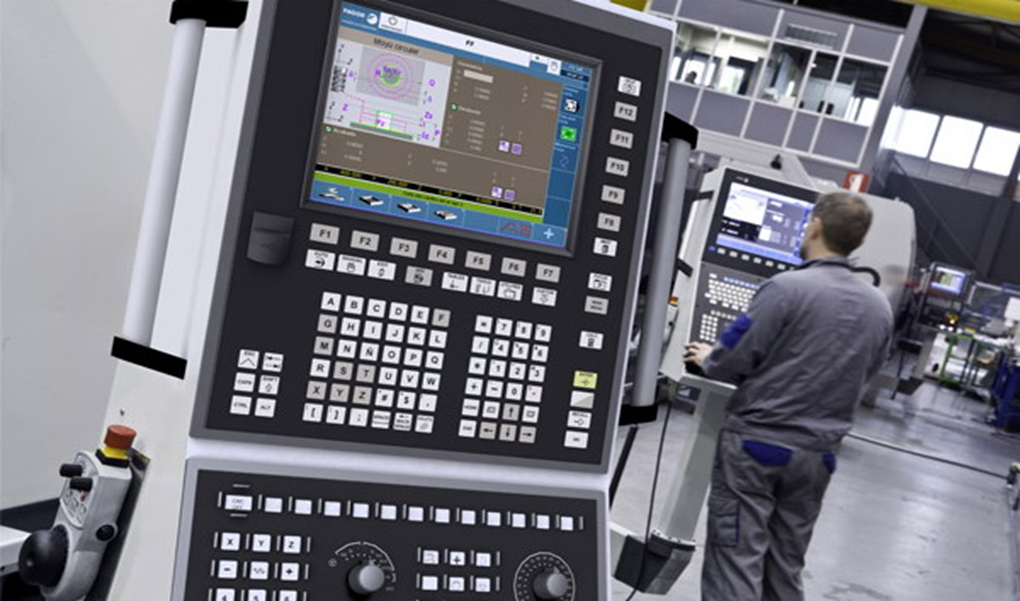

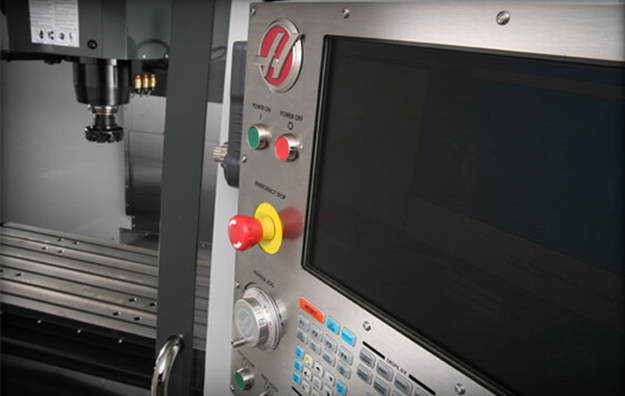

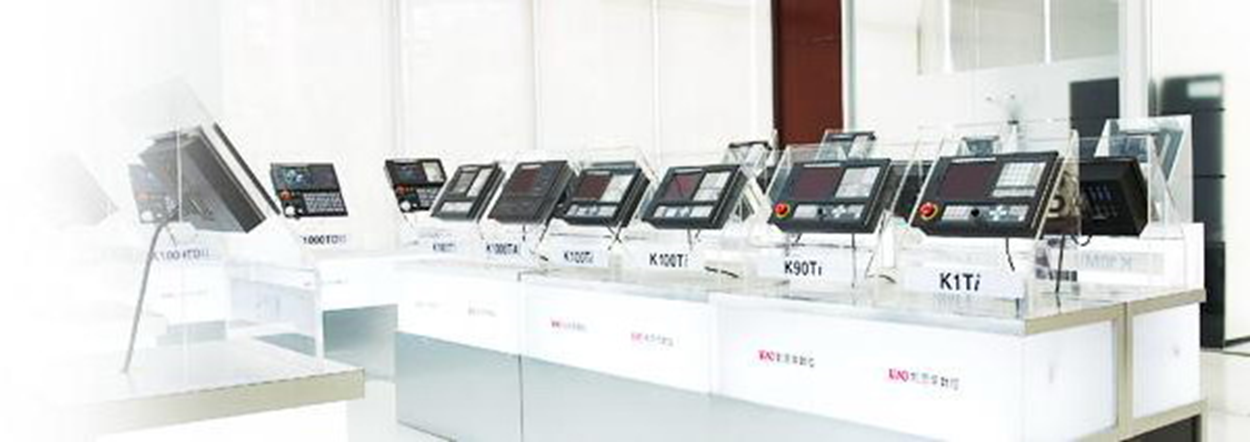

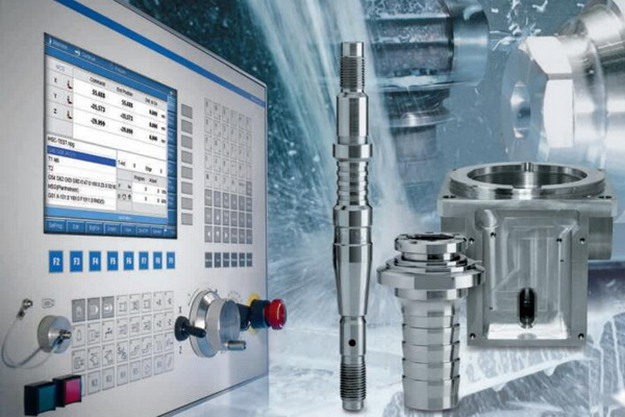

A CNC system is the control layer between a part program and the metal. It reads G-code, plans the tool path, and commands each axis to a position at a feed rate. The machine structure, the spindle taper, and the ball screws do the cutting work. The controller decides how hard the machine is allowed to push.

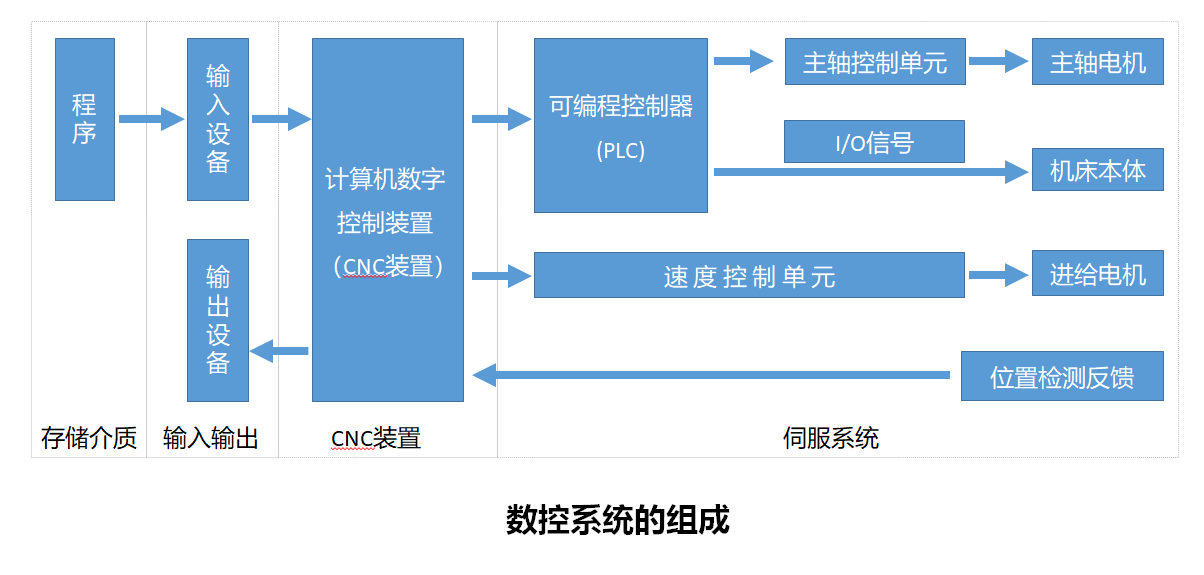

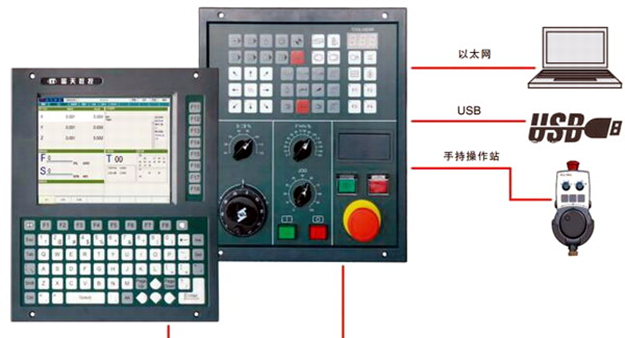

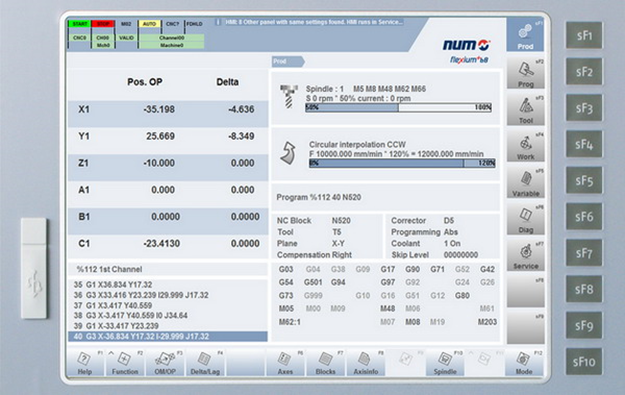

Four jobs run every block of code. The interpreter decodes the G-code and M-code. The motion planner builds a trajectory with acceleration limits. The servo loop closes position feedback from the encoder. The PLC handles tool changes, coolant, and interlocks. When a part drifts out of tolerance, one of these four is usually the cause.

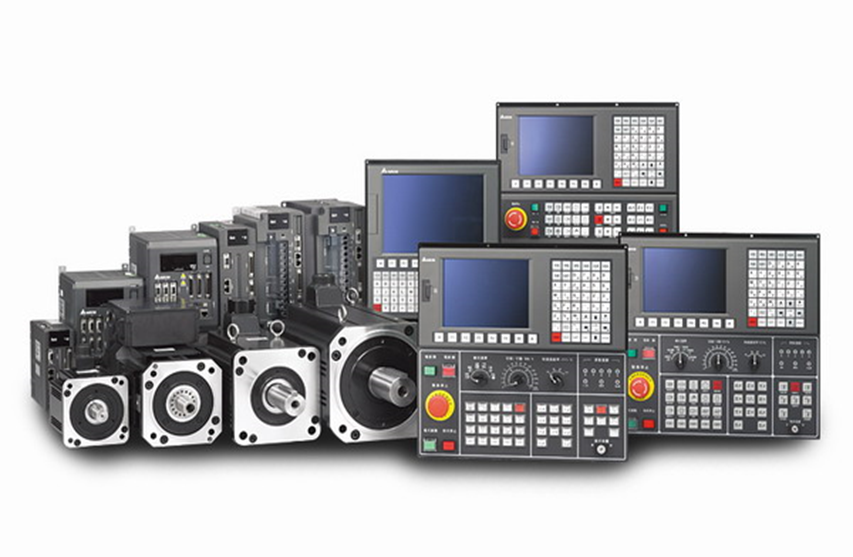

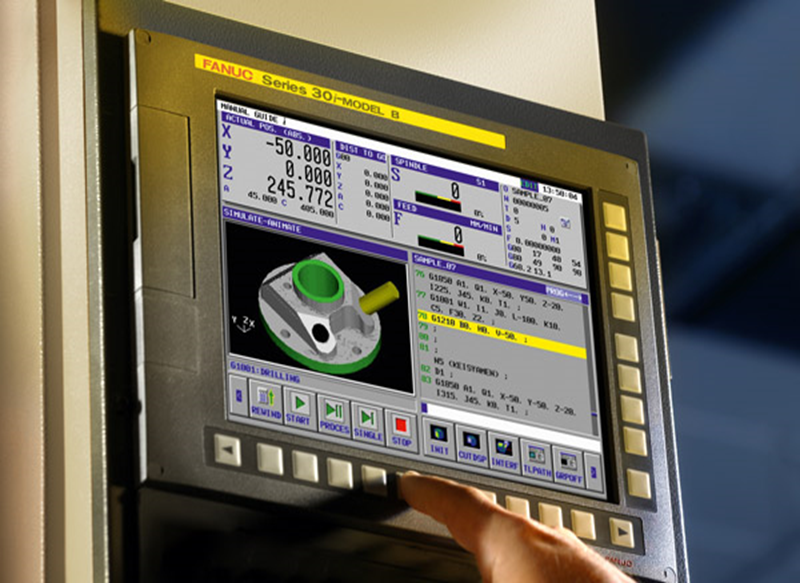

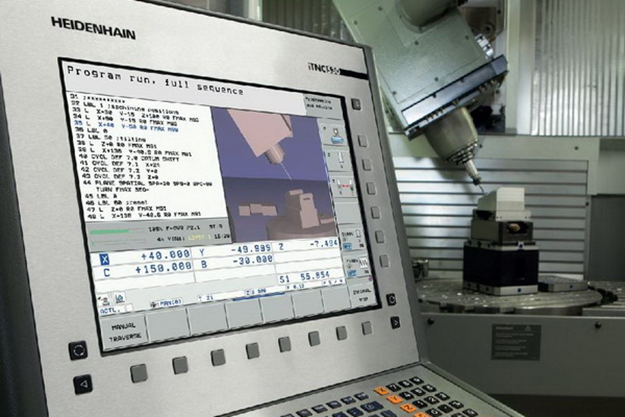

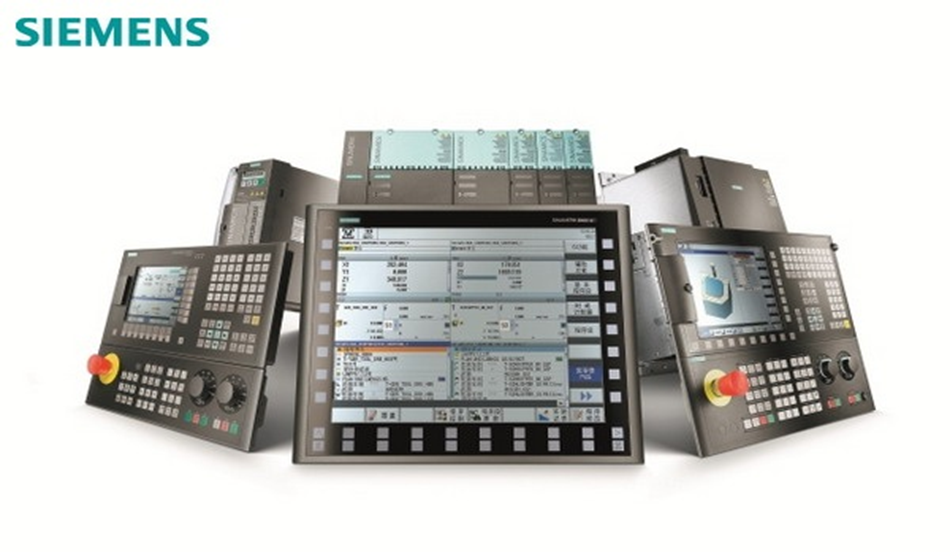

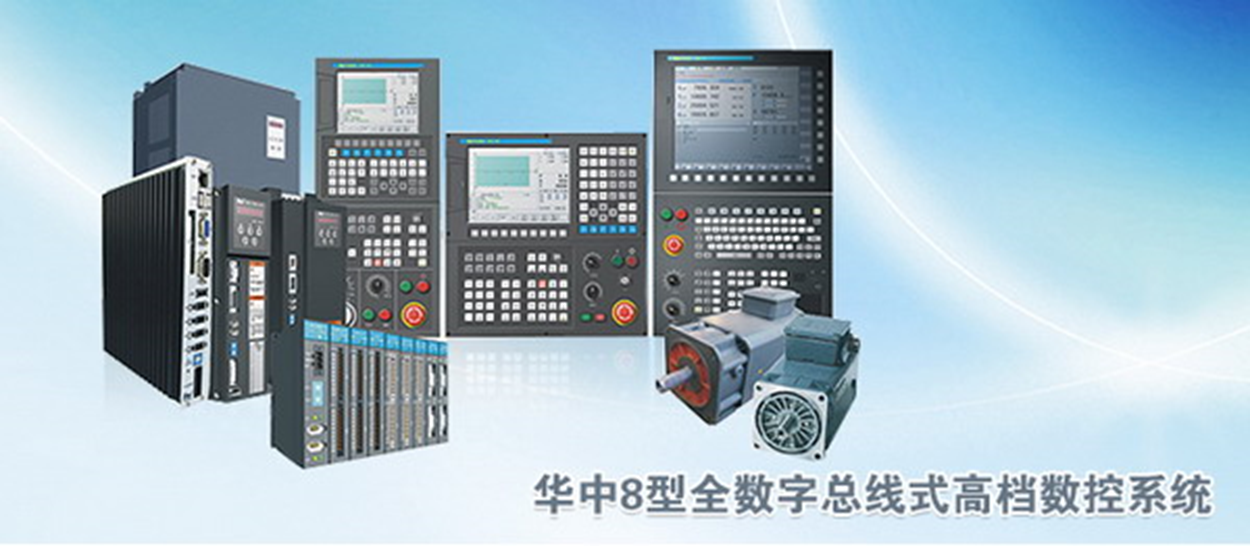

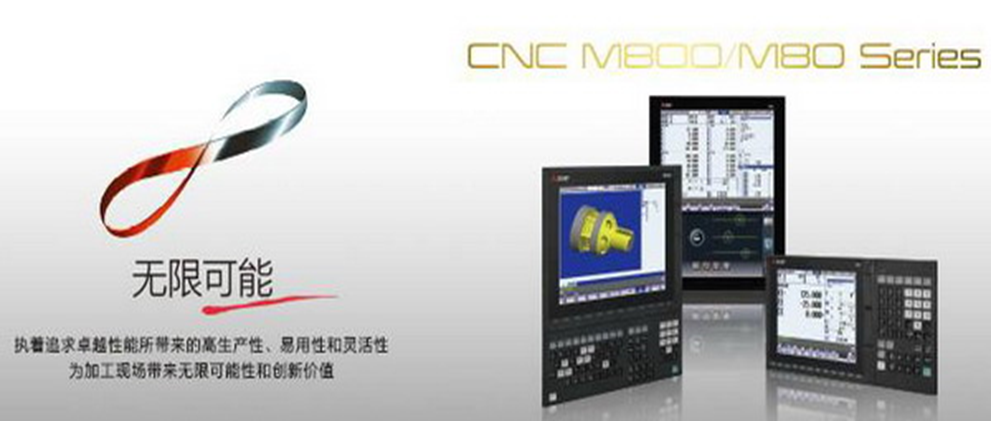

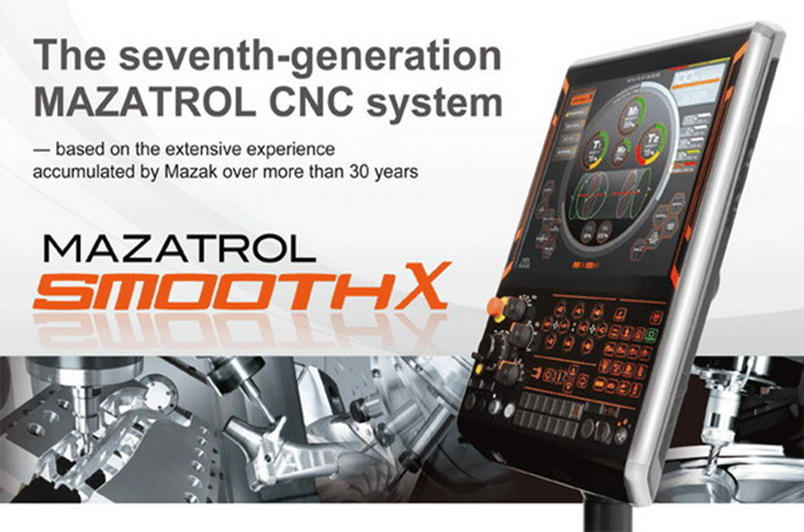

Two architectures dominate the floor. Dedicated controllers from Fanuc, Siemens, Mitsubishi, and Heidenhain ship as closed, proven packages. PC-based controllers such as LinuxCNC and Beckhoff TwinCAT run on general hardware. Closed controllers are stable and well documented. PC-based systems are easier to integrate with robots and vision, but they demand in-house controls knowledge.
- 1InterpreterConverts G-code into motion commands and auxiliary actions.
- 2Motion plannerShapes the path with look-ahead and acceleration limits.
- 3Servo loopCloses encoder feedback thousands of times per second.
- 4PLCRuns tool changers, coolant, pallets, and safety interlocks.
Feedback loops decide the real accuracy of CNC systems for CNC machine tools
A controller is only as good as the feedback it trusts. Semi-closed loops read the motor encoder. The tool tip position still depends on ball screw pitch error, thermal growth, and backlash. Fully closed loops add a linear scale on the axis itself, so the controller sees the actual slide position. The scale costs more and needs careful mounting, but it removes screw error from the equation.
Thermal drift is the quiet killer. A spindle running 8 hours at 12,000 rpm grows several tens of microns in Z. Good controllers run compensation tables, and some machines probe the tool after warm-up. On a ±0.005 mm job, we let the machine idle through its warm-up cycle before the first cut. Skipping that step costs more than the idle time.
Backlash and pitch error are mapped at commissioning, then applied as compensation in the controller. If a machine is crashed, those maps go stale. A re-calibration is not optional after a hard hit on a 5-axis center with a Ø400 mm rotary table.
- 1Semi-closedMotor encoder only; screw error stays in the part.
- 2Fully closedLinear scale reads slide position directly.
- 3Thermal growthWarm-up and compensation tables keep Z stable.
- 4After a crashRe-map backlash and pitch error before production.
Servo tuning, look-ahead, and why corners round off
Servo tuning sets how aggressively the axis follows the commanded path. Tune too soft and the axis lags, rounding sharp corners. Tune too hard and the machine rings, leaving chatter marks on the wall. On aluminum at 8,000 rpm, a slightly softer tune with higher look-ahead often beats a stiff tune with none.
Look-ahead reads blocks ahead and slows the feed before a tight arc. Without it, the controller tries to hit every corner at full speed and overshoots. Block processing time matters here. At 1 ms per block and 10 m/min feed, the machine covers about 0.17 mm per block. Tight geometry with short blocks needs a faster cycle time or a lower feed.
On 5-axis work, the rotary axes have their own tuning. A mismatch between linear and rotary response shows up as faceting on a swept surface. We check this with a test cut before committing a batch, especially on titanium and Inconel where the cut is slow and expensive.
- 1Soft tuneRounded corners but stable walls.
- 2Hard tuneCrisp corners but risk of ringing.
- 3Look-aheadSlows feed before tight arcs.
- 4Rotary mismatchShows as faceting on swept 5-axis surfaces.
When a given CNC system fits your part, and when it does not
A 3-axis machine with a semi-closed loop handles most brackets, plates, and housings. It is fast to set up and cheap to run. It struggles when the part has deep pockets on five faces, compound angles, or a bore that must hold ±0.005 mm across a long span. Those jobs move to a fully closed machine or need multiple setups with re-fixturing error.
Five-axis simultaneous control earns its cost on contoured surfaces: impellers, medical implants, and complex automotive castings. It also cuts setups, which matters more than many buyers expect. Every extra setup adds a datum stack and a chance for error. On a part with six faces of features, one 5-axis setup can beat three 3-axis setups on both accuracy and lead time.
The controller cannot fix a bad process. If the fixture flexes or the tool is wrong, no look-ahead setting saves the part. When we review a drawing, we look at geometry, tolerance stack, material, and quantity before we pick a machine. The controller is one input among several.
- 13-axis fitsPrismatic parts with features on one or two faces.
- 25-axis fitsContoured surfaces and parts needing few setups.
- 3Fully closed fitsTight bores and long-axis tolerance control.
- 4No controller fixesWeak fixturing, wrong tooling, or unstable stock.
Comparing controller architectures on the shop floor
Pick the architecture that matches your part mix, not the datasheet.
| Architecture | Best for | Watch out for |
|---|---|---|
| Dedicated (Fanuc, Siemens) | High-mix production with proven support | Limited third-party integration |
| PC-based (LinuxCNC, TwinCAT) | Robotics, vision, custom cells | Needs in-house controls engineer |
| Semi-closed loop | General milling and turning | Screw error shows on tight bores |
| Fully closed loop | Parts held to ±0.005 mm | Higher cost, careful scale mounting |
| 3-axis control | Prismatic parts, plates, housings | Undercuts need multiple setups |
| 5-axis simultaneous | Complex contours, impellers, medical | Post-processor and probing discipline |
Which CNC system to specify
For prismatic parts held to ±0.01 mm, a 3-axis machine with semi-closed loops is enough. For contoured parts or tight bores at ±0.005 mm, specify a 5-axis center with fully closed feedback and a proven post-processor. Match the architecture to the geometry, then let the process control the rest.
Common questions about CNC systems for CNC machine tools
Does a faster controller mean a more accurate part?
Not by itself. Accuracy comes from feedback, machine geometry, thermal stability, and fixturing. A fast controller helps on short-block geometry and high feed rates, but a well-tuned older control on a rigid machine can hold ±0.005 mm all day.
Speed matters most when the tool path has many tiny blocks. If your part is mostly long straight cuts, a faster cycle time buys little.
Why does my part measure differently in the morning and afternoon?
Thermal growth. The spindle, ball screws, and the part itself expand as the shop warms up. A machine that ran overnight will read differently from one that just started.
The fix is a warm-up cycle and, on tight jobs, in-process probing. Let the machine reach steady state before the first cut, then check the first part.
Can a PC-based control hold the same tolerance as a dedicated one?
Yes, with the right hardware and a real-time kernel. The limit is not the PC, it is the servo loop and feedback hardware. On a fully closed machine, a PC-based control can hold ±0.005 mm.
The trade-off is support. Dedicated controls have vendor service. PC-based systems need someone on your team who knows the stack.
What causes rounded corners on a sharp internal corner?
Servo lag and look-ahead settings. The axis cannot reverse instantly, so the controller rounds the path. A smaller tool with a slower feed in the corner helps.
You can also program a dwell at the corner, but that adds cycle time. On tight corners, we often leave stock and finish with a smaller cutter.
How do we know the machine is still calibrated?
Regular ballbar tests and a known test cut. A ballbar traces the machine's circular path and shows backlash, squareness, and servo mismatch in one plot.
After any crash, re-check before running production parts. Stale compensation maps will pass a casual check and still scrap a tight batch.
Do you need a 5-axis machine for a part with angled holes?
Not always. A 3-axis machine with an angle fixture or a 4-axis rotary can hit angled holes if the tolerance is moderate. Five-axis simultaneous control is for contoured surfaces, not single angled features.
If the part has many angled features on different faces, 5-axis cuts setups and improves the datum stack.
