Advantages of Double Headed CNC in Precision Manufacturing
A double-headed CNC machine cuts two features at once, or two parts at once, from the same control. This page explains where that layout actually saves money, what it does to tolerance stack-up, and when a single-spindle machine is still the better call. Written for engineers and buyers specifying turned or milled parts.
What the two-head layout changes
Two spindles or two tool heads share a bed, a control and a coordinate system. That single fact drives both the savings and the risks.
Where the cycle time actually goes

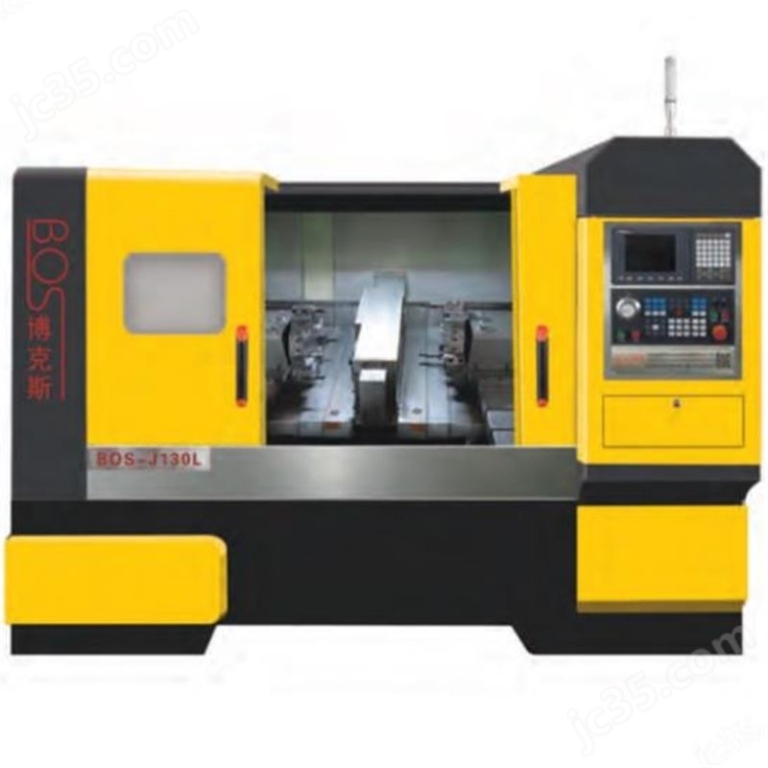

On a conventional lathe or mill, the spindle spends a large share of the cycle either cutting air or waiting for a tool change. A double-headed CNC tower removes part of that wait by putting a second head on the same bed. Both heads work inside one program, so one can finish a face while the other starts the next feature. On a shaft with two bearing journals, the two ends can be turned in the same setup instead of two.
The gain is not a fixed percentage. It depends on how balanced the two operations are. If one head finishes in 40 seconds and the other in 90, the cycle is set by the slower head and the saving is small. When the two sides are close in cutting time, the cycle can drop toward the longer of the two rather than the sum. That is the case where the advantages of double headed CNC show up most clearly on the quote.
Balancing matters for another reason. Uneven load between heads wears the ways and the spindle bearings at different rates. We watch the load meters on both heads during first-article runs and move roughing passes between them until the two curves sit close together.
- 1Good fitTwo similar journals, two matching bores, mirrored faces on one part
- 2Weak fitOne long, one short operation; the slow head sets the cycle
- 3WatchUneven head loading shortens way and bearing life
Tolerance and what the second head does to it
Two heads on one bed share a datum. That is the real accuracy advantage. Coaxial features, a bore and its counterbore, or a face and the shoulder behind it can be cut without unclamping the part. Every re-clamp adds stack-up error. Removing one re-clamp removes one term from the stack.
We hold ±0.005 mm (±0.0002 in) on critical diameters and bores, and Ra 0.8–1.6 μm on turned surfaces as a normal shop finish. Finer finishes down to Ra 0.2–0.8 μm are available when the drawing calls for a seal face or a bearing seat. The heads are aligned to each other during setup, and that alignment is checked again after the first article, not assumed from the last job.
There is a limit. Thermal drift affects the two heads slightly differently because they sit at different points on the bed. On long runs we let the machine warm up, then re-probe the work offset at a fixed interval. On a part with a total tolerance of 0.01 mm across a 400 mm span, that re-probe is not optional.
Single head or double head: a quick comparison
Use this to decide which process to quote before sending the drawing.
| Factor | Single-head CNC | Double-headed CNC |
|---|---|---|
| Setup count on a two-end shaft | Two, or one with a bar feeder | One |
| Typical cycle on balanced ops | Sum of both operations | Set by the slower head |
| Coaxial accuracy | Limited by re-clamp error | Held from one datum |
| Best batch size | One-offs, odd geometry | Repeat parts, 50–10,000+ |
| Workholding cost | Lower | Higher, two fixtures to build |
| Program proving time | Shorter | Longer, both heads to balance |
Which parts belong on a double-headed machine
The layout suits parts with symmetry or with two ends that must line up. Shafts with journals at both ends, valve bodies with two opposed ports, and housings with bores on opposite walls all fall into this group. Automotive and EV parts often land here, along with medical instrument bodies and robot joint housings.
Long parts are a natural fit because the bed can support them at both ends. Our largest travel is 4,000 × 400 × 150 mm, so a shaft that would sag on a single-spindle lathe can be supported and cut from both sides. Medium travels of 750 × 1,150 × 550 mm and 600 × 600 × 600 mm cover most housing work, and compact travels of 500 × 500 × 450 mm and 500 × 310 × 200 mm handle small instrument parts. A Ø400 mm rotary table is available when the second head has to work on an angled face.
Parts with a single critical feature and nothing on the other end gain little. So do one-off prototypes where fixture cost cannot be spread. In those cases a 3-axis or 5-axis single-spindle machine is cheaper to set up and just as accurate.
- 1FitsOpposed bores, twin journals, symmetric flanges, long shafts
- 2Does not fitOne-feature parts, complex freeform surfaces, single prototypes
- 3MaterialsAluminium 6061, 7075; stainless 303, 316L, 17-4PH; 4140 steel; Ti-6Al-4V
Fixtures, programming and operator load
Two heads mean two fixtures. That cost has to be earned back over the run. For a 20-piece order it usually is not worth it. For a 2,000-piece order the fixture pays for itself in the first few hours of cycle time saved. We quote both routes when the volume sits in the middle and let the drawing decide.
Programming takes longer because both heads share one coordinate system. The post-processor has to keep the two tool paths from colliding, and the first article is prove-out time, not production time. We treat the first part as a check part: measure it fully, adjust the offsets, then release the run.
Operator load drops once the program is proven. The control handles tool changes, coolant and load monitoring on both heads. One operator can run more than one machine. Fewer manual interventions also means fewer chances for a hand to move the wrong offset, which is a common source of scrap on re-clamped parts.
Inspection and what we check
Inspection does not change because the machine has two heads. Every part gets raw material verification, in-process checks and a final inspection before shipment. Reports are available on request. On double-headed work we add one check that a single-spindle process does not need: the relationship between the features cut by head A and those cut by head B.
That check is usually a coaxiality or a distance between two opposed faces. If the machine is aligned and warm, the numbers repeat. If they start to drift across a run, the alignment is the first thing to look at, not the tool. Our overall qualification rate across these jobs runs at 99.99%, and the drift check is part of how that number is kept.
For regulated work we hold ISO 9001:2015, IATF 16949:2016, ISO 13485:2016 and ISO 27001:2022. Medical and automotive programs can be routed with the documentation package the standard requires. Uploads stay confidential and an NDA is available when a program needs one.
Questions engineers ask before quoting
How much cycle time can a double-headed machine really save?
It depends on how balanced the two operations are. When both heads cut for roughly the same time, the cycle is set by the slower head instead of the sum of both. When one operation is much longer, the saving shrinks toward zero and the second head mostly adds setup cost.
We compare the two tool paths before quoting and tell you which case your part falls into. There is no fixed percentage we can promise.
Does the second head reduce accuracy?
No, if the heads are aligned and the machine is warm. The accuracy gain comes from cutting opposed features in one setup instead of two re-clamps, which removes a term from the tolerance stack.
The risk is thermal drift over a long run. We re-probe the work offset at a fixed interval on tight-tolerance jobs to hold ±0.005 mm.
What is the smallest batch where it makes sense?
It is a fixture-cost question, not a machine question. Two fixtures have to be designed and built before the first part is cut.
As a rough guide, jobs under about 20 pieces rarely justify it, and jobs in the hundreds or thousands usually do. We quote both routes when the volume is borderline.
Which materials run well on a double-headed machine?
Aluminium 6061, 6061-T6, 2024, 5052, 6063, 6082, 7075 and ADC12; stainless 303, 304, 316, 316L, 420, 440C and 17-4PH; steels 1018, 1045, 4130, 4140 and 4340; copper and brass grades; titanium TC4 and Inconel.
Harder alloys load both heads more, so we check spindle load early and may shift roughing passes to keep the two sides even.
Can you handle both ends of a long shaft in one setup?
Yes, up to a 4,000 mm maximum processing size on the large-travel machines. Long parts are one of the strongest cases for this layout because the bed supports both ends while both heads cut.
If the shaft has an unusual step or an undercut that blocks the second head, we will say so and quote it single-spindle instead.
What do you need from us to quote a double-headed job?
A 2D drawing or 3D model, the material, the tolerances that matter, the surface finish on each face, and the annual or per-order quantity. Quantity drives the fixture decision more than any other input.
We return a quotation and a free DFM analysis within 12 hours. Production can start within 24 hours once the drawing and fixtures are settled.
