Advantages of turning and dying in modern manufacturing

This page explains what happens when turning and milling run in one setup, which parts gain the most, and when a plain lathe is still the cheaper route. It is written for design engineers and buyers who have to pick a process before the drawing is frozen.

±0.005 mm tolerance16 mill-turn centersØ400 mm rotary table
CNC Knowledge: What are the advantages of the use of CNC turn-tight composite machine tools?
Scope

What this page covers

Turning, mill-turn, and where each one pays off.

Basics

Turning first, then the mill-turn step

Turning rotates the workpiece against a single-point tool. It creates diameters, faces, shoulders, chamfers, and threads, and it does so faster than milling for any feature that is round. A Ø60 mm aluminum shaft with a 0.05 mm shoulder runout is a lathe job, not a mill job.

Milling brings the tool to the part and cuts flats, slots, pockets, and bolt patterns. On a traditional line the part moves from lathe to mill and back, and each move means a new fixture, a new zero, and a new chance to lose concentricity.

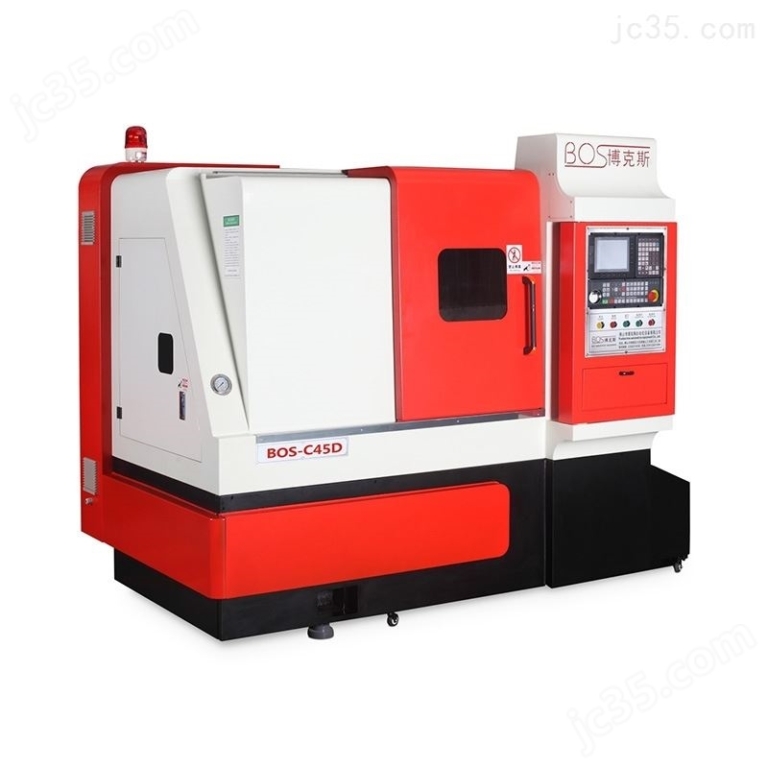

A mill-turn center carries both functions on one platform. The main spindle turns the part; a second spindle or a rotary table presents it to the milling head. One program, one setup, one datum. The advantages turning dying modern shops talk about come mostly from removing those handoffs, not from any single cutting move.

The term itself is loose. Some suppliers say turning and dying, others say turn-mill or mill-turn. What matters on the shop floor is how many axes move at once and whether the part is re-chucked between operations.

  • 1
    Round featuresTurn them. Faster metal removal, better roundness.
  • 2
    Prismatic featuresMill them. Flats, pockets, cross holes.
  • 3
    Both on one partKeep them in one setup if the geometry allows.
Setup reduction

Why fewer setups change the tolerance you can hold

Every re-chucking adds error. The chuck jaws bite a fresh surface, the part rotates on a new axis, and any runout in the second fixture lands directly in your true position callout. On a two-operation job we typically budget 0.02–0.05 mm for that transfer alone.

Do the same work in one setup and the datum never moves. That is how we hold ±0.005 mm on features that sit on opposite sides of a part, and it is why a diameter and a bolt circle on the same face stay concentric without a custom fixture.

There is a second gain that buyers notice later: paperwork. One setup means one setup sheet, one first-article record, and one in-process check point. For an IATF 16949:2016 program that keeps the control plan shorter and the traceability chain tighter.

It also removes the queue between operations. A part no longer waits behind another job on the mill while the lathe sits idle.

Fit

Which parts gain, and which do not

Mill-turn pays off when a part has both rotational and prismatic features and the drawing ties them together with a tight callout. Think hydraulic manifolds with cross-drilled ports, sensor housings with a threaded bore and a mounting flange, or a motor shaft with a keyway and a shoulder that must run true.

It also pays off when the part is hard to hold. A thin-walled aluminum sleeve distorts if you grip it twice at high chuck pressure. One setup with a soft jaw or an expanding mandrel keeps the roundness inside Ra 0.8–1.6 μm without a straightening step.

It does not pay off for a simple turned part. If your drawing is a bushing with one bore and two faces, a single-spindle lathe will beat a mill-turn center on cycle time and hourly rate. Adding a milling head to that job buys nothing.

Very large parts are a separate case. Our mill-turn envelope goes to a Ø400 mm rotary table, and the largest platform reaches 4,000 mm of travel. Beyond that, features are usually split across a boring mill and a lathe, and the design should accept the stack-up.

  • 1
    Good fitCross holes, keyways, and a tight face-to-bore callout.
  • 2
    Good fitThin walls where a second grip would ovalize the bore.
  • 3
    Poor fitPlain round parts with no off-axis features.
  • 4
    Poor fitOne-off geometry that needs a custom tombstone.
Selection

Turning, mill-turn, and 5-axis compared

Use this to pick a process before you send the RFQ.

ProcessTypical toleranceBest forWatch out for
Single-spindle turning±0.01 mmRound parts, threads, high volumeOff-axis features need a second op
Mill-turn center±0.005 mmCross holes, keyways, thin wallsHigher hourly rate than a lathe
Simultaneous 5-axis±0.005 mmContoured surfaces, one-piece complex bodiesProgramming time on short runs
2-operation lathe plus mill±0.02 mmSimple parts, low tooling costTransfer error stacks up
Turn then EDM±0.005 mmSharp internal corners, hardened steelSlow, separate queue
Accuracy

Surface finish, chip control, and what the operator sees

Turning produces a continuous chip, and a mill-turn center has to manage that chip while the milling head is also cutting. On aluminum we run high-pressure coolant and a chip breaker sized to the depth of cut. On 316L stainless the same job needs a heavier feed to stop work hardening at the tool nose.

Finish follows the tool and the rigidity, not the machine badge. A stable setup on a mill-turn center gives Ra 0.2–0.8 μm on a bearing journal after a light finishing pass. A chatter-prone setup gives Ra 3.2 μm no matter what the spec sheet says.

This is where the operator matters. A machinist who can hear a tool start to sing and drop the feed by 10 percent saves more parts than any in-process gauge. We keep 150 technicians across three plants, and the mill-turn cells run with the same people who set them up.

Inspection closes the loop. We check raw material on receipt, monitor in process, and inspect 100 percent before shipment, with reports on request. When a mill-turn program changes, the first article is re-measured on the CMM before the run continues.

Materials and volume

Material behavior and lot size

Material choice drives the cutting data more than the machine does. Aluminum 6061-T6 and 7075 run fast with sharp positive geometry. Titanium Ti-6Al-4V and Inconel need low surface speed, rigid tooling, and a coolant strategy that keeps heat out of the edge. Magnesium AZ31B and AZ91D cut easily but demand chip handling that respects the fire risk.

Brass C36000 is the free-machining grade and produces small broken chips, which suits a mill-turn center with a bar feeder. Copper C110 galls if the tool dwells, so the program keeps the feed constant through the cut.

Volume changes the calculus too. One prototype and a 10,000-part run use the same fixture idea on a mill-turn center, but the prototype may be faster on a 3-axis mill plus a lathe because programming the full multi-axis path takes time. Our 127 CNC machines cover both ends, including 16 simultaneous 5-axis centers and 12 four-axis mills.

There is no minimum order quantity here. A single prototype and a 10,000-part run go through the same first-article process.

FAQs

Questions engineers ask next

Is turn-mill always more accurate than two separate operations?

Not by itself. The gain comes from removing a re-chuck, so features that share a datum stay aligned. If your part has no cross-datum callout, a well-fixtured two-operation job can hold the same numbers at a lower hourly rate.

What part size can you run on a mill-turn center?

The rotary table is Ø400 mm. Our largest platform reaches 4,000 mm of travel, and the medium platforms run 750 × 1,150 × 550 mm and 600 × 600 × 600 mm. Parts beyond the mill-turn envelope are split across machines.

How do you keep a thin-walled part round in one setup?

Soft jaws or an expanding mandrel, light chuck pressure, and a finishing pass that takes the last 0.2 mm with a sharp tool. We often add a temporary internal support that is machined away at the end.

Which materials are hard on mill-turn tooling?

Inconel and Ti-6Al-4V wear edges quickly and hold heat at the nose. They need lower surface speed and a rigid setup. Magnesium cuts easily but the chip handling has to be planned before the job starts.

Can you quote from a STEP file before the drawing is final?

Yes. We return a quotation and a free DFM analysis within 12 hours, and production can start within 24 hours after that. Uploads are kept confidential, and an NDA is available on request.

What finishes can follow a turned or mill-turn part?

Anodizing in clear, color, hardcoat, and conductive versions; electroless nickel, zinc, silver, and gold plating; powder coating and black oxide; bead blasting, tumbling, brushing, and polishing. Laser marking is available down to 1.5 mm character height.
