Amazing One Fixture Solves Thin Wall Machining Problems
Thin-wall parts deflect under clamping force, not cutting force. This page explains how a floating three-jaw fixture spreads that force, which wall thicknesses it handles, and when you should pick a different workholding method. Written for engineers and buyers who need repeatable parts in production.
Why one fixture decides the whole thin-wall job
Thin-wall failure is almost never a tool problem. It is a holding problem.
Where thin-wall parts actually go wrong
A thin-wall part is any part whose wall is thin relative to its diameter or length. Typical examples are bearing housings, motor cans, bushings, sensor bodies and rotor sleeves. Aluminum and stainless rings with a 1 mm wall are common in our shop.
The failure mode is easy to see on a CMM. A ring measures round in the chuck and oval after release. The wall spring-back pushes the part out of tolerance. Cutting force contributes, but clamping force sets the amount of damage.
A three-jaw scroll chuck applies force through three points. Wall thickness between jaws deflects inward, and the wall under each jaw stays straight. Six lobes appear around the circumference. The pattern repeats on every part, so it looks like a process problem when it is really a holding problem.
How a floating three-jaw fixture spreads clamping force

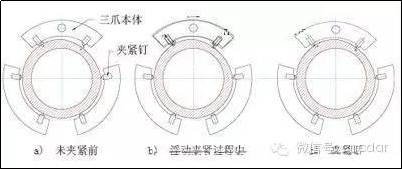

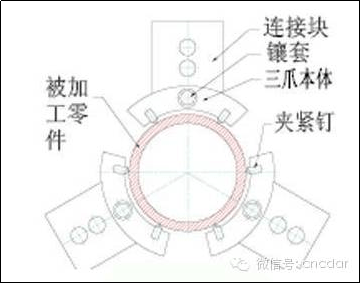

A floating jaw fixture replaces the rigid scroll with three independent jaws that share one pressure circuit. Each jaw moves on a pivot or a short slide, so it can follow the actual surface of the part. Load distributes across a wider contact patch instead of three points.
Total clamping pressure drops to roughly one third of a standard chuck at the same grip. The part is located, not crushed. On a 1.5 mm wall aluminum ring, we see roundness stay inside 0.02 mm after release, which is well inside the ±0.005 mm tolerance on the critical bore.
The same body can hold a range of diameters. Change the jaw set and the fixture runs 40 mm to 200 mm bores without a new base plate. Setup takes 15 to 20 minutes on a repeat job.
For parts with a floor or a flange, a face plate and a light axial clamp work with the floating jaws. The jaws handle radial location, the face clamp handles Z. Do not overtighten the axial clamp; it will bow the floor.
- 1Floating jawsThree independent jaws share one pressure circuit.
- 2PressureAbout one third of a standard three-jaw chuck.
- 3Diameter range40 mm to 200 mm with interchangeable jaw sets.
- 4Roundness after releaseInside 0.02 mm on a 1.5 mm aluminum wall.
Wall thickness versus workholding method
Use this as a starting point. Part geometry and material still decide the final setup.
| Wall thickness | First choice | Clamping note |
|---|---|---|
| Above 3 mm | Standard three-jaw chuck | Light pressure, soft jaws recommended |
| 1.5 mm to 3 mm | Floating three-jaw fixture | One third pressure, no preload |
| 0.8 mm to 1.5 mm | Floating jaws plus axial face clamp | Radial clamp only, floor stays free |
| Below 0.8 mm | Pot chuck or wax/pitch support | Full circumferential support needed |
| Any wall, one-off part | Soft jaws bored to size | Cut jaws on the machine for fit |
When the floating fixture is the wrong answer
A very thin wall under 0.8 mm needs support, not grip. At that thickness the part will deflect between jaws even at low pressure. A pot chuck or a low-melt wax fill holds the full circumference and lets you take light finishing passes.
Parts with a thin floor and a tall wall also fight floating jaws. The wall stays round, but the floor bows from the axial clamp. Machine the floor last, or support it from below with a close-fitting plug.
If the part is a one-off, boring a set of soft jaws on the machine is faster than building a floating setup. Floating jaws win when the job repeats. For a 50-piece run the setup time amortizes. For a single prototype it does not.
Cutting parameters that work with low clamp pressure
Low clamp pressure means the part relies on the cut being light. Use sharp tooling with a positive rake. A worn insert raises cutting force and pushes the wall away from the tool.
For aluminum, we run 2,500 to 4,000 rpm with 0.05 to 0.1 mm per tooth on a 12 mm end mill. Depth of cut stays under 0.5 mm on the finishing pass. For stainless, speed drops to 600 to 900 rpm and feed to 0.03 mm per tooth.
Climb milling on the outer wall reduces the lifting force that pulls a thin ring off its seat. Leave 0.2 mm for the finish pass and take it in one continuous path. Stopping mid-wall leaves a witness mark.
Coolant helps, but high-pressure through-spindle coolant can push a thin wall. We use flood coolant on these jobs. Air blast works on small rings where chips clear easily.
Common questions
What wall thickness can a floating three-jaw fixture hold?
We use floating jaws down to about 1 mm on aluminum and 1.5 mm on stainless. Below that, a pot chuck or wax support gives better results.
The limit depends on diameter and wall height, not just thickness. A short 1 mm ring is easier than a tall 2 mm sleeve.
How much clamping pressure does the fixture use?
Roughly one third of a standard three-jaw chuck at the same grip. The jaws share one pressure circuit, so the load spreads across a wider contact patch.
We set pressure per part and record it on the setup sheet. The next run uses the same number.
Can the same fixture run different part diameters?
Yes. Change the jaw set and the base handles 40 mm to 200 mm bores. A setup change on a repeat job takes 15 to 20 minutes.
A new part with a different wall height may need a new jaw profile. We usually cut those in-house.
Does low clamp pressure mean slower cutting?
The finishing pass is lighter, but the cycle time does not double. Roughing still runs at normal parameters while the part is supported by a plug or a thicker section.
We plan the sequence so most metal comes off before the wall gets thin.
What roundness can you hold after the part is released?
On a 1.5 mm aluminum wall we see roundness inside 0.02 mm after release. Critical bores stay inside ±0.005 mm.
We check roundness on a CMM before shipment and include the data in the inspection report on request.
Do you inspect thin-wall parts differently?
Every part gets 100% inspection before shipment. Thin-wall parts also get a free-state check after clamping is released.
That free-state measurement is the one that matters. In-chuck numbers can look good while the part is still held.
