Analyze the Work Principle of the Laser Cutting Machine

A laser cutter does not cut with heat alone. It converts electrical energy into a narrow, coherent beam, then concentrates that beam onto a spot a few tenths of a millimeter across. The power density at that spot is what separates laser cutting from a torch or a plasma arc. A 3 kW fiber source focused to a 0.1 mm spot delivers roughly 380 kW/mm² at the surface, enough to bring steel past its melting point almost instantly.

The chain has four stages. A pump source excites the gain medium, the resonator sustains oscillation at one wavelength, and the delivery optics carry the beam to the head. Each stage loses energy. Wall-plug efficiency for a fiber source sits near 30 percent, so a 3 kW cut actually draws about 10 kW from the cabinet.

Wavelength decides which materials absorb the beam. Fiber lasers run at 1,070 nm and couple well into steel, stainless and aluminum. CO₂ sources at 10,600 nm absorb better in acrylic, wood and some ceramics, which is why they still appear in non-metal shops.

Beam quality matters as much as raw power. A source with a low beam parameter product can be focused to a smaller spot at a longer focal length, which keeps the nozzle clear of the workpiece and reduces spatter on the lens.

Once the beam strikes the surface, the metal absorbs photons, heats within microseconds and reaches melt temperature. The assist gas does the removal work. It blows molten material out of the kerf and shields the optics from fumes. Without gas flow, the melt pools and re-solidifies as dross.

Gas choice follows the alloy. Oxygen adds an exothermic reaction and raises cutting speed in mild steel, but it leaves an oxidized edge that needs tumbling or pickling before painting. Nitrogen gives a clean, weldable edge on stainless and aluminum at the cost of higher pressure and slower travel. Compressed air sits in the middle and suits thin sheet where edge chemistry does not matter.

Nozzle standoff changes the picture more than most operators expect. A 1 mm standoff holds pressure and gives a narrow kerf. Push the nozzle to 3 mm and the gas jet expands, the kerf widens and dross starts forming on the underside.

Thick sections behave differently from thin ones. Below roughly 3 mm, cutting is dominated by the beam. Above 6 mm in stainless, gas dynamics and melt ejection set the practical limit, and the cut face shows vertical striations that no parameter tweak fully removes.

Kerf is the material the beam removes, typically 0.1–0.5 mm for fiber cutting on 1–6 mm sheet. It is wider at the top than at the bottom because the beam diverges below focus. Any hole smaller than about 1.2 times the material thickness will come out tapered or out of round, so it should be drilled or milled instead.

The heat-affected zone is a thin band along the cut face where the microstructure changed. On mild steel it is a few tens of micrometers and usually harmless. On 17-4PH or 4130 it can harden the edge enough to matter for fatigue parts, and a secondary machining pass may be needed.

Edge roughness depends on material and gas. Nitrogen-cut stainless typically lands around Ra 3–6 μm as cut. Oxygen-cut mild steel is rougher. Neither approaches the Ra 0.8–1.6 μm we hold on CNC-machined faces, which is why a laser blank often goes to the mill for its final dimensions.

Dimensional accuracy for laser cutting is usually quoted at ±0.1 mm on thin sheet and looser as thickness grows. Thermal drift, sheet flatness and nesting position all contribute. For a hole pattern held to ±0.005 mm, cutting alone will not get there.

Brackets, mounting plates, covers and gaskets are natural laser parts. They are flat, the tolerances are loose, and nesting many profiles on one sheet keeps cost down. A 2 mm aluminum cover with a dozen cutouts is cheaper cut than milled.

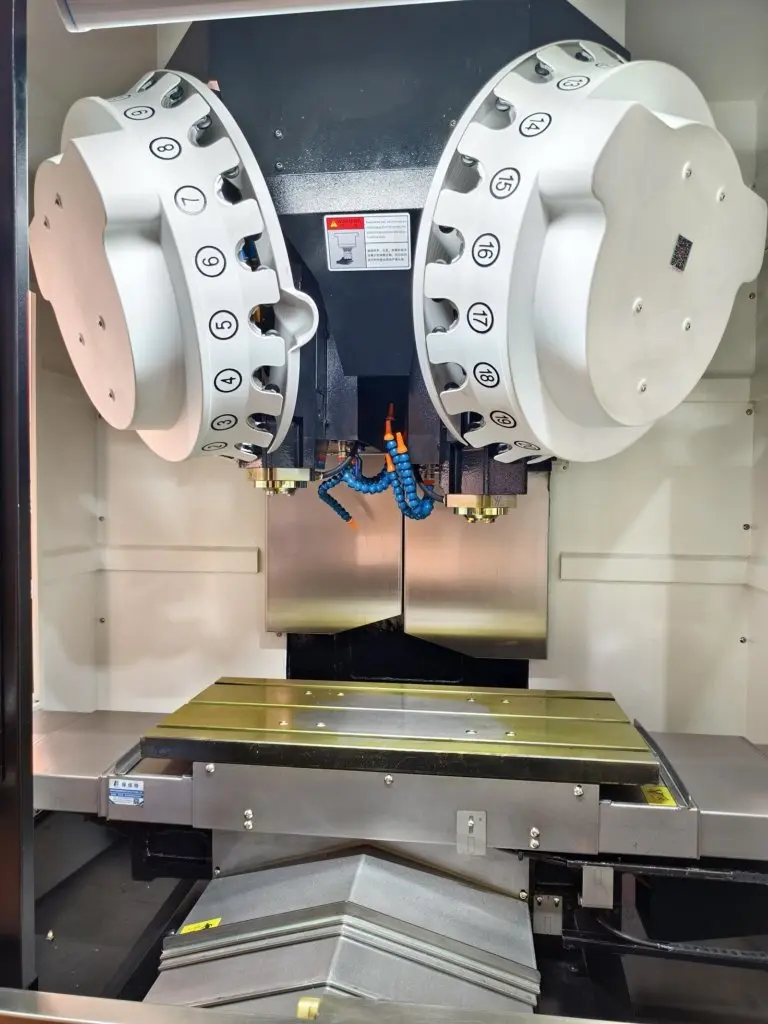

Parts that need both a profile and machined features are where the two processes combine. We cut the blank, then move it to a 3-axis or 5-axis machine for the bores, counterbores and faces that carry the fit. This avoids paying for a full milled profile when only 10 percent of the edge matters.

Some geometries should never be cut. Deep narrow slots, blind pockets, threads, chamfers on curved surfaces and any feature with a depth greater than its width require material removal in three dimensions. Laser cannot reach them at any power level.

Material also rules some parts out. Copper and brass reflect 1,070 nm light well, so fiber cutting them needs high power and often gives a rough edge. Titanium cuts but demands tight gas control to avoid contamination. Both machine cleanly on a CNC with the right tooling.

The practical rule we give customers is simple. If the part is flat, the tolerance is looser than ±0.05 mm and the edge does not seal or slide against another surface, laser cutting is usually the lower-cost route. If it must fit, seal, bear load or hold a thread, plan for machining from the start.

A quote request usually arrives as a STEP file and a drawing. We look at thickness first, because it narrows the process list fast. Then we check whether any feature has a depth-to-width ratio above three, which pushes the part toward milling or turning.

Tolerance callouts come next. A general block tolerance of ±0.1 mm keeps the part in the laser column. Isolated features at ±0.005 mm mean those areas need a machining operation even if the outer profile is cut.

Finish matters for cost. An anodized or powder-coated part hides laser edge oxidation, so oxygen cutting stays viable. A bare stainless part used in a cleanroom or a food line needs a nitrogen edge and often a deburr pass.

We produce laser-cut blanks and machined parts under the same roof, so the handoff does not need a second supplier. Uploads stay confidential, and we sign an NDA when a program requires it. If you are unsure which route fits, send the drawing and we will tell you which one we would run.
