Application of Modular Design to Compound Machine Tool Design
Compound machines combine turning, milling, and boring in one envelope, and most of them are built from modules rather than a single casting. This page explains how that architecture is divided, which interfaces carry the accuracy, and where the approach stops paying off. Written for design and process engineers specifying multi-task equipment.
What This Page Covers
A working read on how modular architecture is applied to compound machine tools, from module boundaries to the checks that decide whether the layout fits your part.
Why Compound Machines Went Modular in the First Place
A single-task lathe or mill is easy to design around one dominant load path. A compound machine is not. It has to hold a turned diameter to ±0.005 mm and then mill a flat on the same part without losing datum. Those two requirements pull the structure in different directions, and a monoblock casting sized for both ends up heavy, expensive, and still compromised in one of the two modes.
Splitting the machine into modules lets each function get a structure matched to its own load case. The bed carries the turning forces. A separate column and ram carry the milling thrust. Neither has to be oversized for the other. That is the practical argument for the application of modular design to compound machine tools: it is not a style choice, it is a way to keep two different stiffness requirements from fighting inside one casting.
The trade-off moves rather than disappears. Every module boundary is a joint, and a joint is a place where stiffness drops and thermal drift can accumulate. Modular architecture is therefore a decision about where to put the weak link, not a way to remove it.
How the Module Boundaries Are Usually Drawn

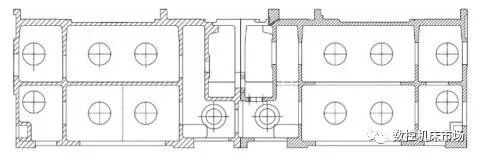

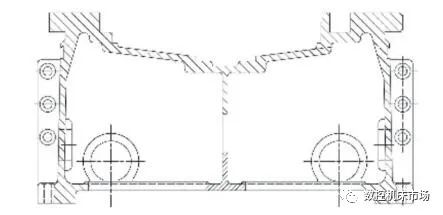

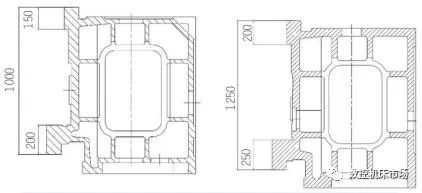

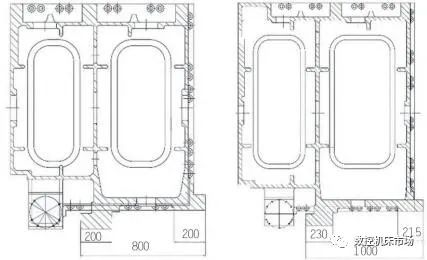

Most compound layouts split along four lines: the bed and base, the main spindle and its bearing pack, the tool-carrying module (turret, ATC spindle, or both), and the feed axes. Each of those can be specified, tested, and replaced on its own. A lathe bed that has already proven itself in a turning-only machine can be reused under a mill-turn head, which shortens development and keeps the supplier base stable.
The tool module is where the real variety sits. A turret with driven tools handles turning plus light cross-drilling. A separate milling spindle on a ram handles heavier interrupted cuts and angled features. Choosing between them is a torque and reach question, not a preference. Driven tools in a turret usually lose stiffness at long overhangs, while a dedicated ram costs envelope and money.
Feed axis modules follow the same logic. Box ways give damping on heavy turning passes. Linear guides give speed and lower stick-slip on contouring moves. Mixed arrangements are common: box ways on Z for the cut, linear guides on the milling axes for positioning. That mix is only possible because the axes are modular in the first place.
- 1Bed and baseCarries turning load; usually the reused module.
- 2Spindle moduleBearing pack and thermal growth set the roundness limit.
- 3Tool moduleTurret with driven tools, or ram-mounted milling spindle.
- 4Feed axesBox ways for damping, linear guides for speed.
The Interface Is Where Accuracy Is Won or Lost
A module boundary is only as good as its interface. Flatness, bolt pattern, dowel location, and contact ratio all decide whether the assembled machine repeats. Two machined faces bolted together with no dowels will shift under a heavy interrupted cut, and the shift shows up as a taper on the next turned part. Dowels or a fitted register are what keep the milling module in the same place after a crash.
Thermal behavior matters just as much. A milling spindle sitting above a warm turning bed sees a different growth rate than the bed itself. Over a shift, that difference tilts the tool axis. Machines that handle this well put temperature sensors near the interface and compensate in the control; machines that ignore it drift. When you specify a compound machine, ask what is measured and what is compensated.
Alignment is a maintenance item, not a one-time setup. Interface geometry should be checkable with a granite square and an indicator, without pulling the whole machine apart. If the interface cannot be re-checked in place, the module design has not finished its job.
Matching Module Choices to Part Features
Use this as a first-pass screen before asking for a machine configuration.
| Part feature | Better module choice | Why |
|---|---|---|
| Long shaft, few cross features | Turning bed + turret with driven tools | Lower cost, turning stiffness stays high |
| Angled holes and pockets | Ram-mounted milling spindle | Reach and torque without long tool overhang |
| Turned face plus tight bolt circle | Main spindle + live tooling, C-axis | One datum, no refixture between operations |
| Heavy interrupted milling | Box-way Z, separate milling column | Damping beats speed on interrupted cuts |
| Complex contoured surfaces | 5-axis mill-turn module | Fewer setups, but higher thermal load |
| Small batch, mixed geometry | Modular turret, quick-change holders | Changeover cost drops with each module swap |
When Modular Compound Design Is the Wrong Answer
Modularity costs money at every joint. If a part only needs turning, a compound machine adds interfaces that can drift, and you pay for capability you never use. Simple turned parts at high volume belong on a dedicated lathe with a rigid single-purpose structure. The same goes for parts that are mostly milling with one small bore, which are usually cheaper on a 3-axis or 4-axis mill with a second op.
Accuracy budgets also rule it out in some cases. When roundness and concentricity sit at the tight end of what the process can hold, every extra joint in the loop is a liability. A dedicated machine with a short load path is easier to prove out and easier to keep in spec over years of production.
Modular design earns its place when part families share a datum but vary in feature mix. If the same casting gets turned, drilled, and milled at different angles across a product line, one modular compound platform removes refixtures and the stack-up that comes with them. That is the case worth designing around.
- 1Choose modular compoundMixed features, shared datum, medium batch sizes.
- 2Stay single-taskOne dominant operation, high volume, tight roundness.
- 3Watch the countEach additional module adds a joint to the accuracy loop.
Common Questions
Does a modular compound machine hold the same tolerance as a dedicated one?
In most shops the achievable tolerance is set by the process, not the architecture. A well-built compound platform holds ±0.005 mm on turned features and similar on milled features when the part stays in one setup.
The difference shows up in long-term stability. More joints mean more places for drift, so a compound machine usually needs its alignment checked more often than a single-task machine.
How many modules should a compound machine have?
Fewer is generally better for accuracy, more is better for reconfiguration. Most practical layouts land between four and six functional modules.
Past that point, the interface management work starts to outweigh the flexibility you gain. If a design needs eight modules, it is usually two machines wearing one enclosure.
Can modules be swapped in the field?
Mechanically yes, if the interface uses a fitted register or dowels and the control parameters are documented per module.
In practice the swap is a re-alignment job. Plan for a granite square check, a test cut, and a compensation update before the machine goes back into production.
What drives the cost difference against a single-task machine?
Extra spindles, extra axes, and the interface machining itself. Driven tooling and C-axis add hardware and control complexity.
The payback comes from removed setups. If a part currently needs three fixtures, cutting that to one often covers the premium within a production year.
Which materials suit a mill-turn compound layout?
Aluminium and brass run well because cutting forces are low and thermal load is manageable. Stainless and tool steel are fine for turning but heavier on the milling module.
Titanium and Inconel are possible, though the milling module needs enough torque at low speed. On those alloys, a separate milling operation is often the safer route.
How do we verify a compound machine before accepting it?
Ask for a test cut that includes a turned diameter, a milled flat, and a drilled pattern on the same part. Measure concentricity and perpendicularity between them.
Repeat the cut after a warm-up cycle and again after four hours of running. The drift between those measurements tells you more than the first-part numbers.
