Application Multi Axe CNC in the Machining of Car Parts

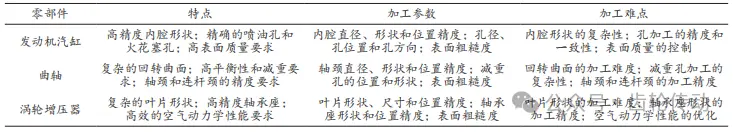

A three-axis mill cuts on X, Y and Z only. The tool always comes down from one direction, so any face that is not perpendicular to Z needs a second setup or a second machine. On a simple bracket or a flat cover plate this is fine, and it is the cheapest way to make the part.

A four-axis machine adds rotation around one axis, usually A or B. The part can be indexed to three or four faces without being unclamped. Think of a steering knuckle or a transmission end cover with bores on two sides and a bolt pattern on a third. One operator, one fixture, one coordinate system.

Simultaneous five-axis adds two rotary axes that move while the tool is cutting. This is what lets a ball-nose cutter reach into a port, sweep a turbine-like blade or machine a compound-angle face in one continuous pass. The trade is programming time and machine hour rate.

3+2 positioning sits between them. The table tilts to a fixed angle and locks, then the machine cuts as a three-axis job. You get the reach of five axes without the cost of full simultaneous motion. For most automotive housings and brackets, 3+2 is the practical answer.

• 1
  3-axisFlat plates, covers, simple brackets. Lowest cost per part.
• 2
  3+2Angled faces, multiple sides, one fixture. Best value for housings.
• 3
  Four-axisShafts, cylinders, parts with bores around one axis.
• 4
  Simultaneous 5-axisImpellers, ports, compound curves, thin-wall contours.

A drawing tolerance of ±0.005 mm means nothing if the part moves between operations. On a multi-axe machine the workpiece is usually held once, so all features are cut from the same zero. That is the real gain, and it shows up on bore-to-bore position, face runout and bolt-hole patterns.

For thin-wall parts such as EV battery trays and motor end plates, clamping force is the enemy. We use soft jaws machined to the part profile, or a vacuum plate, so the wall deflects less than 0.05 mm under cut. If a part needs a fixture that pushes hard on a 2 mm wall, the process is wrong, not the tolerance.

Castings bring their own problem. An as-cast surface can vary by 1–2 mm, so the first operation has to establish a datum from the machined features, not from the raw casting. We normally machine a reference pad first, then hold that pad for the remaining operations.

On long parts up to 4,000 mm, thermal drift matters more than fixture stiffness. A shaft that measures true at 07:00 can drift out of band by mid-afternoon if the shop is not temperature-stable. We run warm-up cycles and check the first article against a known master.

Aluminum is the default for most car parts we see. 6061-T6 and 6082 cut cleanly and hold ±0.005 mm on features under 200 mm. 7075 gives higher strength for suspension links but is more prone to distortion after heavy stock removal, so we leave 0.3–0.5 mm for a finishing pass and let the part rest before the final cut.

Cast aluminum such as ADC12 behaves differently. It has porosity, so a coolant-fed drill can break into a void and walk. We reduce feed on the first 5 mm of any cast-surface hole and use a pilot where the wall is thin.

Steel grades 1045 and 4140 are common for shafts and gears. They cut at lower surface speed, and the heat goes into the tool and the part. On a multi-axe job with long reach, tool deflection is the limiting factor, not spindle power. Keep the tool overhang under 4× diameter where the geometry allows.

Stainless 17-4PH (SUS630) and titanium TC4 show up on EV and motorsport hardware. Both work-harden. A dwell in the cut is worse than a heavier chip load, so we program constant feed through corners rather than slowing down.

As-machined surfaces land around Ra 1.6–3.2 μm, which is fine for most internal and non-sealing faces. Sealing faces, bearing bores and O-ring grooves usually need Ra 0.8–1.6 μm. Very fine hydraulic and fuel-contact surfaces can reach Ra 0.2–0.8 μm, but that adds a finishing pass and should be called out only where it is needed.

Anodizing is the most common finish on aluminum car parts. Type II clear or color anodizing adds a thin oxide layer, roughly 5–25 μm, and it grows the part slightly. If a bore is anodized after machining, either mask it or cut it undersize before the finish. Hardcoat adds more thickness and more growth.

Laser marking is used for part numbers, traceability codes and torque specs. Minimum character height is 1.5 mm. Below that the mark gets fuzzy and hard to read after plating.

For steel parts, electroless nickel and zinc plating are the usual choices. Black oxide is common on non-wear surfaces. Bead blasting before anodizing gives a matte look and hides light tool marks, but it also rounds sharp edges, so keep functional edges masked.
