Application of Multi Axis CNC System in Curved Surface Processing
A practical look at how rotary axes change the way a curved surface is cut. Written for engineers and buyers who need to decide between 3-axis, 4-axis and simultaneous 5-axis work. After reading, you should be able to judge which surfaces actually need multi axis motion and which do not.
Where Curved Surfaces Break the 3-Axis Assumption
A 3-axis machine can only approach a part from one direction. Curved geometry is where that stops working.
What Makes a Curved Surface Hard to Machine

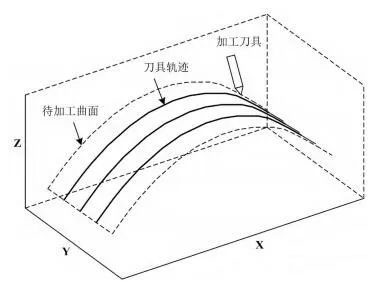

A flat face is easy because the tool axis stays normal to it for the whole pass. A curved surface changes normal direction continuously. On a 3-axis machine the tool stays vertical while the table moves in X, Y and Z. The ball nose tip then contacts the surface at a changing angle, and the effective cutting radius shifts with every step. That is where scallop height stops being predictable.
The usual fix is tighter stepover. Run a 10 mm stepover on a gentle crown and you may hold Ra 3.2 μm. Drop to 0.5 mm stepover and the finish improves, but cycle time can triple or worse. Small tools help, yet a Ø3 mm ball nose has little stiffness over a long reach. Chatter shows up, and the surface carries witness marks the polishing step has to remove.
Curvature in two directions at once is the harder case. A turbine vane, a hip stem or a car body die insert all twist in space. A single vertical approach leaves undercut regions the tool simply cannot reach. This is the gap an application of multi axis CNC is meant to close.
How Additional Axes Change the Cut
A 4-axis machine adds one rotary axis, usually around X or around Z. That single rotation lets the part turn while the tool cuts, so a cylindrical or helical surface can be machined in one continuous pass. Tool axis direction still stays fixed relative to the machine frame. Reach improves around the rotary axis, not away from it.
Simultaneous 5-axis adds two rotary axes that move together with the three linear axes. The controller solves all five at once, so the tool tip position and the tool axis direction are both controlled along the path. This is what allows a ball nose tool to stay near-normal to a twisted surface, and it is also what allows a short, stiff tool to reach deep pockets that a long tool could never enter cleanly.
Two common configurations do this in different ways. A swivel head moves the spindle, which suits large, heavy parts that should not be re-fixtured. A trunnion table moves the part, which suits smaller work where the part can be rotated freely. The choice affects work envelope, rigidity and how much of the part you can reach in one setup.
Which Curved Surface Needs Which Machine
Use this as a first filter before quoting. Geometry and feature count drive the decision more than part size alone.
| Surface type | Typical machine | Why |
|---|---|---|
| Single gentle crown, shallow depth | 3-axis | One vertical approach reaches it; stepover controls finish |
| Cylinder or helix around one axis | 4-axis | Rotary axis keeps the cut continuous |
| Twisted vane, two-direction curvature | 5-axis simultaneous | Tool axis must follow the surface normal |
| Deep pocket with undercut walls | 5-axis simultaneous | Short stiff tool reaches what a long tool cannot |
| Large die insert, heavy blank | 5-axis swivel head | Spindle moves instead of re-fixturing the part |
| Undercut on a small medical part | 5-axis trunnion table | Part rotates freely inside a compact envelope |
Tool Axis Control and Gouge Avoidance
On a curved surface the CAM system must keep the tool from cutting where it should not. Two failures matter most. Gouging is when the shank or the back of the ball nose digs into a wall. Interference is when the holder collides with the part or the fixture. Both are geometry problems, not machine problems, and both are solved in the toolpath before the program ever reaches the control.
A useful habit is to lead or tilt the tool slightly away from the surface normal. A few degrees of lead angle pushes the contact point off the tool tip, where surface speed is near zero. That single change often lifts finish quality without changing stepover. Tilt too far and the effective radius grows again, so the sweet spot is narrow.

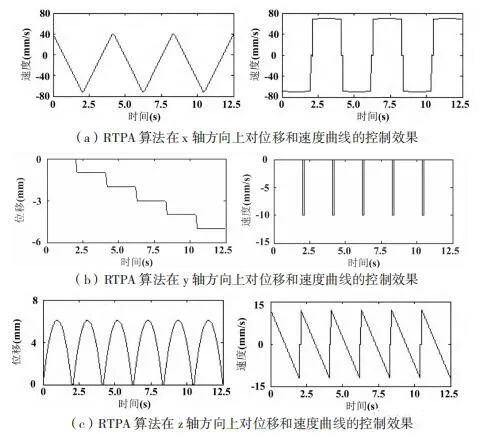

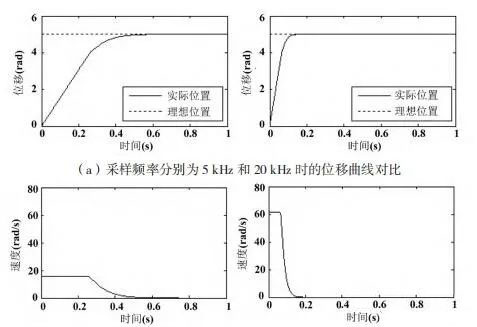

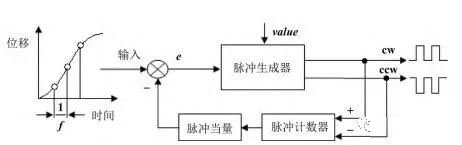

Smooth rotary motion matters as much as position. If the rotary axes reverse direction abruptly, the surface shows a mark at that point. Controllers with look-ahead on the rotary channels reduce this, and so does a toolpath that spreads the rotation evenly across the pass. We check for this on the first article before running the batch.
Where Multi Axis Helps and Where It Does Not
Multi axis motion is not free. Programming takes longer, setup is more sensitive, and the machine has to hold position on five axes at once. If a part can be reached in three axes with an acceptable finish, running it on a 5-axis center usually costs more per part. We route work to the simplest machine that holds the drawing.
For some geometry there is no alternative. A closed impeller, a blisk, a bone plate with a compound curve, or a mold core with deep ribs all need the tool to swing around the part. The same applies when a single setup removes the need for three or four re-fixtures, because each re-fixture adds stack-up error.
The middle ground is worth knowing. A 3+2 setup uses the rotary axes to position the part, then locks them and cuts in three axes. This gives you reach and fewer setups without simultaneous motion. For prismatic parts with angled faces, 3+2 is often the cheapest route to a good part.
Common Questions
Does a curved surface always need 5-axis machining?
No. A single gentle curve with no undercut is often cut faster on a 3-axis machine with a tighter stepover.
The decision turns on whether the tool can reach the surface from one direction without gouging. If it can, extra axes add cost without adding value.
How do you control surface finish on a curved face?
Stepover and tool radius set the theoretical scallop height. A smaller stepover or a larger ball nose lowers it.
A slight lead or tilt angle moves contact off the tool tip and often improves finish at the same stepover. We verify the result on a first article.
What tolerance can be held on a multi axis curved surface?
We work to ±0.005 mm on machined features, subject to part geometry, material and reach.
Curved surfaces are harder than flat ones because the contact point moves. On request we supply inspection reports for the surfaces that matter most.
Which materials are suitable for this kind of work?
Aluminium grades such as 6061, 7075 and 6082 cut cleanly and hold form well. Stainless 303 and 304, titanium TC4 and 17-4PH are also common.
Harder alloys like Inconel need lower surface speed and more careful tool axis planning, which affects cycle time.
Can you start from a STEP file rather than a drawing?
Yes. A STEP or IGES model is enough to begin. We review it and return a DFM analysis with the quotation.
If a critical surface has a tolerance, send the 2D drawing alongside the model so we machine to the right requirement.
How are confidential part designs handled?
Uploads are secure and confidential, and we can sign an NDA on request before any file is shared.
We hold ISO 27001:2022 for information security management, alongside ISO 9001, IATF 16949 and ISO 13485.
