Are Machine Tool Accuracy and Machining Accuracy the Same Thing?
Machine tool accuracy is what the builder guarantees on a cold, unloaded machine. Machining accuracy is what you measure on the finished part. They are related, but they are not the same number, and the gap between them is where most tolerance arguments start. This page is for engineers and buyers who need to read a spec sheet and a CMM report side by side and know which one matters for their part.
Two numbers, two different measurements
One is a property of the machine. The other is a property of the process that machine happened to run that day.
What the builder promises and what the part shows
Accuracy of a machine tool is a published figure. The builder measures it at a controlled temperature, with no material in the spindle, often against ISO 230 or a similar test standard. It describes how close the axes travel to their commanded position, and how square they are to each other. Think of it as the best case the hardware can deliver.

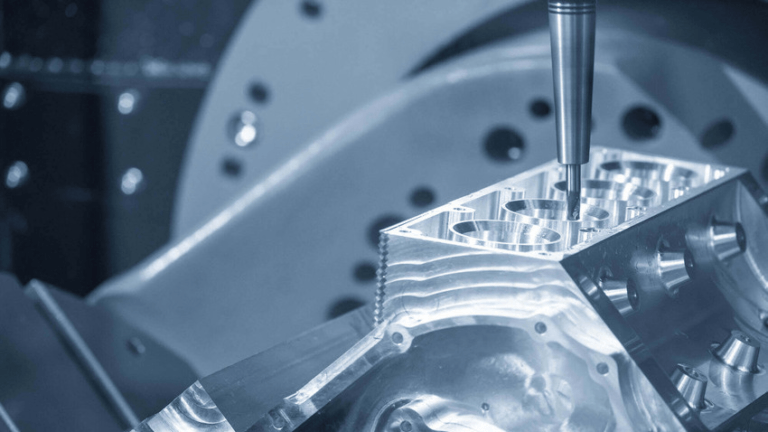

Machining accuracy is what comes off the machine after it cuts metal. It includes the machine, but also the fixture, the tool, the material, the coolant, the operator, and the room. A 5-axis center rated at ±0.005 mm can still produce a part that is 0.05 mm out of true if the vise lifts the workpiece or the tool wears through the run.
This distinction matters as soon as someone asks for a capability number. A machine spec is not a process capability. The question to ask is never what the machine can do on paper. Ask what the process holds across a batch, and how that was measured.
- 1Machine specSingle-axis positioning and geometric error, measured unloaded
- 2Process resultFeature size and position on the finished part, across a batch
- 3The gapFixture, tool wear, thermal growth, chip load, material variation
- 4What to quoteThe process window, not the machine brochure figure
Where the gap between the two numbers comes from
Geometric error is built into the machine. Yaw, pitch, roll, straightness, and squareness of each axis stack up as the tool moves. A machine may hold tight tolerance near the center of travel and loosen near the edges. That is why a shop that mostly runs parts in the middle of the envelope can quote tighter numbers than the spec sheet suggests, while a long part that uses full travel cannot.
Thermal error is the big one on long runs. The spindle grows, the ballscrews warm, the bed and the part expand at different rates. On an aluminum part with a steel fixture, a few degrees of temperature change moves the cutting point by tens of microns. A machine warmed up for an hour behaves differently from one started cold after lunch.
Tool deflection and wear follow. A long, slender end mill pushed at the wrong feed bends away from the cut, and the wall comes out tapered. Tool wear shifts size slowly across the batch, so the first and last part of a run do not match. On a 4,000 mm part, even small per-pass errors accumulate along the length.
Machine tool accuracy vs machining accuracy at a glance
| Aspect | Machine tool accuracy | Machining accuracy |
|---|---|---|
| What it describes | The machine itself | The finished part |
| When measured | Unloaded, controlled temperature | After cutting, in the shop |
| Main inputs | Geometry, ballscrew, guideway | Machine plus fixture, tool, material, heat |
| Typical figure | Builder spec on the data sheet | CMM result on a batch |
| Who owns it | Machine builder | The shop running the process |
| Stable over time? | Drifts with wear and leveling | Shifts with every job setup |
| What a buyer should ask | Which axes, which standard | What feature, what sample size |
How the shop closes the gap
The usual approach is to control the inputs that move the result. Warm up the spindle before the first cut and keep the room temperature steady. Use fixtures that hold the part without springing it, and check the fixture as often as the part. Replace or offset tools on a wear schedule rather than waiting for a dimension to drift out.
In-process checks catch the drift early. On tight features we measure at the machine, then confirm on the CMM before shipment. Probing on the machine is useful for setup, but it does not replace a final inspection against the drawing. Reports are available on request, with the feature, the nominal, and the measured value listed.
For parts that need ±0.005 mm, the process has to be designed around that number. That usually means a stable material, a rigid setup, light finishing passes, and a machine that has been leveled and warmed. It also means the drawing has to be realistic. A tolerance tighter than the process can hold across a batch will fail eventually, no matter how good the machine is.
Which parts actually need a tight process window
Bearing bores, seal grooves, spigot fits, and mating faces are where the two numbers separate in practice. These features often carry the functional fit, and a small error shows up as noise, leakage, or a part that will not assemble. That is where process control pays for itself.
Cosmetic and clearance features rarely need it. A bracket with generous slots does not care whether the machine holds ±0.005 mm or ±0.05 mm. Spending process time on those features adds cost without adding function. The engineering judgment is to sort the drawing into features that carry the fit and features that do not.
Material choice also changes the answer. Aluminum moves more with heat than cast iron, and titanium pushes back on the tool. A process window that works on 6061 may not hold on Inconel without slower passes and more frequent tool changes. The tolerance is not a property of the machine alone.
Common questions
If the machine is rated at ±0.005 mm, will my part hold ±0.005 mm?
Only if the whole process is built for it. The rating covers positioning and geometry on an unloaded machine. Your part also sees fixturing, tool wear, heat, and material behavior.
We treat ±0.005 mm as a process target, not a default. It applies to specific features, materials, and setups, and we confirm it with inspection before shipment.
What is the difference between accuracy and repeatability here?
Accuracy is how close the machine or part is to the commanded value. Repeatability is how consistently it returns to the same point or produces the same size.
A machine can be repeatable but not accurate, which is often correctable with offsets. A machine that is neither accurate nor repeatable needs service.
How do you measure machining accuracy on a real job?
We measure the features that carry the fit, at the machine and then on the CMM. The report lists nominal and measured values for those features.
For a batch, we check first article, mid-run, and last part to see whether the process is drifting. Reports are available on request.
Does a 5-axis machine automatically give better accuracy?
No. Five axes reduce setups and let you reach features in one pass, which removes stacking error from re-fixturing. That helps accuracy indirectly.
But a 5-axis machine still needs a rigid setup, a warm spindle, and a sensible toolpath. Axis count is not a tolerance guarantee.
What tolerance can you hold across a production run?
It depends on the feature, the material, and the quantity. On stable materials and rigid setups, ±0.005 mm is achievable on critical features.
Send the drawing and we will tell you which features we can hold and which need a wider band. Free DFM analysis comes back within 12 hours.
Does temperature control really change the result?
Yes, on tight features. Spindle growth and part expansion move the cutting point by microns over a long run.
Warming up the machine and keeping the shop steady reduces that drift. It is one of the cheapest ways to protect a tight tolerance.
