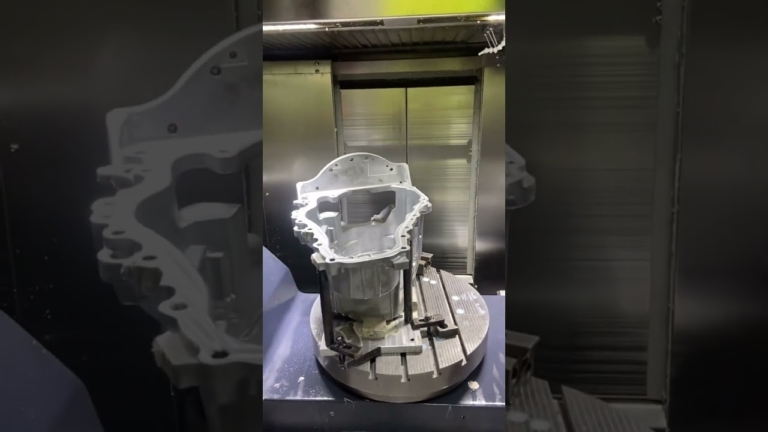

Automotive Parts CNC Machining: How Daily Proofing Keeps a Program Honest

• 1
  What daily proofing means in automotive parts CNC machining
• 2
  How a daily proof runs on the shop floor
• 3
  Which features force a job onto 5-axis
• 4
  What drives tolerance and surface callouts
• 5
  Material behavior and what it changes on the floor
• 6
  Why the proof log matters to an automotive buyer
• 7
  Choosing the machine class for an automotive part

Daily proofing is a repeating first-article check. At the start of each shift, or each time a machine is reset after a tool change or a power event, the operator measures the same critical features that were signed off on the first article. The numbers go into the setup sheet next to the original values. If a dimension has drifted more than a set fraction of its tolerance, the job stops before more material is cut.

The idea is simple. A CNC program is a set of instructions, but a machine is a physical system that moves, heats up, and wears. Thermal growth on a spindle can push a bore 0.01 mm off nominal over a long run. A re-sharpened end mill cuts a slightly different radius than the one in the tool table. Daily proofing catches both before they turn into a scrap bin.

For automotive work the pressure is different from general job-shop work. Volumes are higher, revisions come fast, and a bracket that fails on a bench test can stall a build. IATF 16949:2016 asks for evidence that the process is controlled, not just that the parts were measured once. A dated proof log is the cheapest form of that evidence.

We do not run daily proofing on every feature. It goes on the dimensions that carry function: bearing bores, sealing faces, mounting hole patterns, and any fit that another supplier depends on. Cosmetic surfaces get a visual check instead.

• 1
  Proof at shift startRe-measure the signed-off critical features before the first good part.
• 2
  Log the driftRecord the new number next to the first-article value.
• 3
  Set a stop lineDecide the drift limit in advance, typically one third of tolerance.

The operator pulls the current setup sheet and picks the three to six features flagged as critical. Each one gets measured with the same instrument used at first article, in the same orientation, at roughly the same temperature. Switching from a bore gauge to a CMM mid-run is allowed, but the two readings have to be cross-checked once so the log stays comparable.

A typical log entry reads: feature, nominal, tolerance, first-article value, current value, delta, operator initials, time. That is it. No narrative, no interpretation. The machinist writes the number and moves on. The engineer reads the deltas at the end of the week and looks for trend, not just pass or fail.

Trend matters more than any single reading. A bore that sits at the low limit for three shifts is walking somewhere. If the delta grows by the same small amount each shift, the cause is usually thermal or tool wear. If it jumps once and stays, the cause is usually a clamp, a chip, or a fixture that moved.

When a reading crosses the stop line, the machine comes down. The operator re-checks the tool offset, inspects the last few parts, and re-proves the feature before restarting. Parts cut since the last good proof are quarantined and measured individually. On a 500-piece run that can be a few dozen parts, which is still far cheaper than shipping a bad lot.

The whole routine adds minutes per shift. On a 4,000 mm gantry job with one setup, that is noise. On a high-volume connector body with six critical bores, it is the difference between a controlled process and a gamble.

• 1
  Same instrumentKeep gauges consistent so deltas mean something.
• 2
  Same temperatureLet the part cool before measuring if it just came off the spindle.
• 3
  Same featuresDo not rotate which dimensions get checked; trend needs a fixed set.

Most automotive machined parts are prismatic. Housings, brackets, covers, manifolds, and sensor bodies usually have one dominant face, and a 3-axis machine with two or three setups handles them fine. The decision to move to 5-axis comes from geometry, not from a wish for a fancier process.

The clearest trigger is an undercut or a re-entrant feature that no straight tool can reach from any single part orientation. Ports that turn inside a casting, angled bolt bosses on a curved wall, and oil galleries that exit at compound angles all fall here. If the feature cannot be reached without the part leaving the fixture, simultaneous 5-axis is often the cheaper answer.

A second trigger is positional tolerance across multiple faces. When a hole pattern on a side face must hold ±0.02 mm relative to a bore on the top face, stacking two setups adds error from each re-clamp. Cutting both in one 5-axis operation removes that stack. The tolerance itself is not tight; the relationship is.

A third trigger is surface quality on a sculpted form. Blended fillets, curved sealing rails, and turbine-like profiles need the tool to stay normal to the surface. A ball end mill on a 3-axis path leaves scallops on steep walls. Simultaneous motion keeps the stepover even, which matters when the surface is a sealing or airflow surface.

What does not force 5-axis: a part that is simply large. Our largest travel is 4,000 × 400 × 150 mm, and that class of work is often better served by a big 3-axis mill with a rotary table than by a small 5-axis center. Size and complexity are separate problems.

• 1
  Undercuts and portsNo straight-tool access from one orientation.
• 2
  Cross-face positionTolerance is about the relationship, not the size.
• 3
  Sculpted sealing facesEven stepover needs the tool held normal to the surface.

An automotive drawing usually shows a general tolerance block plus a handful of tight callouts. The general block is cheap. The tight callouts are where cost lives, and they should be reserved for features that actually need them. A ±0.005 mm bore is achievable in our shop, but it demands a controlled temperature, a specific boring strategy, and a slower cycle.

Surface finish follows the same logic. As-machined faces sit around Ra 1.6–3.2 μm and cost nothing extra. A sealing face at Ra 0.8–1.6 μm needs a finishing pass and often a different insert. Below Ra 0.8 μm you are into lapping or a dedicated finish operation, and the part should justify it.

Material choice interacts with both. Aluminum 6061 and 6082 cut clean and hold a good finish with modest effort. Stainless 316 and 17-4PH work-harden, so light passes and sharp tools matter more than spindle speed. Titanium TC4 and Inconel move the problem further: heat stays in the cut, tool life drops, and the tolerance you can hold on a long thin wall changes.

Thin walls are the quiet killer on automotive parts. A 1.5 mm wall on a 60 mm long aluminum housing will deflect under clamping and cutting force, and it may spring back into tolerance after the vise opens. On paper the part passes. In the vehicle it may not. We flag walls under 2 mm at the DFM stage so the drawing can be adjusted before chips fly.

• 1
  Reserve tight calloutsApply ±0.005 mm only where function demands it.
• 2
  Finish by functionRa 1.6–3.2 μm is the default; sealing faces go finer.
• 3
  Watch thin wallsUnder 2 mm, deflection often beats the tolerance.

Aluminum covers most automotive machined parts, and the grades are not interchangeable. 6061-T6 is the general-purpose choice for brackets and housings. 7075 machines well and takes a high-strength load but costs more and anodizes to a slightly different color. ADC12 is a die-casting alloy, so it appears here as a machined casting rather than a billet part.

Steels split into two families. Low-carbon 1018 and 1045 are for shafts, spacers, and non-critical hardware. Alloy steels 4130, 4140, and 4340 are for loaded parts such as suspension links and driveline components, and they machine best in a normalized or pre-hardened state. Tool steel shows up for wear plates and forming dies, not for structural parts.

Stainless is where finishes get interesting. 303 is free-machining and gives a good surface without much fuss. 304 and 316 are tougher, weld better, and are common for exhaust-adjacent and under-hood brackets. 17-4PH can be aged after machining, which means the part is cut soft and then hardened, so final dimensions shift slightly. That shift has to be planned into the program.

Titanium, Inconel, and magnesium sit at the difficult end. TC4 (Ti-6Al-4V) needs low cutting speeds, high coolant pressure, and rigid setups. Magnesium AZ31B and AZ91D cut fast but require chip control and fire-safe handling. We quote these separately because cycle time and tool cost behave very differently from aluminum.

• 1
  6061-T6Default for housings, brackets, and covers.
• 2
  4140 pre-hardLoaded parts; cut in the hardened state to avoid growth.
• 3
  17-4PHCut soft, then age; plan for post-age shrinkage.

A purchasing engineer buying machined parts is not only buying geometry. They are buying evidence that the geometry will repeat on the next order, and the order after that. The proof log is a small piece of that evidence. It shows the process was monitored between first article and shipment, not merely sampled at the end.

Our quality route is built around that idea. Incoming material is checked against the certificate. In-process monitoring covers critical features during the run. Final inspection is 100% before shipment, with reports available on request. The four certifications we hold are ISO 9001:2015, IATF 16949:2016, ISO 13485:2016, and ISO 27001:2022.

IATF 16949:2016 is the one that matters most for automotive work. It sits on top of ISO 9001 and adds requirements specific to automotive production and service parts. In practice it means documented process control, traceability, and a defined response when something goes out of spec. Daily proofing fits that framework without adding a second layer of paperwork.

Traceability runs from the raw material certificate to the finished part. If a lot is questioned six months later, we can point to the heat number, the machine, the program revision, and the proof readings from the shift that cut it. That is the practical value of a boring-looking log sheet.

• 1
  100% inspectionEvery part is inspected before shipment, not sampled.
• 2
  Reports on requestMaterial certs, dimensional reports, and proof logs.
• 3
  Traceable lotsHeat number, machine, program revision, shift readings.
