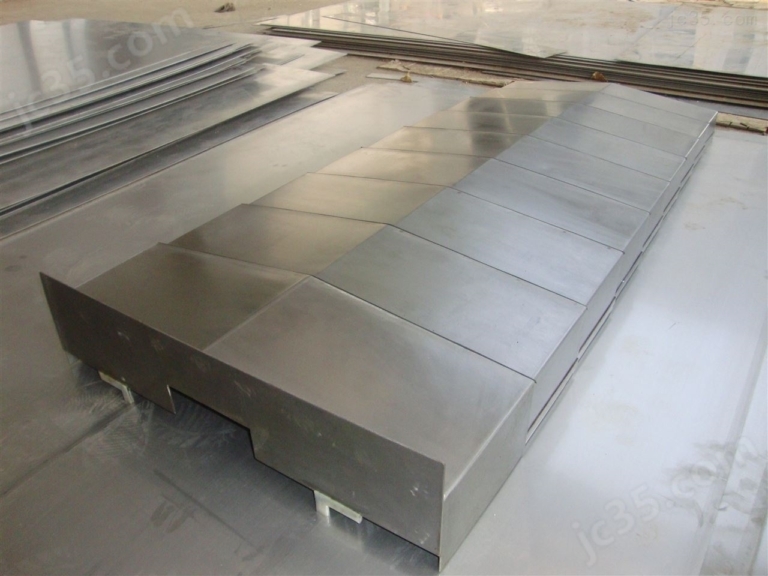

Basic Functions and Production Process of Machine Tool Sheet Metal Shields
This page explains what a machine tool shield does and how one is actually built, from blanking to final inspection. It is written for design engineers and buyers who need to specify telescopic covers, way wipers or bellows and judge which process fits the part.
What a shield has to do before anything else
Function first, geometry second: a cover that keeps chips off the rails but blocks service access is a failed design.
The four jobs a machine tool shield performs
A machine tool shield is a barrier. Its first job is to keep chips, coolant mist and grinding dust away from the linear guides, ball screws and measuring scales. Once abrasive cast iron dust reaches a way surface, wear accelerates and positioning accuracy drifts. That is the failure the shield exists to prevent.
The second job is containment. Coolant thrown off a spindle at 12,000 rpm has to land in the sump, not on the floor or on the operator. Telescopic covers and sloped side skirts redirect the flow. A cover with the wrong slope angle just spreads the mess sideways.
The third job is safety. Moving slides and rotating screws must be closed off so a hand cannot reach them during a cycle. On a vertical machining center the front cover often carries the door interlock mount, so it is a safety component, not trim.
The fourth job is keeping the working zone clean enough for the process. On a grinder, fine swarf in the cutting zone changes surface finish. On a laser or plasma table, the shield protects the drive from spatter and dross. Different machines, same principle: separate the dirty side from the accurate side.
- 1Chip exclusionStop abrasive swarf reaching guides, screws and scales
- 2Coolant containmentReturn fluid to the sump and keep the floor dry
- 3Operator safetyClose off moving axes and carry interlocks
- 4Process stabilityKeep the cutting zone clean enough to hold finish
What to fix before the first blank is cut
Start with travel. A telescopic cover must compress to a shorter length than the gap between the moving and fixed castings at the retracted end, and extend past the full stroke at the other. Measure the real machine, not the drawing. Casting ribs and lubrication lines are usually in the way.
Next, decide whether the shield carries load. A way cover that a person can stand on, or that carries a chip conveyor chute, needs a frame or reinforcing ribs. A pure splash guard does not. Mixing those two requirements in one part is where most over-heavy covers come from.
Then set the environment. Cast iron dust, fine aluminum, graphite, high-pressure coolant and hot chips each push a different material and gap choice. Tell the shop the chip type and the coolant pressure. It changes the answer more than the part size does.
- 1Stroke and compressionGive retracted length, extended length and mounting faces
- 2Load caseState whether anyone stands or leans on the cover
- 3Chip typeCast iron dust, aluminum, graphite or hot steel chips
- 4CoolantPressure, flow direction and fluid chemistry
Choosing sheet material for covers, wipers and bellows
Cold-rolled steel 1018 or 1045 is the default for telescopic boxes. It is stiff, welds well and takes powder coat or black oxide. The trade-off is mass: a long steel cover on a fast axis adds inertia and can start to rattle.
Stainless 304 or 316L is the answer when coolant chemistry is aggressive or the machine sits in a wash-down area. 304 is usually enough; 316L appears in food, pharma and medical equipment. Stainless work-hardens, so tight bend radii need more tonnage and a larger radius than the same part in steel.
Aluminum 5052 and 6061 keep the mass down on large covers and gantry machines. 5052 bends better; 6061 is stiffer and machines cleanly for slide blocks and end plates. Anodizing gives a hard, low-friction surface that resists coolant staining.
For flexible aprons and bellows, the material is coated fabric rather than sheet. Nitrile-coated cloth handles oil and coolant; PTFE or silicone-coated cloth handles higher temperature. The stitching and the guide plates matter as much as the cloth.
- 11018 / 1045 steelStiff, weldable, low cost; watch the added mass
- 2304 / 316LAggressive coolant and wash-down areas
- 35052 / 6061 aluminumLarge covers where weight drives the axis load
- 4Coated fabricRoll-up aprons and bellows on long travels
Shield type against machine and process
Use this to narrow the type before detailed design.
| Shield type | Typical machine | When it is the right choice |
|---|---|---|
| Telescopic steel cover | Vertical and horizontal machining centers | Long horizontal travel with heavy chip load |
| Roll-up apron | Grinders and lathes | Short travel, fine dust, tight retracted length |
| Bellows | Linear axes with light dust | Irregular geometry and no room for steel boxes |
| Way wiper | All slideways | Always fitted; scrapes the rail at every stroke |
| Splash guard | Any wet-cutting machine | Contains coolant and closes off the work zone |
| Sliding cover plate | Small mills and drills | Simple, low cost, short travel only |
From flat sheet to a fitted shield
Production starts with the flat pattern. The shop unfolds the 3D model, adds bend allowances and nests the parts on a standard sheet. Laser cutting handles the profiles, the mounting slots and the wiper reliefs in one pass. For thicker boxes, a turret punch may be faster if the hole pattern repeats.
Forming comes next. A press brake bends the side walls, the end plates and the interlocking steps of a telescopic section. The step geometry is the critical feature. Too much clearance and chips fall through; too little and the sections bind when the cover is compressed.
Welding closes the boxes. Thin sheet distorts, so the shop tacks the part in a fixture, welds in short passes and lets it cool between them. Continuous welds are used on coolant-carrying parts; stitch welds save distortion on splash guards. After welding, the part is dressed so no spatter rubs on a sliding face.
Finishing and assembly come last. Powder coat, black oxide or anodizing goes on before the wipers, guide plates and rollers are fitted. The cover is then slid through its full stroke on a bench, checked against the machine interface, and packed.
- 1Flat patternUnfold, add bend allowance, nest on standard sheet
- 2BlankingLaser cut profiles, slots and wiper reliefs
- 3FormingPress brake steps; step clearance sets chip sealing
- 4WeldingFixture, tack, short passes to control distortion
- 5AssemblyWipers, guide plates and rollers after finishing
What gets measured, and what usually goes wrong
Inspection focuses on the features that decide whether the cover works: overall retracted and extended length, step clearance, mounting hole position, flatness of the sliding faces and the fit of the wiper strip. A cover can be dimensionally correct and still fail if the step clearance is wrong.
The most common field failures are known. Covers rattle loose when the mounting bolts are not locked. Wipers wear through and stop scraping. Steel covers rust at the weld seams if the coating is thin there. Aprons tear at the clamp bar when the fabric is pulled past its travel.
On our side, a shield program is quoted with a DFM note within 12 hours, machined and formed parts ship in 3–5 days, and every part is inspected before it leaves. We hold ±0.005 mm on machined features and Ra 0.8–1.6 μm on sliding surfaces. The plants run ISO 9001:2015 and IATF 16949:2016, with ISO 13485:2016 and ISO 27001:2022 also in place.
- 1Length checkRetracted and extended length against the drawing
- 2Step clearanceFeeler gauge on each telescopic joint
- 3Mounting holesPosition against the machine interface
- 4Wiper fitContact along the full rail width
Questions engineers ask before ordering
Should I choose a steel telescopic cover or a roll-up apron?
Steel boxes suit long horizontal travel with heavy chip load, because they stay rigid and can be repaired section by section. They need more retracted length, so the machine casting must have room.
Roll-up aprons win when retracted space is short and the contamination is fine dust rather than heavy chips. They are lighter and cheaper, but the fabric is a wear item and will be replaced sooner than steel.
How much step clearance should a telescopic cover have?
Enough to slide freely, small enough to block chips. The value depends on chip size and on how well the machine is aligned, so it is set per application rather than by a single number.
Give the shop the chip type and the expected rail misalignment. They will pick the clearance and confirm it on a bench stroke before shipping.
Can you make covers to fit an existing machine?
Yes. Send the machine model, the axis travel, photos of the mounting faces and a sketch of the interface. Where there is no drawing, we measure from the photos and confirm the critical lengths with you before cutting.
From one prototype to 10,000+ part runs, there is no minimum order quantity. A single replacement cover for an older machine is a normal job for us.
Which material holds up against high-pressure coolant?
Stainless 304 or 316L for the sheet, with continuous welds on any face that sees the jet. Coated fabric parts should use nitrile or PTFE-coated cloth rather than a plain weave.
Tell us the coolant pressure and chemistry. It decides the coating more often than the sheet grade does.
Do you provide dimensional reports with the covers?
Yes, on request. Inspection reports cover the retracted and extended lengths, step clearance and mounting hole positions.
Raw material is checked on arrival, dimensions are monitored during forming and welding, and 100% inspection runs before shipment.
How are the drawings kept confidential?
Uploads are secure and confidential, and we sign an NDA on request before you send machine drawings.
If your drawings carry a customer name or a machine serial, we can work from a redacted set and still quote and build the part.
