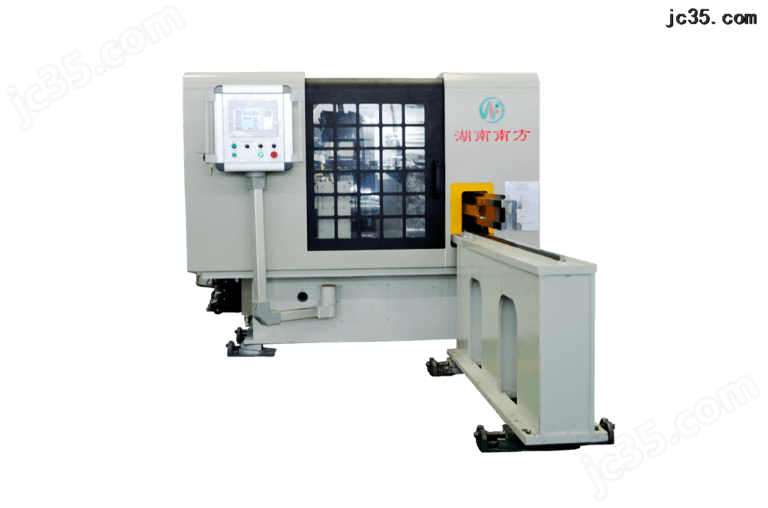

Basic requirements maintenance servicing for end gear broaching machines
This page is for maintenance engineers and shop supervisors who run vertical or horizontal end gear broaching machines and need to keep tooth spacing, surface finish and tool life stable. It covers daily checks, hydraulic and guide care, alignment, and the signs that a machine needs more than a wipe-down. Read it to decide what your team can do in-house and what needs a specialist.
What servicing an end gear broaching machine actually covers
A broaching machine holds accuracy through stiffness and alignment, not through electronics. Most failures start as small mechanical drifts that nobody logs.
Checks that belong on every shift
Start with the hydraulic power unit. Check oil level on the sight glass, oil temperature, and system pressure against the machine datasheet. A pressure drop of 5 bar or more usually means a worn pump, a stuck relief valve, or a leaking cylinder seal. Log the reading. Trends matter more than single numbers, because a slow drift over two weeks points to wear that nobody will notice from a smell or a sound.
Next, look at the cutting zone. Clear chips from the fixture and the broach puller before every cycle. Trapped chips get pressed into the workpiece and leave marks on the tooth flank. Wipe the guideways and apply the specified way oil. Dry ways wear fast on a broaching machine because the cutting force is one-directional and always pushes the ram into the same side of the slide.
Check the coolant concentration and pH with a refractometer, not by eye. A 5% to 8% concentration suits most broaching alloys, but the tool supplier's data sheet wins. Broaching produces long curled chips, so a clogged filter raises the chip load on the return stroke. Empty the chip conveyor and clean the tank screen at the end of the shift. Fifteen minutes here prevents a scrapped batch later.
- 1Oil level and temperatureLog both at the start of each shift; a rising temperature means heat is building somewhere.
- 2System pressureCompare to the datasheet. A drop of 5 bar or more needs investigation before the next run.
- 3Guideway filmWipe and re-oil dry ways. Never let the ram slide on a starved surface.
- 4Chip removalClear chips from the fixture, puller and tank screen before every cycle.
Hydraulic and guideway care: the parts that decide tooth accuracy
Hydraulic oil is the working fluid and the lubricant at the same time. Sample it every 500 to 1,000 running hours and test for viscosity, water content, and particle count. ISO 4406 cleanliness of 18/16/13 or better keeps servo valves alive. Water above 0.1% turns the oil milky and attacks seals. When the sample fails, change the oil and the return-line filter together, then flush the reservoir. Partial changes leave the contamination behind.
Guideways carry the ram and the broach. On a worn way, the ram tilts under load and the tooth depth varies from the first tooth to the last. Measure straightness with a dial indicator on the ram face along the full stroke. A deviation above 0.02 mm over 300 mm is a warning. Re-scrape or re-grind the ways, then re-align the ram to the fixture. Do not compensate with the tool; that hides the wear and shortens broach life.
Check the broach puller and the retriever mechanism weekly. The puller grips the broach shank with a set of jaws or a collet. Worn jaws slip, and a slipping puller produces a stepped tooth profile. Measure jaw wear and replace the set when the grip marks on the shank widen by more than 0.05 mm. Keep a spare set on the shelf.
- 1Oil sampling intervalEvery 500–1,000 running hours; test viscosity, water and particle count together.
- 2Target cleanlinessISO 4406 18/16/13 or better to protect servo valves and cylinders.
- 3Way straightnessDial indicator along the full stroke. Over 0.02 mm per 300 mm is a warning sign.
- 4Puller jawsReplace the jaw set when shank grip marks widen by more than 0.05 mm.
Servicing intervals and what to check at each
Adjust these to your duty cycle. A machine running three shifts needs the short intervals, not the long ones.
| Interval | Task | Acceptance check |
|---|---|---|
| Every shift | Hydraulic oil level, pressure, coolant concentration | Pressure within 5 bar of datasheet; coolant 5–8% |
| Every shift | Clear chips, wipe and oil guideways | No chip build-up; ways have an oil film |
| Weekly | Puller jaw wear, retriever alignment, filter screen | Grip marks widen under 0.05 mm |
| Monthly | Ram straightness, fixture clamp force, backlash | Under 0.02 mm per 300 mm; clamp force per spec |
| Every 500–1,000 h | Hydraulic oil sample and filter change | ISO 4406 18/16/13 or better |
| Annually | Way re-scrape or re-grind, ram re-alignment, cylinder seals | Tooth depth variation within print tolerance |
Broach care and the wear signals that matter
A broach is a multi-tooth tool, so wear shows up as a change in the tooth profile, not as a sudden failure. Inspect the cutting teeth under a magnifier every 200 to 500 parts, depending on the material. Look for flank wear on the roughing teeth, chipping on the first few teeth, and built-up edge on the finishing teeth. A dull broach raises cutting force, which raises hydraulic pressure and ram deflection. That is the link between tool care and machine care.
Measure the finished part, not only the tool. Check tooth spacing, tooth depth, and surface finish on the first and last parts of a batch. A drift of 0.01 mm in tooth depth across the batch usually means the broach is pulling off-center or the fixture has moved. Re-sharpen the broach before the wear land exceeds the limit in the tool drawing. Over-sharpening removes the relief angle and the tool will not cut again.
Store broaches vertically in their racks, never lying on a bench. A broach is long and thin; a small bend from bad storage shows up as a tapered tooth depth. Oil the shank before storage to stop rust on the puller grip surface.
- 1Inspection frequencyEvery 200–500 parts, sooner in hard or abrasive materials.
- 2Wear signalsFlank wear, chipping on the lead teeth, built-up edge on finishing teeth.
- 3Part-based checkMeasure tooth depth and spacing on the first and last parts of each batch.
- 4StorageVertical racks only; oil the shank to protect the puller grip surface.
When in-house servicing is not enough
Some problems sit beyond basic requirements maintenance servicing. If the ram straightness stays out of tolerance after re-scraping, the bed may be worn or the column may have shifted. If hydraulic pressure cannot hold steady after a pump and valve service, the cylinder bore may be scored. If tooth depth varies in a pattern that follows the stroke position, the machine geometry needs a full realignment on a granite surface plate, not a field adjustment.
A rebuild is worth it when the frame and the bed are sound and the wear is in the moving parts: ways, cylinders, pumps, valves, puller jaws. A rebuild is usually the wrong call when the bed has cracks, the column has moved permanently, or the control system no longer matches the mechanicals. Ask for a geometry report before you approve the work. Numbers beat opinions.
GreatLight runs 127 high-precision CNC machines across three plants, including 16 simultaneous 5-axis machining centers and a Ø400 mm rotary table. For broaching-machine parts that need replacement, we work from your drawings or a sample and hold ±0.005 mm on critical features. Quotation and free DFM analysis come back within 12 hours, and production can start within 24 hours.
Common questions
How often should hydraulic oil be changed on a broaching machine?
Sample every 500 to 1,000 running hours and change the oil when the sample fails on viscosity, water content, or particle count. A fixed calendar interval is a rough guide only, because duty cycle and ambient temperature change the oil life a lot.
Always change the return-line filter with the oil and flush the reservoir. A partial change leaves the contamination in the tank and the new oil picks it up again.
What tooth depth variation is acceptable before I stop the machine?
Compare against the part print first, not a generic number. If the print allows 0.02 mm on tooth depth and you see 0.015 mm drifting across one batch, stop and check the ram straightness, the fixture clamp force, and the puller jaws.
A pattern that follows the stroke position points to machine geometry. A random pattern points to tool wear or chip entrapment.
Can we re-scrape the guideways in our own shop?
Only if you have a granite surface plate, a straightedge long enough for the full stroke, and someone who has scraped ways before. It is a hand skill, not a machine operation.
After scraping, re-align the ram to the fixture and check straightness with a dial indicator along the full stroke. Target under 0.02 mm per 300 mm.
How do I tell a worn puller from a worn broach?
Look at the grip marks on the broach shank. If they are wider or deeper than on a new broach, the jaws are worn. If the shank looks clean but the tooth profile has changed, the broach is worn.
Worn jaws slip under load and produce a stepped tooth profile. Replace the jaw set when the grip marks widen by more than 0.05 mm.
Is it worth rebuilding a broaching machine rather than replacing it?
Yes when the bed, column and frame are sound and the wear is in the ways, cylinders, pumps, valves or puller. Those are replaceable and the geometry can be restored.
No when the bed is cracked or the column has moved permanently. A geometry report from a specialist gives you the numbers to decide.
Do you make replacement parts for broaching machines?
We machine replacement parts from your drawings or from a sample, including puller jaws, fixtures, wear plates and hydraulic components. Critical features are held to ±0.005 mm.
Quotation and free DFM analysis come back within 12 hours. Production can start within 24 hours, and parts ship in 3–5 days. Uploads stay confidential and an NDA is available on request.
