Calculation Tool Nose Radius Compensation for CNC Turning
A turning insert never cuts with a mathematical point. The nose arc touches the profile at a moving tangent point, so every X and Z figure you program is short or long by a small amount. This page shows how to read the insert corner radius, work out the offset, and set it on a Fanuc-style lathe. Written for programmers and setup machinists who need to hold a drawing tolerance, not a theory exam.
Why a Nose Radius Breaks a Straight Program

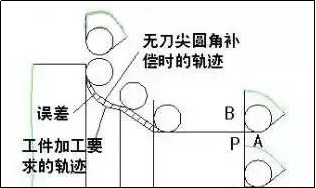

A turning insert is defined by a corner radius, not a point. CNC lathe programming normally treats the tool tip as a single reference point, and the control shifts that point along the path. The physical nose arc sits somewhere else. On a face, a bore, or a chamfer the contact point is not the same point the control moved, so the finished profile lands off the drawing by a fixed amount in X and Z.
The size of the error depends on the corner radius and the direction of travel. A Ø0.8 mm insert cutting straight in Z leaves a shoulder that is 0.8 mm short in Z if the offset is zero. The same insert finishing a 45° chamfer pushes the surface out by about 0.23 mm normal to the face. Small radii on light finishing passes hide this. A Ø1.2 mm corner on a roughing cycle does not.
Angle matters more than most people expect. Run the insert along the X axis and the error shows up in Z. Run it along Z and the error shows up in X. Feed into a corner and the error splits between the two axes. That is why a program that holds size on a straight shaft can run out of tolerance as soon as a radius or a taper appears on the same part.
The fix is not to fudge the geometry by hand. The control can do it, provided you tell it the corner radius and the tool orientation. That is the whole job of nose radius compensation. Get the two numbers right and the toolpath math takes care of itself.
Reading the Tool Orientation Code
Fanuc-style controls expect a two-digit orientation number, usually written as T0101 or in the offset page as a code from 0 to 9. The first digit is the tool station. The second digit describes where the cutting edge sits relative to the tool center. A standard right-hand OD turning tool, cutting toward the chuck on the X-plus side, is code 3. An ID boring bar is code 2.
The code tells the control which quadrant the nose arc occupies and which direction the compensation shifts. Enter code 3 for a tool that is actually code 2 and the control shifts the offset the wrong way. The error doubles instead of cancelling. Sizes go out by two times the nose radius, which is enough to scrap a batch before anyone notices.
Tool nose direction codes are geometry, not preference. They come from the insert shape, the holder, and which way the spindle turns. A neutral holder used upside down is not the same code as the same holder used right side up. If your shop keeps a tool sheet, put the orientation code next to the insert ISO designation so nobody has to guess at setup.
One more detail. The control needs to know whether the radius value is a real number or a wear value. On most lathes the geometry offset holds the theoretical corner radius from the insert box, and the wear offset holds the small corrections you make after measuring a trial part. Keep them in separate columns so a tool change does not wipe your wear data.
Calculating the Offset Without a CAM System

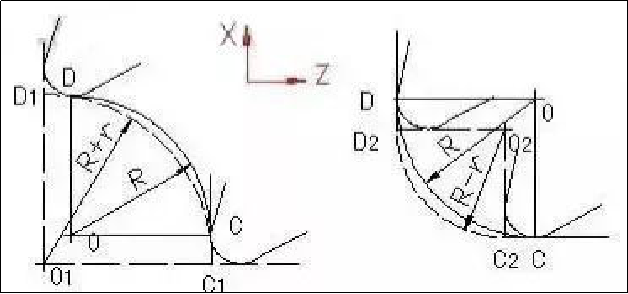

When you program by hand, or when a CAM post is under suspicion, you can work out the compensation vector yourself. The calculation tool nose radius problem reduces to one triangle at each corner of the profile. The nose radius is the hypotenuse leg, and the profile angle gives you the direction. What you want is the shift in X and Z.
Take a simple 90° shoulder. The tool approaches in Z, then turns into X. At the corner the contact point sits at 45° on the nose arc. The shift in each axis is R × (1 − cos 45°) for one leg and R × sin 45° for the other. With R = 0.8 mm that is roughly 0.23 mm in X and 0.57 mm in Z. Write those two numbers into the program and the shoulder lands on size.

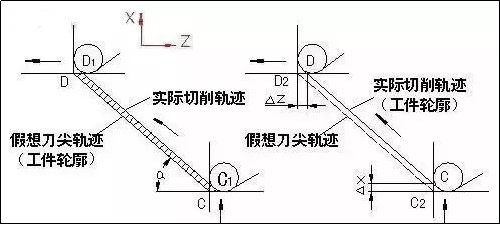

Tapers follow the same logic with a different angle. For a 30° included taper the compensation vector points perpendicular to the taper surface, and its magnitude is R times the sine of the half angle, resolved into X and Z components. A table of common angles saves time at the machine. Angle 15° gives 0.207R normal to the surface. Angle 45° gives 0.707R.
Do the arithmetic once per part family and keep the numbers in the setup sheet. It takes ten minutes and it keeps you out of the offset page at 2 a.m. If the part has three or more angled features, stop hand-calculating and let the control do it with G41 and G42.
Compensation Shift by Profile Angle and Nose Radius
Values are the normal shift at the contact point, R × sin(half angle). Multiply by the axial or radial component as needed.
| Profile half angle | Ø0.4 mm corner | Ø0.8 mm corner | Ø1.2 mm corner |
|---|---|---|---|
| 15° | 0.104 mm | 0.207 mm | 0.311 mm |
| 30° | 0.200 mm | 0.400 mm | 0.600 mm |
| 45° | 0.283 mm | 0.566 mm | 0.849 mm |
| 60° | 0.346 mm | 0.693 mm | 1.039 mm |
| 90° shoulder | 0.400 mm | 0.800 mm | 1.200 mm |
Setting G41 and G42 on a Lathe
G41 shifts the tool to the left of the programmed path, G42 to the right, when viewed in the direction of travel. On an OD turning pass moving toward the chuck, G42 pushes the tool outward so the nose arc contacts the finished diameter. On a boring pass moving away from the chuck, the same physical motion needs G41. Mixing them up produces a part that is off by two times the nose radius.
Lead-in and lead-out moves matter. The control needs a linear move at least as long as the nose radius to ramp the compensation on and off. A lead-in of 1 mm or more on a Ø0.8 mm insert is safe. Start the compensated block on a straight approach, never on an arc, and never inside a threading cycle.
Cancel compensation with G40 before you send the tool home or change stations. An active G41 or G42 during a rapid move to the tool change position will drag the offset along and can crash the turret. Put G40 in the last block of the finishing pass, not in the next tool's first block.
Check the first part with a micrometer on the diameters and a height gauge on the shoulders. If the OD is right but the shoulder is long, the orientation code is probably wrong. If both are off by the same direction and roughly the same amount, the radius value in the offset page does not match the insert in the holder.
When Compensation Is Not Enough
Nose radius compensation corrects the geometry of a sharp-cornered toolpath. It does not correct tool deflection, thermal growth, or wear. On a long slender shaft the insert pushes away from the work and the finished diameter drifts. Compensation cannot fix that, because the error is not a constant.
Very small corner radii are also a limit. Below roughly Ø0.2 mm the insert edge is fragile and the theoretical radius is hard to measure. The compensation value becomes a guess, and the surface finish suffers at the same time. If a drawing calls for a sharp internal corner, better to specify an undercut or a relief groove than to chase it with a tiny radius.
On a mill-turn or a multi-axis lathe the same principle applies but the axis names change. The control still needs the corner radius and an orientation code. The toolpath interpolation is done in the machine frame, so a B-axis head turning to an angle needs its own orientation entry. We set these per tool in the offset page and verify with a trial cut.
For parts we run, the usual approach is to program the nominal profile, set the geometry offset to the insert radius from the box, then dial in wear after the first article. Holding ±0.005 mm on diameters and Ra 0.8–1.6 μm on turned faces is routine when the offset data is clean.
Common Questions on Nose Radius Compensation
Do I need compensation if I only turn straight diameters?
Often no. A pure Z-axis pass on an OD leaves the diameter correct because the contact point stays at the same place on the nose arc. The moment a shoulder, chamfer, or radius enters the path, the error appears.
If the part is only straight shafts with square ends, you can usually skip G41 and G42 and just set the X offset from a trial cut.
Where do I find the corner radius for my insert?
It is laser-marked on the insert box and usually on the insert itself, next to the ISO code. A CNMG 120408 has a 0.8 mm corner. The last two digits of the ISO designation give the radius in tenths of a millimeter.
If the marking is worn, measure the insert on an optical comparator or a tool presetter. Do not assume a value from a similar insert in the same drawer.
What happens if I enter the wrong orientation code?
The control shifts the offset in the wrong direction. The profile error becomes two times the nose radius instead of zero, so a 0.8 mm insert can put a shoulder 1.6 mm out of position.
The part usually fails on the first inspection, and the fix is a single digit in the offset page.
Can I use the same offset for roughing and finishing?
The geometry offset is the same because it is the same insert. The wear offset should be separate. Roughing loads push the tool differently from a light finishing pass, so the wear value that works at 0.15 mm/rev is not the value that works at 0.05 mm/rev.
Keep two tool stations or two offset rows if the part is tight.
Does nose radius compensation change the surface finish?
Indirectly, yes. The theoretical roughness on a turned face depends on feed squared divided by eight times the corner radius. A larger radius gives a smoother surface at the same feed.
That is separate from the position error. Compensation fixes where the surface sits, not how smooth it is.
How do we handle this on multi-axis lathes?
The control still uses a corner radius and an orientation code, but the machine frame may include a B axis or a sub-spindle. Each tool needs its own entry, and the trial cut is the only reliable check.
We verify the first article on every new setup before the run continues.
