CNC 30x40: 7 Deadly Mistakes That Kill Your Productivity

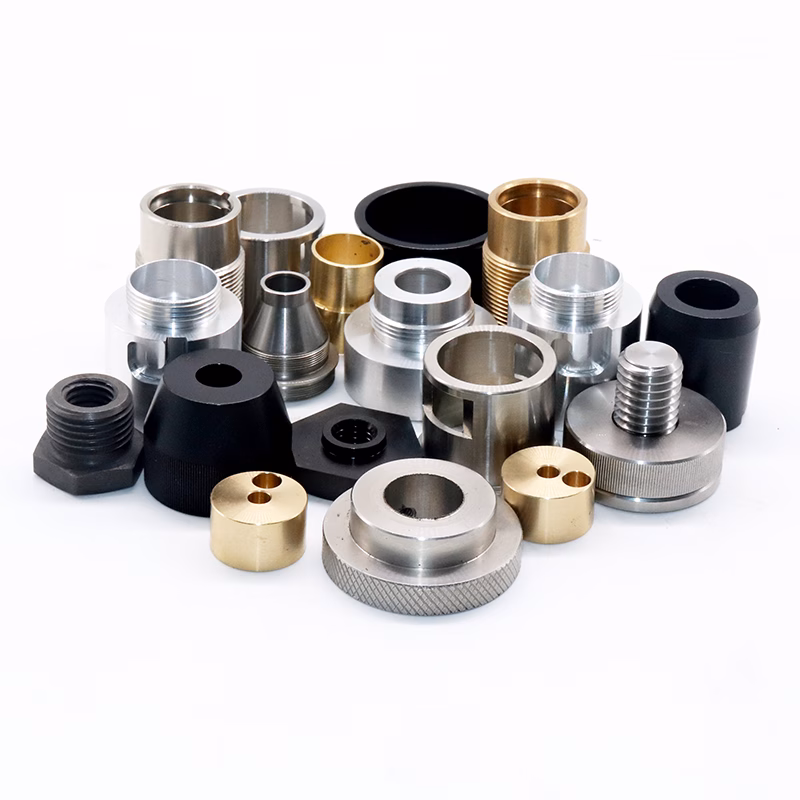

Workholding gets treated as a clamping chore: bolt a vise down, indicate it roughly, start the spindle. On a 30 × 40 table that habit costs more than on a small machine, because the same fixture may carry three or four parts per cycle. A weak setup does not fail once. It shifts slightly, then repeats the error across every pocket in the batch. Chatter shows up as a pattern on the wall finish, and the operator blames the cutter.

Fixtures deserve the same engineering time as the part. Locate on a machined datum, not on a saw-cut face. Support thin walls from underneath with a contoured nest rather than clamping harder, and add a sacrificial backing plate when the floor thickness drops below 2 mm. For a 4,000 mm travel machine running long extrusions, a rail-and-toggle setup indexed off two dowel pins will hold position through a full shift far better than toe clamps.

Carbide end mills are not interchangeable. A generic 4-flute cutter pushed at the wrong radial engagement leaves chatter marks and burns through the coating in one shift. Variable-helix geometry and high-feed roughing cutters move metal faster in aluminium, but they behave badly in 17-4PH if the stepover is too wide. Tool life tracking matters more than tool selection on its own. We log spindle hours and cut length per tool, pre-set every cutter on an optical setter, and swap on a schedule rather than on a broken edge.

• 1
  Datum firstLocate on machined faces, not raw stock edges.
• 2
  Support thin floorsUse a contoured nest under walls below 2 mm.
• 3
  Log tool lifeTrack cut length, not just spindle hours.

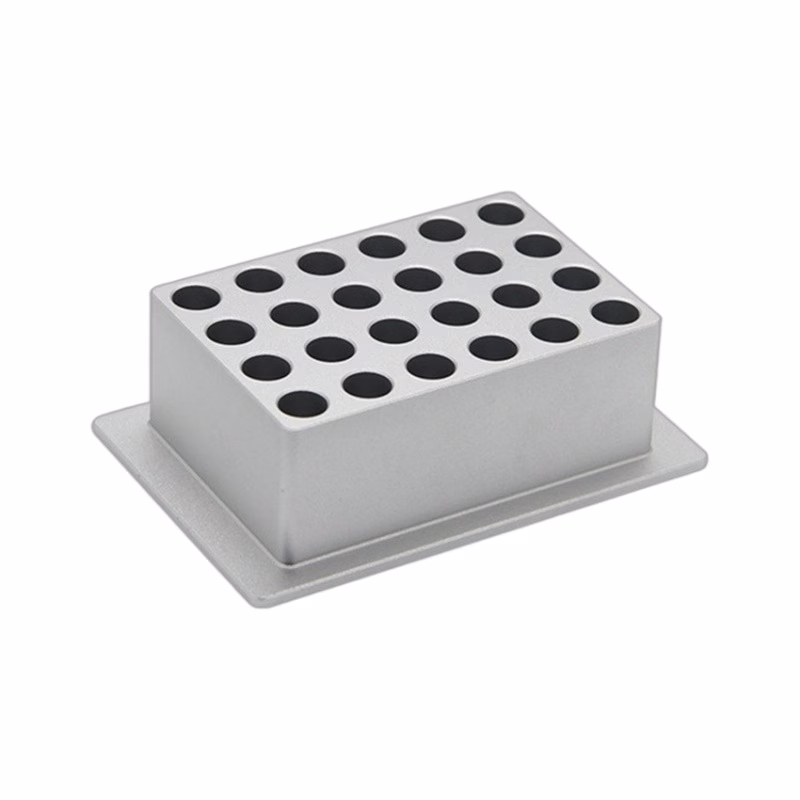

Feeds and speeds copied from a chart or a previous job are the most common source of lost productivity. The right numbers depend on radial engagement, tool overhang, material condition and the rigidity of the setup. A 12 mm end mill hanging 60 mm out of the holder needs a different feed than the same cutter in a shrink-fit holder at 25 mm. When the machine sounds steady but the insert wears on one corner, the feed per tooth is usually wrong, not the speed.

We keep material-specific data sets for aluminium 6061 and 7075, stainless 304 and 17-4PH, titanium TC4, Inconel 718 and plastics such as PEEK and POM. Each set carries a starting surface speed, a chip load range and a depth-of-cut limit. The operator adjusts from there and records what worked. That record is what makes the second run faster than the first.

Chip evacuation decides whether any of that data survives contact with the part. Recutting chips doubles the heat at the edge and wrecks surface finish on deep pockets. On aluminium, through-spindle coolant at 20–70 bar clears the flute fast. On titanium, high-pressure coolant is not optional; it is the difference between a stable cut and a burning one. Air blast works for graphite and some plastics where coolant would contaminate the part.

Program the chip path, not just the toolpath. Ramp entries instead of plunging, choose a stepover that lets the chip curl and exit, and give deep cavities a peck or a helical entry so the flutes clear before the next pass. A 30 × 40 table with four parts per cycle multiplies every chip trap by four.

• 1
  Match the holderLong overhang needs lower feed per tooth.
• 2
  Coolant by materialThrough-spindle for Al and Ti, air for plastics.
• 3
  Clear the flutesHelical entry beats a straight plunge in deep pockets.

Skipping first article inspection to save an hour is a false economy. On a multi-pocket fixture, one wrong offset repeats across the whole plate. The first article is where you confirm not only the dimensions but the setup itself: datums, tool lengths, work offsets and the direction the part actually sits in the fixture. We check the first piece against the drawing, log the results, then release the run. In-process checks follow at a defined interval, and the final inspection covers 100 % of parts before shipment.

Measurement method matters as much as the check. A bore measured with calipers on the shop floor is not the same number as one measured on a CMM with a temperature-compensated setup. When a drawing calls for ±0.005 mm, the inspection method has to be capable of resolving that band with margin, not sitting on the edge of it. Define the method on the drawing so the shop floor and the customer read the same requirement.

CAM problems rarely look like CAM problems. A model translated from one kernel to another can lose a fillet or shift a tangent face by a few microns, and the toolpath quietly cuts air or gouges a corner. We import STEP rather than native formats, check the model for open shells and sliver faces before programming, and confirm critical features against the drawing rather than trusting the geometry.

Toolpath strategy follows the part, not habit. Rest machining removes what the previous cutter left instead of re-cutting the whole pocket. Adaptive clearing keeps radial engagement constant and protects the cutter in hard material. For a five-axis job, verify the post-processor output against the machine kinematics before the first run, and dry-run the program in air when the setup allows it. A 30-minute verification beats a scrapped 4,000 mm plate.

• 1
  Release on the first pieceCheck dimensions and setup before the full run.
• 2
  Define the methodState the gauge and setup on the drawing.
• 3
  Import STEPCheck for open shells and sliver faces.

Geometry drifts slowly. A machine that held ±0.005 mm last quarter may not hold it this month, and the parts will tell you before the maintenance log does. Spindle runout, thermal growth over a long cycle, and backlash on a worn ball screw all show up as a gradual loss of position rather than an obvious failure. Operators notice it as an offset that keeps needing a tweak.

Track it on a schedule. Check spindle runout and taper condition, verify the tool setter against a known master, and re-ballbar the machine after any crash or spindle change. For five-axis work, the rotary table and trunnion need their own verification: a Ø400 mm rotary table that is 10 arc-seconds out will swing a bore off position at the edge of the part. Thermal compensation and a warm-up cycle matter on long unattended runs.

The same discipline applies to the shop environment. Coolant concentration, tramp oil and pH drift affect finish and tool life as much as any cutting parameter. Chips left on the table become a datum error on the next setup. Machine health is a process input, not a maintenance afterthought.

• 1
  Schedule geometry checksBallbar and runout checks, not just a spindle hours count.
• 2
  Verify the rotaryRotary and trunnion need their own alignment check.
• 3
  Control the coolantConcentration and pH affect finish and tool life.
