CNC 5 axis positioning for multi-face machining

A 5-axis machining center adds two rotary axes to the three linear ones. On a trunnion machine, the A axis tilts the table and the C axis spins it. Swivel-head designs put both rotaries in the spindle instead. Either way, the part can reach orientations that a 3-axis mill cannot, and that is the whole point of multi-face work.

Positioning usually means the machine rotates to an orientation, locks, and then cuts. Shops call this 3+2 or positional 5-axis. The rotary axes stop while the tool is in the cut, so the controller only has to hold a static angle. Deep pockets, flat faces, and bolt patterns on several sides can all be reached in one setup.

Full simultaneous motion is the other mode. All five axes move together while the tool stays in contact, which suits contoured surfaces, impellers, and blending between faces. The trade-off is programming time and a longer cycle. Not every multi-face job needs it.

Most multi-face parts are prismatic. They have flat faces, drilled holes, counterbores, and slots that sit at 90° or 45° to each other. Positional work handles these well, and it does so with a stiffer setup than continuous motion. Locked rotary axes behave almost like a rigid fixture.

The reason to lock the axes is tolerance. Every rotary axis you move during a cut adds a small error and a small amount of tool deflection. Holding an angle still removes both. For a housing with bores on four sides, that difference shows up in the bore-to-bore relationship, not in the bore diameter itself.

Cycle time matters too. A positional program cuts one face, indexes, and cuts the next. Indexing takes a second or two. A simultaneous program may spend minutes following a surface that a flat end mill could have faced in one pass.

There is a limit. If the part has a curved surface that wraps around two axes at once, or a blend radius that must be continuous across a corner, positional work will leave witness lines. That is when simultaneous motion earns its cost.

Start with the number of setups you would need on a 3-axis machine. Two setups are often cheaper to run on a 3-axis with a flip fixture. Once you reach three or four setups, the 5-axis setup starts to win on labor, handling damage, and datum error.

Look at the ratio of part size to feature size. A large plate with small features on five faces is a classic 5-axis job. A small, simple bracket usually is not. The machine time saved does not cover the programming and fixturing effort.

Check whether the part has features that can only be reached from an angle. Angled oil galleries, cross-drilled holes, and undercuts behind a flange are hard to reach on a 3-axis machine without a custom angle plate. Positional 5-axis reaches them with a standard vise.

Think about access for the tool, not just the angle. A long tool in a deep pocket will chatter no matter how the part is oriented. If the feature is deep and narrow, a 3-axis setup with a shorter tool may cut better than a 5-axis setup with a long one.

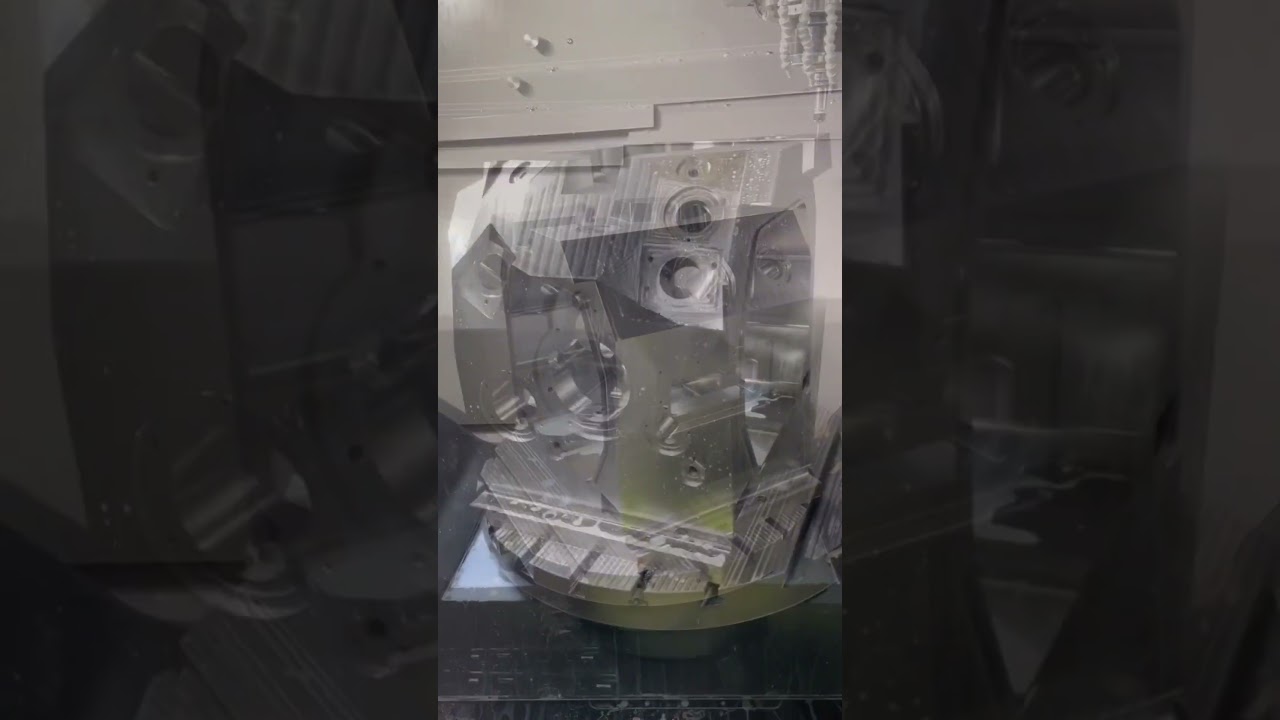

A 5-axis setup only pays off if the part can be held rigidly through every orientation. The rotary table on our machines is Ø400 mm, so the fixture and part must fit that envelope and still clear the spindle during tilt. A tall fixture can hit the machine before it hits the part.

Zero-point systems help here. A pallet with a known reference lets the operator load the part away from the machine and drop it in with repeatable position. That shortens the setup and keeps the datum consistent between the first part and the hundredth.

For thin-walled parts, support is the limiting factor. A wall 1 mm thick will deflect under clamping pressure and under cutting force. We often add a soft-jaw nest or a low-melt fixturing compound, then machine the critical faces last so the part is as stiff as possible when it counts.

Probing closes the loop. Touch-off on the actual stock surface, not on the nominal CAD face, tells the controller where the material really is. On castings and forgings with ±0.5 mm stock variation, that step prevents a scrapped first part.

Our standard tolerance is ±0.005 mm (±0.0002 in). Across several faces on one setup, the achievable result depends on the machine's rotary accuracy and on thermal stability, not on the operator's skill alone. A warm spindle drifts. We let the machine reach thermal equilibrium before a tight run.

Surface finish is tied to the same variables. Ra 0.8–1.6 μm is a normal machined finish for multi-face work, and Ra 0.2–0.8 μm is available where a bore or seal face needs it. Finer finishes on an angled face cost more because the tool path has to be denser.

Inspection closes the job. We inspect 100% of parts before shipment, with raw material checks, in-process monitoring, and a final inspection, and we send reports on request. For multi-face parts, the report usually covers each datum-referenced feature, not just the overall envelope.

Materials behave differently under the same program. Aluminum 6061 and 7075 cut clean and hold size well. Stainless 316L and 17-4PH work-harden, so the tool path has to keep the cutter moving. Titanium TC4 and Inconel need lower surface speed and more coolant. We machine all of these on the same 5-axis platform with adjusted parameters.
