CNC Five Axis Machining of Complex Parts
This page explains how two rotary axes change tool orientation, what that does to reach, rigidity and setup count, and where the method stops paying off. Written for engineers and buyers who need to judge a part before quoting it.
What the two extra axes actually move
A 3-axis mill moves the tool in X, Y and Z. The tool always points straight down. A 5-axis machine adds two rotary motions, so the cutter can be tilted relative to the part. That single change is the whole story. Everything else follows from tool orientation.
Two layouts dominate the shop floor. A trunnion machine swings the table on a tilt axis and rotates it on a C axis, so the part moves under a fixed spindle. A swivel-head machine tilts the spindle instead and leaves the table to index. Trunnion machines hold heavier parts. Head machines reach into deep pockets more easily.
Simultaneous means all five axes move in the same block of code. Indexed work means the rotaries lock while the cut runs. Simultaneous motion is what lets a ball nose cutter stay normal to a curved surface, which keeps the effective stepover even across a compound curve.
The cost of that freedom is stiffness. Any rotary axis adds a joint, and every joint flexes under load. A trunnion table hanging 200 mm off the C axis is not as rigid as a vise bolted flat to the bed. That gap shows up in chatter, in tool life, and in the depth of cut you can actually take.
Part features that justify the extra axes

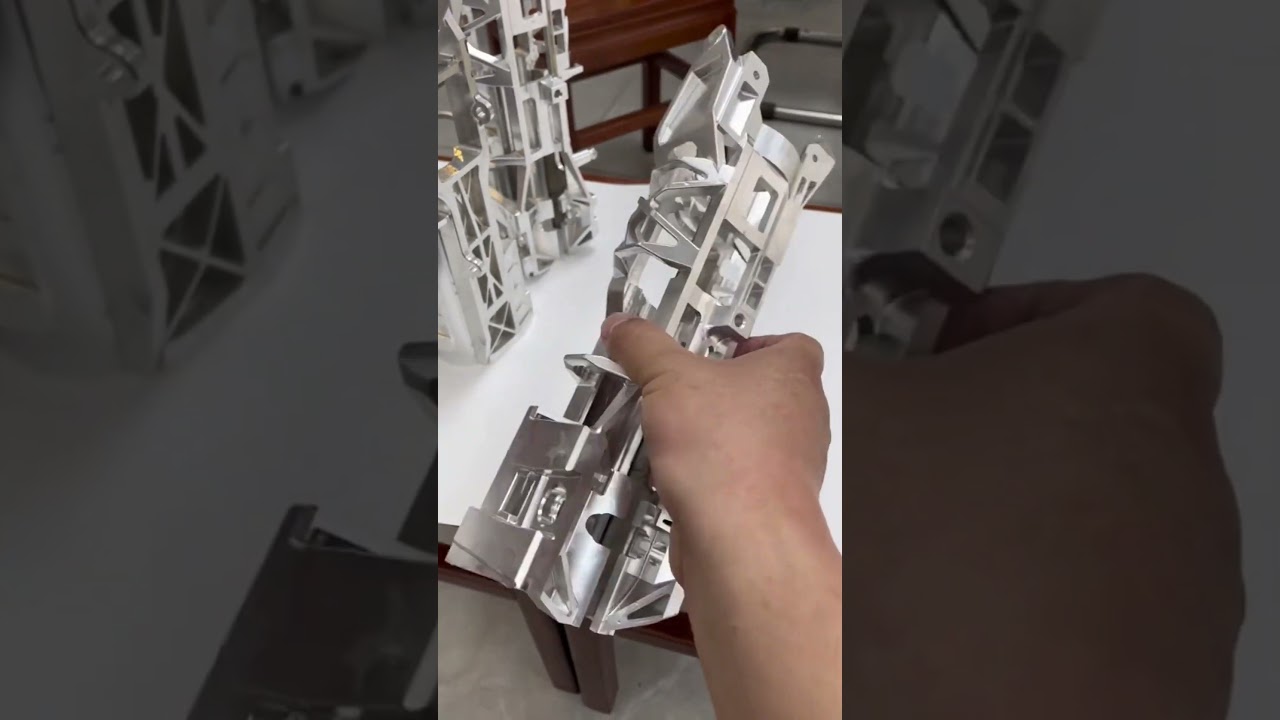

Five sides in one setup is the classic case. A housing with bores on four faces and a face mill cut on top normally needs three or four vises, three or four datum resets, and a stack of positional tolerance. Tilt the part once and every feature comes off the same datum.
Undercuts and re-entrant pockets are the second case. If the tool shank fouls the wall before the flute reaches the corner, no 3-axis approach will cut it. Tilting the spindle lets a shorter, stiffer tool enter at an angle and clear the overhang.
Free-form surfaces are the third. Impeller blades, turbine vanes, and curved mold cavities are defined by a spline, not by planes and holes. A 5-axis toolpath can follow the surface normal and hold Ra 0.8–1.6 μm without a hand polish.
Then there is the deep cavity problem. A long reach tool deflects, and deflection shows up as taper in the wall. Angling the tool lets you use a shorter gauge length on the same feature, so the wall stays parallel over its full depth.
How a 5-axis job is planned in practice
Work holding comes first. On a trunnion, the part sits on a fixture plate bolted to the rotary table. The fixture has to clear the tilt axis through its full swing, so a tall tombstone that works fine at 0° will crash at 90°. We check the swing envelope before anything else.
Tool selection follows. A 5-axis toolpath rewards short, rigid tools. A Ø12 mm carbide end mill with 40 mm gauge length will out-cut a Ø12 mm tool with 100 mm of stick-out every time, even though both are the same diameter. Pull the tool as far into the holder as the geometry allows.
Toolpath strategy is next. For curved surfaces, a ball nose cutter with a 0.2–0.5 mm stepover holds finish with fewer passes than a parallel 3-axis raster. For roughing, a bull nose or a high-feed mill at a 10–15° lead angle moves material faster than a square corner tool.
Verification closes the loop. Every simultaneous program is checked against the machine model in simulation before it runs. We look for holder-to-fixture collisions, axis over-travel, and singularities where the C axis has to spin to keep the tool normal. A singularity in the middle of a finishing pass leaves a visible mark.
Where the tolerance budget goes
Machine accuracy and part accuracy are not the same number. A machine that positions to ±0.005 mm still has to stack rotary runout, fixture repeatability, thermal growth, and tool wear on top. On a trunnion, rotary table runout at Ø400 mm can be 5–10 μm before the cut even starts.
Thermal drift is the quiet one. A spindle running for four hours grows, and the part grows with it. On a tight bore, that shows as a size shift between the first and last part in a run. In-process probing catches it. Guessing does not.
Thin walls are a stiffness problem, not a machine problem. When the wall is 0.8 mm thick, the part deflects away from the cutter regardless of how good the machine is. Reducing radial engagement to 5–8% of cutter diameter and increasing spindle speed keeps the cutting force low.
For most parts, the practical result is ±0.005 mm on a 5-axis center with the right fixture. Chasing tighter than that on a flexible part usually means more setups and more inspection, not a better part.
When five axes beat three, and when they do not
Read this before you commit a part to the 5-axis queue
| Part condition | 3-axis | 5-axis | Reason |
|---|---|---|---|
| Features on 4+ faces | 4 setups, 4 datums | 1 setup | Datum stack drives error |
| Undercut or re-entrant pocket | Not reachable | Reachable | Tool shank clearance |
| Spline-defined surface | Faceted, needs polish | Follows surface normal | Stepover stays even |
| Deep cavity, L/D over 5 | Taper in wall | Shorter tool, less deflection | Angled entry |
| Flat plate, holes on one face | Faster and cheaper | Slower | Rotary setup adds no value |
| Prismatic block, 2 faces | Faster and cheaper | Slower | 3-axis vise is rigid |
| Ø400 mm disc, face + rim | Two setups | One setup | Rotary table holds it |
| Titanium thin wall | Chatter risk | Tool axis control helps | Lower radial engagement |
The call we would make
If the part has features on four or more faces, an undercut, or a spline-defined surface, put it on a simultaneous 5-axis center and accept the slower cycle. If it is a flat plate or a two-face prismatic block, keep it on a 3-axis mill with a rigid vise — the rotary setup buys you nothing and costs you cycle time.
Questions engineers ask before quoting
Does 5-axis machining always hold tighter tolerance than 3-axis?
No. The gain comes from fewer setups, which removes datum stack-up error. If a part only needs one 3-axis setup, the 3-axis machine is often the more accurate of the two because the setup is stiffer.
A 5-axis center earns its tolerance advantage on parts that would otherwise need three or four repositioning steps. Fewer datums means less accumulated error, not a better spindle.
What part size can a 5-axis center handle at GreatLight?
Our largest envelope runs to 4,000 mm, with medium machines covering 750 × 1,150 × 550 mm and 600 × 600 × 600 mm, and compact machines at 500 × 500 × 450 mm and 500 × 310 × 200 mm.
The Ø400 mm rotary table sets the practical limit for trunnion work. Parts that swing wider than the table need a different work-holding plan or a larger platform.
Which materials are worth the 5-axis cycle time?
Aluminium 6061, 7075 and 6082 cut fast enough that the extra axis time is easy to justify. Stainless 17-4PH, titanium TC4 (Ti-6Al-4V) and Inconel cut slowly, so the setup savings matter even more.
Tool life drops in titanium and Inconel. On those jobs we plan shorter finishing passes and more frequent tool changes rather than pushing a single tool through the whole surface.
How do you stop chatter on a thin wall?
Reduce radial engagement to 5–8% of the cutter diameter, raise spindle speed, and use a tool with the shortest gauge length that reaches the feature. A 10–15° lead angle on the cutter also lowers the radial force.
When the wall is very thin, a support or a sacrificial rib helps. We would rather add a rib and cut it off later than fight chatter for the whole finishing pass.
What do you need to quote a complex part?
A STEP or IGES file, the material and finish, the tolerances that matter, and the quantity. If the part is a prototype, say so — the fixture plan differs from a production run of 10,000.
Quotation and DFM analysis come back within 12 hours. If a feature will be hard to reach or a wall will chatter, the DFM note will say so before you commit.
Can you work under an NDA?
Yes. Uploads are kept secure and confidential, and an NDA is available on request before you send files.
We can also quote from a simplified model if some features are not relevant to the machining decision.
