CNC Gauge Shaped Parts Processing: How Form and Datum Drive Accuracy

• 1
  What Makes Gauge Bodies Hard to Machine
• 2
  Datum and Setup Choices That Decide the Result
• 3
  Stock Allowance, Tool Path and Heat
• 4
  Which Setup Fits Which Gauge Shape

Gauge bodies look simple on a drawing: a rectangular or round frame with a bore, a locating face and a slot. The difficulty is that every one of those features is measured from another feature, and the part is thin enough to move when you cut it. That is why this kind of work is mostly a fixturing and datuming problem before it is a cutting problem.

Three shape families cover most gauge work. Block gauges are pockets and bores in a solid body. Ring and frame gauges are thin walls around a large opening. Profile gauges are open curves that carry a checking edge. Each family fails in a different way, so the process plan changes with the shape, not with the material alone.

The checking edge is the feature that decides acceptance. It usually carries a tolerance of ±0.005 mm and a surface finish between Ra 0.8 μm and Ra 1.6 μm. If the edge is machined in a second setup, the re-clamping error lands directly on the measurement. Single-setup access is worth more than a tighter spindle on a badly fixtured part.

• 1
  Thin walls moveCutting force pushes the wall away from the tool, so the finished wall is thicker at the top than the bottom.
• 2
  Stacked tolerancesEvery re-clamp adds a position error that shows up in the gauge reading, not on the drawing.
• 3
  Hard edgesA sharp checking edge is easy to damage and hard to deburr without changing the size.

Pick the datum from the function, not from the stock. If the gauge sits on a flat face and checks a bore, the flat face is datum A and the bore is measured from it. Machining the flat face and the bore in one setup removes the re-clamp error entirely, which is why five-axis work is common on these parts.

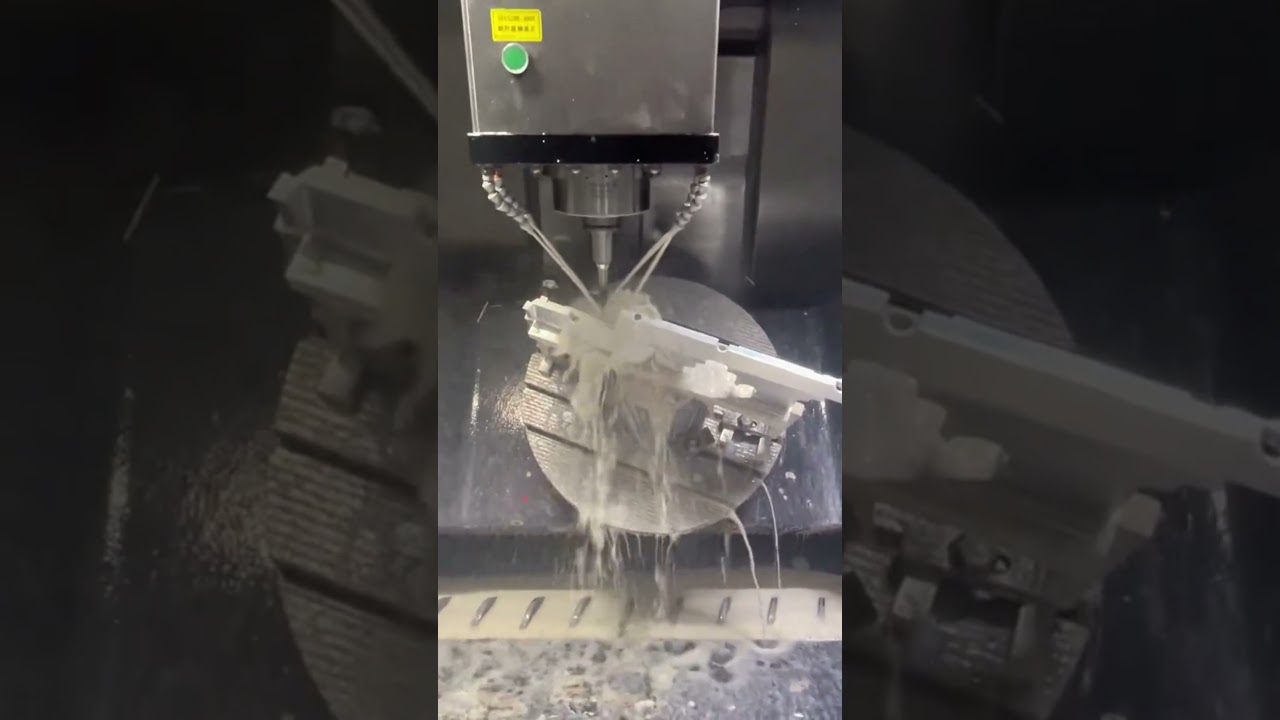

A simultaneous five-axis center can tilt the tool instead of the part. On a deep cavity that means a short, stiff tool reaches the floor at an angle, and the wall finish stays consistent from top to bottom. On a shallow part, three-axis work with a good vise is faster and cheaper. The shape decides, not the machine list.

For ring and frame gauges, leave the bore for last and hold the outside in soft jaws turned to the finished diameter. Soft jaws spread the clamping load over the full circumference, so the ring stays round. Clamping on a three-point contact will ovalize a thin ring by more than the tolerance before the tool even touches it.

• 1
  One setup for related featuresDatum face and checked feature in the same clamping is the cheapest accuracy you can buy.
• 2
  Soft jaws on ringsFull-circumference contact keeps the bore round during the finishing pass.
• 3
  Leave the bore lastFinishing the outside first gives you a true surface to hold for the final bore.

Aluminium gauge bodies in 6061 or 7075 cut fast, but they also move. Rough with 0.5 mm to 1.0 mm of radial stock and 0.2 mm on the floor, then let the part rest before finishing. On a thin frame, a rest of a few hours between roughing and finishing is often enough to stop the final size from drifting.

Stainless grades such as 304 and 17-4PH work-harden. A light finishing pass with a dull edge rubs instead of cutting, and the surface hardness climbs until the insert fails. Keep the chip load up, take a full-depth finishing pass where the tool allows it, and use a fresh edge for the last cut. Flood coolant, not a mist, keeps the edge temperature stable.

Heat from roughing is the quiet cause of out-of-round bores. A ring that measures round on the machine can spring oval once it cools. Measure after the part reaches room temperature, not straight off the table. For a checking edge held to ±0.005 mm, a temperature difference of 5 °C across an aluminium body is already worth several micrometres.

• 1
  Rough, rest, finishLeave 0.2–0.5 mm on critical faces and finish after the part settles.
• 2
  Sharper for stainlessReplace the edge before the finishing pass on 304 and 17-4PH.
• 3
  Measure coldLet the part reach room temperature before the final inspection.
