Turning fundamentals

CNC Lathe Slice: How the Cutting Edge Shapes a Turned Part

A CNC lathe slice is the cutting edge that peels material away as the workpiece spins. This page explains how its geometry, coating and feed rate decide diameter accuracy, surface finish and tool life. Written for engineers and buyers who need to judge whether a turned part is set up correctly.

±0.005 mm toleranceRa 0.2–0.8 μm finishØ400 mm rotary table100% inspection

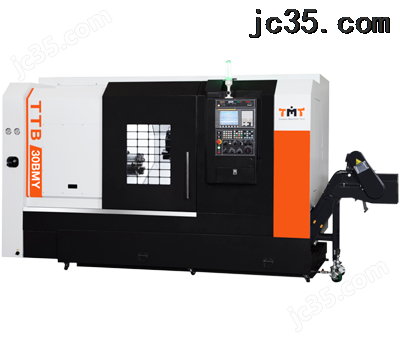

CNC lathe slice cutting edge on a complete CNC lathe
Definition

What a CNC Lathe Slice Actually Is

In turning, the part rotates and the tool stays still. The slice is the thin layer of material that the cutting edge lifts off on each revolution. Its thickness is not fixed. It comes from feed per revolution, the depth of cut and the nose radius of the insert.

A common insert runs at 0.15–0.3 mm per revolution for roughing and 0.05–0.12 mm per revolution for finishing. That difference alone separates a rough turned shaft at Ra 3.2 μm from a finished one at Ra 0.8 μm.

Engineers often talk about the slice as if it were a single chip. In practice the edge shears material along a narrow zone. Part of the metal becomes chip, part stays as a built-up edge on the insert tip.

The slice is therefore a process variable, not a tool name. Change the feed and you change the slice. Change the slice and you change the part.

Geometry

Edge Geometry and the Shape of the Cut

The nose radius sets how much of the edge touches the work. A 0.4 mm radius leaves a sharper cusp pattern than a 1.2 mm radius at the same feed. Taller cusps mean a rougher finish on the flank of a turned diameter.

Rake angle controls cutting force. A positive rake shears material with less pressure, which suits aluminium and soft stainless. Negative rake inserts take heavier loads and survive interrupted cuts on cast iron or hardened steel.

Lead angle decides the direction of the force. A 45° lead splits the load between the flank and the face, which reduces chatter on long slender shafts. A 90° lead pushes the force straight back into the part.

These three angles are printed on every insert box. Reading them against the material and the part stiffness is faster than trial cuts.

Cutting data

Feeds, Speeds and What the Slice Does to Accuracy

Surface speed is set by the material, not by the machine. Aluminium 6061 runs around 300–500 m/min with carbide. Stainless 316 runs at 120–180 m/min. Titanium Ti-6Al-4V sits near 40–60 m/min because the edge heats up fast.

Cutting speed that is too high burns the edge and pushes diameter size around by 0.01–0.02 mm as the insert wears. Speed that is too low builds a lump on the tip and tears the finish.

Feed per revolution is the main lever on finish. At 0.08 mm per revolution with a 0.8 mm nose radius, a typical steel part lands near Ra 1.6 μm. Dropping to 0.04 mm per revolution gets closer to Ra 0.8 μm, but the chip thins and may rub instead of cut.

Depth of cut should stay above the nose radius. A cut thinner than the radius rubs the work, work-hardens stainless and shortens tool life. On our 16 mill-turn centers, we keep finishing depth between 0.1 mm and 0.3 mm per side.

Materials

How Material Changes the Slice

Aluminium 6061 and 7075 shear cleanly and tolerate high surface speed. Built-up edge is the main risk, and a polished insert face plus a generous rake keeps the slice flowing.

Stainless 304 and 316 work-harden under a rubbing cut. Once the surface hardens, the next pass cuts a harder skin and the edge wears faster. A deeper slice that gets under the hardened layer works better than a light skim.

Titanium TC4 (Ti-6Al-4V) conducts heat poorly, so most of the cutting heat stays in the edge. Flood coolant, moderate speed and a sharp positive rake keep the slice stable. Inconel behaves the same way but punishes dull edges faster.

Plastics such as POM and PEEK cut with a very sharp edge and a high rake. Heat builds quickly and the chip can weld back onto the part, so air blast or coolant and a fast feed help.

Limits

When a Turning Setup Reaches Its Limit

Long slender parts deflect under the cutting force. A shaft with a length-to-diameter ratio beyond about 6:1 will taper or chatter unless a steady rest or tailstock supports it. This is a stiffness limit, not a tool limit.

Interrupted cuts, such as keyways or flats on a turned diameter, hammer the edge. Negative rake and a tougher grade survive them, but the finish will not match a continuous cut.

Very small diameters are hard to hold at tight tolerance because the part bends away from the slice. Below about Ø3 mm, a light finishing pass of 0.05 mm and a sharp edge are usually the practical route.

Hardened material above roughly 45 HRC is often better ground than turned. Turning can still remove stock, but the final size and finish usually come from grinding.

Selection

Insert and Cutting Data by Material

Typical starting points for continuous turning with carbide inserts.

MaterialSurface speedFeed per rev (finish)Rake / note
Aluminium 6061300–500 m/min0.05–0.12 mmPositive, polished face
Stainless 304 / 316120–180 m/min0.08–0.15 mmPositive, sharp edge
Steel 1045 / 4140180–260 m/min0.06–0.12 mmNegative for interrupted cuts
Titanium Ti-6Al-4V40–60 m/min0.05–0.10 mmPositive, flood coolant
Inconel25–40 m/min0.05–0.10 mmPositive, rigid setup
Brass C36000200–400 m/min0.05–0.15 mmNeutral to positive
POM / PEEK150–300 m/min0.10–0.20 mmHigh rake, air blast

The Trade-off in One Line

For tight diameter control and fine finish, run a light slice with a sharp positive insert and accept slower cycle time. For roughing speed on a rigid part, take a deeper slice with a negative insert and leave the finish pass for later.

FAQs

Questions Engineers Ask

Does a smaller slice always give a better finish?

No. Below a certain feed the edge rubs instead of cutting. On stainless that rub work-hardens the surface and the next pass cuts a harder skin.

A practical floor is about 0.03–0.05 mm per revolution for finishing. Go thinner only with a very sharp edge and enough surface speed to keep the cut alive.

Why does my turned diameter drift during a long run?

Tool wear is the usual cause. As the edge rounds, the slice pushes instead of shears and the part grows or shrinks by a few thousandths of a millimetre.

Check the wear land on the insert and the coolant flow. A worn edge plus poor cooling is the most common combination behind slow size drift.

Can I turn a part to ±0.005 mm on a lathe alone?

Yes, on a rigid setup with a finishing pass and in-process measurement. Our turning and mill-turn work is held to ±0.005 mm with 100% inspection before shipment.

The limit is part stiffness, not the machine. Long slender shafts need support before the tolerance becomes realistic.

What finish can turning reach without grinding?

With a fine finishing slice and a good edge, turning reaches Ra 0.8–1.6 μm on steel and stainless. Aluminium and brass can go finer.

For Ra 0.2–0.8 μm on hard material, plan for a grinding or polishing step after turning.

Does coolant matter that much?

It matters most on titanium and stainless, where heat stays near the edge. Poor cooling shortens edge life and moves the size.

On aluminium and brass, coolant mainly clears chips. Chip recutting is the bigger risk there.

How do you check the slice is right before a full run?

Cut one part, measure the diameter and read the chip. A silver chip that breaks cleanly means the slice is in range. A blue or stringy chip means the speed or feed needs adjusting.

We also confirm the setup with a first-article inspection before releasing the run.
