CNC Machine Servicing Dallas TX: What Actually Keeps Parts In Tolerance
Servicing is not a repair visit. It is the set of checks that decide whether your machined parts hold ±0.005 mm across a full run. This page is written for engineers and buyers in Dallas who source machined parts from a contract shop. Read it and you can judge whether a supplier's CNC machine servicing Dallas TX routine is real or just a line on a brochure.
In this article
- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
Key takeaways
Why CNC machine servicing Dallas TX buyers ask about matters more than the spec sheet
A machine tool is a loop: spindle, structure, servo, ballscrew, feedback. Every element moves with heat and wear. When a shop says it services its machines, ask what it measures. A wiped-down way cover and a fresh oil top-up are housekeeping, not servicing. Servicing is measurement followed by adjustment, and then re-measurement to prove the adjustment worked.
Tolerance is the number buyers fixate on. ±0.005 mm is achievable on a well-maintained 3-axis or 5-axis machining center in aluminum, stainless, or steel. But the same machine can hold ±0.02 mm the week after a crash and ±0.005 mm the week after re-calibration. The machine did not change. The geometry did.
The practical question for a Dallas buyer is not whether the supplier owns good machines. It is whether the supplier knows the current error budget of each machine and schedules work accordingly. A shop that puts a tight-tolerance medical part on a machine with unknown squareness error is guessing.
This page explains the five checks that matter, the parameters to record, and when a part should move to a different machine instead of being forced through a worn one.
Spindle runout and taper condition: the first boundary
Spindle runout is measured with a dial indicator on a known reference, usually a test bar in the taper. On a healthy 40-taper spindle, runout near the gauge line should stay under 0.005 mm. Over 0.010 mm and you will see it in surface finish on bore walls and in hole roundness. No amount of tool-path tweaking fixes a bent spindle.
Taper condition matters just as much. Fretting, corrosion, or chips embedded in the taper seat create a repeating radial offset each time a tool is loaded. That error is not constant. It changes with every tool change, which makes it hard to catch in a first-article inspection.
For a Dallas buyer running tight-tolerance bores, ask the supplier whether spindle runout is logged per machine. If the answer is a number and a date, the shop is tracking it. If the answer is that the machines are new, that is not a maintenance record.
Once runout exceeds roughly 0.010 mm, move fine-boring and reaming work to a different spindle. Do not chase the error with comp values. The comp will drift as the day warms up.
Thermal drift: how a warm machine changes your dimensions
A spindle running at 10,000 rpm generates heat. The ballscrew and the structure expand at different rates. Over the first two hours of a shift, Z-axis position can shift several microns on a machine that has no thermal compensation. On a 100 mm aluminum part with a ±0.005 mm tolerance, that shift is the tolerance.
Two habits reduce the effect. First, run a warm-up cycle before production, typically 15–30 minutes at moderate speed. Second, keep the shop temperature stable; a 4 °C swing between morning and afternoon moves steel and aluminum differently and changes the metrology itself.
For high-mix shops, thermal drift is a scheduling problem. Put tight-tolerance stainless work in the first half of the shift, after warm-up, and put loose-tolerance or prototype work later. That is a decision the shop makes, not the buyer. But the buyer can ask whether it happens.
In-process probing helps. Touching off a datum before each critical cut corrects for thermal growth in one axis. It does not correct for structure distortion, but on most parts the dominant error is Z-axis growth.
Geometric accuracy: squareness, straightness and level
Geometric error is the slow one. A machine that has cut for a year does not suddenly go out of square. It drifts. Level changes with foundation settlement and with the weight of parts on the table. Squareness between X and Y changes after a crash, even a minor one that leaves no visible mark.
The checks that matter for a job shop are squareness of X to Y, squareness of Z to the table, and straightness of travel over the working envelope. For a 4,000 mm machine, straightness over the full stroke can be tens of microns if the machine is not leveled and checked.
The engineering meaning is simple. A part that needs two faces perpendicular within 0.01 mm should not be cut on a machine with unknown squareness. Either the shop measures and adjusts, or the part goes to a machine that has been checked recently.
Level is not cosmetic either. Twist in the bed shows up as taper on long parts and as inconsistent depths across a plate. On large parts, leveling is the single most cost-effective maintenance task.
Ballscrew backlash and servo tuning: the error that hides in the reversal
Backlash is lost motion when the axis reverses. Cut a slot, then cut the wall from the other direction, and any backlash shows up as a step. On a healthy ballscrew with preload, backlash is under 0.005 mm. Over 0.010 mm and you will see witness marks on climb-milled walls.
Servo tuning is related but different. A loosely tuned axis overshoots or lags at direction changes. That shows up in corner radii and in surface finish at high feed rates. A loosely tuned machine can cut a straight wall well and a corner badly.
For 5-axis work, the effect compounds. Any error in a rotary axis swings the tool tip over a long lever arm. On a Ø400 mm rotary table, one arc-minute of error is roughly 0.1 mm at the part. That is why rotary axis calibration matters more than most shops admit.
Backlash and tuning are corrected by a technician with a laser interferometer or ballbar, not by the operator at the control. If a supplier cannot describe how the axes were last calibrated, tight-tolerance 5-axis work is a risk.
Coolant, chip management and the parts they touch
Coolant is not just lubrication. It controls heat, flushes chips, and keeps chips from being recut. Recut chips are the main cause of poor surface finish on deep pockets and long bores. A $20,000 spindle with dirty coolant cuts like a $2,000 spindle.
Concentration and pH matter. Too lean and you get corrosion and tool wear. Too rich and you get residue that ruins anodizing adhesion. A refractometer reading and a pH strip take less than a minute. The shops that check do it weekly.
Chip evacuation problems show up as tool breakage on deep pockets and as scratches on finished faces. Through-spindle coolant solves many of these cases. If a job involves deep holes or long pockets, ask whether the machine has through-coolant capability before quoting.
For aluminum, coolant choice also affects finish. A properly maintained coolant can hold Ra 0.8–1.6 μm on a milled face. The same machine with degraded coolant often lands at Ra 1.6–3.2 μm.
Which check limits which tolerance band
Match the part requirement to the check that governs it. If the governing check is out of spec, move the part rather than compensate.
| Part requirement | Governing check | Healthy limit | Action if exceeded |
|---|---|---|---|
| Bore roundness < 0.005 mm | Spindle runout and taper | Runout < 0.005 mm | Move to a checked spindle |
| Depth tolerance < ±0.005 mm | Thermal drift on Z | Shift < 0.003 mm over 2 h | Warm up and probe datum |
| Two faces square within 0.01 mm | Squareness X to Y | Under 0.010 mm per 300 mm | Level and re-check |
| Slot width repeatable ±0.005 mm | Ballscrew backlash | Backlash < 0.005 mm | Re-preload or re-map |
| 5-axis contour within 0.05 mm | Rotary axis calibration | Under 1 arc-minute error | Recalibrate rotary table |
| Ra 0.8–1.6 μm on a milled face | Coolant and chip evacuation | Concentration in range, pH 8.5–9.5 | Replace or recharge coolant |
| Repeat order matches first article | All five checks logged | Logs within interval | Request the log before reorder |
When to trust the machine and when to move the part
If the governing check is inside its limit and logged, run the tight part on that machine. If the check is unknown or out of spec, move the part to a machine that has been verified, or widen the tolerance with the designer. Chasing an error with comp values is the one path that never holds over a full run.
Questions engineers ask about machine servicing
How often should a CNC machine be serviced?
Daily checks cover coolant level, air pressure, and way lubrication. Weekly checks cover coolant concentration and pH. Monthly checks cover level and basic geometry. Full geometric calibration with a ballbar or laser is usually done every 6–12 months, or after any crash.
The right interval depends on duty cycle. A machine running three shifts needs tighter intervals than one running one shift. Ask for the log, not the policy.
Does a new machine need servicing?
Yes. New machines settle. Foundation, level, and thermal behavior change over the first few months. A machine that cuts well in week one may drift by week eight.
First-year checks are also the baseline. Without a baseline, you cannot tell whether a later error is wear or drift.
How does servicing affect lead time?
Planned servicing does not stop production. It is scheduled between jobs. Unplanned servicing does, because it happens after a failure.
For a buyer, the useful question is whether the shop schedules maintenance into its capacity plan. A shop with no planned downtime is either over-maintaining or under-maintaining. Neither is good.
Can a shop hold ±0.005 mm without a temperature-controlled room?
It depends on the part and the season. Aluminum expands roughly 23 μm per meter per °C. On a 100 mm part, a 4 °C swing is about 9 μm of growth. That is already past ±0.005 mm.
Shops in warm climates often run night shifts for tight work, or use in-process probing to correct for drift. Both work. Neither works without measurement.
What should be in an inspection report?
At minimum: the measured dimensions, the instrument used, the ambient temperature, and the datum reference. A number without a datum is not a measurement.
For tight parts, ask for the spindle runout and thermal state at the time of cutting. Those two values explain most out-of-tolerance conditions.
Does GreatLight service machines in Dallas?

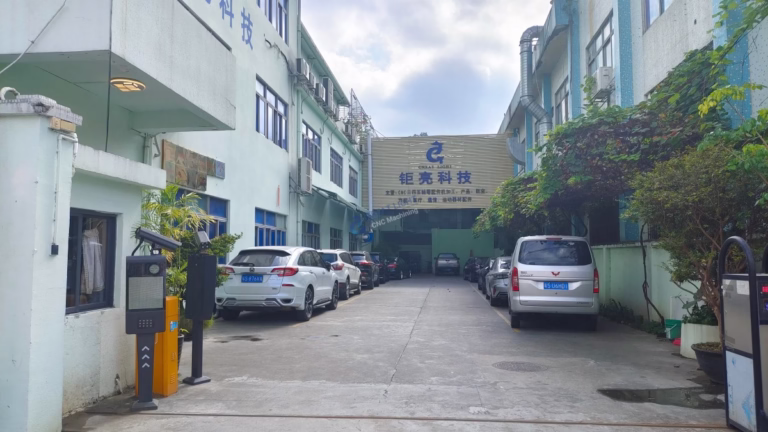

GreatLight is a contract machine shop in Dongguan, China, with a second plant in Singapore. We do not send technicians to Dallas. What we do is run the checks described here on our own 127 CNC machines and ship parts to North America.
If you need a local service technician in Dallas, hire a local millwright. If you need parts machined to ±0.005 mm with documented inspection, we can quote in 12 hours.
