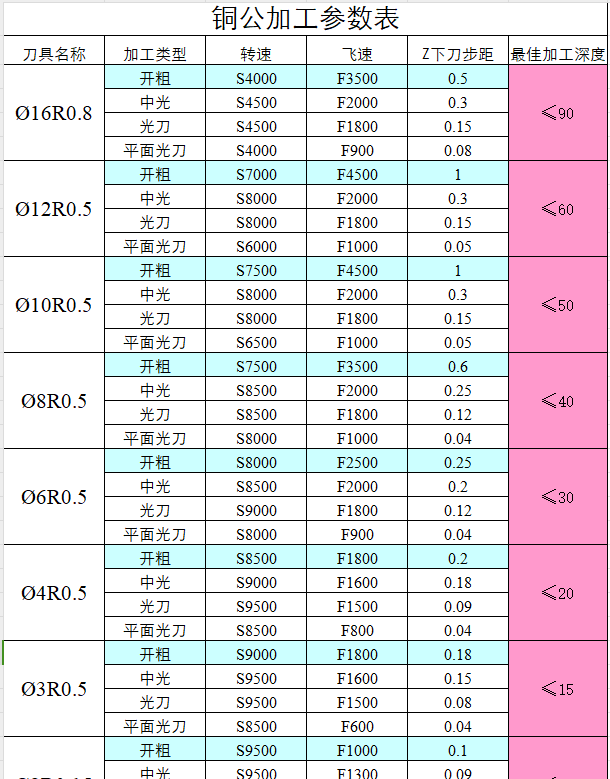

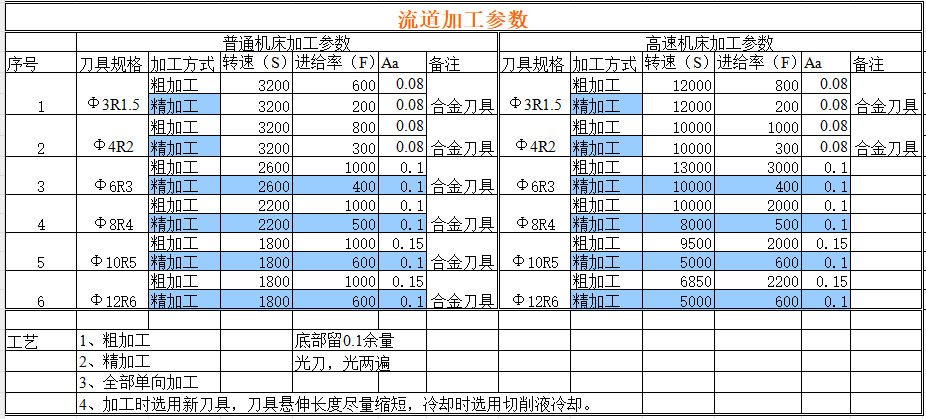

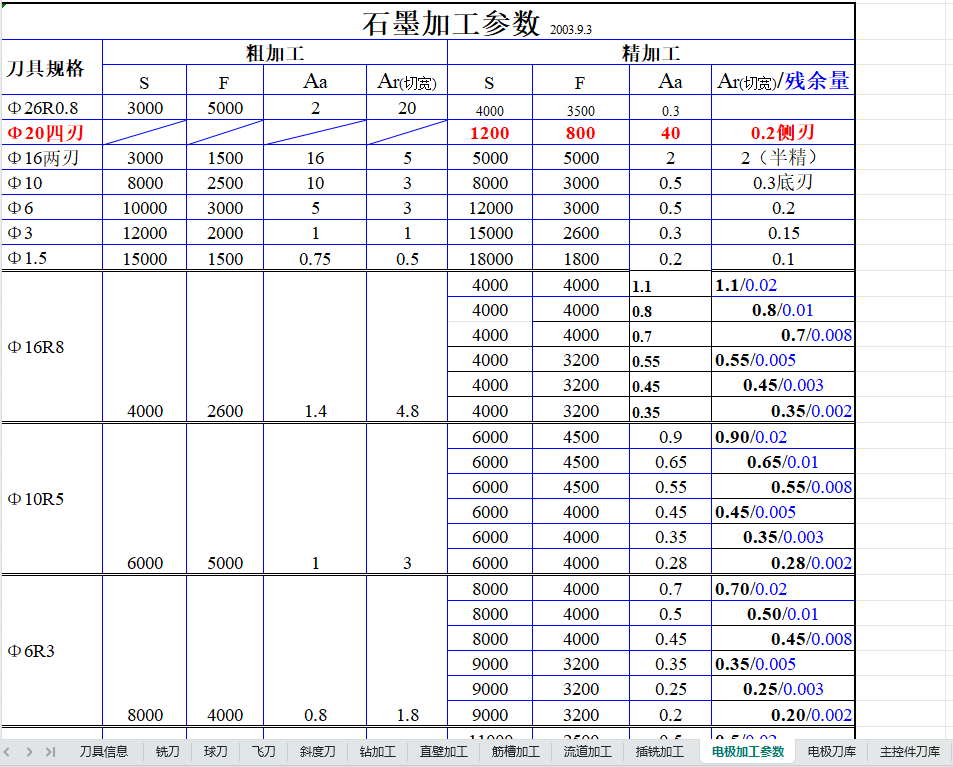

Every row in a CNC machining center tool parameter tables set is built from four values: cutting speed, feed per tooth, axial depth of cut, and radial width of cut. Cutting speed is surface speed, the speed of the tool edge against the material, not spindle rpm. A 12 mm carbide end mill at 120 m/min runs at about 3,180 rpm. The same cutter at 300 m/min runs at 7,960 rpm. The table lists surface speed because that number stays useful when the tool diameter changes.

Feed is usually given as feed per tooth, written fz. Multiply it by the number of teeth and the spindle speed to get feed rate in mm/min. A 3-flute cutter at 0.05 mm per tooth and 6,000 rpm feeds at 900 mm/min. Chip load, not rpm, is what breaks tools. If the feed rate is too low for the rpm, the edge rubs instead of cutting, work-hardens the surface, and the next pass cuts through a harder skin.

Axial depth (ap) and radial width (ae) control how much of the flute is engaged. A full slot uses 100% of the diameter and is the hardest cut a cutter will ever take. A 10% radial stepover at 1× diameter depth is a much lighter load on the same tool, and it removes more metal per minute on a rigid machine. The tables in most shop handbooks assume a specific engagement, so a value pulled out of context often runs hot.

Read the header of the table before the numbers. Values quoted at ae = 50% and ap = 0.5×D will not hold at ae = 100% in the same material. When a table gives a range, start at the low end, listen to the cut, then step up. The machine, the holder, and the fixture all sit between the table and the part.

Aluminum is the easy case. Uncoated or ZrN-coated carbide runs 200–500 m/min in 6061-T6 and 150–350 m/min in 7075. The limit is usually chip evacuation, not the tool edge. Deep pockets need high-pressure through-spindle coolant or air blast, otherwise chips recut and the finish turns ugly. At 300 m/min on a 12 mm cutter, plan on 8,000 rpm, and keep the feed high enough to make a real chip.

Stainless 304 and 316 work-harden fast. Carbide runs 60–120 m/min with feed per tooth around 0.04–0.08 mm. Never dwell in the cut. A pause of half a second lets the edge rub, and the next tooth meets a harder surface. 17-4PH behaves better in the H900 condition than in the annealed state, but 60–90 m/min is still the safe band for roughing.

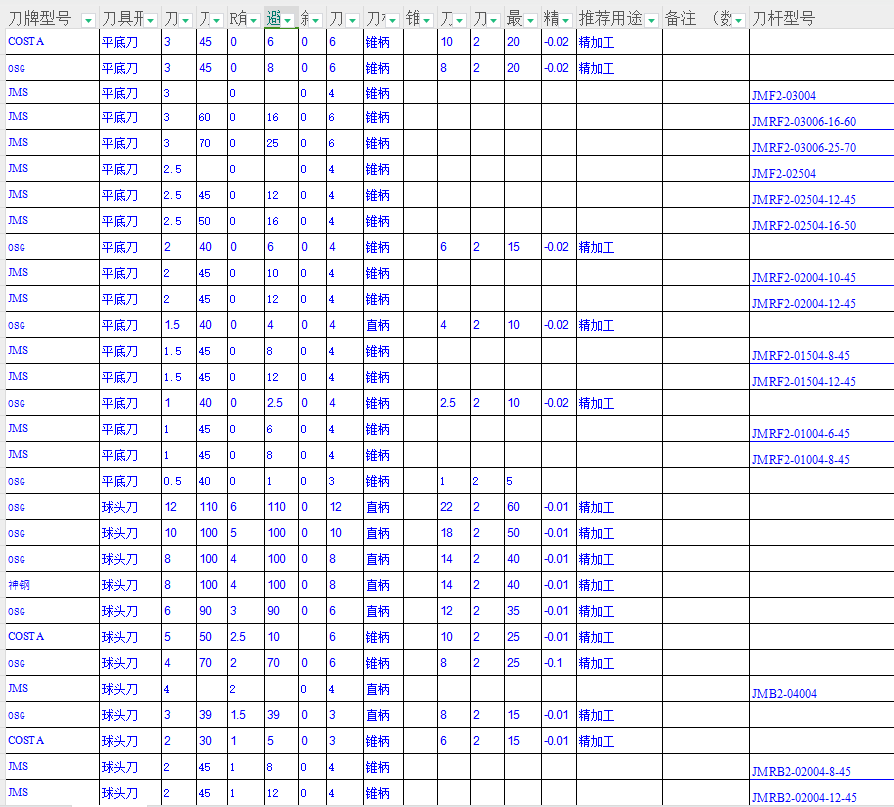

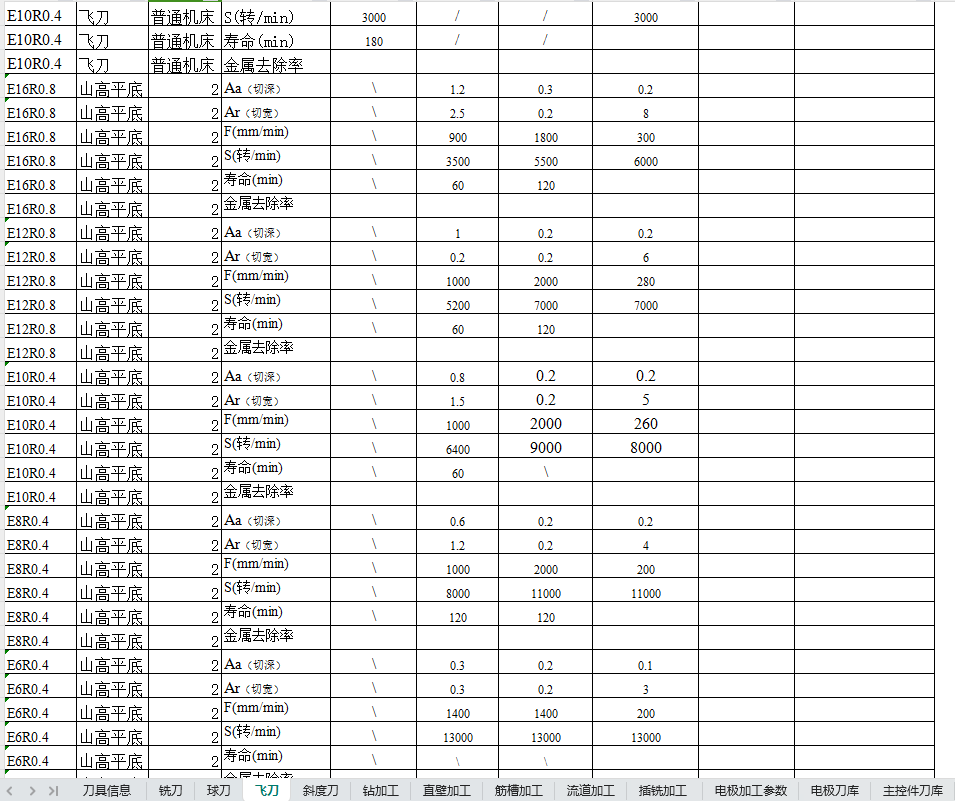

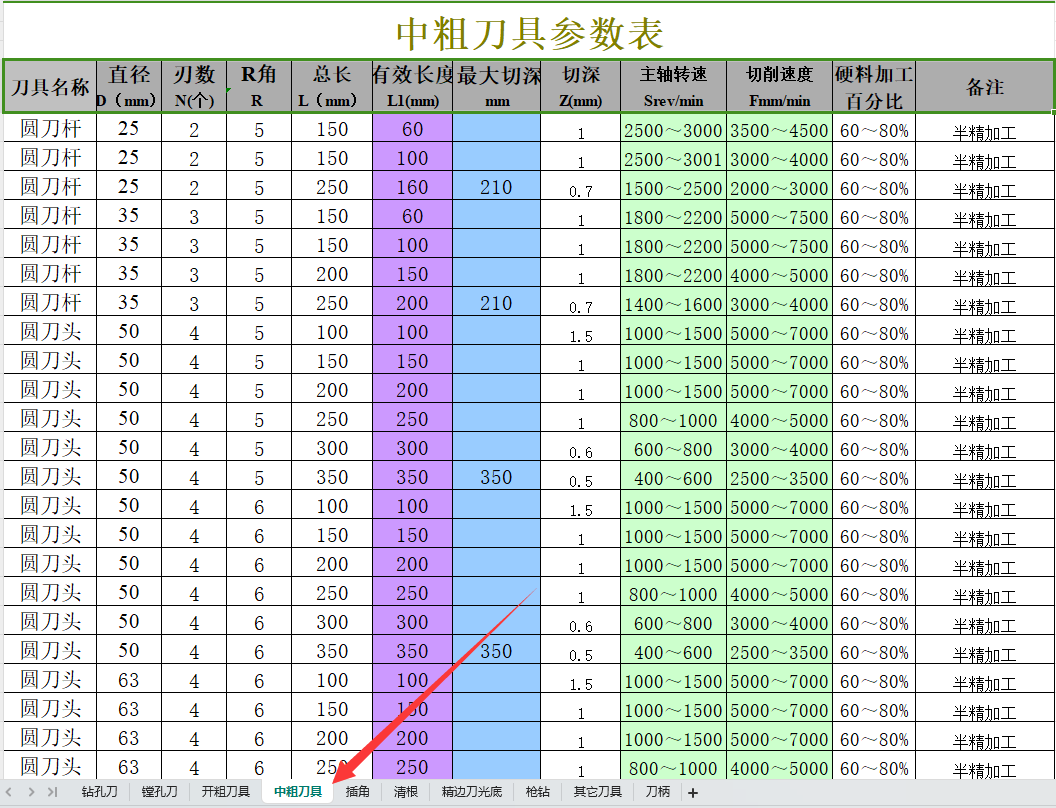

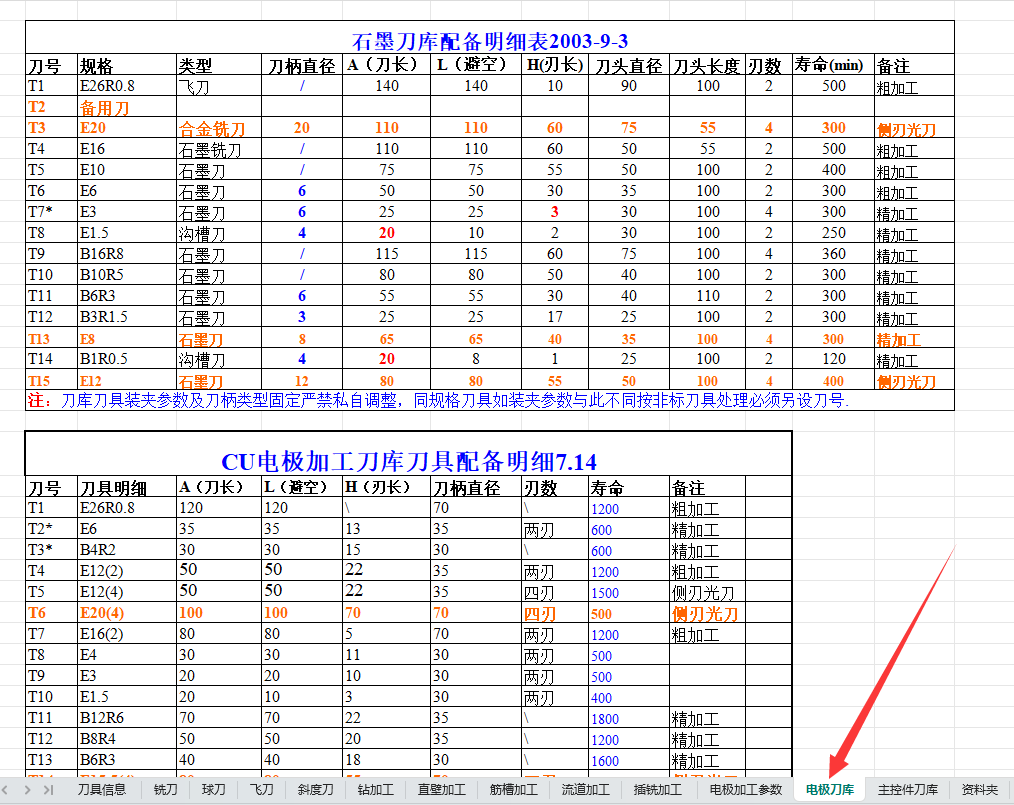

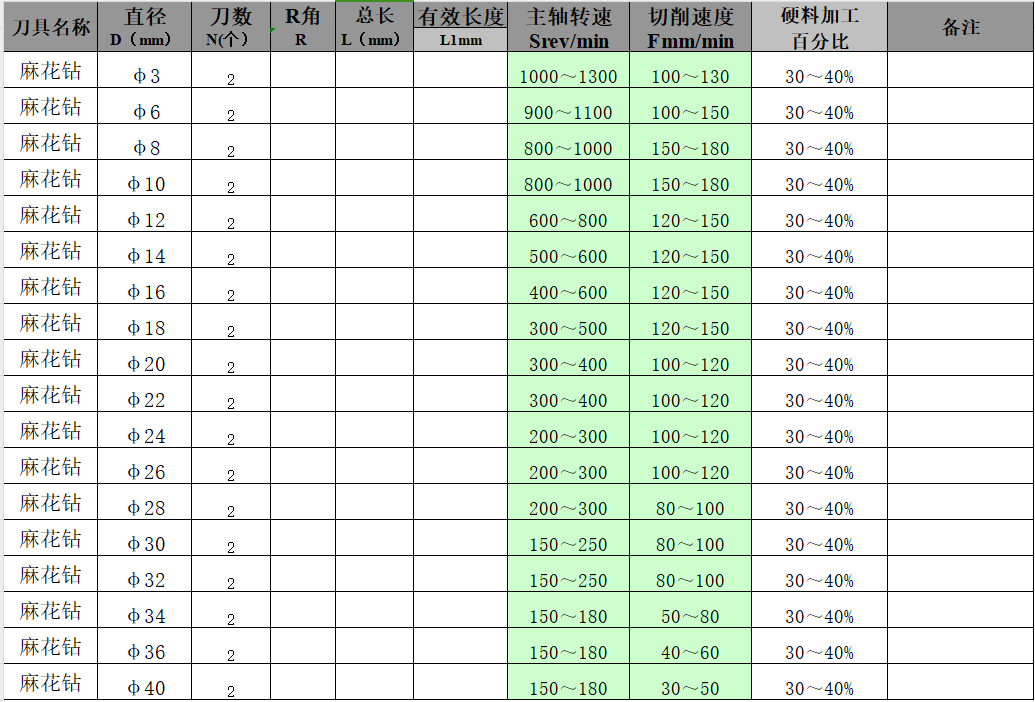

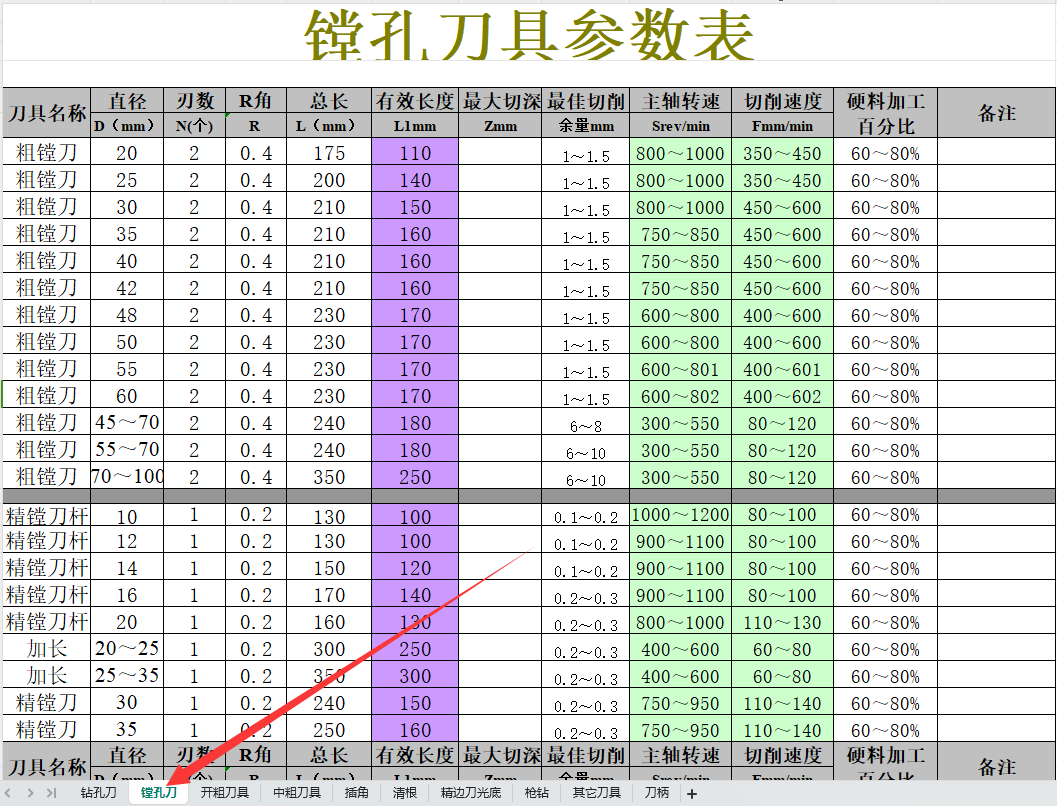

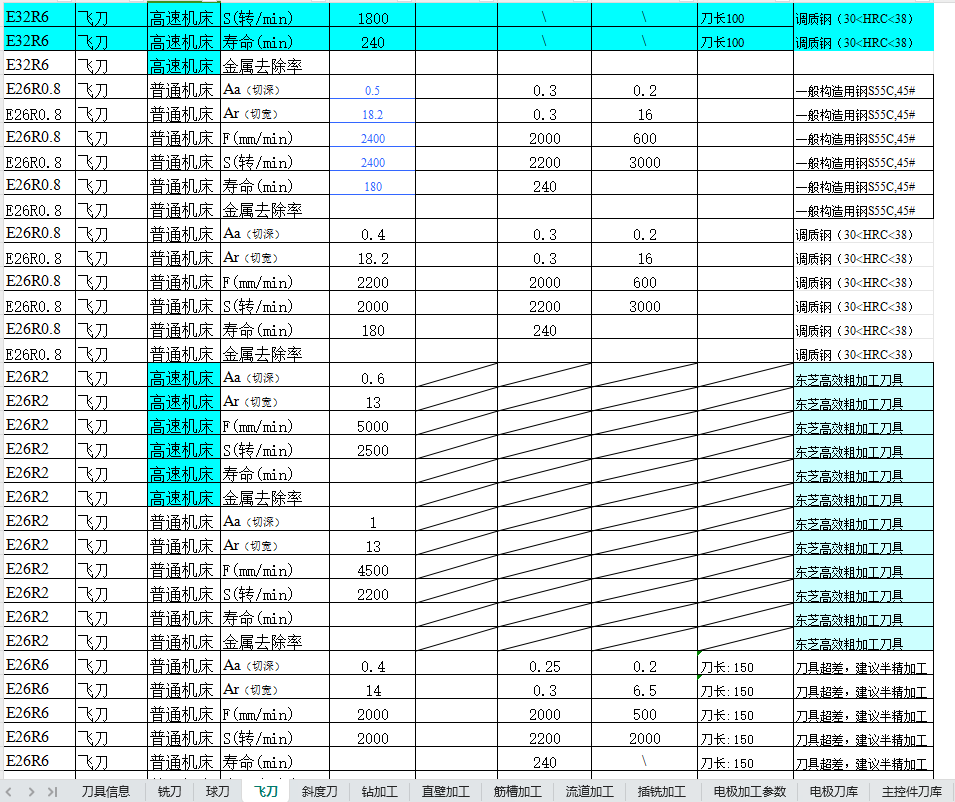

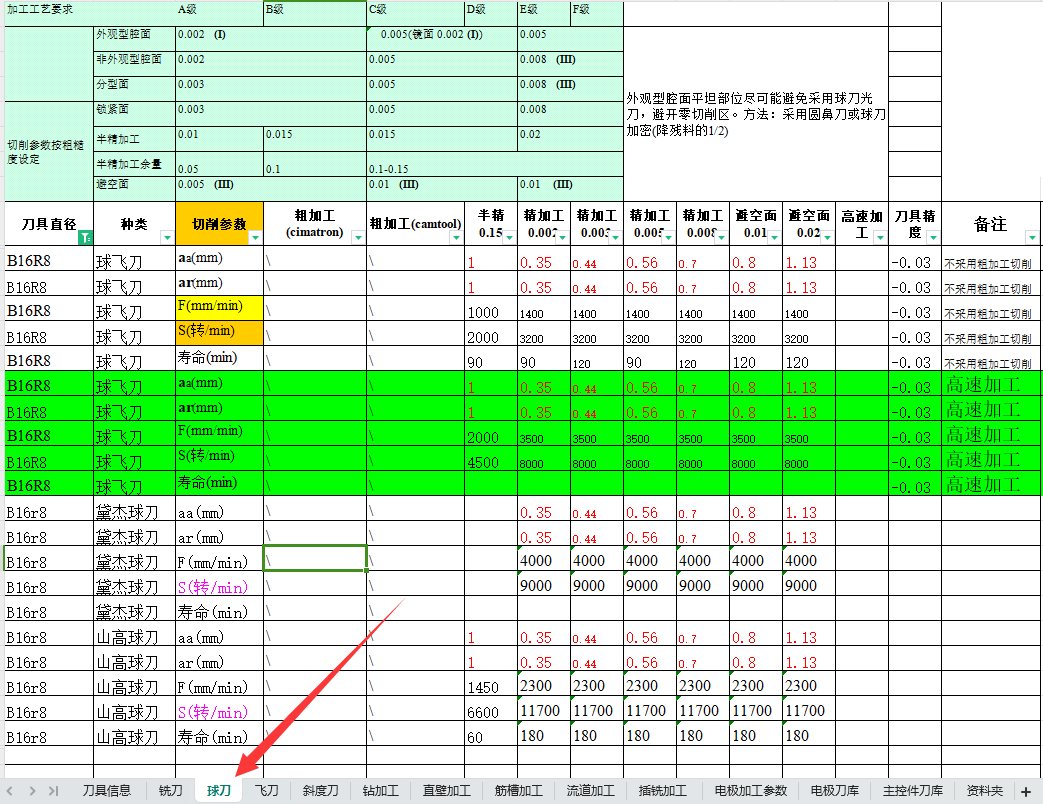

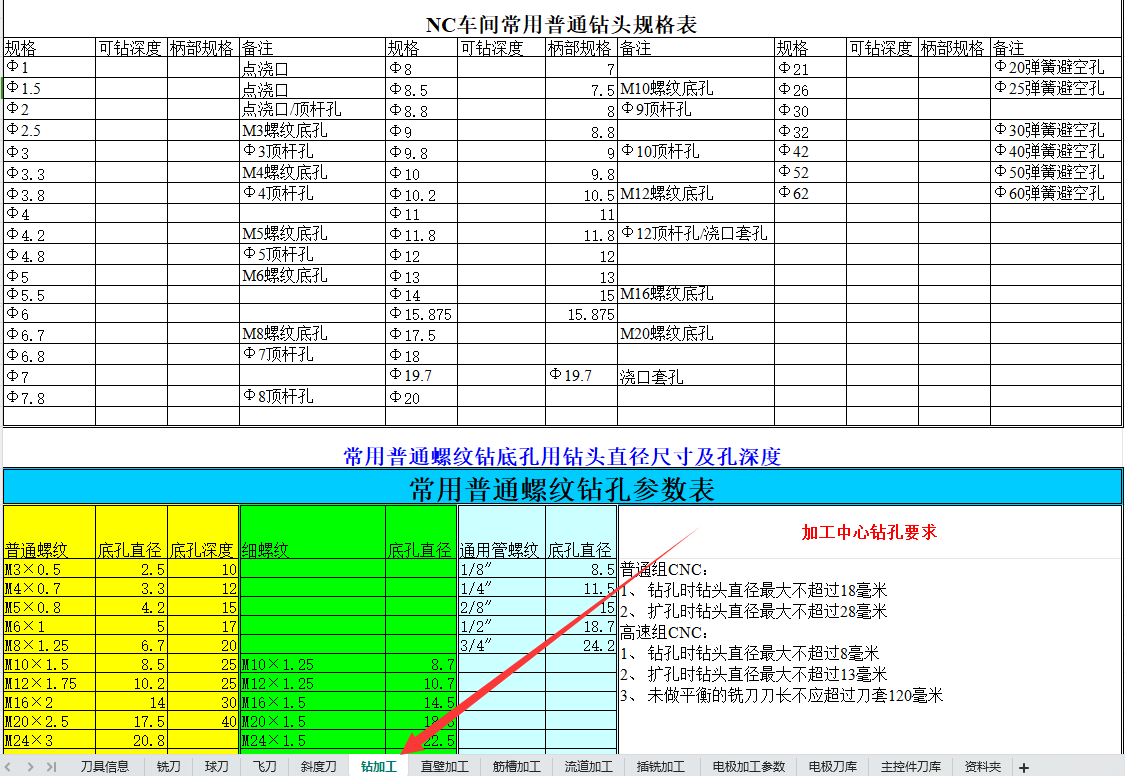

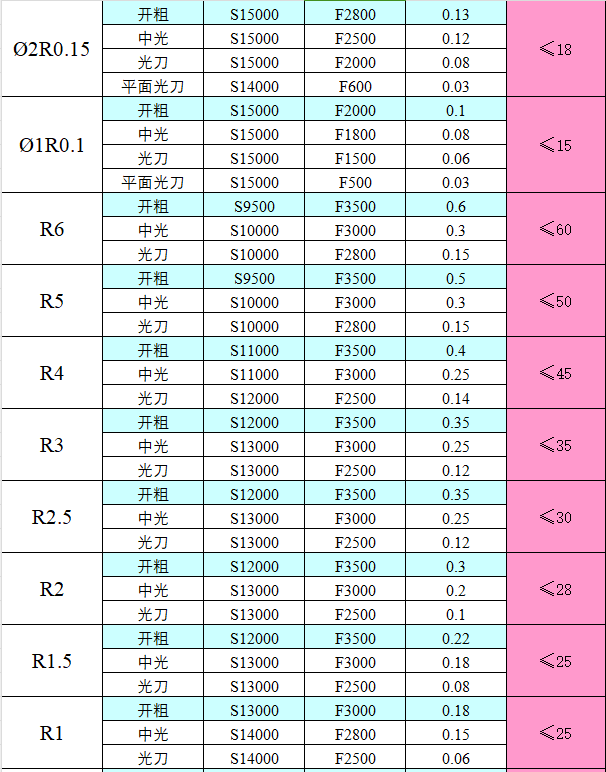

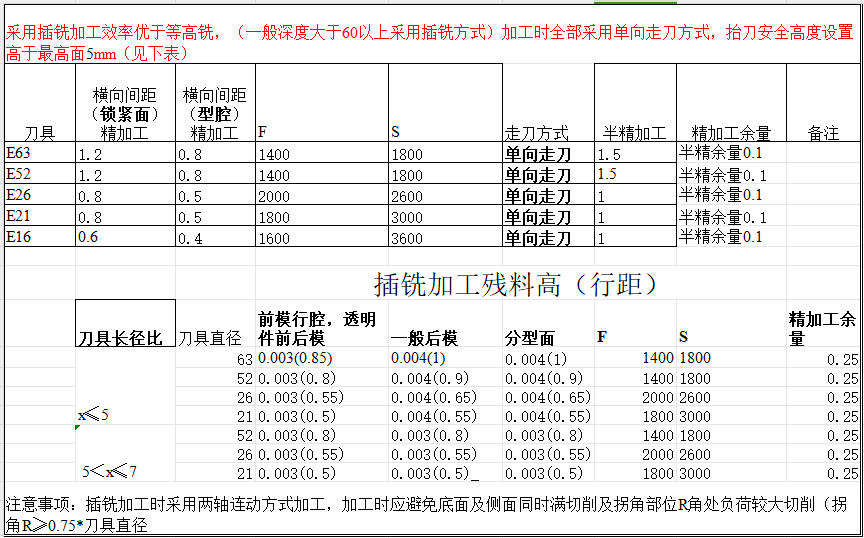

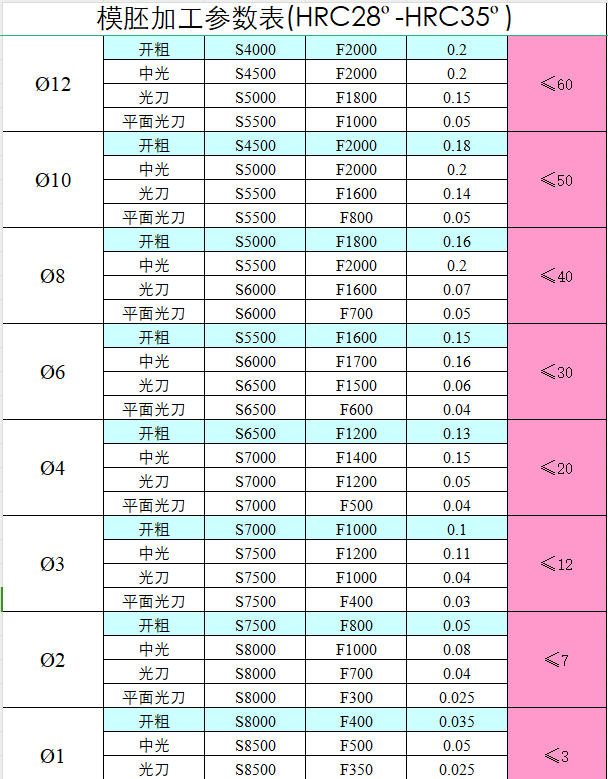

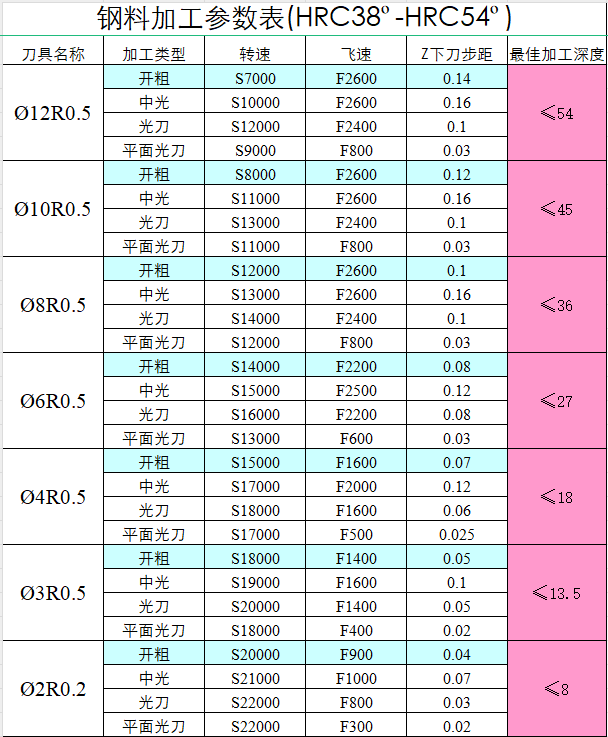

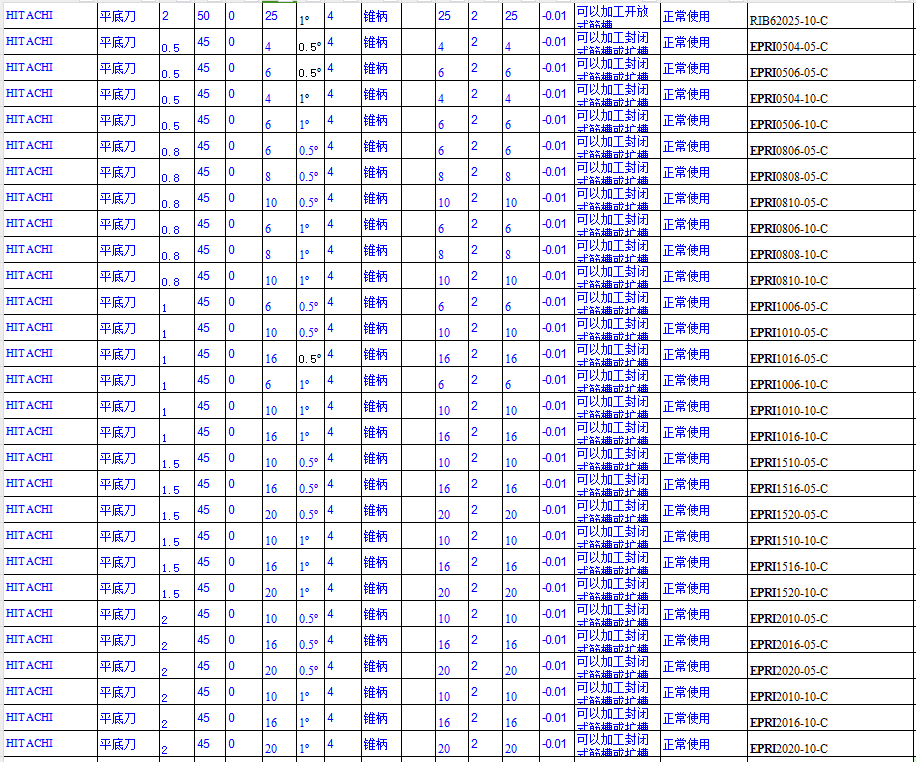

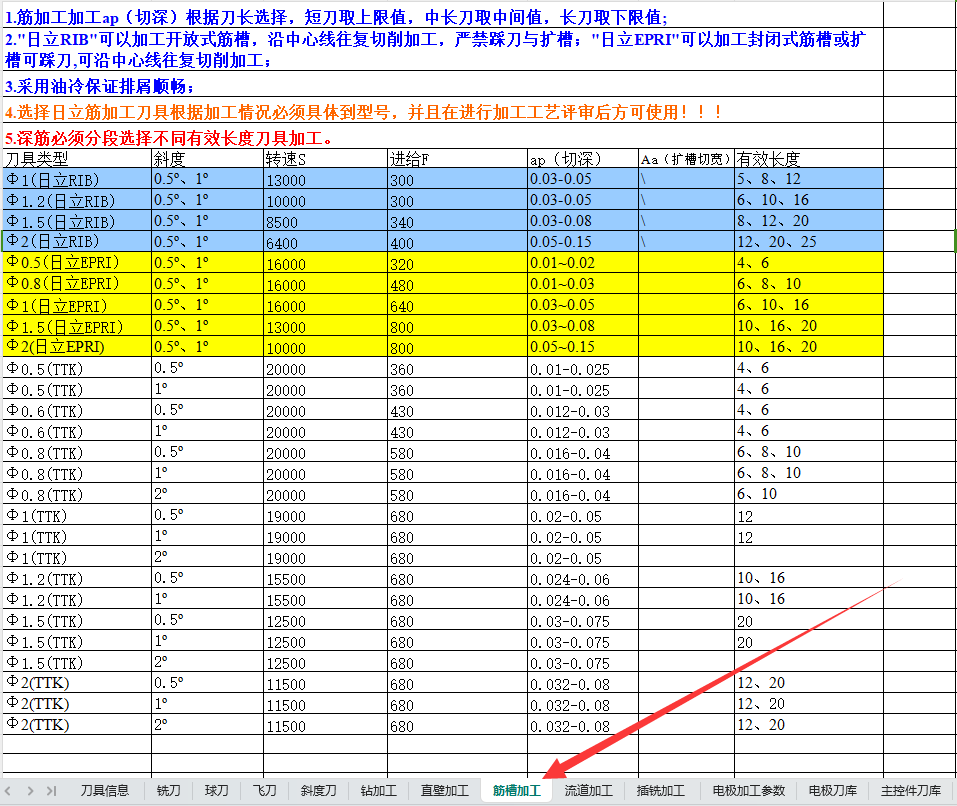

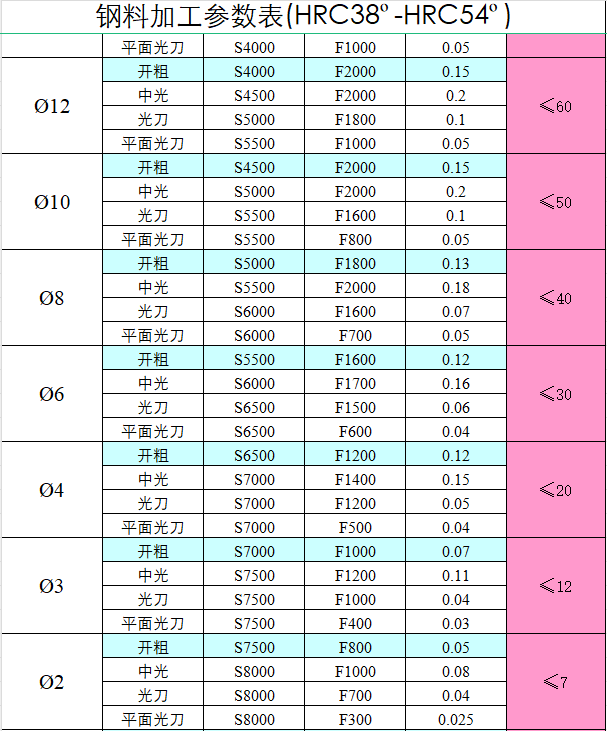

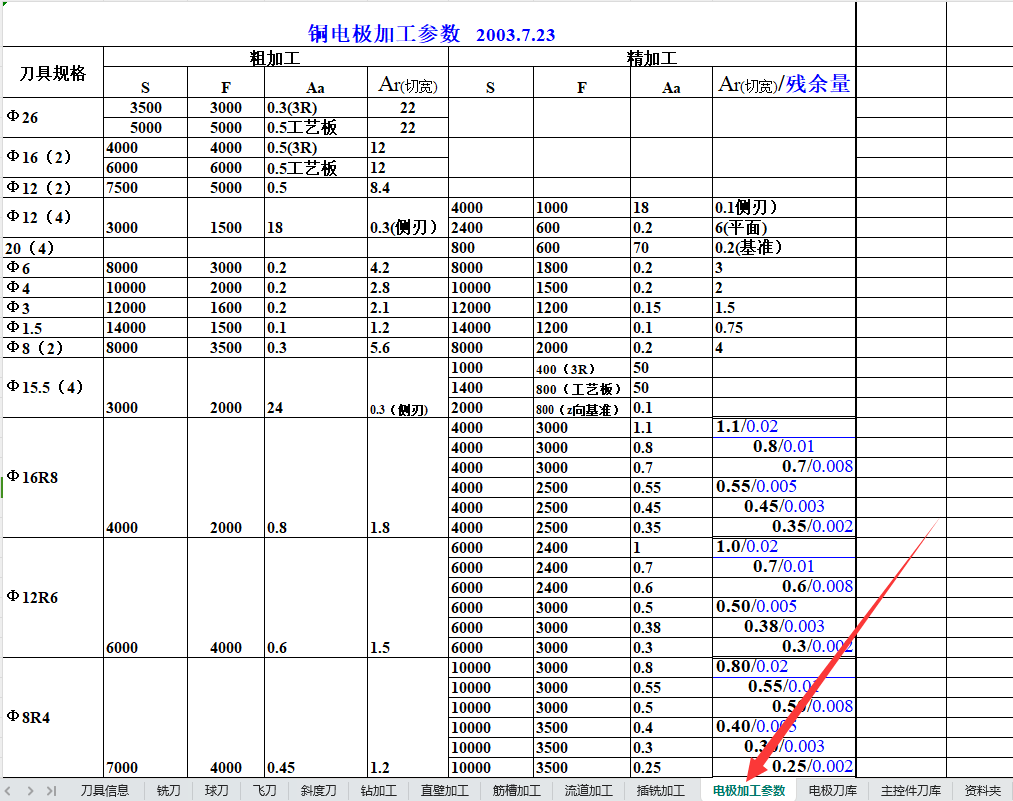

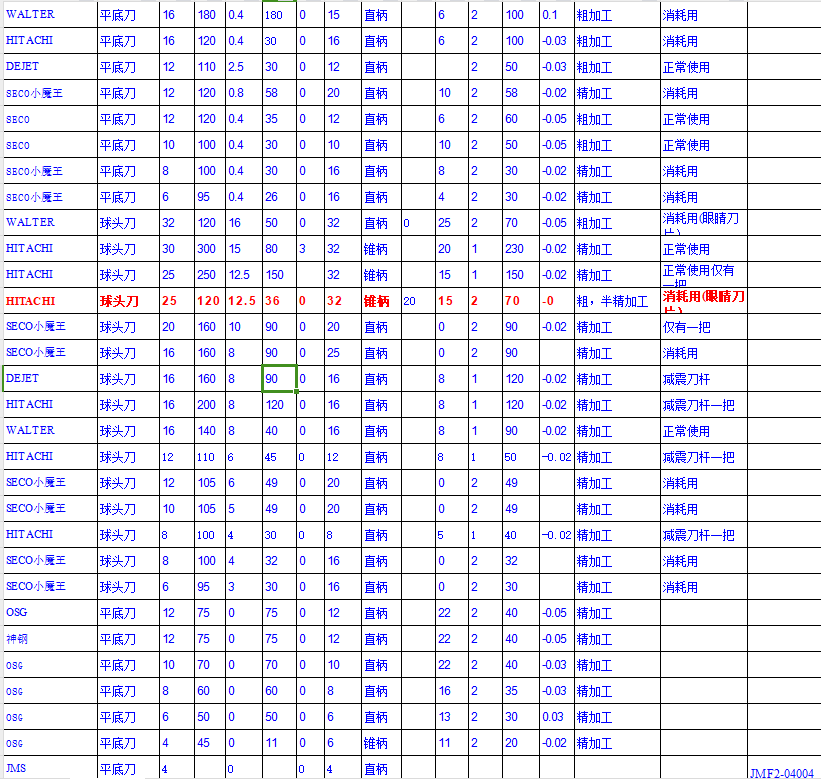

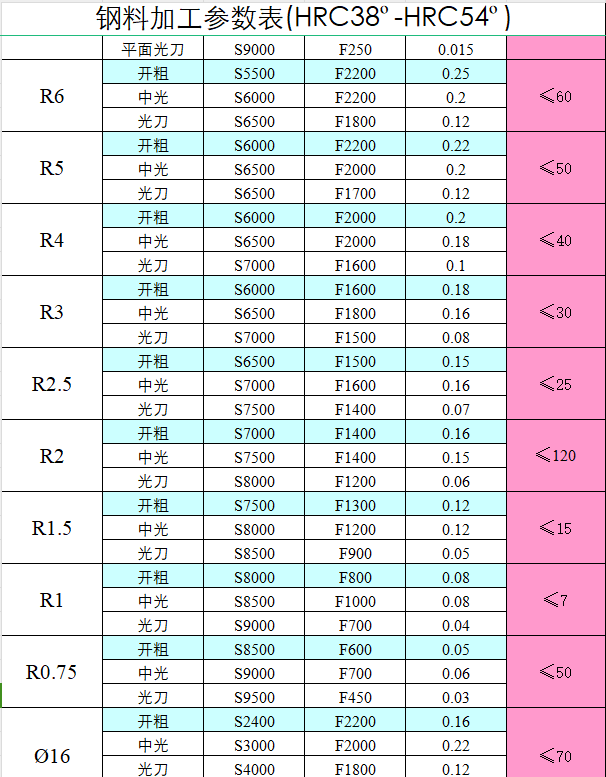

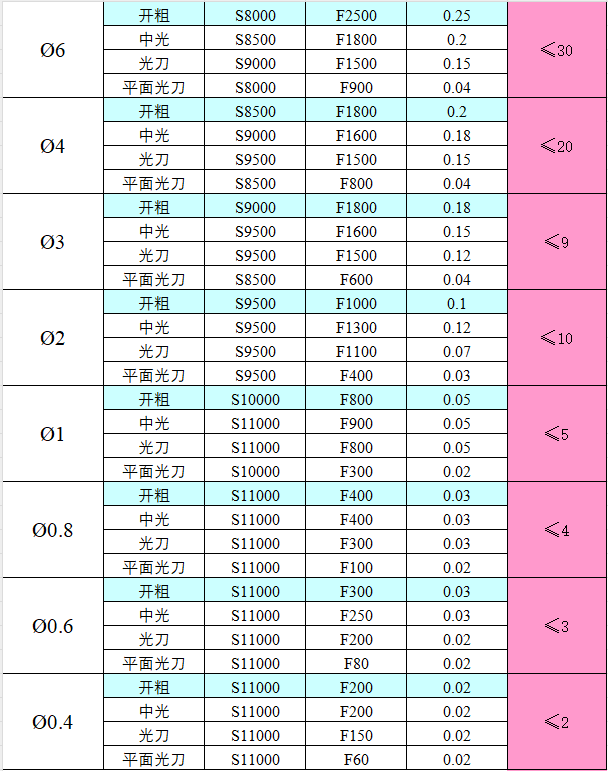

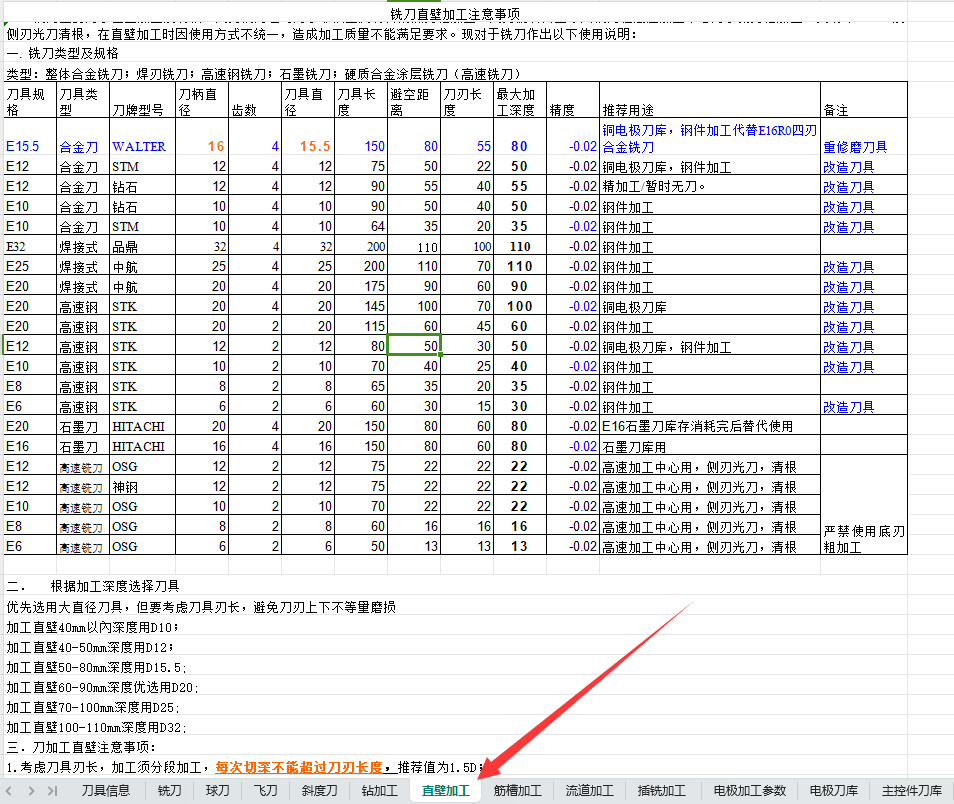

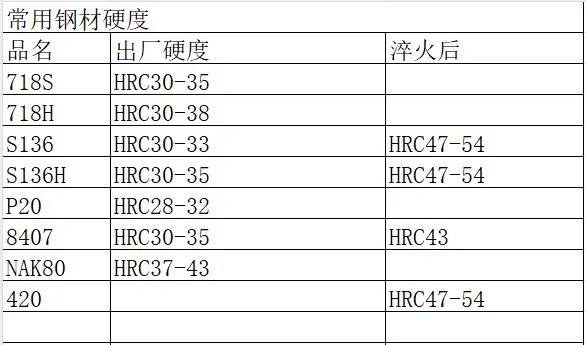

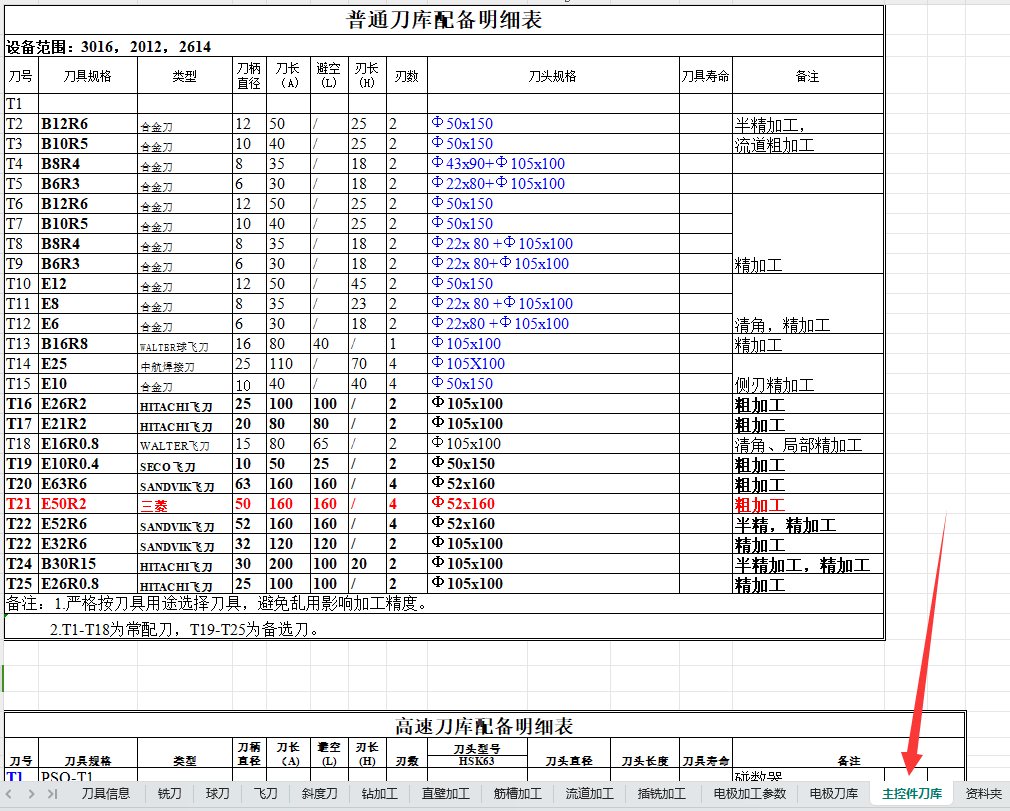

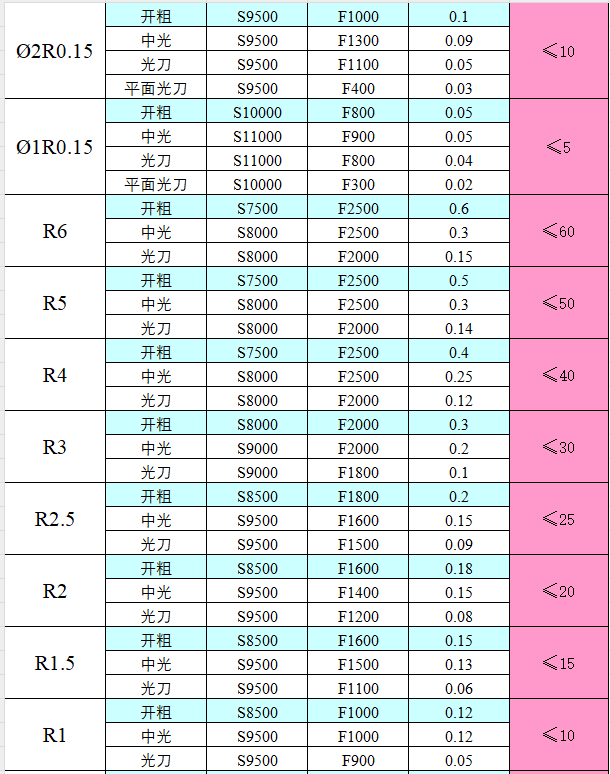

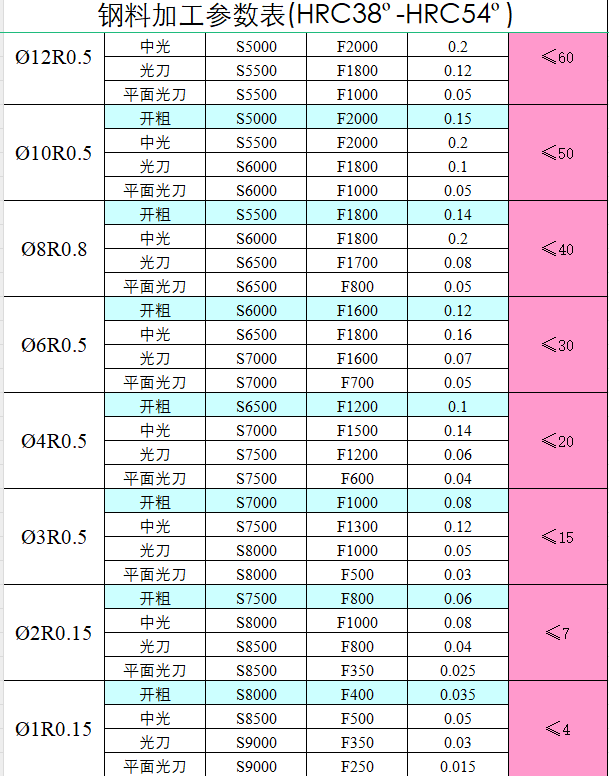

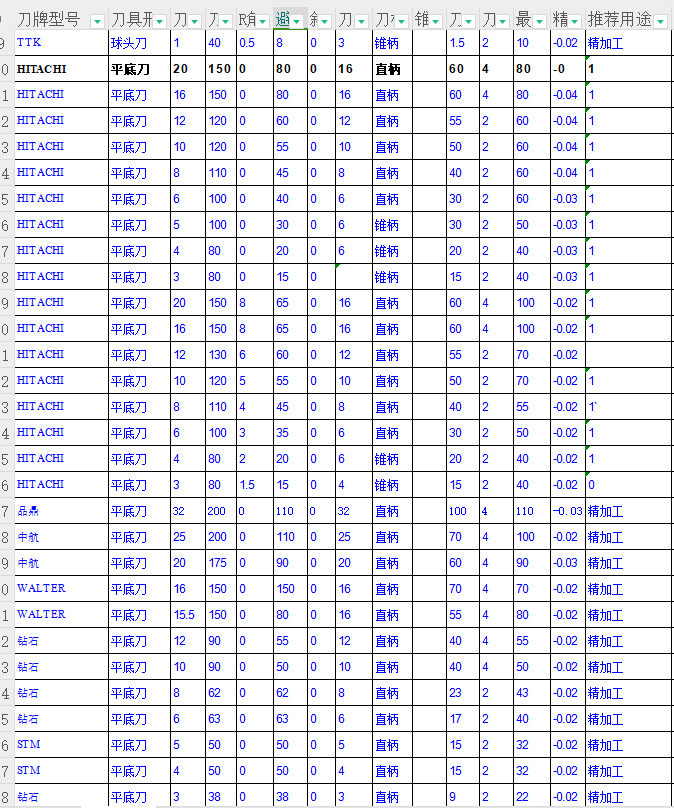

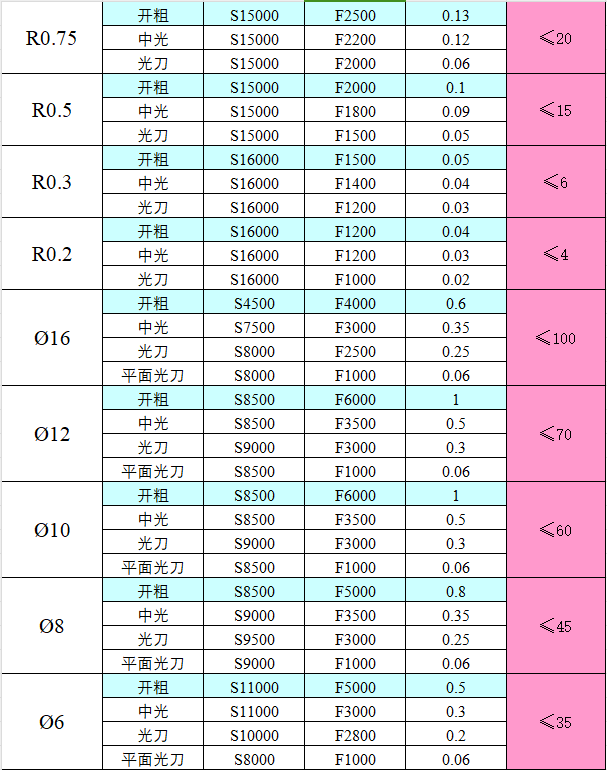

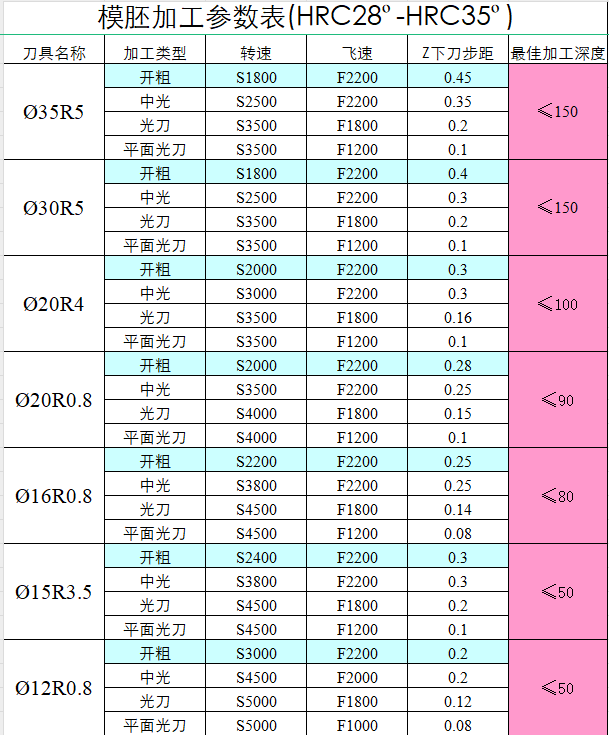

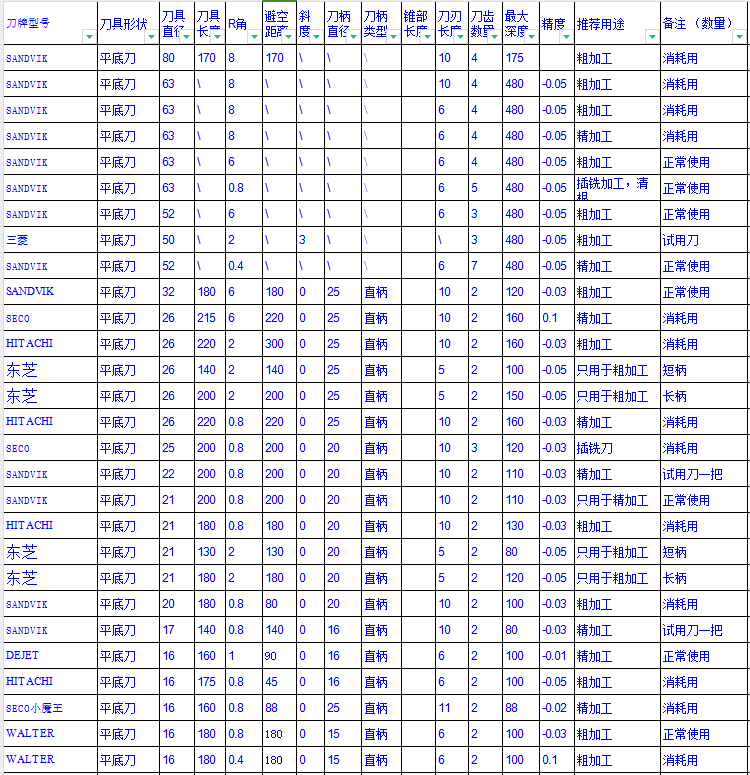

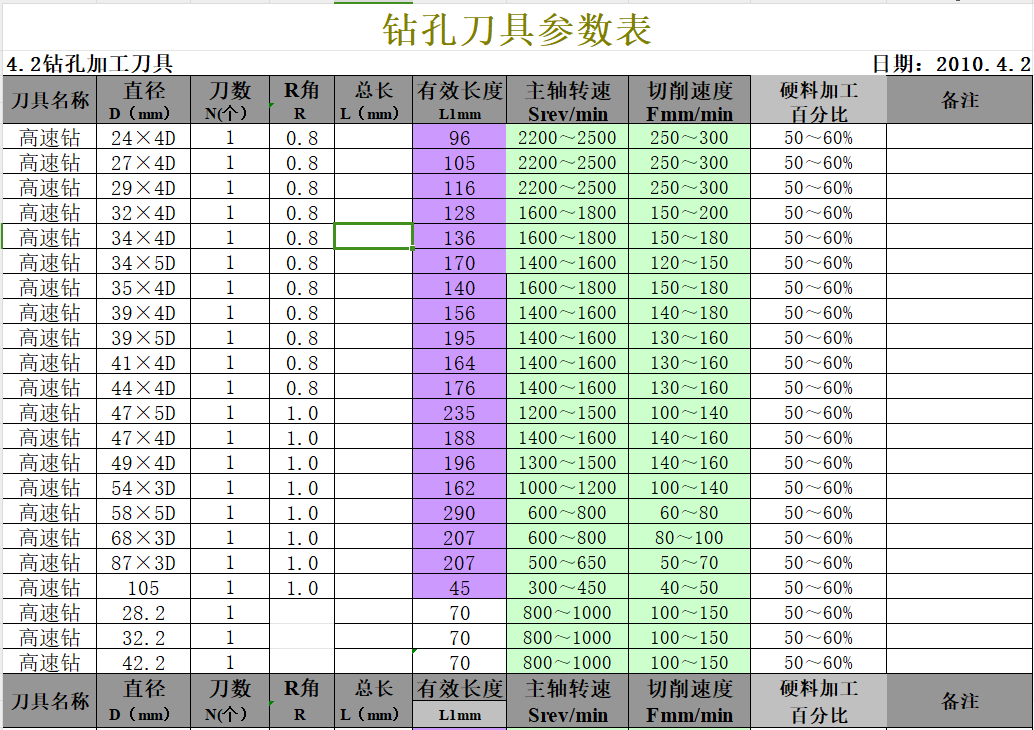

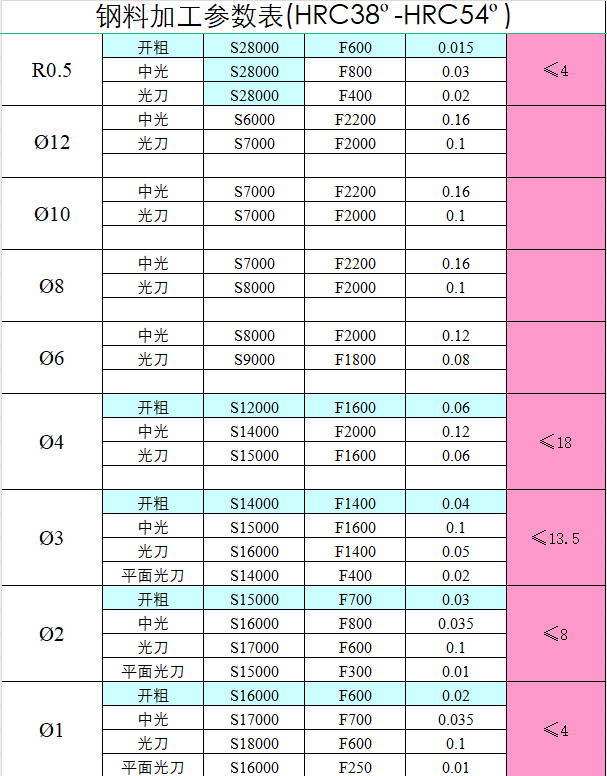

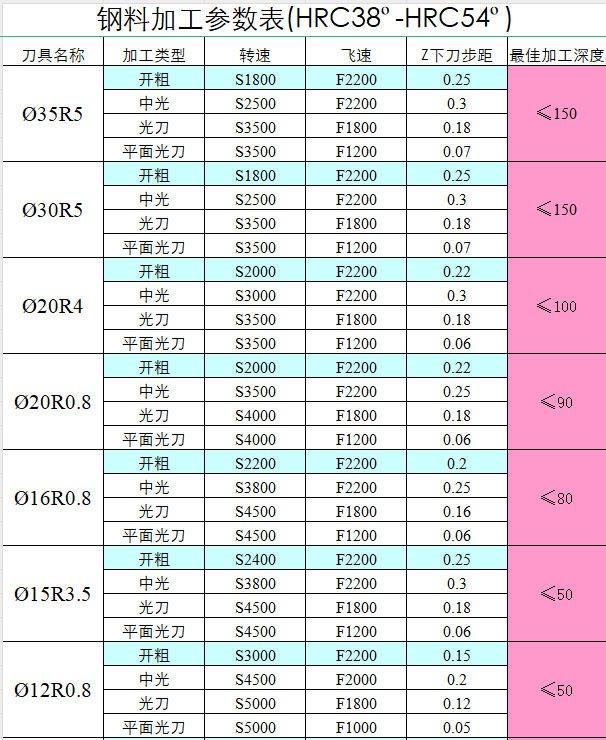

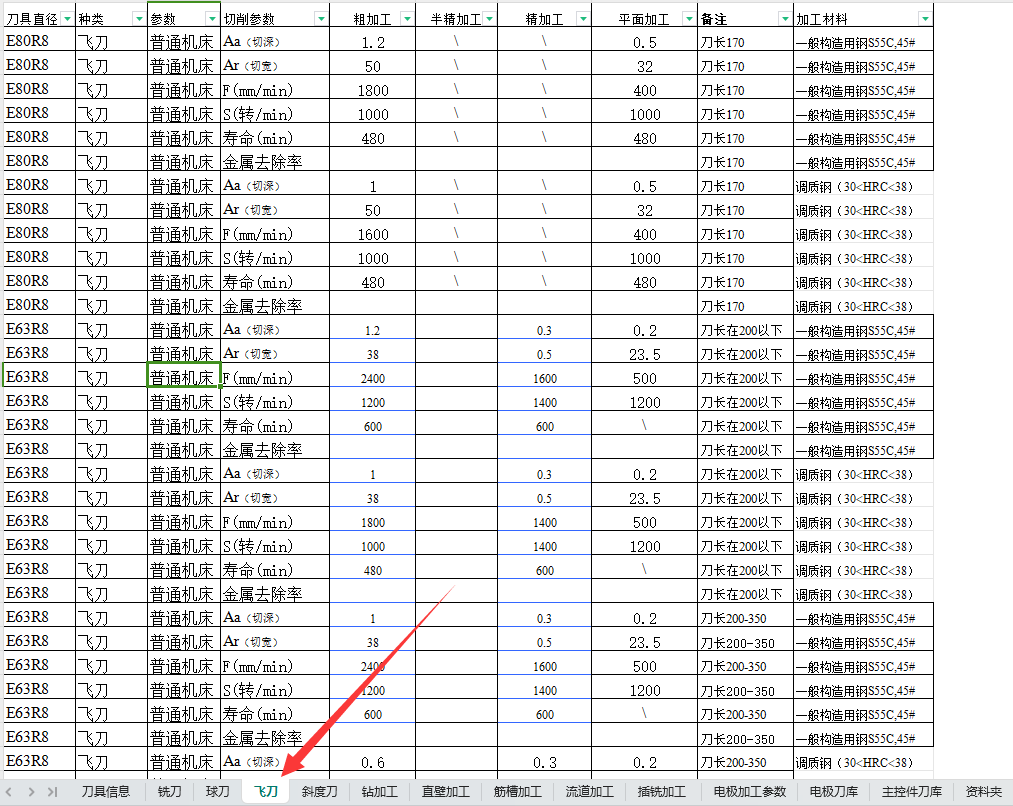

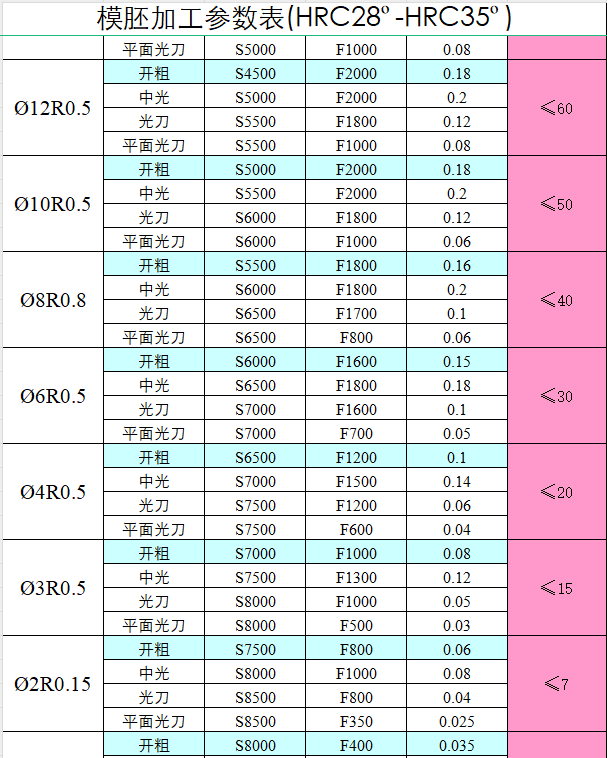

Steel grades scale with hardness. 1018 and 1045 run 100–180 m/min with coated carbide. 4140 at 28–32 HRC drops to 80–140 m/min. Above 40 HRC, either use a smaller stepover and accept slower removal, or move to a trochoidal path and a tool rated for hardened stock. Titanium Ti-6Al-4V is the opposite of aluminum: 40–70 m/min, low surface speed, generous feed per tooth, and flood coolant at every pass.

Plastics sit at the other extreme. POM and ABS cut at 300–600 m/min, but the real risk is melting and chip welding. Use sharp uncoated tools with high rake, keep the feed per tooth above 0.05 mm, and clear chips with air. PEEK and carbon fibre need diamond or PCD edges and a dust extraction path, since the swarf is abrasive and unhealthy.

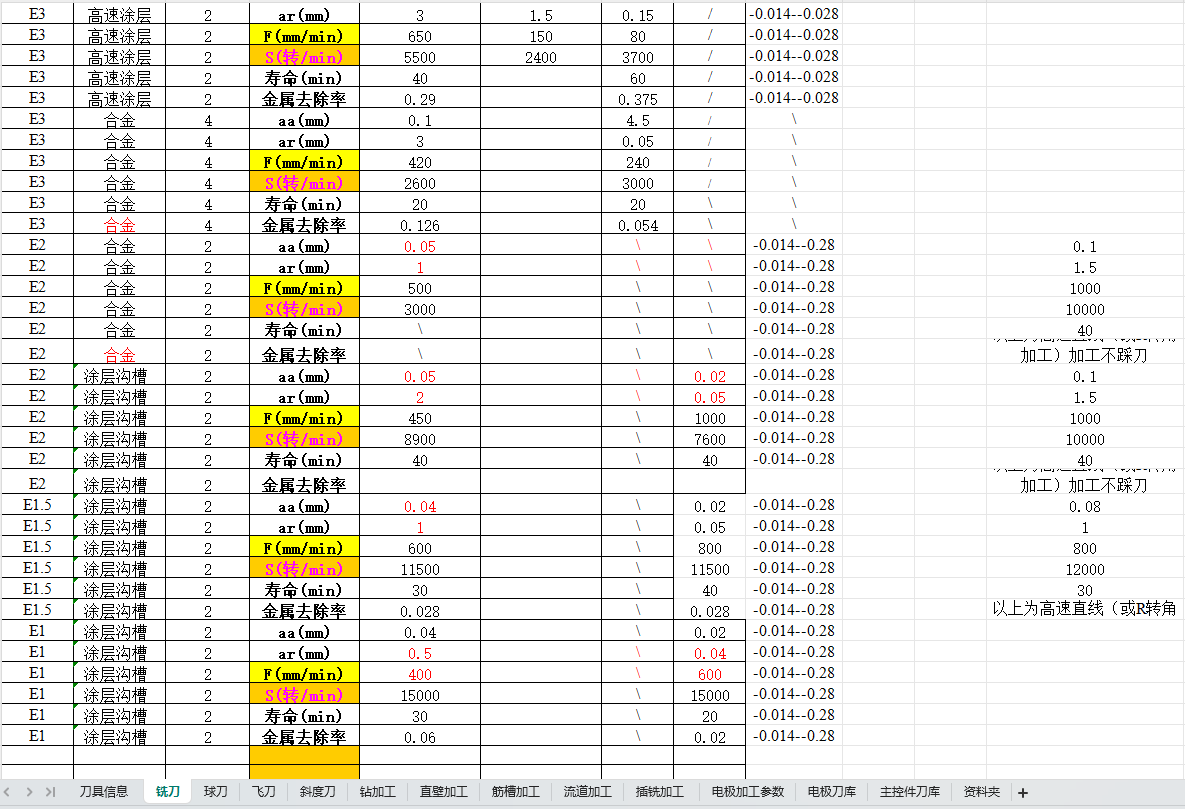

Coating matters less than people expect. TiAlN raises the usable surface speed in steel by roughly 20–40% over uncoated carbide, mostly by letting the edge survive the heat. In aluminum, TiAlN is a poor choice because aluminum sticks to it. Use ZrN, DLC, or leave the tool uncoated. The table value should follow the coating, not the other way round.

Helix angle sets the direction of cutting force. A 45° helix pulls the part up and suits deep side milling on a rigid setup. A 30° helix is steadier in slots and thin walls. Variable-pitch cutters were made to break chatter. When a table gives one feed value for a family of end mills, the variable-pitch tool can usually take 10–20% more, because it suppresses the resonance that would otherwise show in the finish.

Corner radius is the quiet variable. A sharp-corner end mill concentrates stress and chips on hard materials. A 0.5 mm corner radius lets the same tool take a deeper axial cut in 4140, and it lasts longer. For finishing, a bull-nose with 0.4 mm radius produces a cleaner floor-to-wall transition than a flat tool, so the finishing table value can be higher.

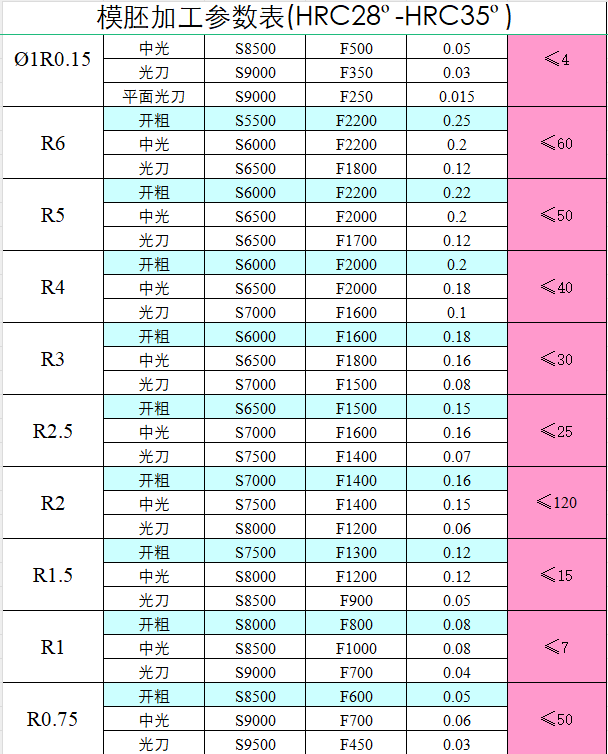

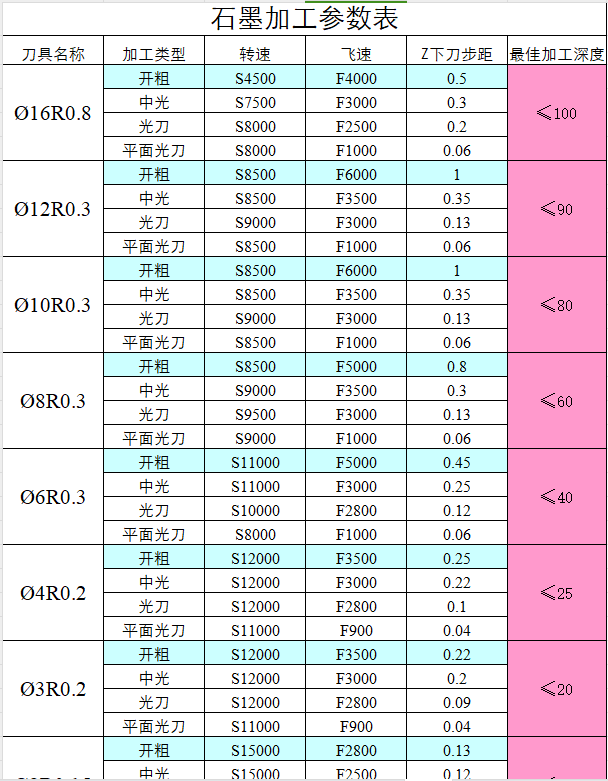

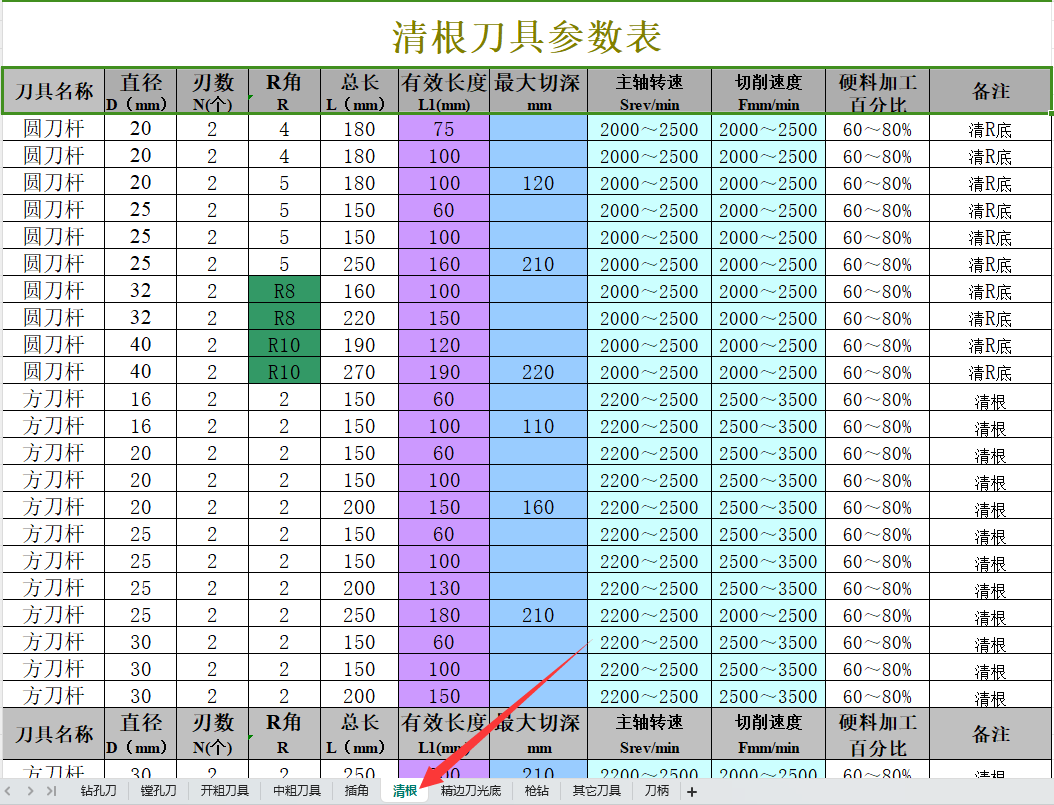

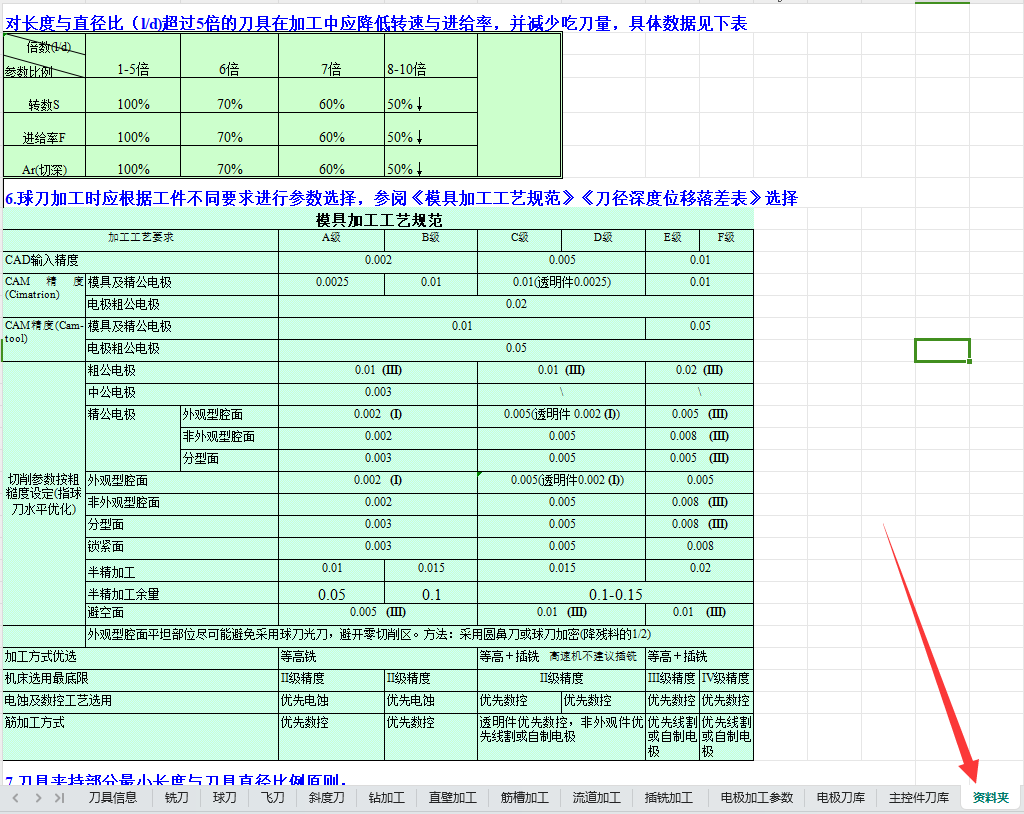

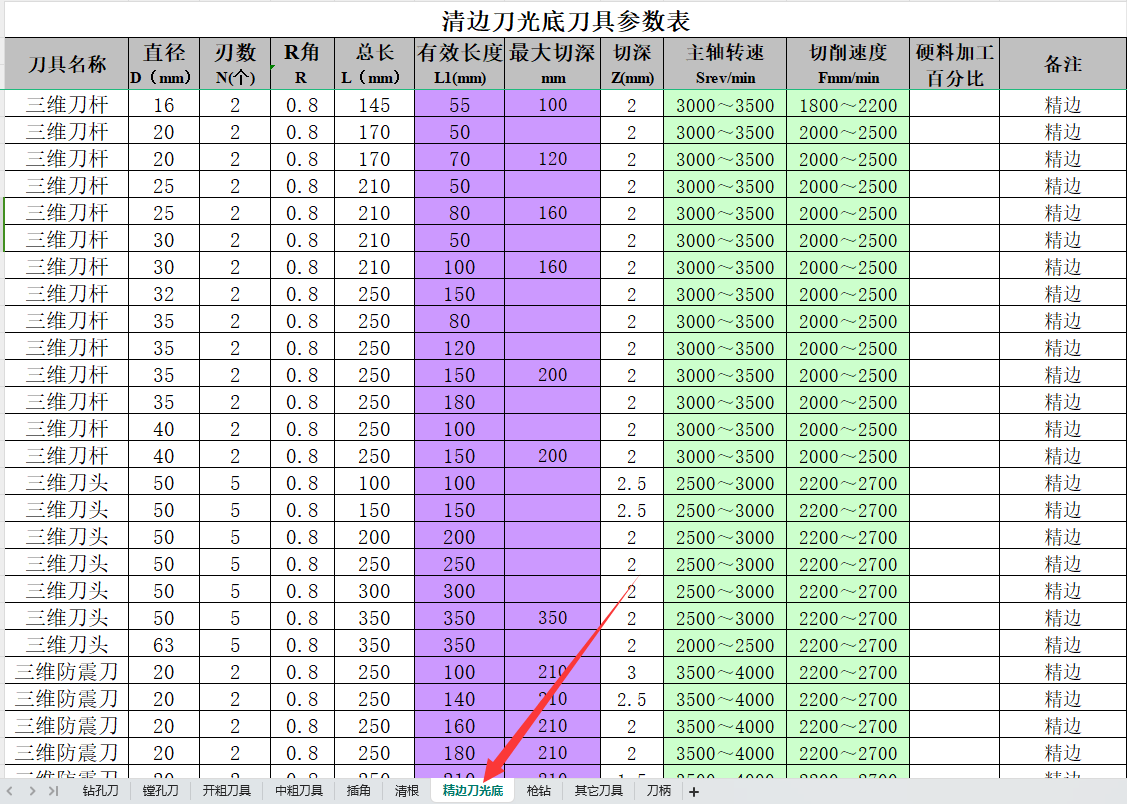

Tool overhang is where the table stops being useful. Values are normally quoted at 4× diameter or less. At 8× diameter, reduce axial depth by about half and drop the feed per tooth by 20–30%. No table can predict the deflection of your specific holder, so treat the printed number as a starting point that assumes a short, stiff setup.

A table assumes the spindle can deliver the speed and the torque. Small high-speed spindles reach 20,000 rpm but stall under load. A 50 mm face mill in 4140 may call for 400 rpm and a heavy feed, which is fine for a geared spindle and hopeless for a direct-drive one. Check the power curve before you trust the number.

Rigidity sets the ceiling on depth of cut. A 3-axis machine with a 500 × 500 × 450 mm envelope and a 40-taper spindle can push a 16 mm cutter at 0.5×D axial in aluminum. A 5-axis trunnion with the part held far from the table cannot. Long reach tools, thin walls, and tall fixtures all reduce what the same insert will tolerate.

Thermal growth shows up on long jobs. A spindle running at 12,000 rpm for two hours grows a few tens of microns. On a ±0.005 mm tolerance, that matters. Rough in the morning, let the machine settle, then finish. The finishing table value stays the same; the timing around it changes.

Coolant delivery decides whether the chip leaves the cut. Through-spindle coolant at 70 bar clears deep holes and keeps the edge cool. Flood coolant alone recirculates chips in pockets deeper than 2× diameter. If you cannot get the chip out, reduce the feed per tooth rather than the speed, and add a pecking or helical entry.
