CNC Machining of Aluminum Parts: How Alloy Choice Shapes the Cut

• 1

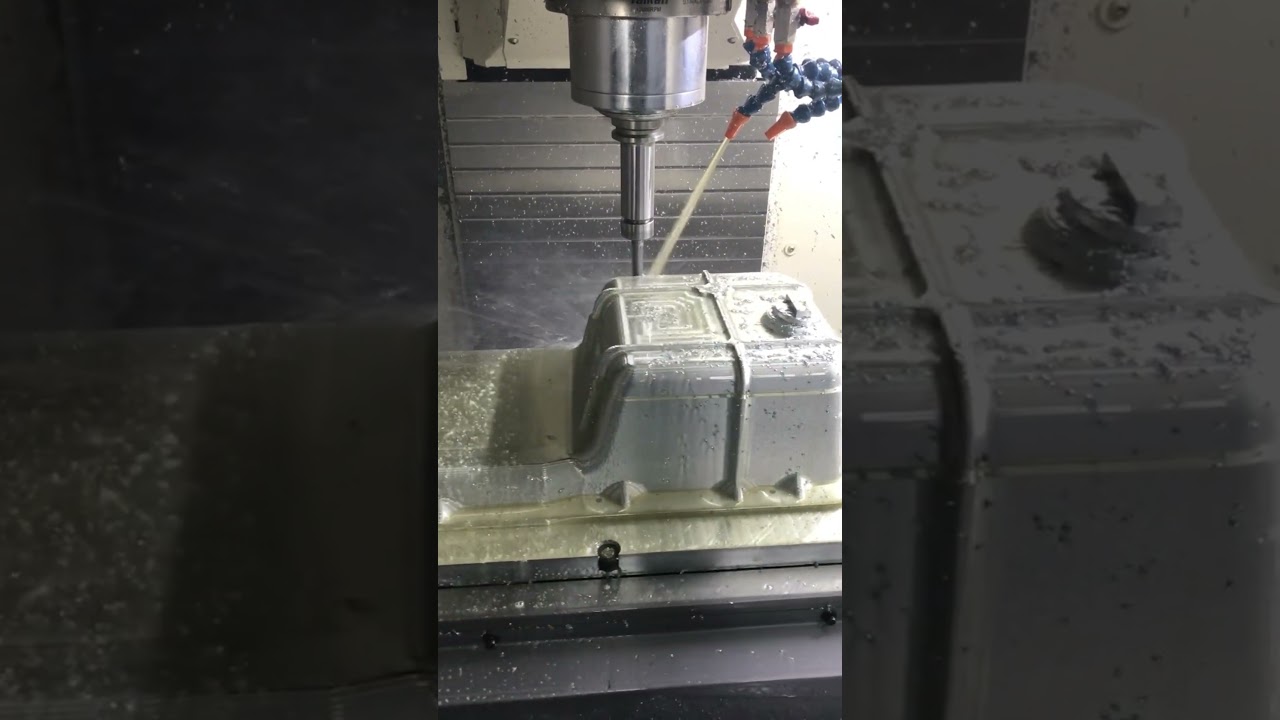

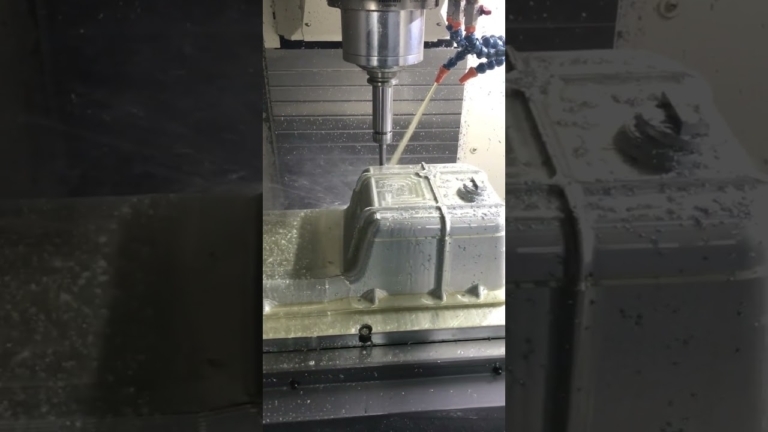

  CNC machining of aluminum parts: why the metal cuts differently from steel
• 2
  Choosing a grade: 6061, 7075, 2024 or a casting alloy
• 3
  Wall thickness, thin floors and what the tool will tolerate
• 4
  Where 5-axis machining changes the plan
• 5
  Surface finish and how it interacts with anodizing
• 6
  Aluminum grade selection for CNC machining

Aluminum carries about one third the density of steel and roughly three times the thermal conductivity. Both numbers change how a cut behaves. The low density means less rotating mass, so a spindle reaches 12,000–18,000 rpm without fighting inertia. The high conductivity pulls heat out of the shear zone and into the tool and fixture.

That heat path is the reason aluminum is usually cut dry or with a light mist. Flood coolant helps chip evacuation on deep pockets, but the cut itself does not need cooling the way stainless does. Where aluminum does suffer is thermal growth in the part. A 300 mm long plate can move 0.05–0.1 mm between a cold morning and a warm afternoon. Rough and finish in the same session when the tolerance is tight.

Built-up edge is the other failure mode. Pure aluminum grades smear onto the cutting edge, and the smeared layer breaks off, taking part of the edge with it. That is why 6061 and 7075 contain magnesium and zinc. The alloying elements form a harder, more brittle chip that clears the flute instead of welding to it.

Chip clearance sets the ceiling on feed rate more often than spindle power does. A three-flute cutter in a 12 mm slot can run 0.15 mm per tooth. Drop to a 4 mm cutter in the same slot and the chip has nowhere to go, so you cut the feed and accept a longer cycle.

6061-T6 is the workhorse. It machines clean, welds well, takes anodizing evenly and holds ±0.005 mm on features that fit in one setup. Yield strength lands near 275 MPa. For enclosures, brackets, plates and most fixture work, there is little reason to look further.

7075-T6 gives you roughly 500 MPa yield and noticeably better fatigue life, at about twice the material cost. It cuts well but is less forgiving of sharp internal corners, where stress concentrates. Use it for aircraft fittings, high-load linkages and anything that sees cyclic load. Do not anodize 7075 expecting the same cosmetic color as 6061; the zinc content shifts the dye response.

2024-T4 offers excellent fatigue resistance and is common in aerospace skins and structural parts. Its copper content makes it corrode quickly in bare form, so it usually ships with a protective finish or cladding. Welding 2024 is not practical in a job shop.

For die-cast or sand-cast housings, ADC12 and A380 machine differently from wrought bar. Cast skins carry porosity and hard oxide inclusions, so the first pass often cuts 0.5 mm just to get under the skin. Expect more tool wear and a slightly rougher as-machined finish.

Aluminum stiffness scales with the cube of wall thickness. Cut a wall from 3 mm to 1.5 mm and it becomes eight times easier to deflect. That is the number that matters, not the material data sheet. A 1.5 mm wall 40 mm tall will chatter on a conventional end mill unless you reduce radial engagement and support the back side.

The usual fix is a smaller step-down with a higher feed. A 6 mm cutter taking 0.3 mm axial depth at 0.08 mm per tooth cuts a thin wall with less force than a 12 mm cutter taking 1 mm. The smaller cutter also reaches into corners a large tool cannot. Cycle time goes up, but the wall stays straight.

Thin floors behave the same way. A 2 mm floor on a 100 mm pocket will ring under a face mill. Rough it leaving 0.5 mm of stock, let the part relax, then finish with a light radial pass. If the floor has a sealing surface, plan the finish cut for a stable temperature.

Below about 0.8 mm, aluminum walls start to bend under their own clamping load. At that point the discussion moves to fixture design, and sometimes to a different process entirely.

Three-axis work needs one setup per face. Every extra setup adds a fixture, an operator touch and a positional stack-up. Five-axis machining turns the part instead, so four or five faces come off one program. On a part with angled ports or compound faces, that removes two or three setups and the tolerance error that comes with them.

Simultaneous five-axis also lets a short, stiff cutter follow the surface normal. Instead of a long tool reaching down a deep cavity, a stub tool tilts in and cuts the floor at an angle. Tool deflection drops, surface finish improves, and you can hold a tighter tolerance on a deep feature.

There are limits. A Ø400 mm rotary table sets the swing envelope, and parts beyond the machine travel need repositioning. Deep, narrow bores still want a long tool, and no amount of tilting fixes a length-to-diameter ratio above roughly 6:1.

For simple plates and blocks, three-axis is faster and cheaper. Five-axis earns its cost when setup count, feature angle or surface finish drives the price more than raw cutting time.

As-machined aluminum lands around Ra 1.6–3.2 μm with a clean cutter and a rigid setup. A finishing pass at 0.1 mm radial engagement and 0.02 mm per tooth can reach Ra 0.8–1.6 μm without any secondary operation. That is usually enough for a mating face or a bearing bore.

Fine finishes below Ra 0.8 μm need more than a slow feed. Tool runout has to be under 0.01 mm, and the machine needs to hold a stable temperature. On a part with a 0.2 mm wall, the finish pass itself can deflect the wall enough to ruin the number you just measured.

Anodizing grows the surface. Type II clear adds roughly 5–10 μm per side and follows the existing tool marks, which means a visible step at a machined edge. If the drawing calls for a tight fit after coating, machine to the pre-coat dimension and tell the finisher the target.

Hardcoat runs thicker and darker. Laser marking needs at least 1.5 mm character height to stay legible after the oxide layer forms, so plan the marking layout with that floor in mind.
