CNC Machining of Steering Gear Housing

• 1
  What the housing actually has to do
• 2
  Tolerances that change steering feel
• 3
  Why this part usually goes on 5-axis
• 4
  Machining behavior by material
• 5
  How the bores get verified
• 6
  Common failure modes and their causes
• 7
  From casting to finished housing
• 8
  When casting, billet or 5-axis fits best

A steering gear housing is a structural shell with a precise internal geometry. In a worm-and-roller box it carries the worm shaft on two bearings and the roller shaft at 90°. In a rack-and-pinion unit it carries the pinion bearing bores and the rack bore on parallel axes. The housing does not transmit torque itself. It keeps the parts that do in the right position.

That job sets the real requirements. Bore-to-bore center distance, axis parallelism, and bore roundness matter more than the outside shape. A housing with a beautiful exterior and a 0.05 mm axis tilt will produce steering lash the driver can feel at 80 km/h. Bore alignment is the whole point.

Most housings are castings: aluminum ADC12 or A356, or ductile iron for heavy truck boxes. Machining removes 0.5–3 mm from cast surfaces and brings the bores, faces and mounting holes to final size. Billet housings exist too, usually for motorsport or low-volume EV prototypes where tooling cost cannot be justified.

• 1
  Primary datumsUsually the pinion bore and the mounting face. Pick them before anything else.
• 2
  Critical featuresBearing bores, seal bores, rack bore, mounting hole pattern.
• 3
  Non-criticalExternal ribs, bosses, cosmetic faces. Do not over-tolerance them.

The number that decides whether a housing is good is bore-to-bore center distance. On a passenger-car rack housing this typically sits at ±0.02 to ±0.05 mm. Get it wrong and the gear mesh runs tight at one end of travel and loose at the other. The driver reads that as a dead spot or a bind, and no amount of adjustment shim fixes it.

Axis parallelism between the pinion bore and the rack bore is the second number. It is usually held within 0.02 mm over the bore length. Bearing bores themselves are round within 0.01 mm and cylindrical within 0.015 mm. Those are the figures that keep the bearing outer race from being squeezed into an oval, which shortens bearing life fast.

Surface finish follows function. Bearing bores are commonly held at Ra 0.8–1.6 μm so the race seats without fretting. Seal bores go finer, Ra 0.2–0.8 μm, because a rough seal bore tears the lip and creates a leak path. External faces can stay at Ra 1.6–3.2 μm as machined. Spending fine-finish time on a rib is wasted money.

A steering gear housing has features on five or six sides: bearing bores from two directions, mounting holes from a third, a sector shaft bore at an angle. On a 3-axis mill you machine one face, unclamp, rotate, re-clamp, and re-establish the datum. Every re-clamp adds stack-up error, and the tolerance budget above does not leave room for it.

A simultaneous 5-axis machine with a Ø400 mm rotary table lets us clamp once and reach the bores and the mounting pattern in the same setup. Datum error drops to the machine's own positioning accuracy instead of accumulating across four fixtures. It also shortens the process: fewer setups means fewer chances to scrap a casting that already has 40 minutes of work in it.

The single-setup approach works best when the part fits the rotary table envelope. Housings up to roughly 500 × 500 × 450 mm run comfortably on our compact and medium 5-axis centers. Larger truck and bus housings, up to 4,000 mm, are machined on the larger travels with a different fixturing plan and often a two-setup approach.

Aluminum castings in ADC12 or A356 cut fast and hold good finish, but they are abrasive and gummy. Sharp tooling with high rake angles and generous coolant keep the built-up edge away from bearing bores. A dull tool smears aluminum across the bore instead of cutting it, and the bore measures a few microns small after it cools.

Ductile iron housings behave differently. The material is stable and holds tolerance well, but the graphite dust is a health and housekeeping issue. Dry or minimum-quantity lubrication with strong extraction is common. Iron also springs back less than aluminum, so in-process measurement can be trusted more between cuts.

Billet 6061-T6 or 7075-T6 housings are occasionally used for prototypes and motorsport. They machine cleanly and finish well, but the material cost and cycle time are much higher than a casting. For anything past a few dozen units, a casting plus finish machining almost always wins on cost. Billet makes sense when tooling lead time is the binding constraint.

• 1
  Aluminum6061-T6, 7075, ADC12, A356. Fast cut, watch built-up edge on bores.
• 2
  Ductile ironStable, good tolerance retention, needs dust extraction.
• 3
  Stainless and steel17-4PH, 4140 for high-load or corrosive service. Slower, more tool wear.

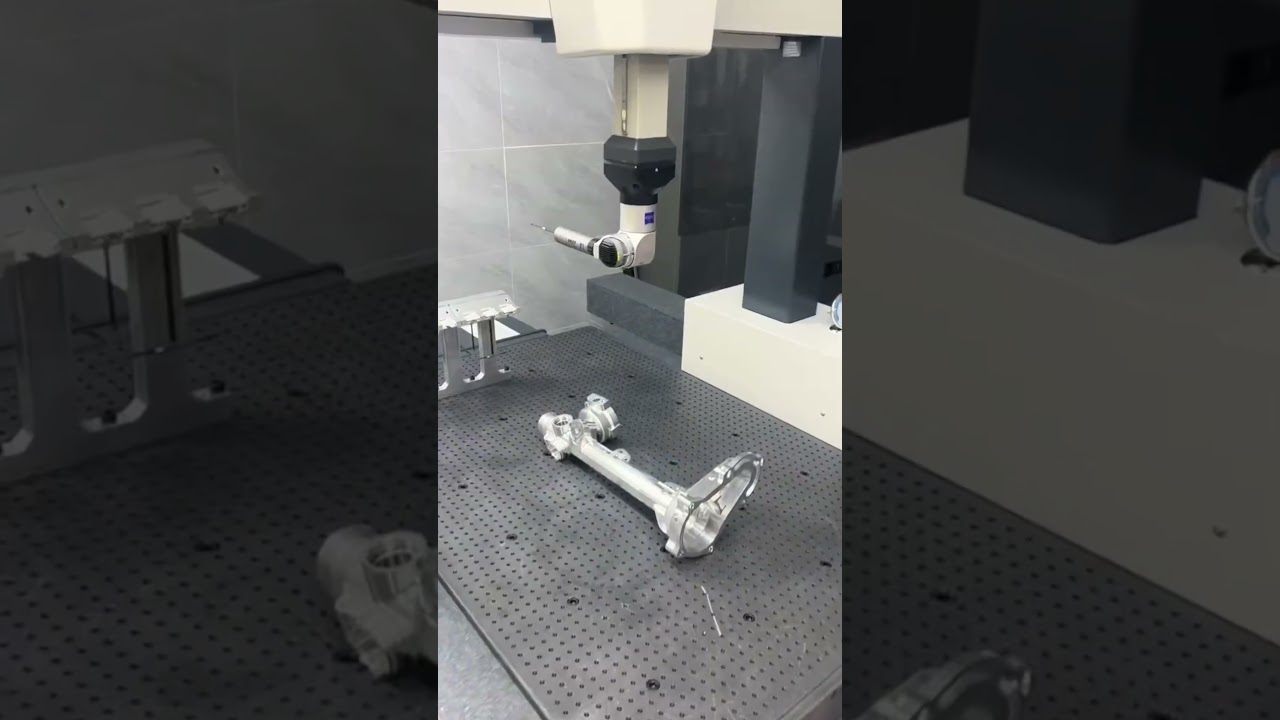

A housing is hard to measure after the fact because the critical features are internal and far apart. We check the bore axes relative to the primary datum, not just the bore diameters. A bore that is round and on size but on the wrong axis is still scrap. Axis position is measured with a CMM using the pinion bore and mounting face as the datum reference frame.

Bore roundness and cylindricity are checked with a dial bore gauge or on the CMM, depending on volume. For production runs, go/no-go plug gauges catch size drift at the machine without waiting for a CMM slot. Seal bores get a surface finish check because the Ra value is what controls seal life, not the diameter alone.

Every part is inspected before shipment on our side, with raw material checks upstream and in-process monitoring during the run. Reports are available on request. For housings that go into a vehicle program, the traceability chain matters as much as the numbers, and IATF 16949:2016 is the framework we run automotive work under.

Bore chatter shows up as a rippled finish and a size that will not settle. The usual cause is tool overhang. A boring bar reaching deep into a housing deflects, and the deflection is worse in aluminum than in iron. Shortening the bar or stepping up to a larger-diameter bar fixes more chatter problems than changing speed does.

Bore distortion after clamping is the second trap. A thin-wall aluminum housing clamped hard in a vise will measure round in the fixture and oval on the bench. Light clamping, or a fixture that supports the bore wall from inside, keeps the part in its free state. Measure a clamped part and you are measuring the fixture.

Thermal drift is the third. Aluminum grows about 23 μm per meter per degree Celsius. A housing that measures on size at 22 °C will read small in a 15 °C inspection room. We let parts stabilize before final inspection. If the drawing does not state a reference temperature, agree on one with your supplier before the first article.
