A transparent part is judged by light, not by a caliper. A PMMA lens can hit ±0.005 mm on every feature and still be scrap because the surface scatters light. The defect is usually a shallow layer of stretched or micro-cracked material left by the cutter, plus heat that softened the plastic and let it smear instead of shear.

The mechanism is straightforward. Clear thermoplastics have low thermal conductivity, so heat from the cutting edge has nowhere to go. It builds at the contact zone, raises the local temperature, and the material stops behaving like a brittle solid. Instead of a clean chip, you get a gummy edge, a built-up edge on the tool, and a dull, hazy wall.

CNC machining of transparent parts therefore runs on three controls: sharp geometry, low cutting temperature, and chip removal. Get those right and the part comes off the machine clear enough for light guides, sight glasses and fluid manifolds. Get one wrong and polishing turns into a rescue operation that adds cost and risk.

There is also a design side. Deep pockets, sharp internal corners and thin walls all trap heat and force the tool to dwell. If the drawing allows a generous corner radius and a wall thick enough to resist deflection, the same part machines far more predictably.

• 1
  Material choice sets the ceilingPMMA machines clearest; PC survives impact but smears more easily.
• 2
  Tool sharpness is not optionalA worn edge rubs rather than shears and leaves a white haze.
• 3
  Heat is the main enemyLow conductivity means the cutter, not the part, must carry heat away.

Single-crystal diamond tooling gives the best optical result on acrylic and polycarbonate. The edge is sharp at a scale that shears the polymer instead of tearing it, and it holds that edge long enough to finish a batch. Carbide works for roughing and for non-optical features, but it leaves a slightly rougher wall that may need a finishing pass.

Speeds and feeds run opposite to aluminum. Spindle speed is high, feed per tooth is moderate, and depth of cut stays light so the tool does not load up. Flood coolant or a strong air blast is standard. Milling dry is possible on small features but the heat has to leave with the chip, and clear plastics produce stringy chips that wrap the cutter.

Acrylic, or PMMA, is the most forgiving clear plastic. It cuts clean, polishes well, and holds tight tolerances. It also cracks under impact and is sensitive to solvent attack. Polycarbonate is far tougher, which is why sight glasses and machine guards use it, but it is softer, gummier, and more prone to smear and stress whitening at the cut.

Other clear materials behave differently again. COP and COC are used where low moisture absorption matters, and they machine cleanly but cost more. Clear rigid PVC machines well and resists chemicals, though it can discolor with heat. The rule is simple: pick the material for the service environment first, then accept the machining window it allows.

• 1
  PMMAClearest result, best polish, brittle under impact.
• 2
  PolycarbonateHigh impact strength, harder to keep optically clear.
• 3
  COP and COCLow water uptake, good clarity, higher material cost.
• 4
  Clear rigid PVCChemical resistance, watch heat discoloration.

Clear parts are usually thin and flexible, so clamping is half the battle. A vise tightened to hold a 6 mm acrylic plate will bow it, and the cutter will then remove material from a distorted shape. When the clamp releases, the part springs back and the flatness is gone. Soft jaws, vacuum chucks and low-pressure fixtures avoid that.

Workholding also affects surface quality. Any vibration shows up as chatter on a transparent wall, and chatter marks scatter light badly. Rigid setups, short tool overhangs and light finishing passes keep the cut stable. On long thin parts, support underneath matters as much as the clamp on top.

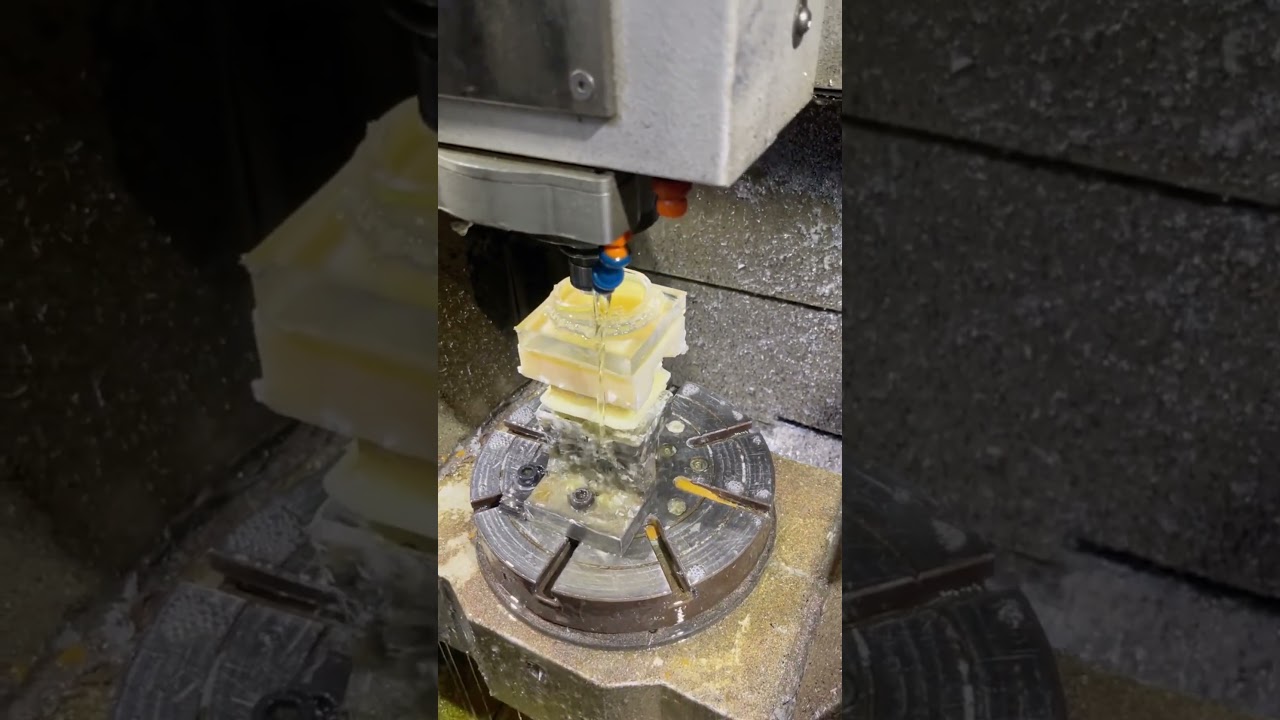

This is where 5-axis machining earns its place. A clear part with compound angles, a curved window or several faces that must be cut without re-clamping can be finished in fewer setups. Fewer setups mean fewer chances to scratch a finished surface, and better positional accuracy between faces.

5-axis is not automatically better. A flat panel with simple pockets is faster and cheaper on a 3-axis machine with a good fixture. The judgment is setup count and surface continuity: if the optical faces must blend across a curve, simultaneous 5-axis gives you a continuous tool path and a consistent surface.

• 1
  Use vacuum or soft jawsHard clamping bows thin clear plates and ruins flatness.
• 2
  Keep the tool shortLess overhang means less chatter on transparent walls.
• 3
  Count your setupsEach re-clamp is a chance to scratch a finished face.

Chip evacuation is often ignored until it ruins a part. Clear plastic chips are light, stringy and static-prone. They wrap around the cutter, get re-cut, and drag across the finished wall. A strong air blast or flood coolant clears them, and a vacuum shoe helps on flat work where chips pool in pockets.

Coolant choice matters. Water-based flood coolant removes heat quickly and keeps the chip flowing, but acrylic can absorb moisture and cloud over time if it is not dried. Many shops run clear plastics with chilled air or a mist instead, accepting a slightly lower removal rate for a cleaner, drier surface.

Finishing is a sequence, not a single pass. A light finishing cut leaves a uniform surface, then abrasive steps refine it. Vapor polishing and flame polishing can bring acrylic to optical clarity, but they soften the surface and can round edges. Mechanical polishing with graded compounds is slower and safer for tight tolerances.

Inspection follows the same logic. Dimensions are checked with a CMM or optical comparator, but clarity needs a light box, a gloss meter or a visual standard agreed with the customer. GreatLight inspects 100% of parts before shipment, with reports on request, because a clear part that passes dimensional checks can still fail on haze.

• 1
  Clear the chipRe-cut chips scratch the wall and dull the edge.
• 2
  Control moistureAcrylic can cloud if it absorbs water-based coolant.
• 3
  Polish in stagesVapor and flame polishing are fast but soften edges.

CNC machining of transparent parts fits prototypes, low and mid volume, and any geometry where the optical face has to be a machined surface. Light guides, lenses, sight glasses, fluid manifolds, inspection windows and display covers all fall into that group. One part or 10,000 parts, the setup is the same.

It also fits parts that combine clear areas with tight mechanical features. A manifold with a clear body and threaded ports, or a window with a mounting flange, is easier to machine from one billet than to assemble from separate pieces. Fewer joints mean fewer leak paths and fewer optical interfaces.

It does not fit high-volume thin lenses. Once the annual volume is in the hundreds of thousands, injection molding or casting wins on unit cost, and the tooling investment pays back. It also does not fit parts that need a molded-in aspheric curve with sub-micron form accuracy; that is a molding and polishing problem, not a milling one.

There is a middle ground worth knowing. For a few hundred clear parts, aluminum or steel tooling plus vacuum casting can produce optically acceptable components faster than a full injection mold. The decision comes down to volume, optical specification and how much geometry freedom the design needs.

• 1
  Good fitPrototypes, light guides, sight glasses, clear manifolds.
• 2
  Good fitParts mixing optical faces with threads and flanges.
• 3
  Poor fitVery high volume thin lenses better suited to molding.
