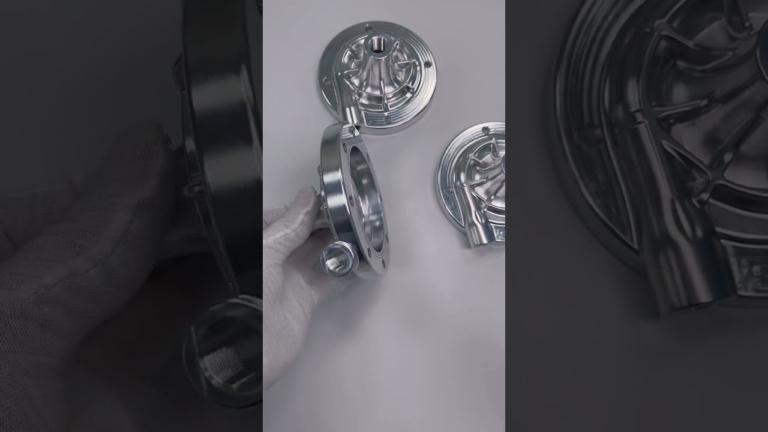

CNC Machining Turbo Automotive Parts: How 5 Axis Cutting Works

• 1
  Why CNC Machining Turbo Automotive Parts Forces a 5-Axis Decision
• 2
  Alloys Used in CNC Machining Turbo Automotive Parts
• 3
  Tolerances and Surface Finish That Actually Matter
• 4
  Where Milling Stops and Other Processes Take Over
• 5
  Inspection, Certification and What Buyers Should Ask For
• 6
  Milling vs Casting vs Hybrid for Turbo Parts

A compressor wheel is a hub with 6 to 12 splitter blades wrapped around it. Each blade leans back and twists along its length, and the gap between neighbors narrows toward the tip. A 3-axis mill can only reach that gap from one direction. The tool shank hits the next blade before the tip does. So the blade gets cut in two setups, and the blend line shows up as a step on the suction face.

Five-axis machining solves this by rotating the part and the spindle at the same time. The tool stays normal to the blade surface through the whole pass. That keeps the effective cutting diameter constant, which matters more than many people expect. When a ball nose tool tilts, the contact point moves and the surface speed changes. A constant tilt angle keeps chip load even from root to tip.

The payoff is measurable. Blade profiles that would need three or four setups on a 3-axis machine come off a 5-axis machine in one. Positional error between setups disappears because there are no re-fixturing moves. On a wheel with 0.4 mm tip thickness, that removed error is often the difference between a pass and a scrapped part.

The cost is programming time. A five-axis toolpath for a 90 mm compressor wheel can take 20 to 40 hours to develop and verify, against 4 to 8 hours for a simpler 3-axis job. That cost is real, but it lands once. If the part runs more than a handful of units, the per-piece math usually favors five-axis.

• 1
  Blade count 6–12More blades mean narrower channels and shorter tools.
• 2
  Tip thickness 0.3–0.8 mmBelow 0.3 mm, deflection risk climbs fast.
• 3
  One setup vs threeFewer setups remove stack-up error.
• 4
  Programming 20–40 hAmortize over the run, not one part.

The cold side of a turbo sees 150–250 °C in normal service. The hot side, turbine wheel and housing, sees 850–1,050 °C. That split drives material choice more than any other factor. Aluminum 2618 and 7075 are common for compressor wheels and housings. They are light, they cut fast, and they hold balance at 150,000 rpm and above.

Titanium Ti-6Al-4V (TC4) shows up where the compressor must survive higher temperature or where inertia must drop further. It cuts at roughly one quarter the speed of aluminum. Thermal conductivity is low, so heat stays in the cut zone. Tool life drops, and a roughing pass that takes 20 minutes in aluminum can take 90 minutes in Ti-6Al-4V.

On the turbine side, Inconel 713 and similar nickel alloys are the standard. These are the hardest materials on this list. They work-harden under the cutter, so a light rubbing pass is worse than a firm one. Cut depth below 0.3 mm usually means the tool rubs instead of shearing. That is where most scrap comes from on turbine wheels.

Bearing housings are usually cast iron or aluminum, then bored and faced. Center housings that carry oil passages may be 6061 or 2024 for prototype work and die cast ADC12 for volume. The machining logic stays the same: locate on the bore, control the sealing face, hold the bearing seat concentric.

• 1
  Aluminum 2618 / 7075Compressor wheels, housings, cold-side covers.
• 2
  Ti-6Al-4VLower inertia, higher temperature ceiling.
• 3
  Inconel 713Turbine wheels; never take a rubbing pass.
• 4
  Cast iron / ADC12Bearing housings, center housings.

Not every dimension on a turbo part needs the same control. Chasing ±0.005 mm everywhere raises cost for no benefit. The bearing bore, the shaft seat and the sealing face are the three that matter. Blade profile on the suction side matters too, but for flow rather than fit. Loose control there costs efficiency, not assembly.

The bearing bore sets rotor position. If it drifts 0.01 mm, oil film thickness changes and the rotor can contact the housing at high speed. We hold that bore to ±0.005 mm (±0.0002 in) and inspect it 100% before shipment. The shaft seat follows the same rule. The sealing face gets a flatness check, because a face that is not flat leaks boost.

Surface finish splits into two zones. Flow surfaces, the blade passages and the diffuser, want Ra 0.8–1.6 μm. That is smooth enough to keep boundary layer separation low without adding polishing hours. Bearing and sealing surfaces want Ra 0.2–0.8 μm. As-machined Ra 1.6–3.2 μm is fine for mounting faces and brackets that see no oil or air flow.

Balance is the hidden tolerance. A compressor wheel spinning at 150,000 rpm amplifies any unbalance. Material removal during blade finishing shifts the mass center. So the part gets balanced after the last cut, not before. If the drawing does not call out a balance grade, ask for one. It is cheaper to specify it than to discover it on a test stand.

• 1
  Bearing bore ±0.005 mmSets rotor position and oil film.
• 2
  Flow surfaces Ra 0.8–1.6 μmKeeps boundary layer attached.
• 3
  Bearing / seal Ra 0.2–0.8 μmNeeded for oil control and sealing.
• 4
  Balance after final cutBlade finishing moves the mass center.

Milling wins on low to mid volume, on geometry that needs tight tolerance, and on any part where the design is still moving. It loses on hollow internal passages, on very high blade counts, and on unit cost at volume. A turbine housing with an internal wastegate passage is a casting, not a milled part. You cannot cut that cavity from outside.

Compressor wheels sit in the middle. Milling is standard up to a few thousand units a year. Beyond that, investment casting becomes cheaper per piece, though tooling cost runs into weeks and thousands of dollars. The crossover depends on blade complexity and material. Inconel castings are harder to hold to tolerance than machined ones, so some programs stay on the mill longer than the volume alone would suggest.

There is a hybrid path too. Cast the blank close to net shape, then 5-axis machine the blade tips, the bore and the sealing face. This cuts roughing time and keeps the critical surfaces machined. It works well when the casting supplier can hold 0.3–0.5 mm of stock on the flow surfaces. Tighter stock than that risks the tool not cleaning up.

For prototypes and low-volume builds, no minimum order quantity matters. One wheel or ten, the setup cost is the same. That is often the deciding factor early in a program, before the design is frozen and before anyone wants to pay for tooling.

• 1
  Milling: low to mid volumeTight tolerance, geometry still changing.
• 2
  Casting: high volumeCheaper per piece, but tooling lead time.
• 3
  Hybrid: cast then machineKeep 0.3–0.5 mm stock on flow surfaces.
• 4
  No MOQOne prototype to 10,000+ part runs.

A turbo part that fails inspection usually fails on a dimension nobody flagged, not on the blade profile. That is why the inspection plan matters as much as the toolpath. We check raw material on arrival, monitor in process, and run a final check on 100% of parts before shipment. Reports are available on request.

For automotive programs, IATF 16949:2016 is the certification that matters. It sits on top of ISO 9001:2015 and adds automotive-specific requirements around traceability, process control and continuous improvement. If a supplier cannot show it, the part may still be good, but the paper trail will not satisfy an OEM audit.

Ask three questions before you place an order. Which surfaces are on the critical list? What is the balance grade after finishing? Who signs the inspection report? A supplier who answers all three without checking has done this before. One who hesitates has not.

Uploads stay confidential, and an NDA is available on request. For turbo geometry, that matters. The blade profile is the design. Once it is in someone else's hands, it is out of yours. Quotation and DFM analysis come back within 12 hours, and production can start within 24 hours after that.

• 1
  IATF 16949:2016The automotive audit standard.
• 2
  100% final inspectionRaw material, in-process, final.
• 3
  NDA on requestBlade profile is the protected design.
• 4
  12-hour quote + DFMProduction start within 24 hours.
