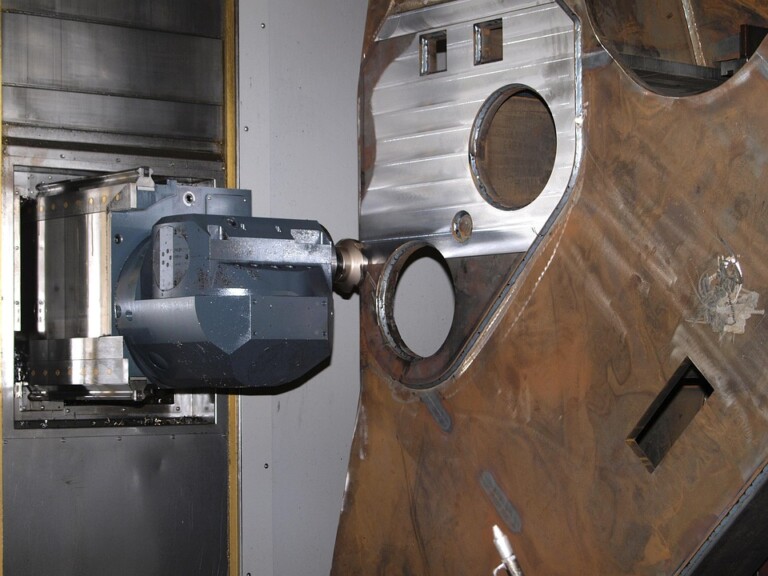

A CNC mill holds a rotating cutting tool and moves it through a solid block of material. The block is clamped to a table or a vise. The tool spins, the table or the spindle moves, and material leaves as chips. Subtract enough chips along the right path and the block becomes the part on the drawing.

What separates a CNC mill from a manual mill is the program. Every position, feed rate and spindle speed comes from a file, not from a handwheel. The same file can run a hundred times and produce the same geometry, which is why machining moved to CNC in the first place.

The cutting tool is the only part that touches the workpiece. Common tools are flat end mills for square corners, ball end mills for curved surfaces, drills for holes, and taps for threads. A 6 mm flat end mill in aluminum might run at 8,000 rpm and 1,500 mm/min. Drop the same tool into 316 stainless and those numbers fall hard.

Chips carry heat away. If the chips look like dust or turn blue, the cut is wrong. Proper chips are short, curled and warm, not hot. That single observation tells a beginner more about a running job than any screen on the control.

• 1
  Tool rotates, work stays putMilling differs from turning, where the work rotates instead.
• 2
  Program drives every movePositions and feeds come from G-code, not from an operator's hand.
• 3
  Chips are the feedbackChip shape and color show whether speed and feed are right.

On a 3-axis mill, the tool moves in X, Y and Z while the part stays fixed. That covers most flat plates, brackets, housings and covers. The part is cut from the top, then flipped and cut from the other side. Each flip adds a setup and each setup adds error, because the part must be re-located to within a few microns of where it was.

A 4-axis mill adds rotation around one axis, usually the X axis. Think of a shaft with flats, slots or holes at different angles. The part turns while the tool cuts, so those features come off in one setup. On our shop floor, 12 four-axis mills handle this class of work.

A 5-axis mill adds rotation around a second axis, so the tool can approach the part from almost any direction. Curved impeller blades, deep pockets with undercuts and complex aerospace brackets become practical. We run 16 simultaneous 5-axis machining centers, with a Ø400 mm rotary table on the smaller machines.

The gain is not just shape. Fewer setups mean less re-clamping error, less handling and shorter lead time. A part that needs four setups on a 3-axis machine may need one on a 5-axis machine. That is where the accuracy advantage really comes from.

• 1
  3-axisFlat and prismatic parts, cut from a few directions.
• 2
  4-axisShafts, cylinders and angled features in one setup.
• 3
  5-axisCurved surfaces and undercuts that 3-axis cannot reach.

G-code is a list of plain-text commands. G0 moves fast to a position, G1 feeds in a straight line, G2 and G3 cut arcs. M-codes handle the non-cutting actions: M3 starts the spindle, M8 turns on coolant, M30 ends the program. A simple facing pass might be twenty lines. A full mold cavity can be hundreds of thousands.

Nobody writes that by hand. CAM software reads a 3D model and outputs the code. The programmer picks the tool, the stepover, the stepdown and the toolpath strategy. Those choices decide cycle time and surface finish far more than the machine does.

For a beginner sending a model to a shop, the format matters less than the geometry. STEP and IGES carry solid geometry and are safest. STL carries a mesh, and a coarse mesh becomes a faceted surface. If the model has open edges or duplicate faces, the CAM software will fail on it before any metal is cut.

A drawing still helps. Tolerances, thread callouts, surface finish notes and material specs belong on a 2D drawing even when the 3D model is perfect. Without them, the shop has to guess, and guessing is where rework starts.

• 1
  G0 and G1Rapid positioning and linear feed moves.
• 2
  STEP over STLSolids cut cleaner than coarse meshes.
• 3
  Send a drawing tooTolerances and finishes need a written callout.

Before a single cut, the part has to be held rigidly. A vise is the default for small blocks. Soft jaws machined to the part profile grip irregular shapes without marking them. For thin plates, a vacuum table or double-sided tape spreads the clamping force and stops the part from bowing.

Rigidity is the whole point. A part that vibrates will chatter, and chatter shows up as ripples on the surface, oversized holes and broken tools. If a setup rings when you tap it, it will chatter. Adding a support under an overhanging section often fixes more than changing the cutting parameters.

The first operation usually establishes a datum. The second operation has to find that datum again, and any error there lands directly on the part. This is why 5-axis work is accurate: the part is cut from several sides without ever leaving the fixture.

Thin walls are the classic trap. A 0.8 mm aluminum wall will deflect under cutting force even when the toolpath is correct. The usual fix is to leave more material on the wall during roughing, then take light finishing passes at the end.

• 1
  Vise and soft jawsStandard for blocks and irregular shapes.
• 2
  Vacuum or tapeFor thin plates that would bow in a vise.
• 3
  Datums carry overSetup error on op two becomes part error.

Aluminum 6061 is the default for prototypes and most housings. It cuts fast, holds tight tolerances and takes anodizing well. 7075 is roughly twice the strength and machines almost as easily, but it costs more and welds poorly. If weight matters more than cost, 7075 is the usual pick.

Stainless 303 machines freely and is the easiest stainless to run. 316L resists corrosion better but work-hardens, so light finishing passes and sharp tools matter. Titanium TC4 and Inconel sit at the hard end: slow speeds, heavy coolant, short tool life. Those parts cost more because they take longer, not because the machine is different.

Plastics behave differently again. POM holds dimension and machines cleanly. PEEK is expensive and abrasive, so tool wear shows up quickly. ABS and PMMA can crack if the tool grabs, which means slower feeds and sharper edges.

Finish is chosen after function, not before. Ra 1.6–3.2 μm is a normal as-machined surface. Ra 0.8–1.6 μm needs a finishing pass and a smaller stepover. Ra 0.2–0.8 μm usually means additional polishing or lapping. Tightening the finish callout adds time, so only specify it where the surface actually seals, slides or shows.

• 1
  6061 for most workFast to cut, easy to anodize, good tolerance.
• 2
  316L work-hardensSharp tools and light finishing cuts are required.
• 3
  Finish drives cycle timeCloser Ra means more passes and more polishing.

Tolerance is the allowed deviation from the drawing. On most parts, ±0.05 mm is comfortable and cheap. Tightening to ±0.005 mm means smaller tools, slower feeds, more inspection and often a temperature-controlled room. The cost curve is not linear. Going from ±0.05 mm to ±0.01 mm adds far less than going from ±0.01 mm to ±0.005 mm.

Only the dimensions that matter should carry a tight tolerance. A hole that locates a bearing needs ±0.005 mm. The outer profile of the same part may be fine at ±0.1 mm. Marking everything tight is the most common beginner mistake, and it quietly doubles the price.

Cost is driven by three things: material, machining time and setup count. A simple aluminum bracket can run from one piece to a large batch without tooling. A titanium aerospace part with a tight finish takes many hours on a 5-axis machine, and that time is the cost.

Quantity changes the math. We have no minimum order quantity, so a single prototype is normal. At 10,000+ pieces, fixtures and dedicated tooling spread across the run, and unit cost falls. Production can start within 24 hours of approval, and parts typically ship in 3–5 days.

• 1
  Tolerance is not freeEach tighter band adds passes and inspection.
• 2
  Tight only what movesLeave cosmetic dimensions loose.
• 3
  Quantity lowers unit costFixtures spread over the whole run.

A CNC mill removes material from a solid block. That means waste, and waste costs money when the material is expensive. A titanium bracket that could be stamped from sheet will always be cheaper as a stamping at volume. Milling is right for prototypes, low volume and complex geometry, not for high-volume simple shapes.

Very deep, narrow pockets are another limit. If the pocket is 6 mm wide and 60 mm deep, the tool needs a length-to-diameter ratio of ten, and it will deflect and chatter. A different process, or a design change that opens the pocket, is often the honest answer.

Very large parts hit machine travel. Our largest envelope is 4,000 × 400 × 150 mm, and the largest standard machine covers 4,000 mm. Beyond that, the part has to be split or made another way.

Materials that are too soft or too abrasive also push back. Rubber-like elastomers deform instead of cutting. Some ceramics need grinding rather than milling. If a design calls for those, we say so early instead of quoting a process that will fail.

• 1
  High volume, simple shapeStamping or casting usually wins.
• 2
  Deep narrow pocketsLong tools chatter; redesign or another process.
• 3
  Beyond 4,000 mmSplit the part or change the process.
