CNC Milling Precision: 5 Costly Mistakes and How to Catch Them

• 1
  Symptom, likely cause, and what to do
• 2
  Treating the machine spec as the CNC milling precision you will get
• 3
  Ignoring toolholder runout and its effect on size
• 4
  Using a generic vise on a part that cannot take the clamp load
• 5
  Skipping in-process measurement on a long run
• 6
  Machining a blank that still holds residual stress
• 7
  How to run a first-article check that catches all five

A positioning spec of ±0.002 mm is measured with no cutter in the spindle and no part on the table. Put a 300 mm aluminium bracket in a vise and take a 6 mm radial cut with a Ø12 mm end mill hanging 60 mm out, and the structure deflects. On a light cut the deflection is a few microns. On a heavy one it passes 0.03 mm, which is 15 times the number on the brochure.

This is the machine, tool, and workpiece stiffness loop. Each element adds compliance, and the total behaves like springs in series. The weakest link governs the result, so upgrading the machine while ignoring the fixture rarely helps. On the parts we run, the vise and the tool overhang are usually the soft spots, not the spindle.

The practical test is a cutting trial, not a spec sheet. Machine a test feature at the real depth of cut and the real overhang, then measure. If the size walks with depth, the loop is flexing. If it stays flat, the loop is stiff enough for that operation.

• 1
  Check overhang firstEvery extra 10 mm of gauge length adds visible deflection on a Ø10 mm tool.
• 2
  Cut a test featureSame depth, same feed, same fixture as production.
• 3
  Measure at two depthsA size change with depth points to the loop, not the control.

Runout at the tool tip adds directly to the cut radius. A 10 µm runout on a Ø8 mm end mill means one flute cuts deeper than the others, and the effective diameter is no longer 8.000 mm. The part comes out oversize on a slot or undersize on a pocket wall, and the operator chases it with cutter compensation instead of fixing the holder.

The damage does not stop at size. Uneven flute loading wears one edge faster, so the corner radius breaks down early. Surface finish drops off before the tool reaches the end of its nominal life, and the operator blames the material. On aluminium at 12,000 rpm, a badly balanced assembly also feeds vibration straight into the wall.

Shrink-fit and hydraulic chucks hold runout below 3 µm when the shank is clean and the bore is undamaged. That is the baseline we set on our 16 five-axis centers. Tool length and diameter are measured on a setter, then the offset goes into the control before the first cut.

Collets are fine for roughing. For a finishing pass on a tolerance under ±0.02 mm, check runout at the tip with a dial indicator, not at the holder body.

• 1
  Measure at the tipRunout at the holder taper tells you nothing about the cutting edge.
• 2
  Clean the shankA single chip under the collet can add 10 µm of runout.
• 3
  Match holder to operationRough with collets, finish with shrink-fit or hydraulic.

A standard vise applies force through the part and closes it slightly. The cutter removes material while the part is squeezed, so the geometry is machined in the loaded state. Release the clamp and the part springs back. A thin-wall housing that measured 0.01 mm oval in the vise measures 0.05 mm oval on the bench.

The fix is not more clamp force. It is a fixture designed around the part. For thin walls, support the back of the wall with a matched block or a low-melt compound. For a ring or a joint housing, clamp on a sacrificial boss and machine it off in a later operation. For small batches, soft jaws bored to the part radius spread the load over a wider area.

Modular fixtures and dovetail blanks let you hold a part on a face that stays after machining. That face then becomes the datum for the second operation, which keeps the two setups aligned. On a 4,000 mm frame we machine in one pass, the rail and the supports are part of the fixture design, not an afterthought.

• 1
  Clamp on a face you keepSacrificial bosses are removed last, so the datum survives.
• 2
  Support thin wallsBacking blocks reduce both deflection and chatter.
• 3
  Never chase the clampMore force usually makes the spring-back worse.

A warm spindle grows. Over a two-hour run, the Z axis on a typical machining center can drift 20–40 µm as the headstock heats up. The first part is on nominal and part 30 is out of tolerance, and nobody notices because the operator only checks the first one.

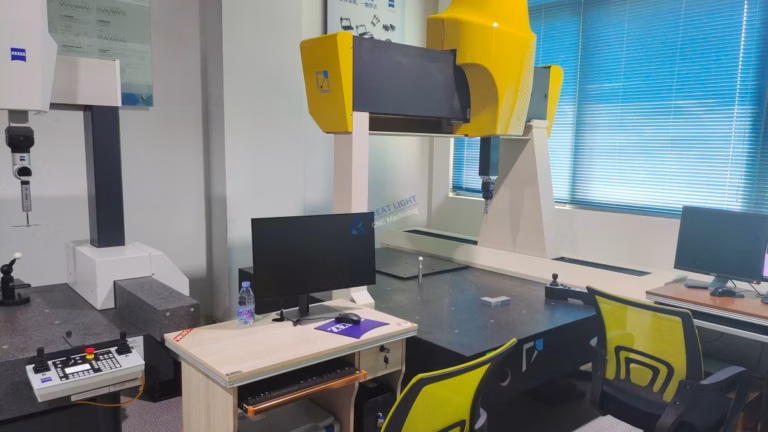

In-process metrology closes that gap. A probe check on a known feature every 10 to 20 parts tells you the direction and rate of drift. From there you can re-set the work offset or adjust cutter compensation before the drift leaves the tolerance band. On a run of 500 parts, this is the difference between one offset change and a full rework lot.

On our own runs, the pattern is to warm up the machine for 20 to 30 minutes, cut a warm-up part, measure it, then start production. In-process checks run at fixed intervals, and every part gets a final inspection before shipment. Reports are available on request.

• 1
  Warm up the machine20–30 minutes of run-in before the first production cut.
• 2
  Probe on a scheduleEvery 10–20 parts on a feature that matters.
• 3
  Act on the trendAdjust the offset before the part leaves tolerance.

Rolled plate and extruded bar carry internal stress from the mill. Remove material from one side and the balance changes, so the part bows. The cut is accurate when it leaves the machine, and the part is out of flatness a day later, or after heat treatment.

Pre-conditioning the blank removes most of that risk. Rough machine, then stress-relieve, then finish. Leave 0.5 to 1.0 mm of stock per side for the finish pass so the stress-relief step has something to remove. On parts that will be heat treated after machining, do the roughing before treatment and the finishing after.

For aluminium, a rough-and-rest cycle works when a full stress relief is not practical. Rough to within 1 mm, let the part sit, then finish. On 17-4PH or 4140 that will be hardened, plan the sequence around the heat treat, not around the machine schedule. If the drawing calls for flatness under 0.05 mm over 300 mm, the sequence matters as much as the cut.

• 1
  Rough, relieve, finishLeave 0.5–1.0 mm per side before the final pass.
• 2
  Sequence around heat treatRough before, finish after, on hardened parts.
• 3
  Check flatness laterMeasure a day after machining, not an hour.
