CNC Multi Axis Inner Cylindrical Grinder: How It Machines Complex Interior Holes

• 1
  What a CNC multi axis inner cylindrical grinder actually does
• 2
  Axes and coordination inside a small bore
• 3
  When internal grinding is the wrong process
• 4
  How to confirm the bore is actually round
• 5
  Automation that matters on a multi-axis grinder
• 6
  Internal grinding vs boring vs honing for interior holes

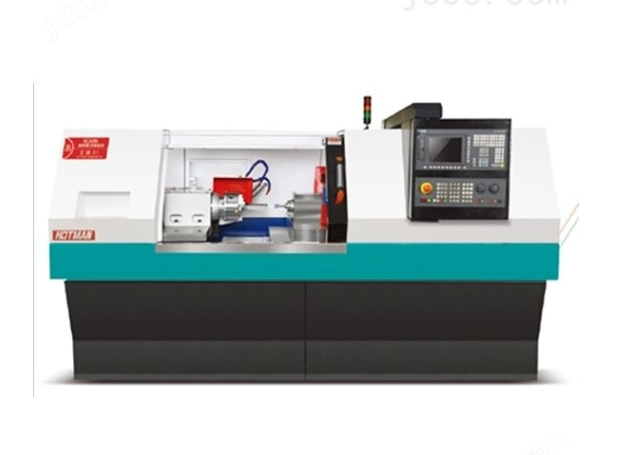

An internal grinder works from the inside out. A spindle smaller than the bore carries a vitrified or CBN wheel, spins it at high speed, and presses it against the bore wall. The workpiece turns slowly on a chuck or faceplate. The difference between abrasive grains cutting steel and a single-point tool shearing it matters: grinding removes a thin layer, often 0.05 mm or less per pass, and leaves a finer surface than boring can.

Multi-axis motion is what makes the CNC multi axis inner cylindrical grinder useful for parts with more than one internal feature. A wheel head can swing on a B axis to reach an angled bore, index on a C axis to follow a helix, and feed on a linear axis to plunge. A part with a straight bore, a tapered bore, and a cross hole no longer needs three setups on three machines.

The machine does not remove material quickly. On hardened steel above 50 HRC, a typical internal grinding pass removes 0.02 to 0.05 mm in diameter. That is the trade-off: slow metal removal in exchange for roundness, straightness, and surface finish that turning or milling cannot match on the same feature.

Control software is the other half. A CNC dresser trues the wheel at a set interval, often every 10 to 30 parts, so the wheel does not glaze or lose form. Without that, a multi-axis path is only as good as the wheel profile it follows.

• 1
  Wheel speedInternal wheels run faster than surface wheels because the contact arc is short; 30 to 60 m/s is common for vitrified wheels.
• 2
  Workpiece speedUsually 20 to 40 m/min surface speed, low enough to avoid burn on hardened steel.
• 3
  Cut depth0.01 to 0.05 mm radial per pass in hardened material; deeper cuts risk heat checking.

A bore is a confined space. The wheel head must enter, cut, and retract without hitting the far wall or the shoulder. On a simple cylindrical grinder, a single infeed axis and a table traverse do the work. Add a cross hole or an interrupted bore and the wheel loses support on one side, which causes deflection and taper.

Multi-axis coordination solves this by changing the approach angle. The B axis tilts the wheel head so the wheel contacts the bore on a controlled arc instead of a corner. The C axis rotates the workpiece so an interrupted cut is spread around the circumference rather than concentrated at one spot. On parts with a cross hole, this reduces wheel breakage and holds roundness inside 0.005 mm.

Tapered bores are a good test case. A straight plunge would leave a stepped wall. With simultaneous X and B motion, the wheel follows the taper angle, often 2° to 15° included, and the dresser keeps the wheel corner sharp. Without simultaneous motion, you would grind the taper in steps and blend them by hand.

Blind bores add another constraint. The wheel must clear the bottom radius, which is often smaller than the wheel diameter. On a multi-axis machine, the wheel head can swing in on an arc that matches the corner radius, then retract along the same path. That is hard to do on a manual internal grinder.

• 1
  Interrupted boresCross holes break the contact; reduce depth per pass and raise wheel speed slightly to keep the arc stable.
• 2
  Deep boresAbove a 5:1 length-to-diameter ratio, wheel quill stiffness becomes the limiting factor, not the control.
• 3
  Thin wallsClamping pressure and wheel force can distort a wall under 2 mm; light passes and a supported fixture help.

Internal grinding is not for every hole. If a bore is larger than 150 mm in diameter, softer than 30 HRC, and open at both ends, boring will be faster and cheaper. Grinding shines on hardened material and on geometry that a single-point tool cannot reach.

Depth is the hard limit. A wheel quill is a cantilever. Past a 5:1 length-to-diameter ratio, deflection grows and the bore tends to taper or bell-mouth. Some shops push to 8:1 with a rigid quill and light passes, but the risk of scrap rises. For a 20 mm bore, that means about 100 mm of usable depth before the process gets fragile.

Material matters too. Aluminium and soft brass load the wheel and smear rather than cut. You can grind them with the right wheel and coolant, but boring usually wins on cost. Hardened tool steel, bearing steel, and 17-4PH stainless are where internal grinding earns its place.

Small bores below 3 mm need a very small wheel, which removes little material and wears quickly. Wire EDM or fine boring often beats grinding there. The CNC multi axis inner cylindrical grinder is a precision finishing tool, not a roughing machine.

• 1
  Depth-to-diameterKeep under 5:1 for stable roundness; 8:1 only with a rigid quill and reduced depth per pass.
• 2
  Bore diameter3 mm to 150 mm is the practical band; below 3 mm consider EDM, above 150 mm consider boring.
• 3
  HardnessAbove 45 HRC, grinding is often the only process that holds the bore without distortion.

A bore can measure on size and still be out of round. A two-point micrometer reads across one diameter. If the bore is oval, that reading is misleading. Use a three-point or air gauge to catch lobing, or sweep the bore on a CMM with a small stylus.

Roundness matters most when the bore carries a rotating shaft or a piston. A 0.01 mm ovality in a bearing seat can show up as vibration at speed. Ask for a roundness trace, not just a diameter printout, on any bore that spins.

Surface finish is the other number to verify. Ra 0.8–1.6 μm is a typical ground finish. Ra 0.2–0.8 μm is achievable on a rigid machine with a dressed wheel and clean coolant. A finish that looks bright but measures Ra 3.2 μm usually means the wheel was glazed or the feed was too fast.

At GreatLight, parts go through raw material check, in-process monitoring, and final inspection before shipment. Reports are available on request. The tolerance we hold on ground bores is ±0.005 mm, with a qualification rate of 99.99% across production runs.

• 1
  RoundnessAsk for a trace, not a two-point diameter, on any bore that rotates.
• 2
  TaperMeasure at three depths; more than 0.005 mm difference signals quill deflection.
• 3
  FinishRa 0.2–0.8 μm is the achievable band on a well-dressed internal wheel.

Automation on an internal grinder is less about robots and more about repeatability. A CNC control handles wheel dressing, compensation, and in-process gauging. The dresser trues the wheel on a schedule; the control offsets the wheel diameter after each dress so the bore stays on size.

In-process gauging closes the loop. A plug gauge enters the bore between passes and signals the control when the target diameter is reached. That removes operator judgement from the final 0.01 mm, which is where most scrap happens.

Multi-axis automation also cuts setups. A part with a bore and a face can be ground and faced in one clamping. Removing a setup removes a source of error. For a shop running 10,000 parts a year, that consistency is worth more than the cycle time saved.

We run 127 high-precision CNC machines across 3 wholly-owned plants, with 16 simultaneous 5-axis machining centers. Internal grinding on complex geometry is supported by the same inspection and documentation chain used on our milling and turning work. No minimum order quantity applies, from one prototype to 10,000+ part runs.

• 1
  Dress compensationThe control offsets wheel diameter after each dress so the bore stays on size.
• 2
  In-process gaugingA plug gauge signals the control at target diameter, removing operator judgement.
• 3
  One-setup grindingBore and face ground in one clamping cuts the error stack from re-fixturing.
