A car leaves the factory with parts made for a million other cars. Modification parts are the opposite. A bracket has to clear one specific intake manifold, one specific brake caliper, one specific ride height. There is no drawing library to copy from, so the geometry gets created once and cut once.

That single fact drives everything downstream. Batch size is usually one to fifty. Setup work is spread over very few parts. Inspection is manual rather than statistical. When buyers compare quotes on non standard customized automobile modification parts, they are mostly comparing how much setup time each shop thinks the job needs.

The parts themselves fall into a few families. Brackets and adapter plates. Bushings, spacers and sleeves. Intake and exhaust flanges. Suspension links and mounts. Sensor housings and covers. Most are prismatic, a few are turned, and a handful need both on the same part.

• 1
  One-off geometryThe drawing exists only for your build, so setup dominates the price.
• 2
  Small quantitiesOne prototype up to 10,000+ part runs, but the first unit carries most of the cost.
• 3
  Fit to a real carClearance to the surrounding assembly matters more than the nominal dimension.

Every CNC operation removes material with a rotating tool against a fixtured workpiece. On a one-off part, the hard part is not the cut. It is holding the blank so the tool can reach all the faces without the part moving. A 3-axis machine can only see one side at a time, so a part with features on five faces needs five setups, five re-clamps, and five chances to lose position.

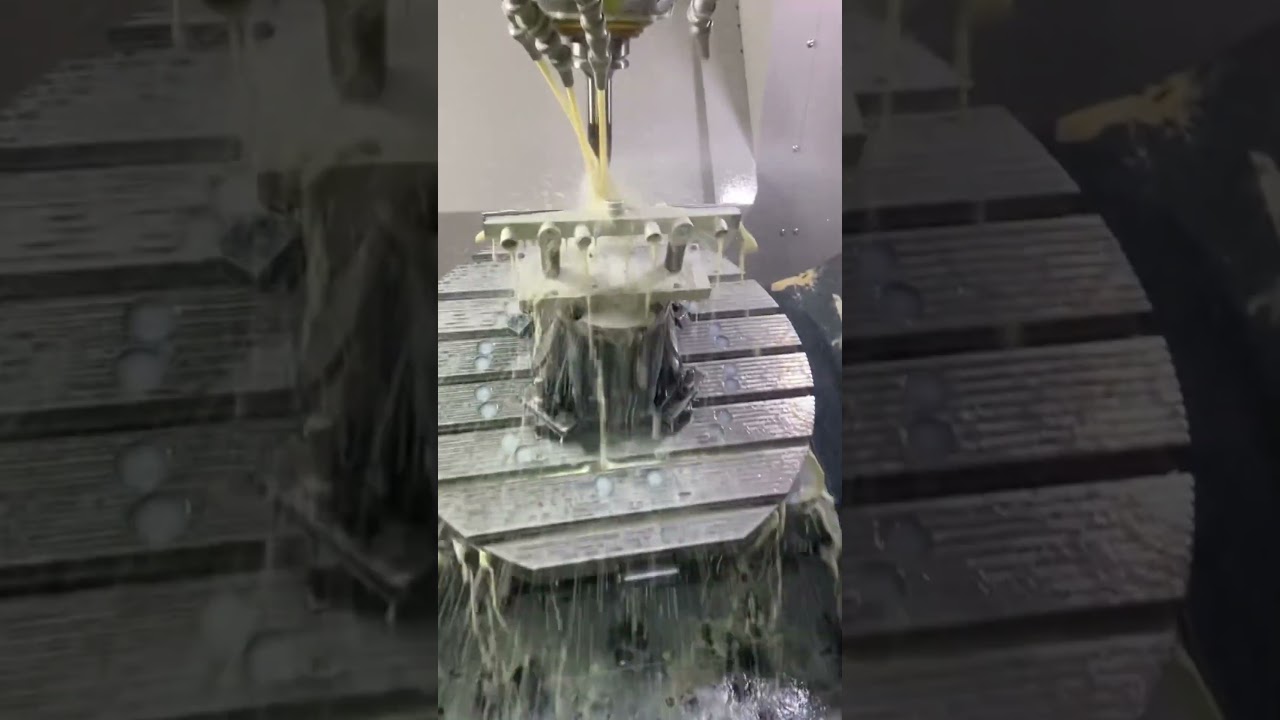

A 5-axis machine tilts the tool or the table instead. We run 16 simultaneous 5-axis machining centers with a Ø400 mm rotary table, which lets us cut angled bosses, undercuts and blended surfaces in two or three setups instead of five. Fewer setups means tighter positional tolerance between faces, because the part is not being moved and re-zeroed each time.

For turned parts, mill-turn centers do the OD, bore and cross-holes in one cycle. That matters for spacers and bushings where a cross-drilled hole must line up with a flat on the outside. Doing it in two machines invites a stack-up error that a single setup avoids.

Tool choice is a trade-off too. A small ball nose cutter reaches into tight fillets but deflects under load. A larger end mill holds tolerance but cannot get into the corner. On a prototype with a deep pocket, we often accept a larger corner radius and tell the customer why.

• 1
  Setup count is the cost driverEach re-clamp adds time and a positional error.
• 2
  5-axis for compound anglesTwo or three setups instead of five on a complex bracket.
• 3
  Mill-turn for cross featuresBores, OD and cross-holes in a single cycle.

Aluminium 6061-T6 is the default for most modification parts. It machines fast, holds ±0.005 mm without much fuss, and takes anodizing well. 7075 gives more strength for suspension links but is gummier to cut and chips weld to the tool if coolant flow is poor. 2024 sits between them and is common for aerospace-style brackets.

Stainless 304 and 316L work-harden. If the tool rubs instead of cutting, the surface gets harder under the cutter and the next pass is worse. That means lower surface speed, heavier feed per tooth, and no dwelling in the cut. 17-4PH in the H900 condition is different again: strong, but it needs carbide and a rigid setup.

Titanium TC4 (Ti-6Al-4V) is the hardest common choice on this list. It conducts heat poorly, so the heat stays in the cutting edge. Feeds and speeds drop, cycle time rises, and tool wear is real. For a one-off exhaust flange, titanium is often a poor trade. For a lightweight suspension clevis, it can be the right one.

Plastics behave differently again. POM and PEEK machine cleanly but move with temperature. A long thin plastic spacer cut in one pass may measure on size at the machine and off size an hour later once it cools. We rough, wait, then finish on parts with a tight plastic tolerance.

• 1
  6061-T6Default for brackets and plates, holds tolerance easily.
• 2
  304 / 316LWatch work hardening. Cut, do not rub.
• 3
  Ti-6Al-4VHeat stays in the edge. Slow speeds, high wear.
• 4
  POM / PEEKRough, let it cool, then finish.

A general tolerance block that says ±0.1 mm on everything is cheap. A single ±0.005 mm callout on a bore that has to take a press-fit bearing is not, because the shop now has to control temperature, tool wear and inspection method on that one feature. The rest of the part can stay loose.

The discipline is to tolerance only what the car needs. A mounting hole pattern that bolts to the chassis needs position control, because if the holes are off, the part will not bolt up. A cosmetic radius on the outside needs nothing beyond the general block. Over-tolerancing a cosmetic face buys no function and adds inspection time.

Surface finish follows the same logic. Ra 1.6–3.2 μm is the as-machined norm and is fine for most brackets. Ra 0.8–1.6 μm is a normal fine finish. Ra 0.2–0.8 μm is for sealing faces, bearing journals and sliding surfaces, and it costs more because it needs a separate finishing pass with a fresh tool.

One more thing engineers forget: tolerance is measured on the finished part, at 20 °C, in the shop. A part that fits on the bench in Dongguan may not fit in a cold garage. For press fits on aluminium, a few degrees of difference is enough to change the fit from interference to slip.

• 1
  Tighten only functional featuresBores, bearing seats, bolt patterns.
• 2
  Leave cosmetic faces looseGeneral tolerance block is enough.
• 3
  Match finish to functionRa 0.2–0.8 μm only where it seals or slides.
