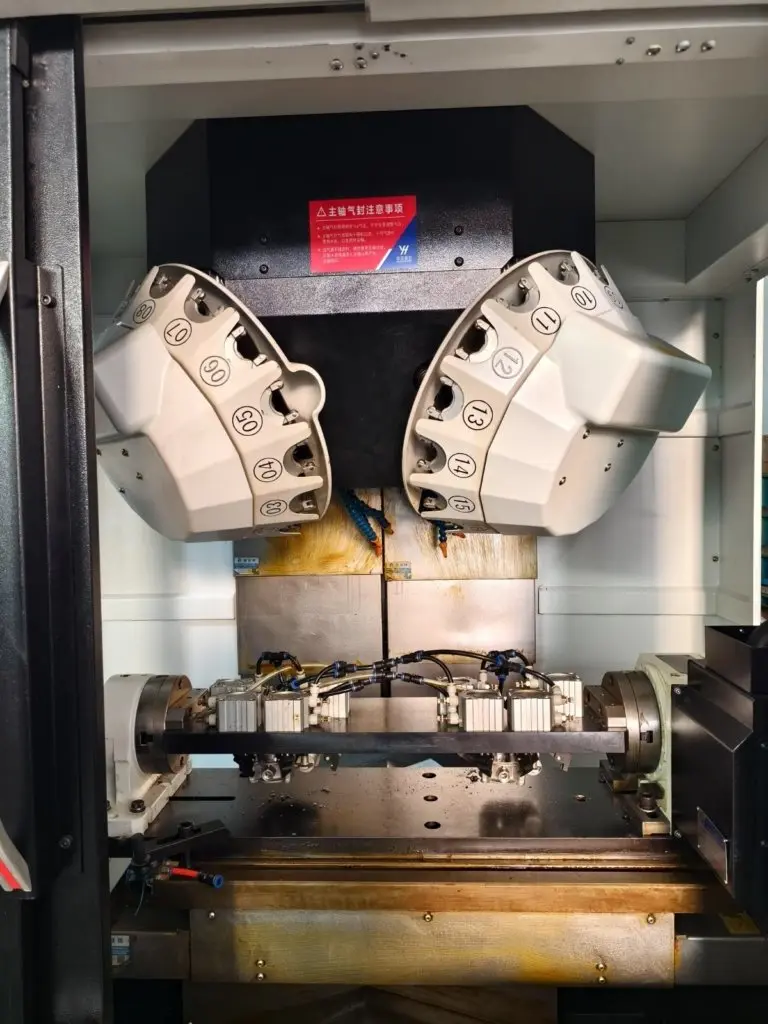

CNC processing facilities: the key to efficient production

• 1
  What CNC processing facilities really are
• 2
  How machine mix shapes throughput
• 3
  Workholding and tool path decisions
• 4
  Tolerance, finish and what they cost
• 5
  Matching part features to the right machine class

CNC processing facilities are not one machine. They are a chain: CAM programming, raw stock, the right spindle for the geometry, workholding that holds the part rigid, cutters that survive the material, and inspection that proves the result. Break any link and the whole shop slows down. Efficiency comes from the chain, not from spindle speed alone.

The reason this matters to a buyer is simple. Two shops can quote the same part, the same tolerance, the same material, and deliver wildly different results. One has the machine, the tooling and the fixtures already sitting there. The other has to improvise. Improvisation on a shop floor shows up as scrap, late delivery and surprise costs on the invoice.

So when we walk an engineer through our floor, we do not start with spindle RPM. We start with the part. How many setups does it need? Can it be held without distorting a thin wall? Which features need a fourth or fifth axis to reach in one pass? The answers decide the machine, and the machine decides the schedule.

A facility that only owns three-axis verticals will quote a complex housing with five separate setups and five chances to stack tolerance. A facility with five-axis capability cuts the same housing in two setups, or one. Same drawing. Fewer operations. That is where efficiency is born, long before the spindle turns.

• 1
  Setup count drives costEvery extra setup adds fixturing time and tolerance stack-up.
• 2
  Workholding decides rigidityA part that flexes under cut will chatter, no matter the machine.
• 3
  Inspection closes the loopWithout measurement, tolerance is a claim, not a fact.

A healthy CNC processing facility spreads work across machine classes instead of pushing everything onto one expensive center. Our floor runs 127 high-precision CNC machines: 16 simultaneous 5-axis centers, 12 four-axis mills, 27 three-axis machines, and 16 mill-turn centers. Each class earns its place by doing a specific job well and cheaply.

Five-axis centers are the heavy lifters for complex geometry. Angled faces, deep pockets, undercuts, blended surfaces. A simultaneous 5-axis machine tilts the tool and the table together, so it reaches features that would otherwise need the part flipped three times. That is where you avoid datum errors. But five-axis time is expensive time. Putting a simple flat bracket on a five-axis center wastes money for everyone.

Three-axis verticals handle the plain work: plate parts, brackets, housings with features on one or two faces. They are fast to set up, easy to fixture, and cheap to run. A shop that routes simple parts to simple machines keeps the complex machines free for the parts that truly need them. That is throughput management, not machine bragging.

Mill-turn centers split the difference. A part with turned diameters and milled flats usually needs two machines and two setups. A mill-turn center does both in one chucking, so concentricity holds and the part never gets re-datumed. For shaft-like parts with cross-drilled holes or milled slots, this single change cuts lead time and improves true position. Maximum processing size across the floor reaches 4,000 mm, which covers most industrial housings and long frame rails.

• 1
  5-axisComplex geometry, angled features, one-setup parts.
• 2
  3-axisFlat plates, simple brackets, high volume, low cost.
• 3
  Mill-turnShafts and parts mixing turning with milling.

Workholding is the part of CNC processing facilities that engineers underestimate most. A vise holds a block fine until you machine a thin wall and the jaw pressure bows it. The cut looks perfect at the machine, then the part springs back after unclamping and the wall is out of tolerance. The fix is not a slower feed. It is soft jaws, a custom fixture, or vacuum holding that spreads the load.

The same logic applies to tool path. A roughing pass that removes material in long arcs and ramps into the cut loads the tool evenly. A path that plunges straight down and hammers through corners shocks the insert and wears it fast. Tool life is a cost line. When a shop programs for constant chip load, they change inserts less often, hold size longer, and finish the job without stopping.

Heat is the other variable. Aluminum sheds heat into the chip and cuts dry or with mist. Titanium and stainless trap heat in the cutting zone, so they need flood coolant, lower surface speed, and sharp positive-rake tooling. Get this wrong and you get work hardening, built-up edge, and a surface finish that fails inspection. The material decides the recipe. The recipe decides the cycle time.

We keep a 400 mm rotary table on the floor for parts that need indexed positions around a bore or a hub. Indexing lets one setup reach features on four sides without re-clamping. Fewer clamps means fewer datum shifts. Datum shifts are where tolerance quietly disappears.

• 1
  Thin wallsUse soft jaws or vacuum, not a hard vise.
• 2
  RoughingConstant chip load and ramp entry extend tool life.
• 3
  TitaniumFlood coolant and lower surface speed prevent work hardening.

Tolerance is not free. Holding ±0.005 mm (±0.0002 in) means slower feeds, lighter depths of cut, temperature-stable workholding, and more frequent in-process checks. It also means the machine must be in good condition. A worn ball screw cannot hold a tight tolerance no matter how skilled the operator is. When a drawing asks for tight tolerance on one critical bore, we concentrate the effort there and leave the rest at a sensible shop tolerance.

Surface finish follows the same economics. As-machined parts sit around Ra 1.6–3.2 μm, which is fine for brackets and internal frames. A sealing face or a sliding surface often needs Ra 0.8–1.6 μm. Optical and medical parts can call for Ra 0.2–0.8 μm, which usually means a finishing pass with a small stepover, a sharp tool, and sometimes a secondary lapping operation. Each step up the finish ladder adds cycle time.

The engineering point is this: over-specifying a drawing costs money and buys nothing. If a non-critical face is called out at Ra 0.4 μm, the shop will spend hours chasing it. Mark the functional surfaces clearly, give a general tolerance for everything else, and let the facility plan the machining strategy around the features that actually matter.

Our floor holds a 99.99% qualification rate across production runs. That number is not luck. It comes from running raw material checks, monitoring dimensions during the cut, and inspecting 100% of parts before shipment. Reports are available on request. For a buyer, that inspection loop is the difference between a sample that passes and a shipment that passes.

• 1
  Call out critical faces onlyGive a general tolerance for the rest.
• 2
  Finish has a ladderRa 3.2 → 1.6 → 0.8 → 0.2 μm, each step costs time.
• 3
  Inspection is part of the processRaw, in-process and final checks catch drift early.
