A Swiss-type lathe holds the bar in a sliding headstock and pushes it through a guide bushing. The bushing sits a few millimeters from the cutting tool, so the workpiece is supported right where the insert bites. That single design choice is why the process holds tight diameter control on long, thin parts that would chatter on a conventional turret lathe. On a standard lathe, the part hangs out of the spindle and deflects. On a Swiss lathe, it barely moves.

The work zone is small and the tool plate is crowded. Most machines run 5 to 8 tools in the main spindle, with cross-drilling, slotting, and thread-whirling stations packed around the bar. A sub-spindle picks up the part for back-side work, so a completed component can drop into the tray with a cross-hole, a milled flat, and a rolled thread already on it. Cycle times on a Ø3 mm stainless pin with a cross-hole often land between 15 and 45 seconds.

That geometry is the whole point of the process. If your part is Ø6 mm with a 40 mm shaft and a 2 mm cross-hole, a Swiss lathe is the natural home for it. If your part is a Ø90 mm flange, it is not. The sliding headstock constrains bar diameter and bar length, not the imagination of the programmer.

• 1
  Sliding headstockThe bar moves, the tool stays put. Support stays close to the cut.
• 2
  Guide bushingSets the working diameter. Change the bushing, change the bar size.
• 3
  Sub-spindleBack-side drilling, milling, and parting in the same cycle.

Use the length-to-diameter ratio as a first filter. Parts above roughly 5:1, with a diameter under Ø32 mm, and with features on more than one face are strong candidates. Medical bone screws, dental abutments, connector pins, fuel injector bodies, sensor housings, and small gear shafts all fit this description. They tend to be made in volume, they tend to have tight concentricity requirements, and they tend to need secondary features that would otherwise require a second setup.

Parts below 3:1 ratio are usually cheaper on a mill-turn center or a multi-spindle automatic. Wide flanges, thin discs, and large-diameter rings waste the Swiss lathe's strength, because the guide bushing can only grip a bar, not a casting. If a shop quotes a Ø70 mm gear blank on a Swiss machine, ask why. The answer is often that they only have Swiss lathes, not that the process is right.

There is also a volume boundary. Swiss machining is not an economical one-off process if the part needs a dedicated guide bushing, custom form tools, or a special bar feed setup. For a single prototype, a mill-turn center or a 5-axis mill may deliver the part faster, even at a higher unit cost. For 500 pieces upward, the Swiss lathe usually wins on cycle time and consistency.

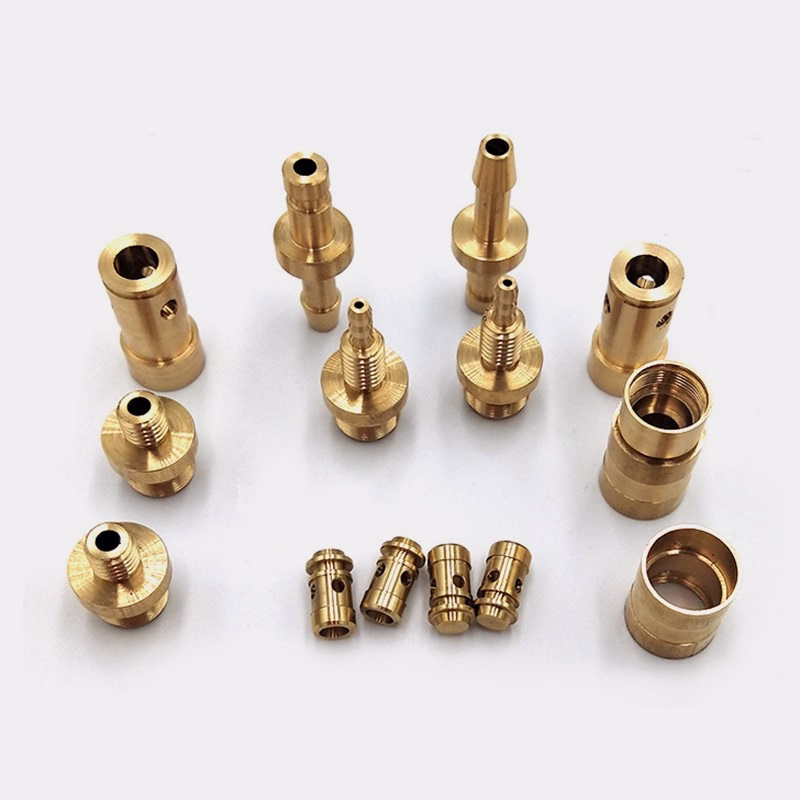

Material matters less than geometry, but it still shapes the decision. Free-machining 303 stainless and C36000 brass run fast and hold finish. 316L, 17-4PH, and Ti-6Al-4V need slower feeds, more tool changes, and more attention to heat. PEEK and POM machine cleanly but need sharp tools and air blast to stop chips welding to the cut. The shop should be able to tell you which of these they run weekly.

A tolerance figure without a dimension is marketing, not metrology. When a supplier says ±0.005 mm, ask which feature that applies to. Diameters on a Swiss lathe are usually the tightest callout, often ±0.005 mm or better on a ground bar. Lengths, cross-hole positions, and slot widths are looser, because they depend on tool wear and thermal drift over the run. The honest answer names the feature and the sampling rate.

Surface finish follows the same logic. Ra 0.2–0.8 μm is achievable on a Swiss lathe with the right insert, coolant, and feed, but it is not free. Ra 0.8–1.6 μm is the normal production target for turned diameters. Ra 1.6–3.2 μm is as-machined and usually needs no extra step. If your drawing calls for Ra 0.4 μm on a Ø2 mm pin, expect the shop to slow the cycle and inspect more often, and expect the price to reflect that.

Inspection is where the claims become concrete. A shop running 100% inspection before shipment, with raw material checks, in-process monitoring, and a final report on request, is doing the work. Ask to see a sample report. Look for CMM data on critical diameters, an optical comparator trace on a form feature, and material certificates matched to the heat number. If the shop cannot produce one, the tolerance claim is unverified.

Certifications are a floor, not a ceiling. ISO 9001:2015 covers the quality system. IATF 16949:2016 matters for automotive and EV work. ISO 13485:2016 matters for medical devices. ISO 27001:2022 covers information security, which is relevant when your drawings are confidential. Check the scope statement on each certificate. A certificate that covers machining but excludes turning does not help you.

• 1
  Feature-level toleranceAsk which dimension the ±0.005 mm applies to, and how often it is checked.
• 2
  Finish by featureRa 0.2–0.8 μm is a grinding or fine-turning target, not a default.
• 3
  Report on requestCMM, optical comparator, and material certs should be available.

Lead time has three parts: quote turnaround, production start, and shipping. A quote and free DFM analysis within 12 hours is a reasonable benchmark for a shop that already runs your material. Production can start within 24 hours once the drawing is frozen and the bar stock is on the shelf. Parts shipping in 3–5 days is normal for small runs. If a shop quotes two weeks just to answer the RFQ, the rest of the schedule will slip too.

MOQ is the other common friction point. No minimum order quantity, from one prototype to 10,000+ part runs, is the right policy for a shop that wants engineering work. Watch for the opposite: a low headline MOQ with a setup fee that only makes sense at 5,000 pieces. Ask for the setup cost separately from the unit price, and ask whether the guide bushing and form tools are charged once or per order.

A complete quote for CNC Swiss screw machining services lists the material grade and mill cert, the bar diameter, the guide bushing size, the cycle time assumption, the tolerance basis, the finish callout, the inspection method, and the shipping term. If any of those are missing, the price is not comparable to another supplier's price. Send the same RFQ to three shops and compare line by line, not total to total.

Confidentiality belongs in the same conversation. Uploads should be secure and confidential, and an NDA should be available on request before you send a medical or automotive drawing. That is a process question, not a legal one. A shop that cannot sign an NDA quickly is a shop that has not done it often.

One more check: ask what happens when a dimension drifts mid-run. The answer should name the tool wear offset, the sampling interval, and the person who signs off on the correction. A shop that says 'we just adjust it' is telling you there is no documented reaction plan.
