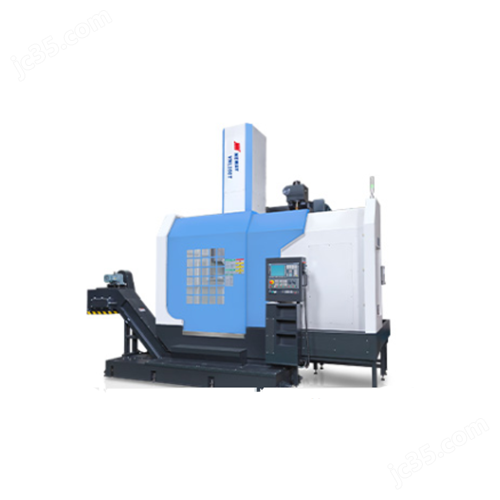

CNC Vertical Lathe Automated Production: How the Machine Actually Runs

• 1
  Why CNC vertical lathe automated production starts with gravity
• 2
  Chucks, faceplates and self-centering logic
• 3
  What automated production actually contains
• 4
  Tolerances you can hold, and where they slip
• 5
  Material behavior on a vertical machine
• 6
  Vertical or horizontal: pick by part geometry

On a horizontal lathe the spindle axis runs left to right, so a heavy flange hangs off the chuck and sags under its own weight. On a vertical lathe the axis points up. The part sits flat on a faceplate or a Ø400 mm rotary table, and its weight presses down into the support instead of pulling the jaw geometry out of line. That is the whole reason vertical lathes exist.

The benefit shows up twice. First, clamping is simpler because you are not fighting gravity while indicating the part. Second, chips fall away from the cutting zone by themselves. On a horizontal machine a nest of stringy chips can wrap the tool and spoil the surface on the next pass. On a vertical machine that pile lands on the bed, clear of the cut.

CNC vertical lathe automated production also changes how you load the machine. A gantry or robot arm lowers a blank straight down onto the faceplate. There is no long horizontal reach and no tailstock to swing past. The load path is short and repeatable, which is what makes unattended running realistic rather than theoretical.

The trade-off is part shape. If your part is long and slender, the vertical geometry gives you nothing and costs you a tailstock you may not have. Diameter and mass are the qualifiers, not the part number.

Most vertical lathes use a three-jaw or four-jaw chuck, or a faceplate with fixture blocks for irregular castings. The jaws close radially on a part that already sits square on the faceplate, so the clamping force acts in the same plane as the locating face. That reduces the tipping error you get when a horizontal chuck has to hold a heavy part against gravity.

Self-centering chucks cut setup time on round parts because the operator does not indicate each blank. For a family of similar flanges, the same chuck and the same jaw stroke cover every size in the range. That repeatability is a precondition for automation. If setup varies part to part, the robot cannot reliably place the blank.

For thin rings, clamping pressure is the enemy. A three-jaw chuck can distort a 6 mm wall enough to machine an out-of-round bore that springs back round after unclamping. Soft jaws bored to the part diameter spread the load, and light clamping pressure with a low-feed finishing pass keeps the wall stable.

Fixture blocks and toe clamps handle parts that are not round, such as housings with mounting feet. Here the fixture is dedicated, so automation only pays off across a batch. A one-off part on a dedicated vertical fixture usually costs more setup than it saves.

Automation on a vertical lathe is a stack, not a single feature. At the bottom sits the CNC control holding the cycle: rapid to position, face, turn the outside diameter, bore, chamfer, retract. Above it sits tool management, usually a turret or an automatic tool changer with preset offsets. At the top sits part handling, a gantry loader or robot that places blanks and removes finished parts.

Tool wear is the quiet failure mode. A turning insert that wears 0.05 mm changes the diameter it cuts. In-process gauging or a touch probe that measures a reference surface between cycles catches that drift before it becomes a scrap run. Without a measuring step, automated production simply makes bad parts faster.

Chip control needs a program line, not luck. Peck cycles, through-tool coolant, and a short dwell after a boring pass keep long chips from wrapping. On ductile materials such as 1018 steel or 6061 aluminium, a broken chip is a programming decision. Set the feed per revolution high enough to break the chip rather than ribbon it.

Thermal drift matters on long unattended runs. A spindle that warms 5 °C over four hours moves the tool point. Warm-up cycles and periodic re-referencing keep size in band. On a ±0.005 mm job, this step is not optional.

A vertical lathe holds diameter and face runout well because the part sits flat and the cutting force pushes into the faceplate. We work to ±0.005 mm (±0.0002 in) on turned features, with surface finish from Ra 0.2–0.8 μm on a fine finishing pass and Ra 0.8–1.6 μm on a normal production pass.

The error that bites is perpendicularity between a turned face and a bored feature, not the diameter itself. If the faceplate has a chip under the part, the whole part tilts and the bore axis leans. Air blast before clamping and a wipe of the locating face remove most of this risk.

Boring a deep pocket in a large flange is the harder case. Tool overhang grows, and a boring bar that deflects 0.02 mm under load cuts a tapered bore. A shorter, stiffer bar with a smaller depth of cut per pass holds size better than a long bar pushed hard.

For interrupted cuts on castings, expect tool life to fall. The insert takes a shock each time it enters the skin. Reducing feed per revolution during the first pass through the scale, then returning to normal feed, keeps the edge alive through the batch.

Aluminium 6061, 7075 and ADC12 castings turn cleanly on a vertical lathe. Speeds run high, cutting forces are low, and chip evacuation is easy because the chips fall. Anodizing after machining does not change the geometry, so the turned size is the final size.

Stainless 304 and 316 work-harden at the surface if the tool rubs instead of cuts. Keep the feed per revolution high enough to stay under the hardened skin, and never dwell in the cut. 17-4PH (SUS630) in the solution-treated state turns well; in the aged condition it needs a different insert grade.

Titanium TC4 (Ti-6Al-4V) and Inconel generate heat at the edge rather than in the chip. Coolant directed at the insert, moderate surface speed, and a fresh edge per batch keep the cut stable. These are the materials where unattended running needs a tool-life alarm, not just a cycle counter.

Cast iron and magnesium AZ31B bring a different problem: fine dust. On a vertical lathe, dry machining with dust extraction is often cleaner than wet, because the chips fall into the extraction path instead of forming a slurry.
