Crank journal problems: symptom, cause, action

Measure the journal with a micrometer at three stations and two planes before you change any offset.

Symptom	Likely cause	First action
Journal oversize by 0.02–0.05 mm	Tool nose radius comp set from a worn insert	Re-measure the insert, reset the offset from a test cut
Journal undersize and scrap	Offset corrected twice for one wear event	Lock the offset log, one change per insert
Ovality above 0.015 mm	Workholding deflection on the pin	Drop clamping pressure, add a steady rest or tailstock
Taper along the journal	Head and tailstock not aligned	Indicate the centerline, shim and re-cut a test bar
Poor finish, Ra over 1.6 μm	Chatter from long overhang	Shorten the tool, reduce depth of cut to 0.3 mm
Size drifts during the run	Thermal growth after 40–60 min	Warm up 30 min, re-check the first part after two hours
Radius burn at the oil hole	Intermittent cut, no feed control	Use feed override through the hole, slow to 0.05 mm/rev

Root causes

Why crushing the crank diameter CNC goes wrong

A crank journal is not a plain turned diameter. The pin sits off the main axis, so the cutting force changes direction twice per revolution. That single fact explains most size and roundness errors. When the tool enters the interrupted cut at the oil hole, radial force drops to zero for a fraction of a second. The part springs back. By the time the insert is cutting again, the effective depth of cut has changed, and the journal comes out oval rather than round.

The second driver is thermal. A crankshaft has a small cross-section relative to its length. It warms up faster than the machine bed. In the first hour of a run, the journal grows 5–15 μm on a typical 1045 or 4130 steel part. If the operator sets the offset from part one and never revisits it, the last parts in the batch run undersize. We see this on 10,000+ part runs more than on one-off prototypes.

Workholding adds a third error source. Cranks are often held on the main journals while the pin is turned. Clamping pressure that feels normal on a short shaft will bow a 500 mm crank by 0.01–0.03 mm. The cutter follows the bowed centerline. When the part is released, it springs straight and the pin is no longer concentric with the mains. No amount of tool compensation fixes a part that was machined while bent.

Finally, tool condition. A coated carbide insert used on 4340 or 17-4PH will wear on the nose radius first. Nose wear of 0.05 mm changes the effective diameter by roughly 0.1 mm if the control is still compensating for a sharp tool. This is why the same program produces a good part at 08:00 and an oversize part at 15:00 on the same machine.

1
Interrupted cutForce reversal at the oil hole drives roundness error more than any offset value.
2
Thermal growthWarm up 30 minutes and re-check the first part after two hours of running.
3
Clamping bowA bowed crank is machined round to the wrong centerline.
4
Nose wear0.05 mm of nose wear can move the diameter by about 0.1 mm.

Machine and setup

When the machine or setup is the wrong choice for the crank

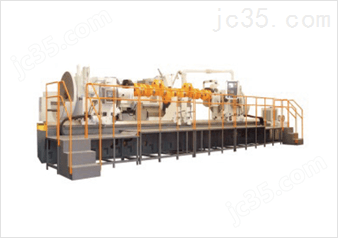

Not every crankshaft belongs on a lathe with a four-jaw chuck. If the pin-to-main center distance is more than 120 mm and the shaft is longer than 800 mm, the imbalance at 300 rpm will show up as vibration before the tool ever touches the part. For that geometry, a mill-turn center or a 5-axis machine with a Ø400 mm rotary table holds the part better and lets you cut the pin and the fillet in one setup.

A three-axis mill with a dividing head can turn a small crank pin, but only if the pin diameter is above 20 mm and the length-to-diameter ratio is under 3. Below that, the pin deflects under the finishing pass and you chase the size all day. We have seen shops spend two shifts trying to hold ±0.01 mm on a 12 mm pin on a three-axis machine. Moving the job to a mill-turn center with a driven tool solved it in one setup.

The steady rest matters more than most people expect. On a 4,000 mm maximum processing envelope, a crank without a center rest will flex in the middle. A steady rest placed within 150 mm of the pin reduces deflection enough to hold roundness inside 0.01 mm. If the pin is between two webs and you cannot reach it with a rest, that is a sign the job needs a different process, not a different insert.

Spindle and tool interface: a BT30 holder on a small machine is fine for a 16 mm boring bar, but a crank pin often needs a 25 mm bar to reach past the web. A 25 mm bar in a BT30 taper will chatter at 0.5 mm depth of cut. Step up to a BT40 or HSK-A63 machine and the same bar cuts clean at 1.0 mm.

1
Long crank, high imbalanceUse a mill-turn center or 5-axis with rotary table, not a manual lathe.
2
Small pin on 3-axisBelow 20 mm diameter the pin deflects in the finishing pass.
3
Steady restPlace it within 150 mm of the pin to hold roundness inside 0.01 mm.
4
Bar size vs taperA 25 mm bar needs BT40 or HSK-A63 to avoid chatter.

Cutting data

Cutting parameters that keep the crank diameter in tolerance

For 1045 or 4130 steel at 180–220 HB, a coated carbide insert runs well at 120–160 m/min surface speed and 0.15–0.25 mm/rev feed. Depth of cut on roughing should stay under 1.5 mm per side. Push it to 2.5 mm and the interrupted cut at the oil hole will chip the insert on the first part. That chip then rubs the journal for the rest of the batch.

For 4340 at 280–320 HB, drop surface speed to 90–120 m/min and keep feed at 0.12–0.18 mm/rev. The higher hardness means the insert absorbs more heat at the nose. A 0.4 mm finishing pass at 0.08 mm/rev leaves Ra 0.8–1.6 μm on a rigid setup. If the finish is worse than that, check the tool overhang before you change the speed.

Stainless 17-4PH in the H900 condition is the hardest common crank material we see. It work-hardens if the feed is too light. Feed below 0.05 mm/rev will rub rather than cut, and the next pass will be cutting through a hardened skin. Keep the finishing feed at 0.08–0.12 mm/rev and never let the tool dwell in the cut.

Coolant direction is not a detail on a crank. High-pressure coolant aimed at the insert tip clears the chip from the oil hole and stops it from being re-cut. Flood coolant from above the part often misses the pin on a long shaft. If the chips come off blue or grey, the heat is going into the part, not the chip.

1
1045 / 4130120–160 m/min, 0.15–0.25 mm/rev, roughing under 1.5 mm per side.
2
434090–120 m/min, 0.12–0.18 mm/rev, finish at 0.08 mm/rev.
3
17-4PHNever feed below 0.05 mm/rev or the surface work-hardens.
4
CoolantAim high pressure at the insert tip, not over the top of the part.

Fix it in order

Five steps to correct an out-of-tolerance crank journal

1
Measure before you adjustUse a micrometer at three stations along the pin and at two planes 90° apart. Record the numbers. If ovality is under 0.005 mm and the size is simply off, this is an offset problem, not a rigidity problem. Do not change clamping or tooling yet.
2
Check the tool and the offset logPull the insert and measure the nose radius with a toolmaker's microscope. Compare it to the value in the control. Reset the offset from a test cut on scrap material of the same grade, not from the drawing. Log every offset change with a timestamp.
3
Warm up and re-cut the first partRun the spindle and coolant for 30 minutes before the first part. Cut part one, measure, then cut part two hours later and measure again. If the size moved more than 0.01 mm, the offset must be set from the warm condition, not the cold one.
4
Reduce deflection at the cutDrop clamping pressure by 20–30% if the part is held on the mains. Add a steady rest within 150 mm of the pin. Shorten tool overhang to under 3× the bar diameter. Make one change at a time and re-measure.
5
Verify with a full inspectionRun a 5-part check at the start, middle and end of the batch. Measure the pin diameter, roundness, taper and fillet radius. If any value drifts across the five parts, the process is not stable, and the offset will not save it.

FAQs

Common questions about crank journal diameter problems

Can I fix an undersize crank journal by welding and re-machining?

Yes, but only if the journal is not in a high-cycle fatigue location and a qualified welding procedure is used. For a production crank, welding usually means the part is reclassified as a repair, not a new part.

In most cases, an undersize journal is a sign the offset drifted during the run. Fix the drift first, then decide whether the part is worth repairing.

Why does my crank pin measure round on the machine but oval after I remove it?

This is almost always clamping distortion. The part is held in a way that bows it, so the cutter follows a bent centerline. Once the clamp is released, the part springs straight and the pin is no longer round.

Reduce clamping pressure, add a steady rest, or move the job to a machine that holds the part on centers with a face driver.

How much can the journal grow from thermal expansion during a run?

On a 50 mm steel journal, a 10 °C rise in part temperature grows the diameter by roughly 6 μm. On a long crank, the growth along the axis is larger than the growth in diameter.

This is why we warm up 30 minutes and re-check the first part after two hours on any run longer than 50 pieces.

What roundness can a CNC lathe hold on a crank pin with an interrupted cut?

On a rigid setup with a steady rest and a short tool overhang, 0.008–0.012 mm roundness is realistic. Without a steady rest on a long shaft, expect 0.02 mm or worse.

If the print calls for under 0.005 mm roundness on a long crank, the job belongs on a mill-turn or 5-axis center, not a two-axis lathe.

Should I use a finishing insert or a wiper insert on the crank pin?

A wiper insert gives a better Ra at higher feed, which helps on long pins where cycle time matters. On a short pin with an oil hole, a standard finishing insert with a small nose radius tracks the interrupted cut better.

Test both on scrap of the same material grade. The difference in Ra is usually larger than the difference in tool cost.
