  Seven Criteria to Compare Chinese 4 Axis CNC Machining Companies
• 2
  What the Fourth Axis Actually Changes
• 3
  How to Read a 4-Axis Quote Before You Compare Price
• 4
  Three Types of Supplier You Will Meet
• 5
  Where 4-Axis Outsourcing Goes Wrong
• 6
  Which Supplier Fits Which Job

A three-axis mill moves X, Y and Z. The tool always approaches the part from one direction. Add a rotary A-axis and the part turns under the spindle. That single change removes a whole class of problems: you no longer need four or five separate fixtures to reach features on different faces.

The gain is not only fewer setups. Every re-fixture adds position error. Stack four setups and the errors add up. On a 4-axis machine you clamp once, index the table, and cut. For a part with 12 holes spaced around a Ø80 mm boss, that difference shows up directly in true position.

The limit is geometry. A 4-axis machine indexes around one axis, so it reaches features that wrap a cylinder. It cannot tilt the tool to the side. Undercuts, deep pockets on a sloped face, and features that need the tool normal to a compound angle stay out of reach. Those jobs need 5-axis, or a redesign.

So the first question when you compare Chinese 4 axis CNC machining companies is not who is cheapest. It is whether your part is genuinely a 4-axis part. If it is, you are buying repeatability across hundreds of units. If it is not, no 4-axis quote will save the project.

• 1
  Good 4-axis fitCamshafts, helical gears, impellers, cylindrical brackets, cross-drilled shafts
• 2
  Marginal fitParts with a few angled faces that could be redesigned to index around one axis
• 3
  Poor fitUndercuts, compound-angle ports, deep sloped pockets, organic surfaces

Price per part is the last number you should read, not the first. Start with the setup count. A shop quoting three fixtures on a 4-axis job is either misreading the drawing or planning to run it as three-axis work. Both cost you accuracy.

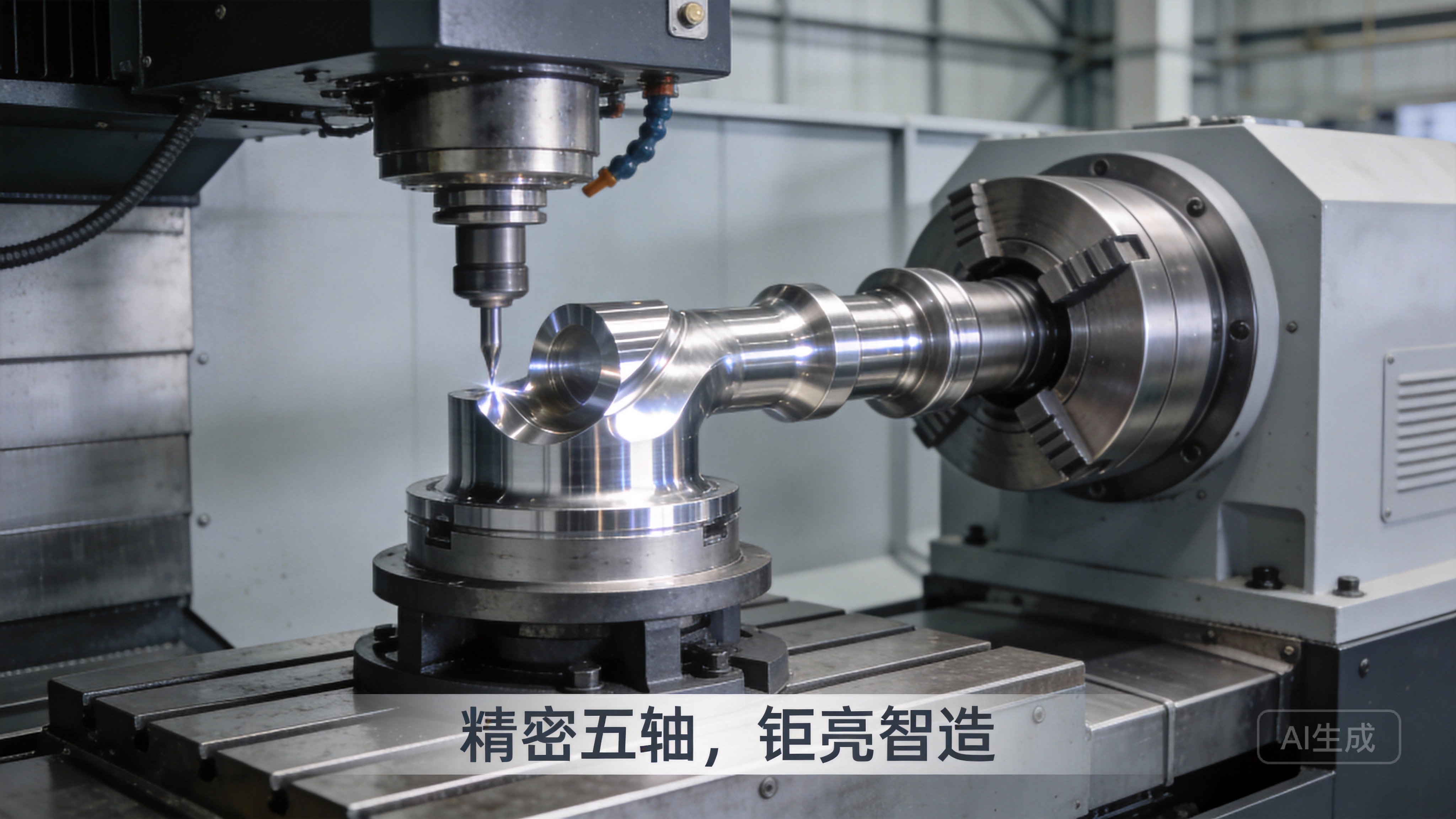

Then look at how the rotary axis is held. A Ø400 mm rotary table with a tailstock supports long shafts at both ends. A chuck with no tailstock lets a 300 mm shaft deflect under cut pressure. Ask which one they plan to use.

Tolerance is the third number. ±0.05 mm is a normal three-axis band. If the drawing asks for ±0.005 mm and the quote does not mention the band at all, you have no commitment. Get the band in writing.

Finally, check what supports the tolerance. Probing on the machine, in-process gauging, and a dimensional report on request are the difference between a claim and a process. A shop that owns a 4-axis VMC but inspects with calipers will drift over a 5,000 part run.

• 1
  Setup countOne or two setups on a 4-axis machine. More than three means it is not really 4-axis work.
• 2
  Support methodTailstock or steady rest for anything long enough to deflect.
• 3
  Tolerance in writingAsk for the band, not the word 'precision'.
• 4
  Inspection loopProbing and in-process gauging keep the run centered.

The trading company owns no machines. It takes your drawing, sends it to a factory, and marks up the result. Useful for simple parts and single orders. Weak when a tolerance issue appears, because the person answering your email is not standing at the machine.

The small job shop owns a handful of 4-axis mills, often three-axis machines with a bolt-on rotary. It can run prototypes well and is often cheap. It struggles with volume. Ten machines is also ten different setup habits, and nothing in the workflow forces them to match.

The integrated factory owns the whole chain: 4-axis mills, 5-axis centers, mill-turn, finishing, and a metrology room. GreatLight runs three wholly-owned plants covering 7,600 m² in Dongguan, with 12 four-axis mills and 16 simultaneous 5-axis centers. That mix matters, because some features on your 4-axis part may still need one 5-axis operation.

The point of comparing supplier types is not that one is always better. It is that a trading company cannot fix a runout problem, and a small shop cannot absorb a 10,000 part order without spreading it across machines that do not match.

• 1
  Trading companyBest for simple geometry, one-off orders, and buyers who already have a factory contact.
• 2
  Small job shopBest for prototypes and low volume where the same operator runs every part.
• 3
  Integrated factoryBest for volume, tight tolerance, and parts that need 4-axis plus a 5-axis touch.

Runout at the rotary axis is the most common failure. The table is not centered, or the fixture sits off-axis, and every hole around the cylinder lands in the wrong place. It is easy to miss on part one and obvious on part 500.

Chip evacuation is the second. Turning the part means chips fall into places a three-axis operator never has to think about. Deep cross-holes pack with chips and break small drills. A shop that plans air blast and peck cycles up front avoids this.

Thermal drift shows up on long runs. The spindle and the rotary table both warm up. If nobody re-probes a reference feature every few hours, the last 200 parts of a shift drift out of band while every gauge reading looks fine.

The last one is documentation. A certificate on the wall says nothing about the parts in the box. Ask for the material cert, the dimensional report, and the inspection record tied to your lot number.

• 1
  Rotary runoutCheck table centering and fixture offset before the first cut.
• 2
  Chip packingPlan air blast and peck drilling for cross-holes and deep bores.
• 3
  Thermal driftRe-probe a reference feature through the shift on long runs.
• 4
  TraceabilityMaterial cert plus dimensional report matched to the lot.

For a one-off prototype with simple geometry, a small job shop or a trading company will be fine. You are buying a part, not a process. Speed and price decide.

For a 500 to 10,000 part run at ±0.005 mm, you want the integrated factory. The reasons are boring but they matter: matched machines, a written tolerance band, probing in the cycle, and 100% inspection before shipment. GreatLight reports a 99.99% qualification rate and a historical late-delivery probability below 2% on this kind of work.

For a part that is mostly 4-axis but has two compound-angle ports, pick a shop that also runs 5-axis. Splitting the part across two suppliers costs you a second setup, a second fixture, and a second tolerance stack. One shop with both machine types removes that.

For medical or automotive work, the certification scope decides. ISO 13485 and IATF 16949 are not interchangeable badges. Check that the certificate covers the process you are buying, not just the company name.

• 1
  Prototype, simple geometrySmall job shop or trading company.
• 2
  Volume, tight toleranceIntegrated factory with matched 4-axis mills and in-process probing.
• 3
  Mostly 4-axis plus a few 5-axis featuresA shop that runs both under one roof.
• 4
  Regulated industriesMatch the certificate scope to your process.
