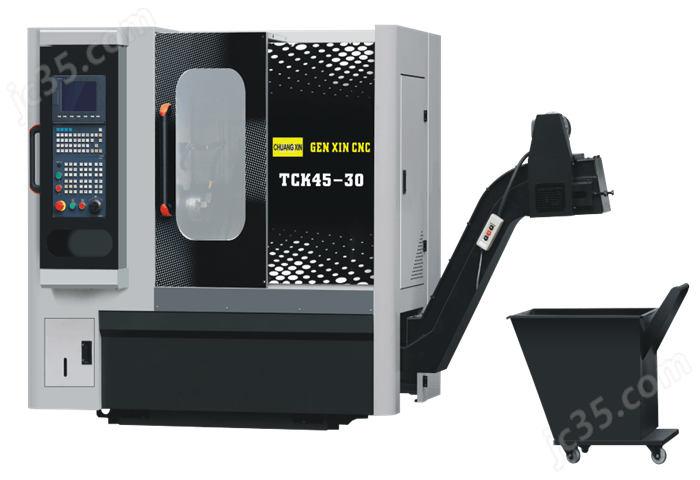

A small lathe has less mass than a big one. That is the whole story in one line. Less cast iron means less heat capacity, so spindle heat, ball screw friction and hydraulic heat all show up in the tool tip within minutes instead of hours. On a Ø200 mm turning center the bed can act as a heat sink. On a compact lathe cutting Ø6 mm parts, the bed is small enough that it follows the room.

The practical number we watch is the growth of the headstock relative to the bed. If the spindle housing rises 6 μm while the bed stays put, the tool moves 6 μm relative to the part. That is the full tolerance on a ±0.005 mm job. Warm-up programs exist for this reason: 20 to 30 minutes of spindle rotation and axis movement before the first cut, at the speeds the job will run. Skipping warm-up is the most common cause of a first-article that passes and a third-hour part that does not.

Thermal drift is not only spindle heat. Coolant that returns at a different temperature each cycle, a chiller that short-cycles, or a shop door that opens every ten minutes all feed the same error. The fix is boring and effective: hold the room, hold the coolant, hold the sequence.

One more mechanism matters on small lathes: machine level and foundation. A compact lathe on a thin floor can twist with foot traffic. Twist shows up as taper on a shaft, not as a step change. If a diameter reads 0.008 mm smaller at the tailstock end on every part, check level before you touch the offset.

Ambient temperature is the condition people argue about most and control least. A small lathe does not need a metrology lab. It needs a room that does not move. A stable 20 °C ± 2 °C room with no direct sunlight and no door in the cutting airflow will out-perform a colder room that swings 6 °C between shifts.

Where the tolerance is tight, we split the difference. Roughing runs first, then the machine idles while the part and fixture reach room temperature, then finishing runs. On a Ø12 mm stainless shaft this two-stage approach is often the difference between holding ±0.005 mm all night and re-cutting the last 0.01 mm in the morning.

Coolant deserves its own line. A 25 mm jet at 8–12 bar carries heat out of the cut, but the fluid itself is a thermal mass. Keep the tank volume large, keep the chiller setpoint fixed, and measure refractometer concentration weekly. A coolant that has drifted from 8% to 5% cuts differently and foams differently, and foam changes chip evacuation.

Air matters too. Compressed air used for chip blow-off carries moisture and oil. If a spindle air purge runs on wet air, the spindle sees a slow thermal load that no warm-up program can predict. A dryer on the machine branch is cheap insurance.

Rigidity on a small lathe is a chain, and the tool holder is usually the weakest link. A Ø12 mm boring bar at 60 mm overhang will deflect under finishing loads. Shorten the overhang and the same bar behaves. The rule we use: keep overhang under 4× the bar diameter for finishing passes, and under 3× when the finish target is Ra 0.8 μm or better.

For turning between centers, tailstock pressure is a balance. Too little pressure and the part chatters. Too much and a thin shaft bows between the centers, so the middle cuts oversize. On a Ø8 mm shaft, 3–5 bar of tailstock pressure is a normal starting point, then adjust by measuring the middle and both ends of the first part.

Collet chucks beat three-jaw chucks on small work. A 5C or 16C collet with a proper stop repeats far better than a scroll chuck, and it holds thin-wall parts without crushing them. For a Ø20 mm bushing with a 1.5 mm wall, we often turn it on a mandrel or use a split collet rather than risk ovality at the jaws.

Sub-spindle and bar feeder alignment is the last link. A bar feeder that pushes 0.05 mm off-axis loads the spindle bearing unevenly and shows up as a taper on long parts. Check the guide channel after every bar size change.

Small lathes reward light, fast passes over heavy, slow ones. A 0.2–0.5 mm depth of cut at a higher surface speed usually produces less deflection and better finish than a 1.5 mm pass at low speed, because the cutting force scales with chip cross-section. The exception is interrupted cuts on cast or forged stock, where a heavier edge is more durable.

Feed per revolution drives finish more than spindle speed does. On aluminium 6061, 0.05–0.10 mm/rev with a 0.4 mm nose radius lands around Ra 0.8–1.6 μm. Push to 0.15 mm/rev and the same insert leaves visible feed marks. On 17-4PH stainless the window narrows: 0.05–0.08 mm/rev, higher pressure coolant, and a fresh edge every few hours.

Coolant delivery should be aimed at the shear zone, not the chip. On a small lathe with limited space, that often means a through-tool holder rather than a flood nozzle. High-pressure through-tool coolant also breaks chips in gummy materials like 304 stainless and C36000 brass, which is a chip-control benefit as much as a cooling one.

Chip control is a tolerance issue. A stringy chip that wraps the part lifts the tool for an instant on each wrap. The diameter reading moves 3–5 μm and the surface shows a rub mark. Insert geometry, feed rate and coolant pressure fix it together. Changing only one usually moves the problem.

Bar stock condition is the input nobody controls and everybody blames. Cold-drawn 12L14 turns clean. Hot-rolled 1045 arrives with scale and a decarburized skin that can be 0.1 mm deep. That skin is softer and cuts differently, so the first 100 mm of bar machines to a different diameter than the rest. On tight work, either buy ground stock or take a skin pass before the finishing pass.

Residual stress is the same story in a different form. Extruded aluminium 6061 bar can move after the first cut releases stress, so a shaft that measured round comes back oval after facing. Stress-relieved or ground stock costs more and saves a second operation.

Program choices matter more on a small lathe because there is less machine to absorb error. Constant surface speed helps finish but changes spindle load, which changes thermal load. On very tight work, we fix the rpm for finishing to keep the heat input repeatable, and accept a slightly slower cycle.

Tool offsets and wear compensation are the last control loop. A small lathe with a tool-life management function can nudge the offset as the edge wears. Without it, the operator measures every 20 parts and adjusts by hand. Both work. Neither works if the warm-up state is different between the measure and the cut.
