Detailed Explanation of Seven Thread Processing Methods
A shop-floor guide to the seven thread processing methods used on CNC machines: single-point turning, thread milling, tapping, thread rolling, thread grinding, whirling and die heads. It is written for engineers and buyers who need to pick a method from the part drawing, not from a catalog. By the end you will know which method fits a given diameter, pitch, material and volume, and where each one stops being practical.

Key takeaways
How the Seven Thread Processing Methods Differ
Threading is not one operation. It is a family of seven methods, and each one removes or forms material in a different way. Single-point turning rotates the workpiece while a shaped insert travels along the axis. Thread milling orbits a smaller cutter around a bore. Tapping drives a multi-edge tool straight in. Rolling squeezes the blank between two dies. Grinding removes a small amount with a profiled wheel. Whirling spins a cutter ring around a rotating bar. Die heads cut external threads in one pass on a lathe or screw machine.
The choice is driven by four numbers on the drawing: thread size, pitch, tolerance class and material hardness. Add the annual volume and the answer is usually obvious. A Ø10 mm internal thread in aluminium at 5,000 pieces per year goes to tapping without discussion. The same thread in Inconel at 50 pieces per year goes to thread milling, because a broken tap in that material costs more than the cycle time saves.

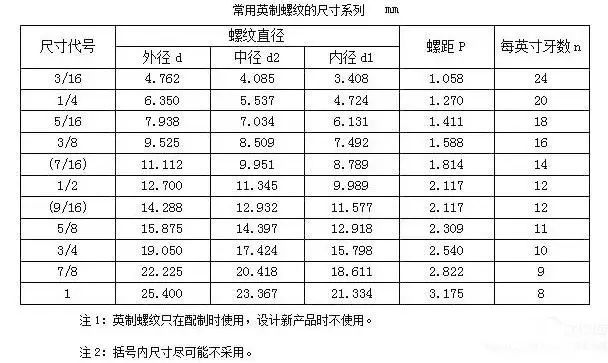

One rule holds across all seven methods: the tool must match the flank angle and the pitch. A 60° insert cannot cut a 55° Whitworth thread correctly, and a roll-forming die will not reproduce a truncated root. Check the callout before you check the tool crib. Most thread defects we see start with a mismatch that was never noticed at setup.
Datum matters too. Threads are measured from a face or a shoulder, and that reference must be cut in the same setup if the drawing calls for a position tolerance. Re-chucking a part to add a thread after the fact is a common source of pitch-line runout. Where runout matters, keep the thread and its datum on one operation.
- 1External, large batchTurning or rolling
- 2Internal, small diameterTapping or thread milling
- 3Hardened materialGrinding or whirling
- 4Long slender barWhirling or die head
Turning, Tapping and Thread Milling in Practice
Single-point turning is the workhorse. A 60° insert with a partial profile or full profile cuts any pitch within its range, and the operator can adjust the minor diameter with offsets. On aluminium we run 200–350 m/min surface speed and take a 0.05–0.15 mm depth per pass over six to eight passes. On 304 stainless, drop to 60–100 m/min and expect work hardening if the insert rubs instead of cuts. Never dwell at the end of the pass.
Tapping is the fastest internal method below roughly Ø16 mm, and rigid tapping on a CNC synchronizes spindle and feed so the tap enters once. Cutting taps need a hole diameter that gives 60–75% thread height, not 100%. Form taps need a larger pilot hole and only work in ductile material below about 32 HRC. The classic failure is chip packing in a blind hole. Stop the hole 3–5 threads deeper than the callout, or use a spiral-flute tap that lifts chips out.
Thread milling uses a single cutter on a helical path, so one tool covers a range of diameters and both hands. It produces no axial thrust, which makes it safe on thin walls and long reach. Run 100–200 m/min in steel with 0.02–0.05 mm radial stepover per orbit. It is slower than tapping per hole, but it never gets stuck. For a Ø4 mm thread in a die-cast housing, that reliability is worth the extra cycle time.
All three methods depend on the same starting condition: a true pilot hole or a clean turned diameter. Drill runout shows up directly in the thread. Spot the hole, check the drill, and measure the pilot before the threading tool touches the part. We inspect pilot diameter on first article and monitor it in process, because a drill that wears 0.05 mm undersize will break a form tap before the thread gauge ever tells you why.
- 1Turning speed, aluminium200–350 m/min, 0.05–0.15 mm per pass
- 2Turning speed, 304 stainless60–100 m/min, avoid rubbing
- 3Thread milling stepover0.02–0.05 mm radial per orbit
- 4Blind hole clearance3–5 threads deeper than callout
Rolling, Grinding, Whirling and Die Heads
Thread rolling forms the thread by cold working. Two or three dies press into the blank and displace metal into the crest. The result is a thread with a continuous grain flow at the root and better fatigue life than a cut thread. It needs ductile stock: low-carbon steel, aluminium, brass, and 303 stainless all roll well. High-carbon and hardened material will crack at the crest. Blank diameter must be controlled to about ±0.02 mm, because the die does not remove material, it moves it.
Thread grinding is the answer when the thread is already heat treated. A profiled wheel removes a few hundredths of a millimeter per pass and holds pitch accuracy that cutting cannot. It is slow and it costs more per part, but it is the only method that will hold a tight lead tolerance on a 58 HRC shaft. Dress the wheel often and keep coolant clean, or the profile will burn the flank.
Whirling uses a rotating cutter head with several inserts spinning around a slowly rotating bar. The cutting action is interrupted, so the chips are short and heat leaves with them. It suits long, slender threaded shafts such as feed screws and bone screws, where the axial load of a die head would bend the part. It also handles hardened material and deep profiles. Setup is the expensive part, so whirling pays off at medium to high volume.
Die heads cut external threads in a single pass on a lathe or screw machine and are common on high-volume fasteners and fittings. The head carries four chasers, and they can be adjusted for size without touching the program. They are fast and repeatable, but each head covers a narrow thread range. If you need three diameters in one run, thread milling or turning will be cheaper than buying three heads.
- 1RollingDuctile stock, blank ±0.02 mm
- 2GrindingPost-heat-treat, tight lead tolerance
- 3WhirlingLong slender shafts, interrupted cut
- 4Die headsOne-pass external, narrow range
Step by Step: Choosing a Method from the Drawing
Work through these in order and stop at the first step that matches.
- 1Read the callout completelyNote size, pitch, class (for example 6H, 2B, 6g), hand, and whether the thread is internal or external. A missing class usually means the default, so confirm it before quoting.
- 2Check the material and hardnessBelow 32 HRC, cutting and forming both work. From 32 to 45 HRC, prefer thread milling or grinding. Above 45 HRC, grinding or whirling only. Never tap a hardened part.
- 3Measure the available spaceTapping needs axial room for the tap and the holder. On a blind hole, add 3–5 threads of clearance and confirm the spindle can reach without collision.
- 4Compare diameter to batch sizeInternal below Ø16 mm at high volume: tapping. External above Ø6 mm at any volume: turning. Mixed diameters with one tool: thread milling.
- 5Check wall thickness and reachThin walls and long overhangs rule out tapping and die heads. Thread milling or whirling keeps the cutting force low.

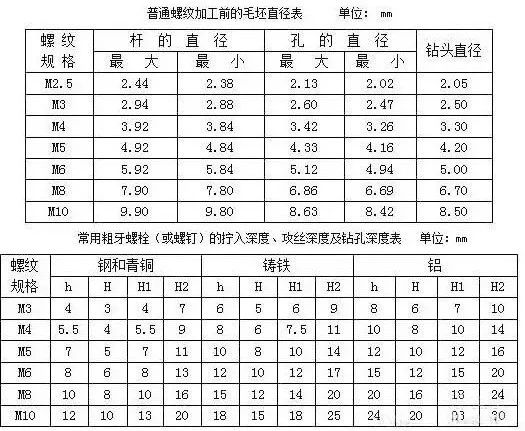

- 6Set the pilot or blank sizeCutting taps: 60–75% thread height. Form taps: larger pilot. Rolling: blank ±0.02 mm. Grinding: leave 0.2–0.3 mm for the wheel.
- 7Prove it on the first articleGauge with go/no-go, check pitch diameter, and inspect the root for tearing. Run 100% inspection before shipment on threaded features that carry load.
Seven Thread Processing Methods Compared
Use this table to shortlist a method before you program it.
| Method | Best for | Typical size range | Watch out for |
|---|---|---|---|
| Single-point turning | External threads, any pitch | Ø6 mm and up | Insert rubbing on stainless |
| Thread milling | Hard or thin-wall parts, mixed sizes | Ø1.5 mm and up | Longer cycle than tapping |
| Tapping | Internal threads, high volume | Ø0.5–16 mm | Chip packing in blind holes |
| Thread rolling | High fatigue life, ductile stock | Ø2–60 mm | Cracking on hard material |
| Thread grinding | Post-heat-treat, tight lead | Ø3 mm and up | Slow, wheel dressing cost |
| Whirling | Long slender shafts, hard steel | Ø6–150 mm | Expensive setup |
| Die heads | One-pass external, fasteners | Ø3–50 mm | Narrow thread range per head |
Pick the method from the drawing, not the habit
If the thread is internal below Ø16 mm and the material is soft, tap it. If it carries load, is hard, or sits in a thin wall, mill or grind it. Send us the drawing and we will confirm the method, the pilot size and the tolerance class within 12 hours.
Frequently Asked Questions
Which thread processing method holds the tightest pitch accuracy?
Thread grinding holds the tightest lead and pitch diameter, because the wheel is dressed to a known profile and the part is already stable after heat treatment. Whirling is next, since the interrupted cut keeps heat out of the workpiece.
For most commercial work, a turned or milled thread in the 6g or 6H class is enough. Tighten to grinding only when the drawing demands it, because the cost per part rises sharply.
Can you tap a thread in titanium or Inconel?
You can, but the margin is small. Titanium and Inconel work harden quickly, so the tap must cut on every revolution and never rub. Use a sharp, coated tap, generous cutting oil, and a pilot hole at the high end of the tolerance.
In practice we prefer thread milling for these materials. A broken tap in a Ø6 mm hole in Inconel usually means scrapping the part or sending it to EDM, which costs far more than the extra cycle time.
When is thread rolling better than thread cutting?
Rolling wins when the thread carries cyclic load. The cold-formed root has uninterrupted grain flow, so fatigue life is higher than a cut thread of the same size. It is also fast and produces no chips, which matters in clean assembly areas.
It loses when the material is brittle or the blank diameter is hard to control. Rolled threads need ductile stock and a blank held to about ±0.02 mm. On hardened or high-carbon steel, the crest can crack.
How do I avoid chip packing when tapping a blind hole?
Drill 3–5 threads deeper than the required thread depth, and choose a tap that moves chips in a known direction. A spiral-flute tap lifts chips back out of the hole; a spiral-point tap pushes them forward.
On a horizontal or inverted spindle, program a peck or a full retract to clear chips. If the material is gummy, such as 5052 aluminium, use a form tap instead, since it produces no chips at all.
What thread sizes can GreatLight machine?
We cut and form threads from Ø0.5 mm up to 4,000 mm maximum processing size, on 127 high-precision CNC machines including 16 simultaneous 5-axis machining centers and 16 mill-turn centers.
Tolerances are held to ±0.005 mm where the drawing requires it, with surface finish from Ra 0.2–0.8 μm on ground features. Metric, UN, NPT and BSP forms are all standard.
Do you inspect threads before shipment?
Yes. Inspection is 100% before shipment, covering raw material check, in-process monitoring and final inspection. Threaded features are gauged with go/no-go and pitch diameter tools, and reports are available on request.
Our plants hold ISO 9001:2015, IATF 16949:2016, ISO 13485:2016 and ISO 27001:2022. Uploads are secure and confidential, and an NDA is available on request.
