Structural Features of CNC Machining Centers

• 1
  Frame and bed: where the structural features of CNC machining centers start
• 2
  Column, spindle and the stiffness chain in CNC machining centers
• 3
  Guideways and ballscrews: how motion becomes surface finish
• 4
  Rotary axes and tool changers: the structural features that enable 5-axis work
• 5
  When these structural features stop helping you
• 6
  Which machine structure fits which part

Every cut is a force pushed back into the machine. The bed and frame take that force, and whatever deflection they allow shows up on the part. Cast iron beds damp vibration well because graphite flakes in the iron absorb energy at the grain level. Welded steel frames are stiffer per kilogram but ring longer, which is why high-speed gantry builders often fill them with polymer concrete.

Mass matters more than people expect. A 4,000 mm bed that weighs several tonnes will not move much when a Ø50 mm face mill bites into 4140 steel. A light frame will. That is the difference between a stable Ra 0.8–1.6 μm finish and a chatter pattern you have to explain to the customer.

Thermal behavior is part of the same story. Iron expands roughly 11 μm per meter per °C. Over an 8-hour run with a warm spindle, a frame that is not symmetric will bow. Castings are usually aged before machining so residual stress leaves the metal before the first part is cut, not after.

What this means for your print: deep pockets with thin walls punish a light frame first. If your part has 2 mm walls at 80 mm depth, ask what machine will run it. The answer changes the price and the achievable tolerance more than toolpath choice does.

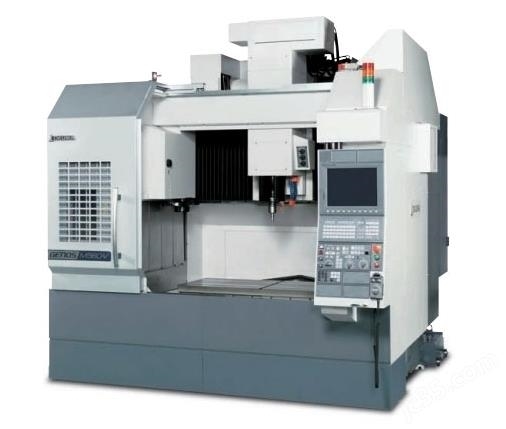

The column carries the spindle head, so it is the longest unsupported link in the loop. A box-section column resists bending better than an open C-frame of the same weight. That is why vertical machining centers with a moving column hold tighter tolerance on tall parts than a bridge mill with a long Z quill.

Spindle design sets the cutting envelope. A 12,000 rpm spindle with ceramic bearings handles aluminium at high feed, but it has less torque at low rpm than a 6,000 rpm geared spindle. Put the wrong one on a titanium job and you will stall or burn tools instead of cutting.

Taper size follows the same logic. BT30 suits light aluminium work up to about 10 mm end mills. BT40 and HSK-A63 cover most steel and stainless jobs. HSK-A100 or Capto C8 appear on heavy 5-axis machines cutting Inconel or 17-4PH.

Spindle growth is a real number, not a theory. A spindle warming from 20 °C to 45 °C grows in Z. Machines that hold ±0.005 mm on a long run compensate for this with cooling jackets, thermal growth sensors, or both. Ask about it when tolerance is tight and the cycle is longer than an hour.

Linear guideways and box ways trade off differently. Box ways have a large contact area, so they absorb vibration and hold up under heavy radial cuts in steel. Linear roller guides run faster with less stick-slip, which suits aluminium at high feed and jobs with many small moves.

Ballscrew pitch and preload decide how fine the motion is. A preloaded screw removes backlash, so a command of 0.01 mm actually moves 0.01 mm. On a worn machine with backlash, the control has to guess, and circular interpolation shows it as a flat spot at each quadrant.

Scale feedback is the other half. A machine with linear scales reads the table position directly instead of trusting the screw. That is how a shop holds ±0.005 mm over a 4,000 mm part. Without scales, thermal drift in the screw turns into position error at the far end of travel.

For your part, the practical question is move count. A mold insert with thousands of 0.5 mm stepovers rewards a fast, low-friction guideway. A heavy steel housing with a few deep passes rewards damping. Neither wins everywhere.

A trunnion table with a Ø400 mm rotary table adds two things: reach and error. Reach, because the tool can approach a face that a 3-axis machine cannot see. Error, because every rotary axis stacks its own positioning error onto the linear ones.

Direct-drive rotary tables index fast and hold position well, since there is no gear backlash. Worm-gear tables have more torque and clamp harder, which matters when you are drilling off-axis into 4140. Both are common, and both need to be checked against the tolerance on your print.

Tool changers are structural too, in the sense that they set cycle time and repeatability. A 30-tool side-mount magazine keeps chips out of the taper and swaps in 2–3 seconds. A 60-tool chain magazine handles long jobs without reloading, but it takes longer per swap.

The takeaway: 5-axis is not automatically better. If all your features are on one face, a 3-axis machine with a good vise will hit the same tolerance for less money. The rotary axes earn their place when you have features on four or five sides, or when one setup removes a fixture error that would otherwise cost you 0.02 mm.

Structure sets a ceiling, not a guarantee. A stiff machine with a bad setup still cuts badly. A 4,000 mm bed does not help if the part is clamped on three points and rings like a bell in the middle.

Small parts do not benefit from big machines. A 12 mm aluminium bracket run on a large gantry mill ties up capacity and often holds looser tolerance than a compact 500 × 400 × 450 mm machine, because the big machine's resolution is spread over a longer travel.

Very hard materials push back on all of this. Inconel and hardened tool steel above 45 HRC cut slowly and generate heat, so spindle cooling and frame damping matter more than rapid rates. If your design uses those materials, expect longer cycle times and different tooling.

The honest summary: match the machine structure to the part, not to the brochure. Thin walls, deep pockets, tight true position, and multi-face features each point to a different machine. Tell us which one your part has, and we can say which of our 127 machines will run it.
