Spindle Gantry Machining Center: How the Structure Shapes the Cut

• 1
  What a spindle gantry machining center changes
• 2
  Rail layout decides which errors you fight
• 3
  Thermal growth over a long bridge
• 4
  Electric spindle behavior under load
• 5
  When a gantry machine is the wrong choice
• 6
  Gantry versus C-frame: which fits the part

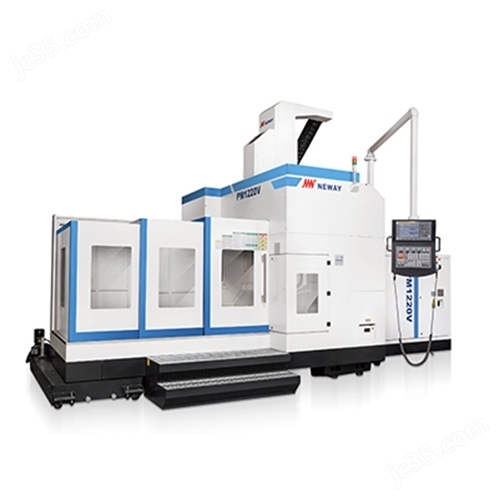

On a vertical machining center the table moves in X and Y while the column stands still. On a spindle gantry machining center that relationship flips. The bed is fixed to the foundation and the cutting head rides a bridge that spans the work zone. Nothing under the part moves during the cut.

That single change rewrites the stiffness path. The force loop runs from the tool tip up through the spindle, into the ram or Z saddle, along the bridge, down both side columns, and back into the bed. Every joint in that chain adds compliance. A C-frame machine sends the same force through a shorter chain, so it is stiffer for the same mass.

The payoff is travel. Because the table does not shuttle, the bed can be made very long without adding moving mass. GreatLight runs gantry-style travel up to 4,000 × 400 × 150 mm, which is well beyond what a typical 40-taper vertical mill reaches.

The trade is sensitivity. A wide, tall bridge is more exposed to thermal drift and to uneven foundation settlement than a compact column. That is why gantry machines are usually installed on a leveled, isolated pad and why warm-up routines matter more, not less.

• 1
  Fixed tableHeavy or awkward parts are clamped once and never re-fixtured for table motion.
• 2
  Longer loopMore joints between tool and bed, so static and dynamic stiffness must be designed in.
• 3
  Linear scale feedbackCommon on gantry axes to close the loop over long travels.

Two rails or four? A bridge supported on two side rails behaves like a beam in bending. Push the spindle to the middle of the span and the bridge sags; push it to one side and the opposite column lifts. This is the classic gantry error: the tool drops toward the center of the table.

Four-rail and dual-drive designs add a second motor and encoder per side. The control then has to keep both sides synchronized. If one side leads the other by even a few microns, the bridge yaws and the part comes out trapezoidal. Modern drives handle this with cross-coupled position loops, but the tuning has to be right.

Rail type matters too. Roller linear guides carry more load and are less prone to stick-slip than ball guides, which helps on heavy gantry rams. Hydrostatic ways go further: a thin oil film gives very high damping and near-zero wear, at the cost of a pump, filtration, and more heat to manage.

For most job-shop work on aluminum and steel, roller guides with a box-in-box Z ram are the practical middle ground. They hold ±0.005 mm on a 500 mm feature without needing a temperature-controlled room.

• 1
  Two railsLower cost, but bridge sag shows up as a center-to-edge bow.
• 2
  Dual driveTwo motors per axis must be gain-matched, or the bridge skews.
• 3
  HydrostaticBest damping and wear life, highest support complexity.

Steel and cast iron expand about 11 to 12 μm per meter per °C. On a 4,000 mm bridge, a 5 °C rise from spindle heat and motor losses moves the ends roughly 220 μm apart. That is 44 times the ±0.005 mm tolerance budget, so it cannot be ignored.

Three controls are common. First, the spindle and ballscrews get liquid cooling, which holds the main heat source near ambient. Second, the bridge casting is designed with symmetric ribbing so it warms evenly and bows instead of twisting. Third, the machine runs a warm-up cycle before the first cut, letting the structure reach steady state.

The measurement side needs the same care. A part checked hot on the machine will read different from the same part at 20 °C in the inspection room. For tight gantry work, we let the part cool and then verify on a CMM, which is how the ±0.005 mm figure is actually confirmed.

Air conditioning the whole bay is the expensive option. Most shops do better with a local enclosure or by scheduling heavy roughing early and finishing after the machine has stabilized.

• 1
  Cool the spindle firstIt is the largest and fastest-moving heat source.
• 2
  Symmetry over stiffnessEven ribbing bows the bridge; uneven ribbing twists it.
• 3
  Cool before measuringThermal drift during inspection is a silent out-of-tolerance source.

An electric spindle integrates the motor rotor onto the shaft. No belts, no gearbox, so the speed range is wide and the response is fast. The cost is heat in the bearings and a torque curve that falls off as speed rises.

At low rpm the available torque limits how big a cutter you can run in steel. A 50 mm face mill at 2 mm depth in 4140 will stall a spindle that happily runs a 12 mm end mill at 12,000 rpm in aluminum. Match the tool to the torque band, not to the maximum spindle speed on the spec sheet.

Bearing type sets the ceiling. Ceramic hybrid bearings run cooler and reach higher rpm. Steel angular-contact bearings tolerate more preload and impact, which suits roughing. Grease-for-life means no maintenance but a lower speed limit; oil-air lubrication pushes the limit up and adds a consumable.

For finishing work at Ra 0.8–1.6 μm, the limiting factor is usually not the spindle itself but the tool holder. A balanced holder at HSK-A63 or similar holds runout near 3 μm, which keeps the effective chip load even across all flutes.

• 1
  Torque falls with speedCheck the curve at the rpm you actually plan to use.
• 2
  Bearings set the ceilingCeramic for speed, steel for impact and preload.
• 3
  Holder runout dominates finishA good spindle with a worn holder still cuts a poor surface.

Gantry geometry wins when the part is large and the tolerances are moderate to tight. It loses when the part is small and the tolerances are extreme, because a compact C-frame machine has a shorter force loop and less thermal mass to control.

A 60 mm bracket with a 10 μm bore tolerance is easier on a small vertical mill. The gantry's long bridge adds no benefit and its larger thermal envelope adds risk. Same logic for parts that need five faces in one setup: a 5-axis trunnion machine often beats a gantry with a tilting head.

Gantry is also a poor fit for high-volume small parts. Cycle time on a large machine is dominated by acceleration of heavy moving elements. A dedicated mill-turn or a smaller 3-axis machine will out-produce it on a 10,000-piece run.

The clear case for gantry is a single large part, or a family of large parts, with features on multiple faces and a tolerance in the ±0.01 mm to ±0.05 mm band. Fixture once, cut everything, and accept the longer warm-up.

• 1
  Small and tightUse a compact machine with a shorter loop.
• 2
  Five faces, one setupA trunnion 5-axis center is usually more efficient.
• 3
  Large and multi-faceThis is where gantry pays for itself.
