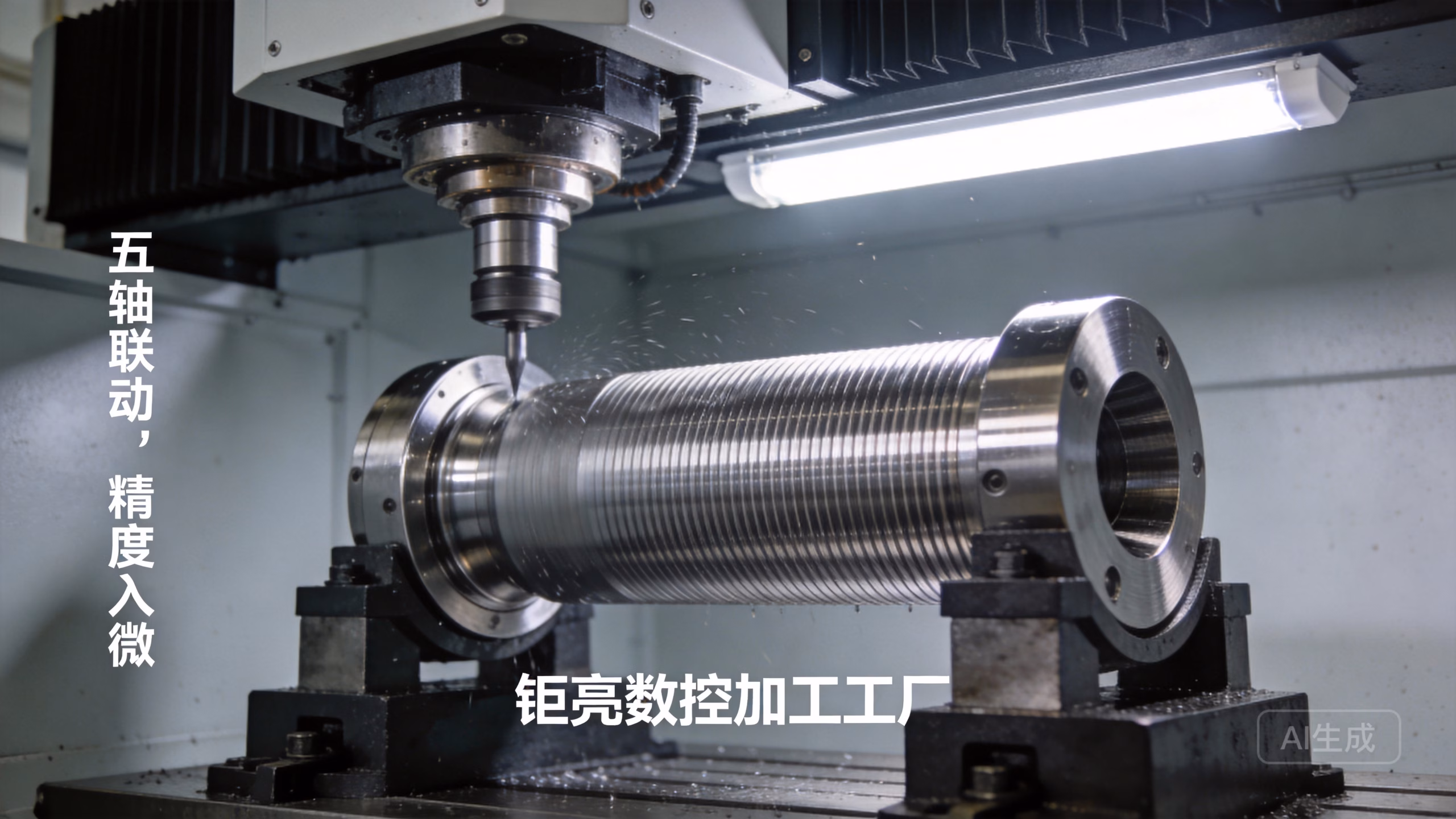

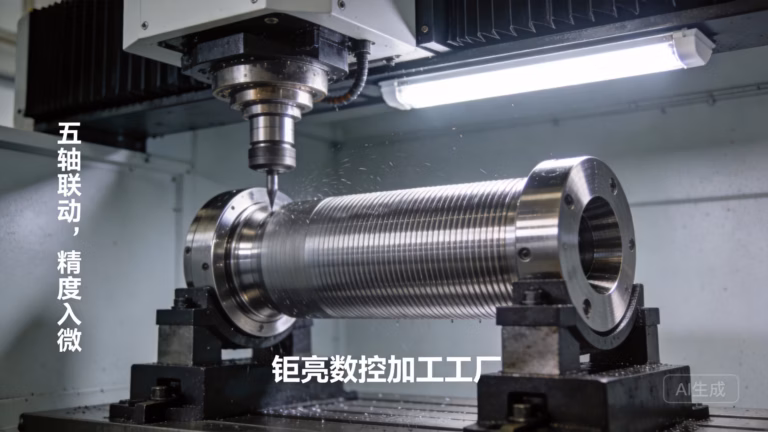

Most RFQs for oversized work die at the first question. A shop lists a 4,000 mm machine, but the usable stroke is 4,000 × 400 × 150 mm. That is a long, narrow envelope. If your part is 3,800 mm long and 900 mm wide, it will not fit in one setup no matter how big the bed looks in the photo.

So ask for the stroke envelope in X, Y and Z, not the table dimensions. Then ask how many setups your part needs. A 3,800 mm weldment that has to be repositioned three times will lose datum continuity, and every reposition adds stack-up error you cannot inspect away later.

For medium frames, shops often run 750 × 1,150 × 550 mm or 600 × 600 × 600 mm envelopes. Those cover most machine bases, brackets and housings. Above 1,500 mm in any dimension you are in a different class of machine, and the number of shops that can take the job drops fast.

One more thing. A Ø400 mm rotary table changes what is possible on a long part. If your drawing has ports or faces at compound angles, a 4-axis setup with that table can cut them without re-fixturing. If the shop only has 3-axis travel, those features become a manual second op.

A tolerance callout is a promise about one feature measured one way. On a large part, thermal drift over a four-hour cut can move the workpiece more than the tolerance band. Aluminum 6061 grows roughly 0.023 mm per meter per °C. A 5 °C swing in the shop during a long roughing cycle is already 0.1 mm on a 2 m length.

That is why good shops rough, let the part rest, then finish. If a supplier quotes ±0.005 mm on a 2 m part with no mention of a stress-relief or settle step, the number came from a sales template.

Ask which datums the tolerance applies to. On oversized parts, most dimensions are general tolerance, and only a handful of critical features carry the tight callout. Tell the shop which ones matter. Machining everything to ±0.005 mm triples cycle time for no functional gain.

Surface finish follows the same logic. Ra 1.6–3.2 μm is normal as-machined. Ra 0.8–1.6 μm needs a finishing pass with a sharp tool and stable setup. Ra 0.2–0.8 μm on a large face usually means a separate process, and you should budget for it.

A 300 kg part deflects under its own weight. Clamp it in four places and you bend it into tolerance, then it springs back when you release the clamps. The finished part is out of spec and the CMM report looks fine because the report was taken on the clamped part.

Ask how the shop supports the part. Good answers mention adjustable stands, torque-controlled clamping, and measurement with the part in a free state. Vague answers mention vises.

Metrology is the other half. A bridge CMM that covers 1,000 mm cannot inspect a 3,500 mm frame. Shops that do this work either own a large gantry CMM, use a laser tracker, or measure critical features with a portable arm and verify the rest with hand tools plus a setup sheet. All three are acceptable if the shop tells you which one applies to your print.

Before shipment, ask what gets recorded. Raw material certificates, in-process checks and a final inspection report are standard in a serious shop. Request the report on the PO so nobody has to reconstruct it later.

Large parts are rarely one material. A typical machine base is 6061 or 4140; a fixture plate might be 1018 or A36; a bracket could be 304 or 17-4PH. A shop that only stocks aluminum will send you elsewhere for half the assembly.

Plate availability matters too. Thick 7075 or 17-4PH plate is not always on the shelf, and a shop that orders per job can lose a week before the spindle turns. Ask whether material is stocked or sourced per order.

Finishing is where large projects bleed time. Anodizing, electroless nickel, powder coating and black oxide each need a vendor, a rack and a return trip. If those steps sit at a subcontractor, add five to ten days and a second set of handling risks to a 300 kg part.

A single PO covering machining, finishing and laser marking keeps the datum history in one place. Laser marking has a practical floor of 1.5 mm character height, so keep part numbers and traceability codes above that if you want them legible after coating.

Standard lead time for oversized machining runs 3–5 days once production starts, and production can begin within 24 hours of a released PO. Treat those as planning numbers, not guarantees. What you should verify is that the shop gave you dates at all.

Order size is the other filter. No minimum order quantity matters when you need one prototype of a 2 m frame. A shop that charges a tooling fee for a single large part is telling you its fixtures are job-specific, which is fine for a 500-part run and wrong for a one-off.

Read the quote for what is missing. A good one lists material grade and condition, machine and axis count, number of setups, tolerance scope, finish spec, inspection method, and lead time in days. A quote with a price and a picture is not enough to compare against another shop.

Confidentiality is worth settling early. If your drawings carry a customer part number or a patent-pending geometry, put an NDA in place before you upload. It costs nothing and removes a later argument.
