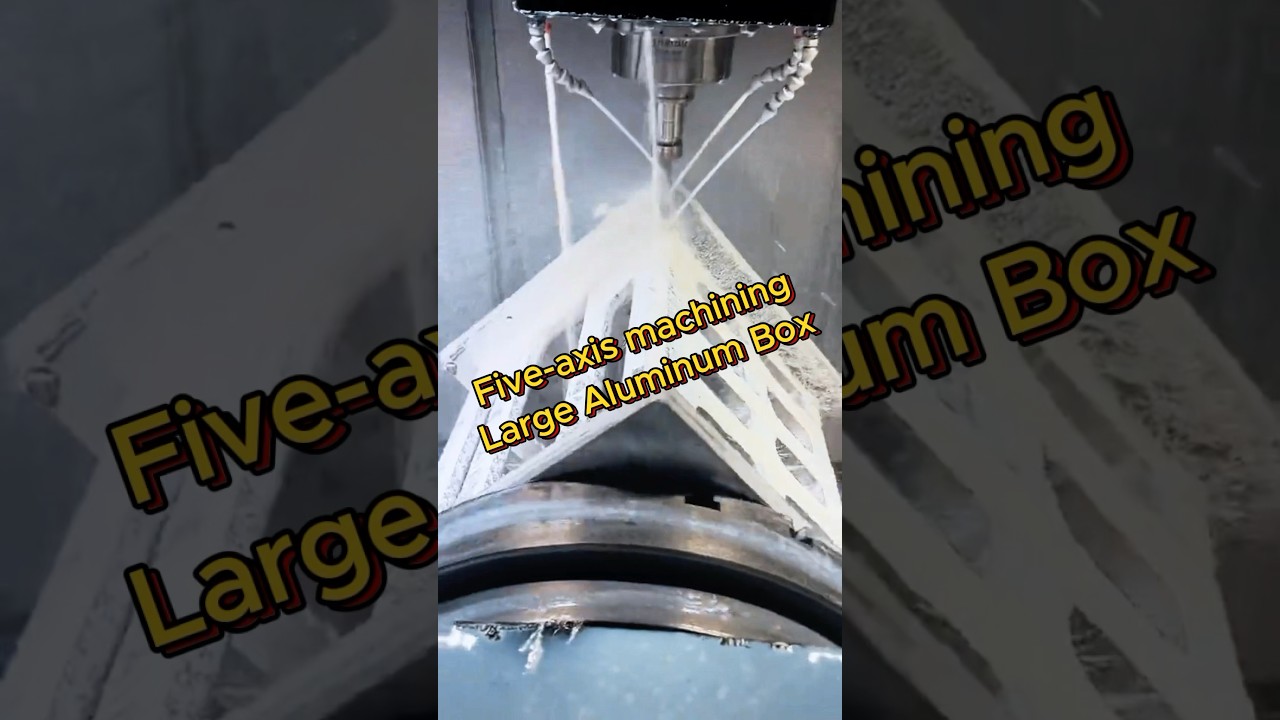

Five-Axis Machining Large Aluminum Box: How It Works and Where It Stops

• 1
  Why a Large Aluminum Box Is Not Just a Big Pocket
• 2
  Setup Strategy for Five-Axis Machining Large Aluminum Box Parts
• 3
  Speeds, Feeds and Tool Reach Inside the Box
• 4
  Where the Box Moves After Machining
• 5
  Step by Step: From Model to Finished Box
• 6
  Five-Axis or Three-Axis for a Large Aluminum Box

A large aluminum box is usually a welded or bolted frame with pockets, ribs, bores and sealing faces on four or five sides. The walls may be 2-3 mm thick and the part may measure 700-1,200 mm across. When you cut the first face, the material that held the box rigid is gone. The second face then moves under the cutter.

On a 3-axis mill you have to re-fixture the box for every new face. Each flip adds a datum shift. Stack five flips and a 0.02 mm shift on each one becomes a 0.1 mm error on the last bore. Five-axis machining removes most of those flips by tilting the spindle or the table instead of moving the part.

The catch is that a tilting machine has less stiffness than a square column. A 5-axis center with a trunnion table carries the part on a rotary axis, and that axis deflects under load. Large aluminum boxes cut with light passes, so deflection is manageable, but heavy roughing on a thin wall will still chatter.

So the question is not whether five axes are better. It is whether the box has enough features on angled faces to justify the setup saving, and enough wall thickness to survive the cutting forces.

• 1
  Fewer setupsFive-sided access in one clamping reduces datum stacking
• 2
  Long reachAngled spindles reach inside deep cavities without a long tool
• 3
  Lower stiffnessRotary axes deflect more than a fixed column
• 4
  Thin wallsAluminum boxes need light radial cuts, not heavy ones

Start with the sealing face. That face carries the gasket or O-ring, so it sets the flatness target for everything else. Machine it first on a 3-axis operation if the blank is rough, then move the box to the 5-axis center and pick up the finished face as datum A.

For a box up to about 600 mm on the longest side, a Ø400 mm rotary table with a tombstone fixture gives good access to four sides plus the top. Above that size, we use the 4,000 × 400 × 150 mm travel machine and clamp the box on a bed fixture, tilting the spindle head rather than the part.

Leave 0.3-0.5 mm of stock on the sealing face for the final pass. Rough the pockets and bores first, let the part sit for a few hours if the walls are thin, then finish the sealing face and the mating bores in the same setup. That single setup is what keeps the bore axes parallel to the seal plane.

Clamping pressure matters as much as the toolpath. A box clamped on four corners will bow in the middle. Use support jacks under the floor and clamp near the ribs, then check the floor flatness with a dial indicator before the finish pass.

• 1
  Datum AThe finished sealing face, machined flat before anything else
• 2
  Rough then restLet thin walls relax before the finish pass
• 3
  One finish setupSeal face and bores in the same clamping
• 4
  Support the floorJacks under the base stop bowing from clamp load

Aluminum 6061-T6 cuts fast, but a long tool inside a box does not. A 12 mm carbide end mill with 100 mm of gauge length will sing at 8,000 rpm. Drop to 4,000-6,000 rpm, keep the radial engagement at 5-8% of the tool diameter, and let the axial depth carry the removal. This trochoidal style path keeps the radial force low, which is what a thin wall cares about.

For wall sections under 3 mm, finish with a 6 mm or 8 mm tool and 0.1-0.2 mm radial stepover. Higher stepover will push the wall away from the cutter and leave a taper you cannot fix by sanding.

Bores are the other risk. A 40 mm bore through a 900 mm box needs a boring head with a long arbor, and the arbor sags. Rough the bore to 0.3 mm undersize with a helical path, then use a boring head with two passes of 0.15 mm and 0.05 mm. Check roundness at three depths.

Coolant choice follows the cavity. Flood coolant clears chips from deep pockets, but through-spindle air with a mist is often better on a 5-axis machine because the tilted spindle drains poorly. Chips left in a pocket will be re-cut and will mark the wall.

• 1
  Low radial engagement5-8% of tool diameter protects thin walls
• 2
  Short gauge lengthEvery extra 20 mm of reach costs rigidity
• 3
  Two-pass boring0.15 mm then 0.05 mm removes arbor sag error
• 4
  Clear the chipsAir blast or mist on tilted spindles

Residual stress is the main reason a large aluminum box fails inspection. Rolled 6061 plate and extruded 6082 bar carry different stress patterns. When you remove 60% of the material from one side, the part warps toward the remaining metal.

Two habits reduce this. First, machine both sides roughly before finishing either. Second, use symmetric pocket layouts where the design allows it. Removing 3 mm from the top and 3 mm from the bottom at the same stage keeps the stress balance closer.

Welded boxes are worse. A welded frame relieves stress unevenly, and the weld bead is often harder than the parent metal. Machine the weld flush first, then stress-relieve the frame before the finish cuts if the drawing allows it.

Anodizing adds another shift. Hardcoat anodizing builds 50-80 μm of oxide that grows both inward and outward. A sealing groove cut to 2.0 mm will measure 1.92-1.96 mm after hardcoat. Mask the groove or cut it 0.04-0.08 mm oversize.

• 1
  Rough both sidesBalance material removal before any finish pass
• 2
  Stress reliefWelded frames need it before final machining
• 3
  Anodize growthHardcoat adds 50-80 μm of oxide
• 4
  Mask seal groovesOr cut them 0.04-0.08 mm oversize
