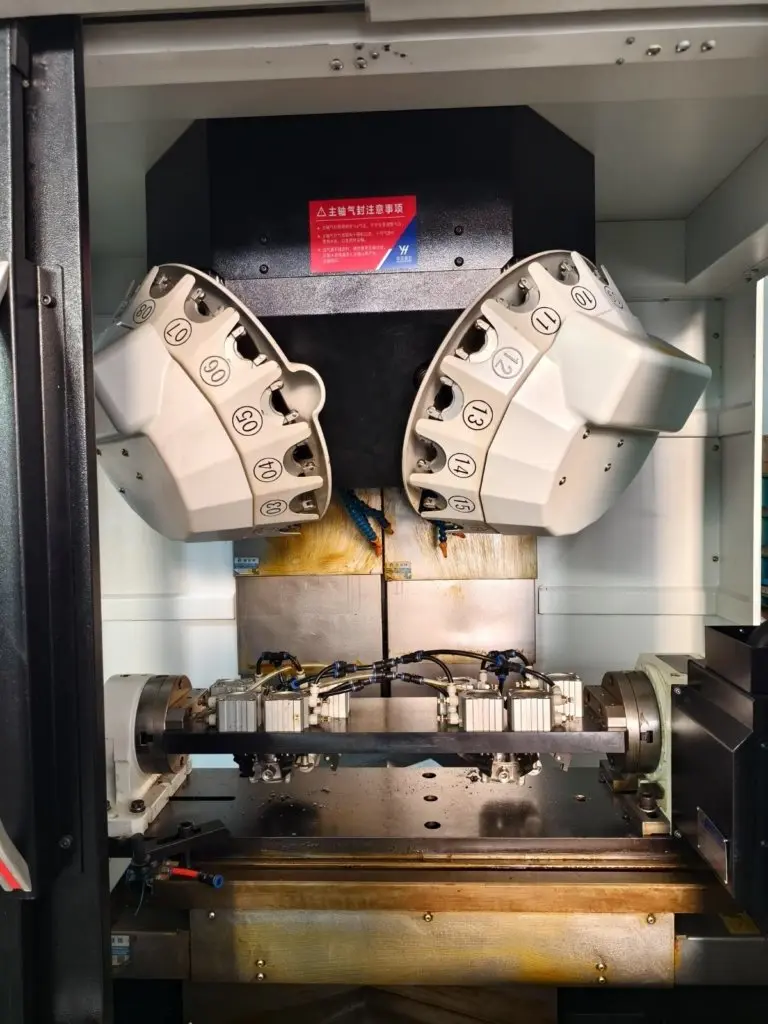

Composite Robot CNC Loading: How Automated Load and Unload Works

• 1
  What composite robot CNC loading replaces
• 2
  The four subsystems that decide whether it works
• 3
  When composite robot CNC loading pays off, and when it does not
• 4
  What the loading cell demands from the parts themselves
• 5
  Signals, safety, and the parts of the project nobody scopes
• 6
  Manual load vs composite robot CNC loading vs dedicated automation

In a manual cell, an operator opens the machine door, unclamps the vise or chuck, lifts the blank, seats it against the stops, clamps again, closes the door, and starts the cycle. Then the operator waits. On a 4-minute cycle that wait is roughly 3 minutes of standing time, and on a 40-minute cycle it is 38 minutes of wasted attention.

Composite robot CNC loading replaces the lift-and-seat portion of that loop with a kinematic arm that carries a gripper. The machine tool still does the cutting. The arm only moves material in and out, and the control system coordinates the two so nobody reaches into the enclosure while the spindle is turning.

The word composite here does not mean carbon fiber. It means the arm combines more than one motion source, usually a multi-axis articulated arm on a linear rail or a gantry, so a single unit can serve two or three machines. That is the whole economic argument: one arm, several spindles.

The gain is not faster cutting. Cycle time inside the cut is unchanged. The gain is spindle uptime, because the machine no longer waits for a person to walk over, and the operator moves up to setup, inspection, and deburring work that actually needs a brain.

• 1
  Arm does not cutIt only transfers the workpiece.
• 2
  One arm can serve several machinesRail or gantry travel decides how many.
• 3
  Uptime is the metricNot raw cycle time.

A composite robot CNC loading cell is four subsystems talking to each other: the arm, the gripper, the part presentation, and the machine interface. Weakness in any one of them shows up as a stopped spindle, not as a slow one.

The arm needs enough payload for the gripper plus the heaviest blank, with margin. A gripper that weighs 8 kg and lifts a 6 kg blank needs an arm rated well above 14 kg, because the rating is measured at a specific reach and drops as the arm extends. Reach matters more than payload on a rail-served cell.

The gripper is where most projects succeed or fail. Castings with draft angles, machined bores, and thin-walled parts each need a different holding principle. A two-finger parallel gripper on a rough casting will rock. A self-centering three-jaw style grip on a finished bore gives repeatable seating, but it needs a clean bore to grip.

Part presentation means the tray, magazine, or conveyor that holds the raw blanks and the finished parts. If the operator has to hand the blank to the arm one at a time, nothing has been automated. Trays with fixed pockets and a known datum are the usual answer.

The machine interface is the least visible and the most negotiated. Door open, chuck or vise unclamp, air blast, and cycle start are signals the cell controller has to read and write. Older machines may need hardware relays; newer controls expose them over Ethernet.

• 1
  Payload marginRate the arm at the actual reach you use.
• 2
  Grip principleRough stock and finished bores need different jaws.
• 3
  PresentationFixed pockets beat loose bins.

The math favors automation when the manual handling time is a large share of the total cycle. A part that machines for 6 minutes and takes 30 seconds to load is a poor candidate. A part that machines for 90 seconds and takes 40 seconds to load is a strong one.

Batch size sets the second condition. The cell needs to run unattended long enough to justify programming and fixturing. If a job is 20 pieces and then the fixture changes, the setup time eats the gain. Long runs, repeat orders, and families of similar parts are where this works.

Part geometry is the third gate. Round parts gripped on an outside diameter, flat plates with two parallel faces, and shafts held in a collet all present cleanly to a gripper. Thin-wall rings, parts with no parallel faces, and anything that must be loaded at an angle into a deep pocket create gripper problems that are hard to solve cheaply.

Material matters less than people expect. Aluminum, stainless, titanium, and engineering plastics all load the same way if the gripper is sized correctly. What changes is the clamping force you can apply without marking the surface, and that pushes you toward softer jaws or a larger contact area.

There is a practical ceiling. A cell serving three machines with 12 different part numbers in a week will spend more time on changeover than it saves. Fewer part numbers, longer runs, and stable fixturing is the shape of a cell that pays back.

• 1
  Handle time shareBelow about 15% of cycle, automation struggles to pay.
• 2
  Run lengthShort jobs lose to changeover.
• 3
  Grip surfacesParallel faces and round diameters load cleanest.

Load and unload automation is unforgiving about datum consistency. If the blank arrives with a 1 mm casting flash on the face that seats against the stop, the arm will place it crooked every time. Manual operators compensate without thinking about it. A robot does not.

That is why the blank preparation step deserves attention before the cell is specified. Trimming gates, removing flash, and holding a tolerance on the raw stock face can be the difference between a cell that runs unattended and one that stops every twenty parts.

The finished part side has the same issue in reverse. If the arm grips a finished surface to pull the part out, it may mark it. Planning a grip feature into the part, a small boss or an unmachined pad, costs nothing at the design stage and saves a handling problem later.

For parts we machine at GreatLight, this is a normal conversation. With 16 simultaneous 5-axis machining centers, 16 mill-turn centers, and a Ø400 mm rotary table on the floor, we already hold ±0.005 mm on production work, and 100% inspection before shipment. A loading cell has to meet the same bar, not a lower one.

• 1
  Trim the blankFlash and gate marks break repeatable seating.
• 2
  Plan a grip featureAn unmachined pad costs nothing at design time.
• 3
  Keep datums honestThe robot repeats what you give it.

The mechanical build is usually the quick part. The control handshake takes longer. A cell controller needs to know when the machine is ready for a part, and it needs to tell the machine that a part is clamped and safe to cut. Both directions need a failure mode that stops the cycle instead of crashing it.

Safety is not optional and it is not cheap. A robot arm moving a 6 kg blank at speed needs a guarded zone, and the guard has to be interlocked with the machine door and the arm controller. Light curtains and area scanners are common. The cost sits in the fencing and the interlock logic, not in the arm.

Tool life monitoring is the quiet requirement. If the cell runs unattended for six hours, a broken tap or a worn insert will produce a tray of scrap before anyone notices. In-process probing, spindle load monitoring, or a simple part counter with a periodic check limits the damage.

Spare gripper jaws and a documented recovery procedure belong in the scope. When a jaw wears, the cell drifts. Shops that plan for a jaw change at a fixed interval keep the cell running. Shops that wait for a bad part to appear lose a shift tracking down the cause.

None of this is exotic. It is the ordinary work of turning a machine tool into a process that runs without a person standing next to it.

• 1
  Two-way handshakeReady signal in, clamped signal out.
• 2
  Guard interlocksDoor, arm, and light curtain must agree.
• 3
  Tool monitoringUnattended hours multiply scrap from a broken tool.
