Internal Thread Grinder: The Mystery Behind Precision
Internal threads are cut where you cannot see. An internal thread grinder removes that uncertainty by grinding the flank from the solid with a formed wheel. This page explains the mechanism, the boundary conditions, and the checks an engineer should run before choosing the process.
What an internal thread grinder actually removes

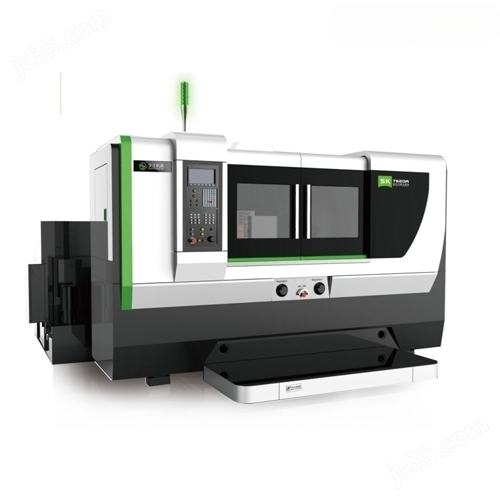

An internal thread grinder is a machine tool that forms a thread inside a bore by abrasive action rather than by a cutting edge. A narrow, profiled grinding wheel enters the bore on a spindle, tilts to match the helix angle, and traces the thread path while the workpiece rotates slowly. Material comes off as fine chips and dust, not as a curled chip. Because the wheel is a formed tool, the thread profile is transferred from the wheel dress to the part.
The geometry is the hard part. The wheel must clear the minor diameter on entry, then present enough arc of contact to grind the whole flank in one pass. That sets a practical limit on thread depth versus bore size. A shallow thread in a large bore is friendly. A deep thread in a small bore leaves almost no room for the spindle nose.
Rigidity decides the result more than spindle speed does. The wheel spindle overhangs into the bore, so its deflection shows up directly on the flank. A 0.01 mm deflection at the wheel tip becomes a flank error on the part. Grinding forces are small, but the lever arm is long.
Heat is the second constraint. Grinding energy concentrates in a thin surface layer, and an internal thread has nowhere to shed it. Coolant must reach the contact zone through the bore, often under high pressure. Without that, tempering and micro-cracking appear on the flank before the size drifts.
Where the process fits and where it does not
Grinding wins when the thread must hold lead accuracy over a long length. A ground thread on a ball screw or a lead screw keeps its pitch error low because the wheel path is generated by the machine axis, not by a tap that wears as it cuts. That is why precision motion components are ground, not tapped.
Hardened material is the other clear case. Above roughly 45 HRC, tapping and single-point threading become unreliable. A grinder does not care much about hardness as long as the abrasive is matched to the alloy. Tool steel at 58-62 HRC, Inconel, and 17-4PH in the aged condition are routine work for the process.
What the process does not do well is small threads in soft material at volume. A tapped M4 thread in 6061 aluminium costs a fraction of a ground one and holds class 6H without trouble. Grinding it adds cost and cycle time for no functional gain.
Blind holes are a boundary as well. The wheel needs run-out room at the bottom of the thread. A thread that runs to within a few tenths of a millimeter of the bottom face may be impossible to grind without a relief groove. Design the relief in early, or accept a different threading method.
Wheel form, dressing, and the lead
The wheel profile is not a copy of the thread form. It is the thread form modified by the helix angle and the wheel diameter. As the wheel wears, the profile changes, so dressing is a recurring operation rather than a one-time setup. On a CNC grinder, the dress cycle is programmed and repeats at fixed intervals.
Dressing frequency is a trade-off. Dress too rarely and the flank loses form before the batch is done. Dress too often and wheel consumption drives cost. On a typical steel thread, a dress every 15 to 30 parts is a reasonable starting point, then tune it against the measured flank.
Lead accuracy comes from the machine, not the wheel. The workpiece spindle and the wheel carriage must stay synchronized through the full thread length. Any backlash in that loop shows up as pitch variation. This is why thread grinders are built around a stiff, closed kinematic chain rather than around a large work envelope.
On a multi-axis machine, the same motion can be programmed from the CAD model. Our 5-axis centers can interpolate a thread path, but a dedicated grinding spindle is what makes the abrasive cut. The machine provides the lead. The wheel provides the form.
How to verify a ground internal thread
A ground thread cannot be checked with a plug gauge alone. A go/no-go gauge tells you the thread fits, but not whether the flank angle, the pitch diameter, or the lead is inside tolerance. For a functional thread that is often enough. For a motion thread, it is not.
Pitch diameter is measured with thread wires or a thread-measuring machine. On an internal thread, that means either a comparator with a cast or a scanning probe. The measurement is slower than a gauge check, so it is usually applied to the first part and then at intervals.
Lead and flank angle need a dedicated instrument. A thread analyzer with a stylus traces the helix and reports pitch error along the length. On a lead screw, pitch error over 300 mm is the number that matters, not the error at a single point.
Surface finish on the flank sits in the Ra 0.2-0.8 μm range for a ground thread, which is one reason ground threads run cooler and last longer in reciprocating motion. Rougher flanks hold lubricant but wear faster. The choice depends on whether the thread carries load or just locates a fastener.
At GreatLight, 100% inspection before shipment includes raw material check, in-process monitoring, and final inspection, with reports available on request. For thread work we measure the first article, then monitor the dress cycle against the recorded flank data.
Internal thread grinder versus other threading methods
Use this table to pick the process before you fix the drawing.
| Method | Typical accuracy | Best material | When to choose it |
|---|---|---|---|
| Internal thread grinder | Lead error low over long length | Hardened steel, Inconel, titanium | Motion threads, hardened parts, tight lead |
| Tapping | Class 6H, limited by tap wear | Aluminium, mild steel, brass | Small threads, soft material, high volume |
| Single-point threading | Good pitch diameter control | Most metals | Large bores, one-off parts, no formed tool |
| Thread milling | Good form, weaker lead over long length | Aluminium, steel, plastics | Large threads, thin walls, interrupted bores |
| Thread rolling (external only) | Strong grain flow, tight pitch | Ductile steel, stainless | External threads needing fatigue strength |
Pick the process before the tolerance
If the thread carries motion or the part is above 45 HRC, grind it and budget for a relief groove. If it only holds a fastener in soft material, tap it and spend the money on the bore instead.
Questions engineers ask about internal thread grinding
Can any internal thread be ground?
No. The wheel spindle needs clearance to enter the bore and to run out at the thread end. As a rule of thumb, the thread depth should not exceed about one third of the bore diameter, and there should be a relief groove or an open end at the bottom of the thread.
Threads below roughly M6 are usually not worth grinding. The wheel becomes too slender to hold form, and tapping or thread milling will hit the same tolerance at lower cost.
Does grinding remove the need for a pre-machined thread?
It depends on how much stock the wheel has to take. A ground thread is normally ground from a pre-turned or pre-drilled bore, not from solid, because removing a full thread depth with an abrasive wheel is slow and loads the wheel.
A common route is to rough the bore slightly under the minor diameter, then grind the thread in one or two passes. That keeps wheel wear predictable and the lead accurate.
What surface finish does a ground internal thread reach?
A ground flank typically lands in the Ra 0.2-0.8 μm range, which is smoother than a tapped or milled thread. The exact value depends on the abrasive grit, the dress condition, and the material.
Smoother is not always better. A very smooth flank can starve the contact zone of lubricant in slow reciprocating motion. For fasteners, the usual target is Ra 0.8-1.6 μm.
How do you hold lead accuracy over a long internal thread?
Lead comes from the machine's synchronized spindle and carriage, so the machine's kinematic chain and thermal stability set the limit. Long threads also need the workpiece supported so it does not sag or deflect under grinding force.
For critical threads, we measure pitch error along the length rather than at one point. A thread that is correct at the start and drifts at the end will still pass a plug gauge.
Which materials are practical to grind?
Hardened tool steel, stainless such as 17-4PH and 440C, titanium TC4, and nickel alloys like Inconel are all routine. Aluminium and brass can be ground but rarely need it.
Abrasive choice matters more than the base alloy. A wheel that glazes on stainless will burn the flank on the next part. We match the wheel specification to the material before the first cut.
What does the thread grinder need from the drawing?
Send the thread callout, the tolerance class, the material and hardness, the thread depth, and whether the thread is through or blind. A relief groove dimension helps more than a note saying grind to suit.
If the thread is functional rather than just a fastener, say so. That changes the inspection plan and the surface finish target.
