Using CNC to Treat Guilloche: Mechanics, Limits, and When It Wins

• 1
  Key takeaways
• 2
  What guilloche actually is, mechanically
• 3
  How the cut is made on a machining center
• 4
  Which patterns CNC handles well, and which it does not
• 5
  Material choice changes the cut more than the machine does
• 6
  Advantages and disadvantages of using CNC to treat guilloche
• 7
  CNC versus rose engine versus stamping

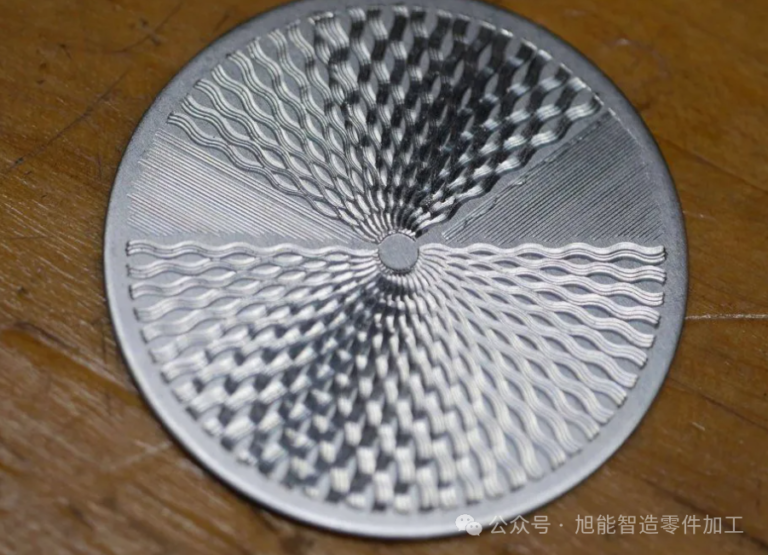

Guilloche is a set of shallow, evenly spaced grooves cut into a metal face. The pattern comes from two motions working together: the part rotates and the cutting tool tracks a controlled path across the surface. On a traditional rose engine those motions come from cams and a rocking headstock. On a machining center they come from a rotary axis and a programmed toolpath.

The visual effect depends on how light hits the groove walls. Each groove is a tiny cylindrical or V-shaped channel, usually 0.05–0.3 mm deep and 0.1–1.0 mm wide. When adjacent grooves overlap at a fixed pitch, the crests between them form the bright lines you see on a watch dial.

The geometry is not decorative in a loose sense. Pitch, depth, wall angle, and tool nose radius all interact. Change one and the pattern reads differently under a loupe. That is why using CNC to treat guilloche is mostly a question of controlling four numbers, not of picking a pretty vector file.

Historically the craft sat with one or two specialists per workshop. A single dial could take days of setup. CNC replaces that setup with a CAM file, which is the core of both the advantage and the limitation.

• 1
  PitchCenter-to-center distance between grooves, typically 0.15–1.2 mm.
• 2
  DepthHow far the tool sinks, usually 0.05–0.3 mm for dial work.
• 3
  Nose radiusSets the narrowest clean groove and the highlight width.
• 4
  Wall angleControls how sharply the crest catches light.

There are three practical routes on a CNC machine. The first is single-point fly cutting on a rotary table. The part indexes to an angle, the spindle plunges a form tool or a sharp engraver, and the table rotates while the tool follows a helical or radial path. This gives the cleanest wall finish and is the closest to a rose engine in spirit.

The second is rotary engraving with a small ball or conical cutter driven along a 2D path. It suits flatter panels and lets you cut patterns that do not radiate from a center. Depth control is less forgiving because the tool follows the surface rather than plunging on an axis.

The third is five-axis simultaneous motion, where the tool tilts as it travels. This is how you cut guilloche on a domed or curved surface without the effective depth drifting at the edges. Our shop runs 16 simultaneous five-axis centers for exactly this kind of work.

In all three routes the finishing pass is what matters. A roughing pass at 0.02–0.05 mm stock removal followed by a light finish pass at 0.005–0.01 mm gives a much cleaner crest than a single heavy cut.

• 1
  Fly cuttingBest wall finish, needs a rotary axis and a sharp form tool.
• 2
  Rotary engravingFlexible paths, better for flat panels and non-radial patterns.
• 3
  Five-axisRequired for domed, conical, or curved dial surfaces.

CNC is strong on patterns that repeat mathematically. Sunburst, barleycorn, basket weave, clous de Paris, and concentric rings all reduce to a pitch value and a depth value. Once the first groove is right, the rest follow. We hold ±0.005 mm on the groove spacing, which is tighter than most hand setups can repeat across a full dial.

CNC is weaker on patterns that depend on deliberate irregularity. A hand-cut wave that varies its amplitude across the dial carries small human decisions. If you program that variation, it becomes a formula, and it reads as a formula. Buyers who care about that difference usually know it before they send the file.

There is a middle ground. You can cut the base pattern on CNC and leave one or two zones for hand finishing. That is common on limited runs where the cost of full hand work is hard to justify but the client wants a visible break in the regularity.

Very fine patterns are a hard limit. Below about 0.3 mm pitch, the tool nose radius starts to dominate and the crest between grooves rounds off. You lose the bright line and the pattern goes soft.

• 1
  Good fitSunburst, barleycorn, basket weave, clous de Paris, concentric rings.
• 2
  Poor fitFreehand wave patterns where variation is the point.
• 3
  Hard limitPitch below roughly 0.3 mm loses crest definition.

Brass and copper alloys cut guilloche beautifully. C36000 and C28000 give a clean crest with minimal burr, and the groove walls polish well. This is why most traditional dials are brass with a plated finish over the pattern.

Aluminium is the next easiest. 6061 and 2024 both cut cleanly, though 6061 tends to build a small burr on the crest that needs a light brush or tumble. Anodizing after cutting will not hide a bad crest, so the cut has to be right first.

Stainless is harder on the tool. 304 and 316 work-harden at the cut, so light finish passes need sharp tooling and consistent feed. 17-4PH cuts well in the annealed state and holds a crisp edge, which makes it a good choice for instrument bezels that see wear.

Titanium and Inconel are possible but expensive. Tool wear climbs fast, and the small cutters used for fine grooves do not survive long. For a decorative dial, the cost rarely makes sense. For a functional grip pattern on a titanium housing, it can.

• 1
  EasiestBrass C36000, C28000, copper alloys.
• 2
  ModerateAluminium 6061, 2024; stainless 17-4PH.
• 3
  Difficult304, 316, titanium TC4, Inconel.

The main advantage is repeatability. Once the program is proven, part 500 has the same groove depth as part 1. That matters for a production run of instrument panels where every unit has to match. A hand setup drifts over a long day, and the drift shows when parts sit side by side.

The second advantage is geometry freedom. A rose engine is limited by its cam set. CNC can cut a pattern that changes pitch mid-radius, blends two motifs, or follows a non-circular outline. Designers use this for bezels and functional grip zones that a traditional machine cannot reach.

The third advantage is cost at volume. Setup is front-loaded into CAM and a test cut. After that, cycle time is predictable and the per-part cost falls. For a run above a few dozen pieces, CNC is usually the cheaper route.

The disadvantage is the loss of hand character. Every groove is exactly where the program says. Some buyers see that as precision. Others see it as flat. The second disadvantage is tool cost on hard materials, where a 0.2 mm cutter may only survive a few dials.

• 1
  AdvantageRepeatable depth and pitch across a full production run.
• 2
  AdvantagePatterns a cam-driven machine cannot cut.
• 3
  DisadvantageRegularity can read as mechanical rather than hand-made.
• 4
  DisadvantageSmall cutters wear fast in stainless and titanium.
