Every machined feature is located relative to something. That something is the datum, and the fixture is how the machine finds it. Positioning clamping and machining cannot be treated as three separate jobs on a process sheet, because the clamp force you choose changes where the part sits, and the cutting load you plan changes how much clamp force you need.

A 6-degree-of-freedom analysis makes this concrete. The part needs three contact points on a primary plane, two on a secondary plane and one on a tertiary plane before it is fully constrained. Skip a point and the part rotates. Add a fourth point on the primary plane and it rocks, because four points rarely sit in one plane on a rough casting or a saw-cut billet.

The practical result: the same part, on the same machine, at the same feed and speed, can hold ±0.005 mm or miss by 0.05 mm depending on which face you picked as the primary datum. Nothing about the spindle or the toolpath changed. The reference did.

That is why we ask for a datum callout before quoting anything with a tight tolerance. A drawing with ±0.005 mm on a feature and no datum reference is not a specification yet. It is a wish.

• 1
  Three planes, six points3-2-1 locates a prismatic part; add clamps only after contact is confirmed.
• 2
  Datum first, tolerance secondThe tolerance number is meaningless until you name the face it is measured from.
• 3
  Same setup, different resultA rough face as primary datum will move the part 0.02–0.1 mm between cycles.

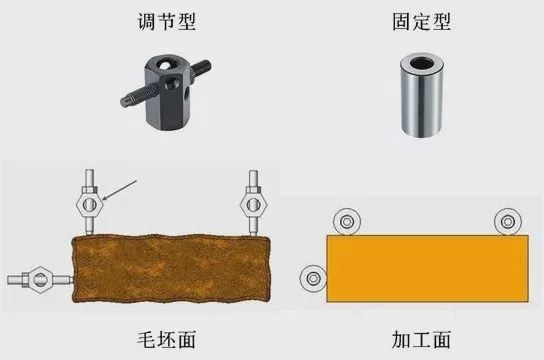

A datum is not the physical surface you touch. It is the theoretical plane or axis derived from that surface. When a drawing references datum A and the fixture clamps on a raw casting skin with 0.5 mm of draft and scale, the derived plane moves with the surface. The tolerance stack starts with that error.

For a part with a ±0.005 mm bore-to-bore dimension, we prefer a machined face as the primary datum. If the part arrives as a casting, the first operation cuts the datum face, and every later operation references it. This costs one extra setup but removes the largest error source in the stack.

Angular datums are harder. A part positioned on a 30° inclined face needs a matching angled stop, and a few arc-minutes of fixture error becomes a linear error at the far end of the part. On a 300 mm long part, a 0.05° tilt moves the end by roughly 0.26 mm.

For round parts, the datum is usually an axis. Chuck jaws locate on the outside diameter, but the outside diameter itself has roundness and taper. A three-jaw chuck on a turned blank can repeat to 0.02–0.05 mm. A collet or a precision bore fixture holds 0.005–0.01 mm. The part did not get better. The datum got cleaner.

• 1
  Machined face over raw surfaceCasting skin adds 0.1–0.5 mm of position variation between parts.
• 2
  Angled datums amplify error0.05° of fixture tilt becomes 0.26 mm over 300 mm.
• 3
  Collet over three-jaw chuckRepeatability improves from 0.02–0.05 mm to 0.005–0.01 mm.

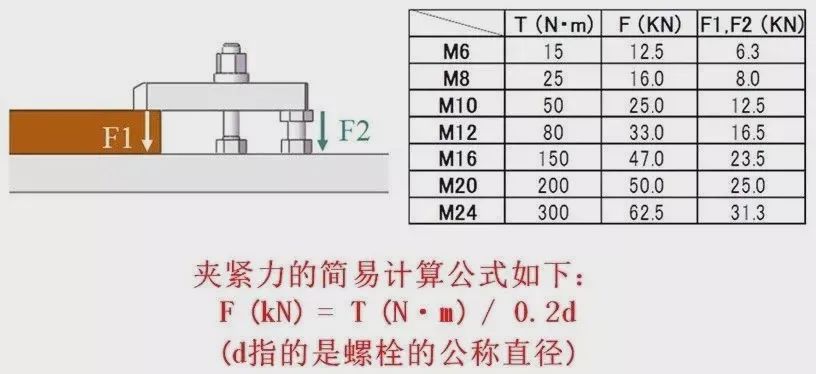

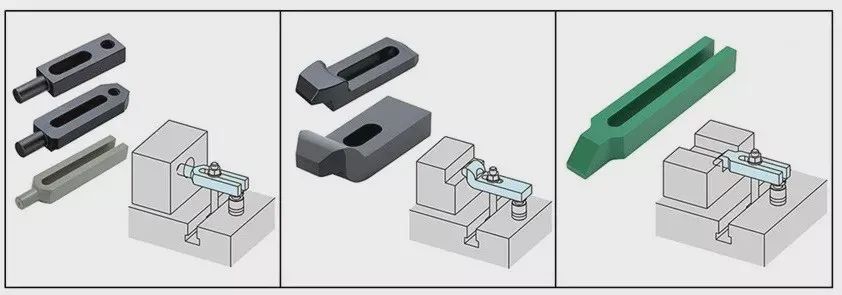

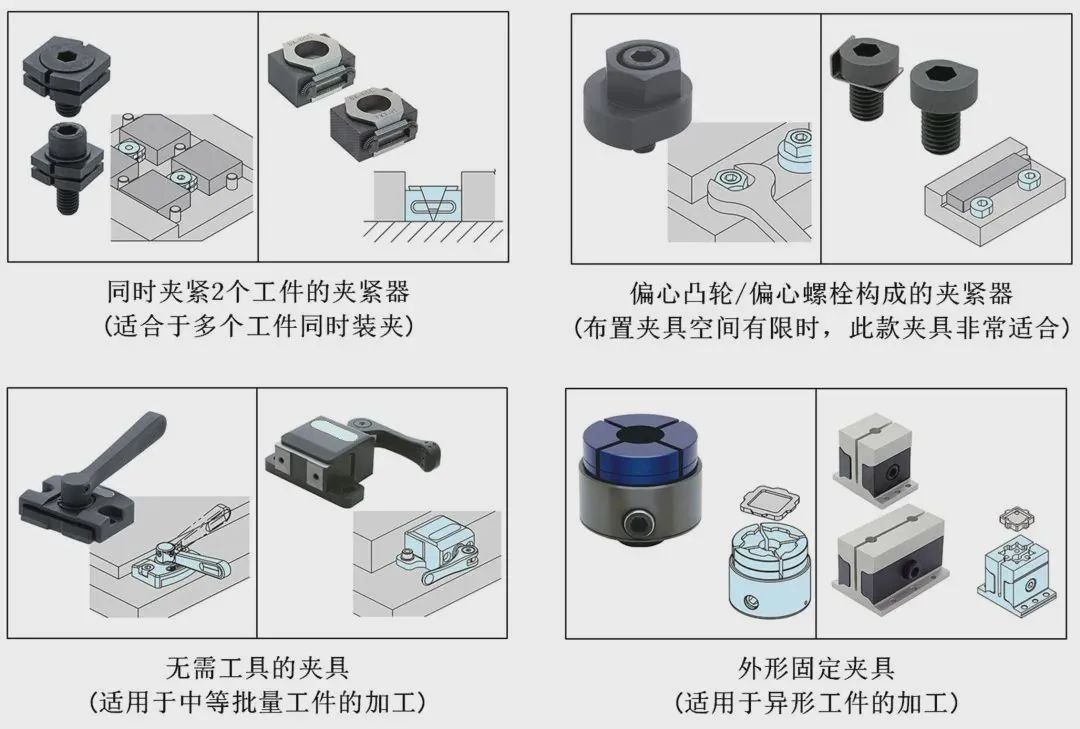

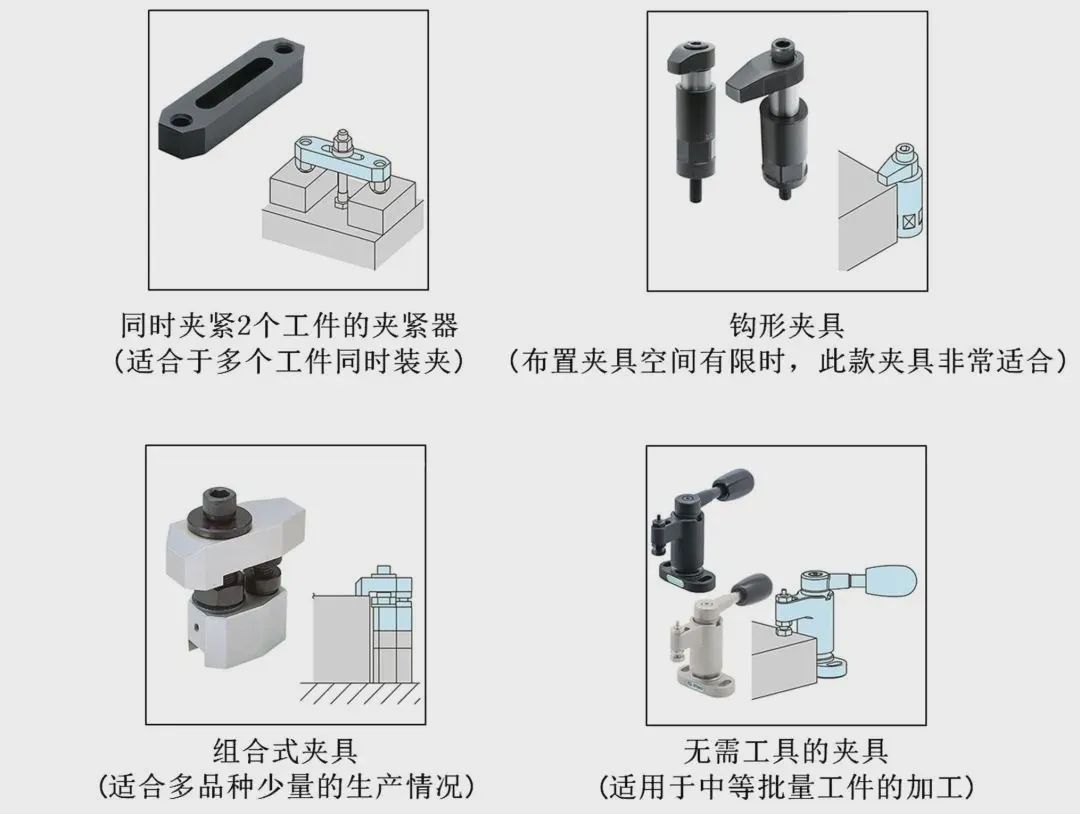

Clamping is where most hidden error enters a process. The clamp has one job: hold the part against the locators with enough force to resist cutting load, and no more. Extra force does not add stability. It adds deformation.

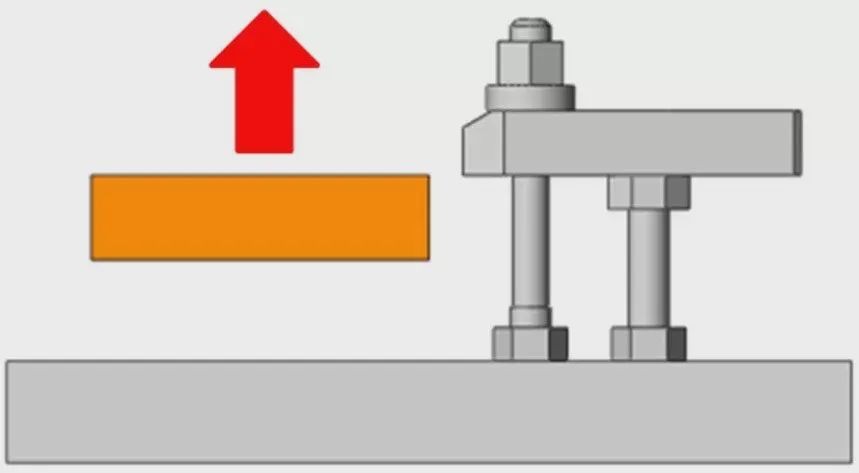

A thin-wall aluminum housing 2 mm thick will deflect visibly under a 500 N side clamp. The tool cuts the wall in its deflected position. When the clamp releases, the wall springs back and the feature is out of position. The operator sees a good part on the machine and a bad part on the inspection table.

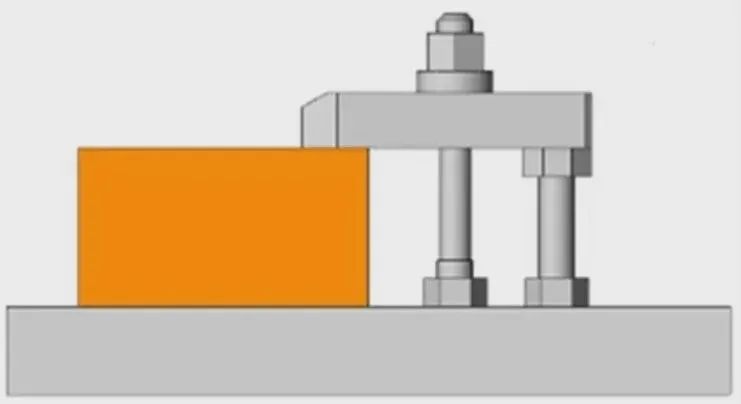

The fix is to clamp over a support, not over air. Put a jack or a support block under every clamp point, and the force path runs from clamp to support through the part with no bending. For thin walls, reduce clamp force and add supports closer together. Roughing passes can use higher force; finishing passes should use the minimum that keeps the part still.

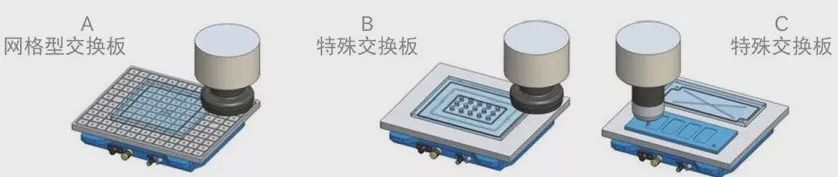

Vacuum fixtures solve the same problem differently. They spread a low pressure, around 0.6–0.8 bar of differential, over the whole face instead of concentrating force at a few points. For a 300 × 300 mm plate, that is several thousand newtons of holding force with almost no local deformation. The trade-off is that the part must have a flat face to seal against.

• 1
  Support under every clampA clamp over air bends the part instead of holding it.
• 2
  Minimum force for finishingRoughing can take 800–1,500 N; finishing often needs under 300 N.
• 3
  Vacuum for thin plates0.6–0.8 bar differential spreads load over the full face.

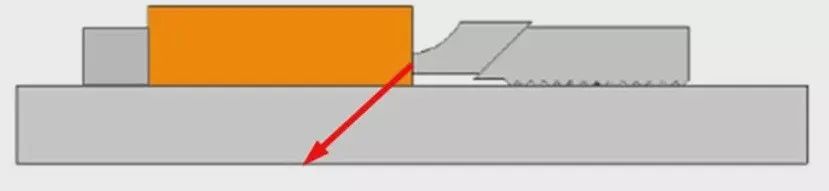

Cutting force is not constant. In a climb-milling pass with a 16 mm carbide end mill in 6061 aluminum, a 0.5 mm radial engagement at 3,000 rpm produces a few hundred newtons of tangential force, and that force reverses direction as each flute enters and exits. The fixture sees an oscillating load, not a steady push.

If the fixture is stiff, the part stays put and the oscillation shows up as tool wear and spindle load. If the fixture is soft, the part moves. The movement may be only 10–20 μm, but that is the same order as the tolerance on many parts.

Long tools make it worse. A tool with a 4:1 length-to-diameter ratio deflects under load. The deflection is not the fixture's fault, but it adds to the same error budget. For deep cavities, use the shortest tool that reaches, and take lighter axial passes.

Interrupted cuts, such as milling across a slot or a cast surface, produce impact loads several times the steady cutting force. Those impacts are what loosen a marginal clamp. If you hear the part tick during a cut, the clamp is not doing its job.

• 1
  Force reverses each flute pass
• 2
  10–20 μm of part movementEnough to consume a ±0.005 mm tolerance on its own.
• 3
  Keep tool L/D under 4:1Longer tools deflect and add to the error stack.

Positioning clamping and machining all change when the temperature changes. Aluminum expands about 23 μm per meter per °C. A 500 mm aluminum part that warms 5 °C above the inspection temperature grows roughly 58 μm. That is more than a ±0.005 mm tolerance on a long dimension.

The machine grows too. A spindle running at 12,000 rpm for an hour pushes heat into the headstock and the column. Without compensation, the tool tip can drift 20–40 μm along the Z axis over a long roughing cycle.

The usual controls are simple. Let the machine warm up before the first finishing cut, keep coolant flowing to stabilize the part, and measure parts at 20 °C when the drawing says so. For tight work, we rough in the morning, let the part cool, then finish in a separate operation.

On thin parts, heat and clamp force interact. A hot part is softer and deflects more under the same clamp. Cutting temperatures of 200–400 °C at the tool edge are normal, so the heat is always there. The question is whether it reaches the part or leaves with the chip.

• 1
  Aluminum grows 23 μm/m/°CA 5 °C rise on 500 mm adds about 58 μm.
• 2
  Spindle drift 20–40 μmOver a long roughing cycle without thermal compensation.
• 3
  Measure at 20 °CIf the drawing does not say, ask before you measure.

Every new setup re-establishes the datum. Each re-clamp adds a position error that stacks with the last one. A part machined in four setups accumulates four position errors; the same part in two setups accumulates two.

This is the main argument for 5-axis machining on complex parts. A single 5-axis setup with a Ø400 mm rotary table can reach five faces without re-clamping, so the datum never changes. The position error between features comes from the machine's rotary accuracy, typically a few arc-seconds, instead of from a fixture. }}The trade-off is accessibility. A 5-axis setup needs clearance for the head and the tool at every angle. Deep pockets and long reaches still call for a second operation. The decision is not 5-axis versus fixtures. It is how many datums you want in the stack.

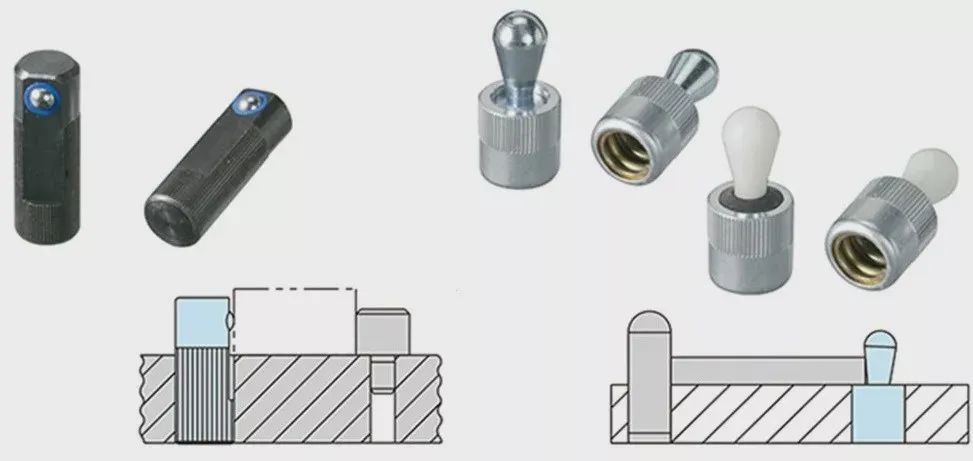

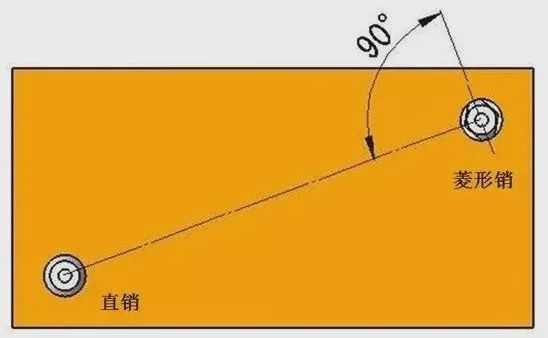

For parts that cannot avoid multiple setups, add a common reference feature. A pair of dowel holes or a machined pad used in every operation keeps the datums tied together. The position error between operations then comes from the fixture repeatability on that feature, usually 0.005–0.01 mm with a good pin fixture.

• 1
  Each setup adds errorFour setups means four position errors in the stack.
• 2
  5-axis cuts setup countOne Ø400 mm rotary table setup reaches five faces.
• 3
  Use a common reference featureDowel holes keep datums tied at 0.005–0.01 mm repeatability.
