Turbocar Plate Tenon Cutting in High Temperature Alloy
A tenon on a turbocharger backing plate holds the blade root, so the cut has to hold size while the material work-hardens. This page covers heat paths, tool wear, fixturing, and the point where milling stops making sense.

In this article
- 1
- 2
- 3
- 4
- 5
- 6
Why turbocar plate tenon cutting behaves unlike steel

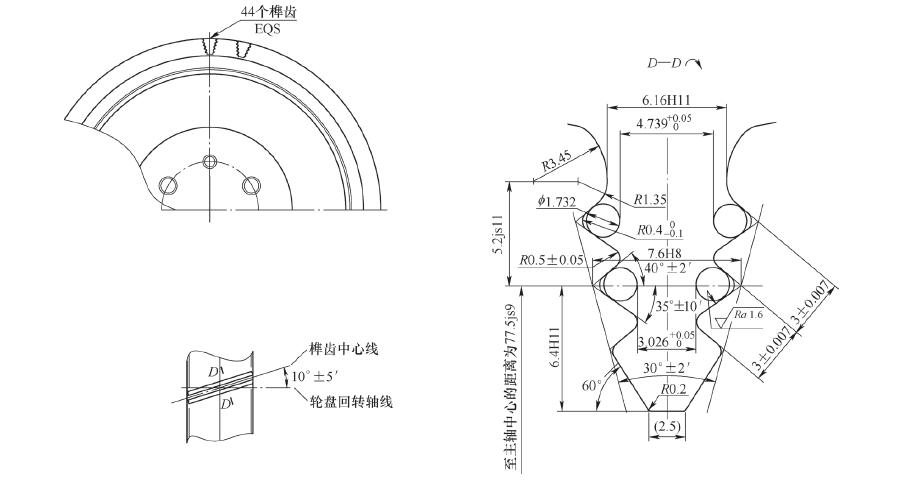

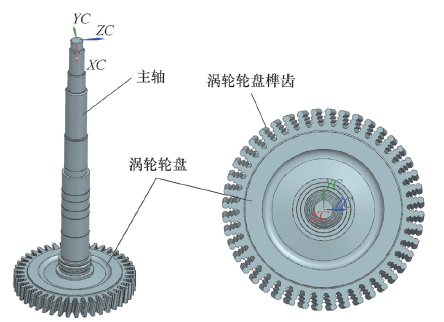

A turbocar plate tenon is a short, often T-shaped or dovetail tab that locates the blade root or nozzle ring on a turbocharger backing plate. It looks like a simple slot-and-tab cut. The trouble starts with the alloy. Inconel 718, Ti-6Al-4V, and similar grades keep their strength at 600–700 °C, which is exactly why they are used. That same property is what makes the cutting edge fail.
Three things drive the process. Heat stays in the cut instead of leaving with the chip, because these alloys conduct heat poorly. The surface work-hardens when the tool rubs rather than shears. And the tenon root usually sits close to a thin plate wall, so clamping force has nowhere to go.
Cutting speed is the first variable most shops get wrong. Running Inconel at the same surface speed as 4140 burns the insert in minutes. The window is narrow: fast enough to shear, slow enough to keep the edge below its softening point.
That narrow window is the whole story of this page. Everything below, tool geometry, coolant, fixturing, inspection, follows from it.
Heat, work hardening, and chip formation in the tenon slot
Roughly 70–80% of the heat generated in cutting these alloys goes into the tool and the workpiece, not the chip. In 1045 steel the ratio is closer to the reverse. So the edge sees a thermal load that no coating fully absorbs, and the part sees a temperature rise that can move dimensions after the cut.
Work hardening adds a second layer of trouble. A dull edge presses instead of cuts, the subsurface layer hardens from around 250 HV to 400 HV or more, and the next pass has to cut hardened material. Each additional pass gets harder. The fix is to stay in the cut: constant feed, no dwell, no spring passes at the same depth.
Chip formation is where you can read the process. A good Inconel chip is short, curled, and silver to light straw. A blue or purple chip means the edge is running hot. A fine powder means the tool is rubbing. Both are signals to change feed or speed before the tenon root tears.
Heat also travels into the fixture. On a thin backing plate, a warm clamp can relax by 0.02–0.05 mm between roughing and finishing, which is enough to lose the tenon position. Let the part cool before the finish pass, or finish in a single light cut.
Tool geometry and coating choices that survive the cut
Use a positive rake, sharp-edged carbide for finishing and a stronger edge for roughing. For Inconel, an AlTiN or AlCrN coating on a fine-grain carbide works well. For titanium, an uncoated or thin PVD grade usually beats a thick coating, because titanium reacts with many coating elements at temperature.
Tool diameter drives chatter. A tenon slot 6 mm wide is best cut with a 5 mm end mill, not a 6 mm one. Leaving 0.5 mm of radial clearance lets the tool clear chips and reduces the contact arc. A 6 mm tool in a 6 mm slot rubs both walls at once, and that is where most broken tools come from.
Enter the cut with a helical ramp at 2–4° rather than straight plunging. Plunge cutting puts full axial load on the center of the tool, where the cutting speed is near zero. A ramp spreads the load and keeps a real cutting speed at the edge.
Keep tool overhang short. A tenon cut on a 4,000 mm plate with a long reach tool will chatter even at conservative feeds. The 4,000 × 400 × 150 mm travel machines handle the long plate, but the tool still has to be short and stiff at the cut.
Coolant delivery and the parameters that hold size
Through-spindle high-pressure coolant at 70–100 bar is the single largest improvement for deep tenon slots. It breaks the chip and drives heat out of the cut zone. Flood coolant at 20 bar reaches the surface but not the bottom of a 4× diameter slot.
If high-pressure coolant is not available, use air blast plus a minimum quantity of lubricant and accept a slower feed. On titanium this is often better than flood, because flood can cause thermal shock cracking at the tool edge when the cut is interrupted.
Parameter starting points for a 5 mm carbide end mill in Inconel 718: 40–55 m/min surface speed, 0.03–0.06 mm per tooth feed, 0.5–1.0 mm axial depth, 0.3–0.5 mm radial width. For Ti-6Al-4V: 55–75 m/min, 0.04–0.08 mm per tooth, 0.5–1.5 mm axial. These are starting points, not settings to copy blind.
Watch spindle load instead of trusting the numbers alone. On a 16-taper or HSK holder, load should stay steady. A climbing load curve means the edge is dulling or the chip is packing. Stop and check before the tenon root work-hardens.
Holding a thin plate without losing the tenon position

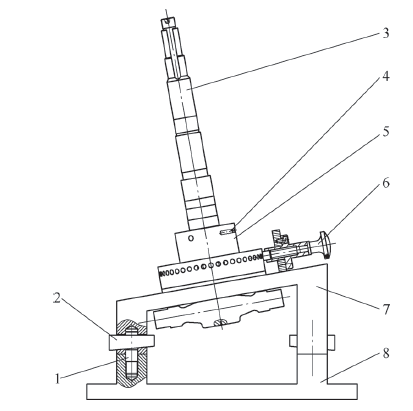

The tenon is a locating feature, so its position matters more than its surface finish. Plate parts tend to bow when clamped from the top. The practical answer is a dedicated soft jaw or a vacuum plate with side stops, so clamping force acts in the plane of the plate, not across it.
For thin plates under 6 mm, support the underside directly under the tenon. Any unsupported span will deflect under cutting force and the tenon will come out tapered. A simple support block with a lapped face is often enough.
Do not re-clamp between roughing and finishing if you can avoid it. Every re-clamp is a new setup error. If the part has to move to a second operation, indicate the tenon datum, not the plate edge, before cutting.
For batch work, a fixture plate with hardened bushings keeps tenon position repeatable across the run. On a 10,000+ part run this matters more than any single cutting improvement.
Which process fits the tenon geometry
Pick the row that matches your tenon and plate, then read across.
| Tenon feature | Recommended process | Why | Watch out for |
|---|---|---|---|
| Slot wider than 6 mm, open side | 3-axis milling with 5 mm tool | Simple access, good chip clearing | Chatter on thin plate walls |
| Dovetail or T-root profile | 5-axis or form tool | Follows the angle in one setup | Form tool cost at low volume |
| Tenon on a turned hub, Ø400 mm | Mill-turn center | One setup for bore and tenon | Tool reach limits at the root |
| Hardened Inconel, root radius under 0.8 mm | EDM or grinding after mill | Carbide cannot hold the radius | Extra setup and lead time |
| Thin plate under 6 mm, tight position | Vacuum plate plus light finish pass | Even clamping, no bowing | Slow cycle, needs support block |
| Long plate to 4,000 mm | Large-travel 5-axis | Covers the whole plate in one setup | Tool overhang at the far end |
Where to draw the line

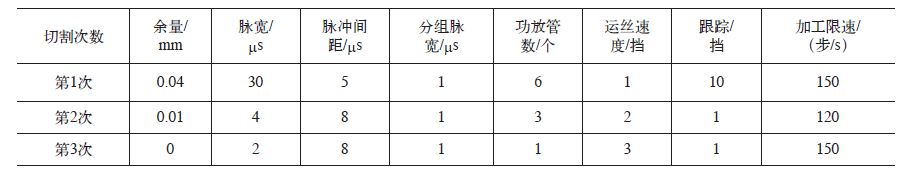

If the tenon is open, wider than 6 mm, and the plate is 6 mm or thicker, mill it on a 5-axis with high-pressure coolant and stop there. If the root radius is under 0.8 mm or the alloy is already hardened, plan for grinding or EDM after milling; no carbide strategy will hold that radius in production.
Common questions
Can the tenon be cut in the same setup as the plate faces?
Usually yes, and it is worth doing. A single setup removes the stack-up between the plate datum and the tenon datum. On a 5-axis machine the tenon becomes one more operation in the same program.
The limit is tool reach. If the tenon sits deep between two walls, a short tool cannot reach it without the holder touching the wall. In that case move the tenon to a second operation and indicate from the tenon datum, not the plate edge.
Why does the tenon root crack after machining?

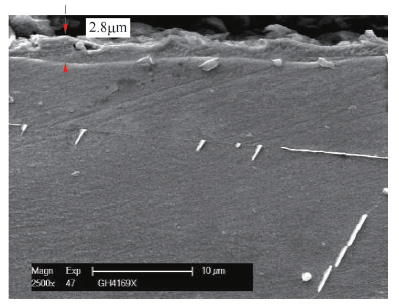

Most cracks start as a machining defect, not a service failure. A dull edge or a dwell at the root leaves a hardened, tensile-stressed surface layer, and the first thermal cycle opens it.

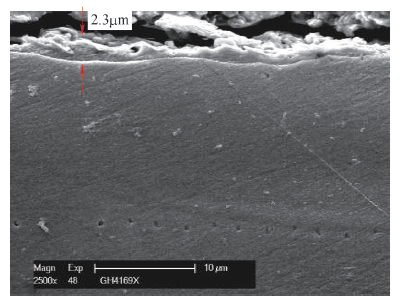

Look at the root under magnification. If you see a smeared or torn surface, the tool was rubbing. Change the tool earlier, add high-pressure coolant, and keep the finish pass light and continuous.
Is climb milling always better here?
For finishing, yes in nearly every case. Climb milling puts the chip behind the tooth and reduces the rubbing that causes work hardening.
For roughing in a deep slot, conventional milling can help chip evacuation on some setups. Test both on the first part and check spindle load and chip color before committing the run.
What tolerance can be held on the tenon?
On a rigid setup with a short tool, ±0.005 mm is achievable on the tenon width and position, with surface finish down to Ra 0.2–0.8 μm.
That assumes the plate is supported under the tenon and the part is cool at the finish pass. Add a warm clamp or an unsupported span and the same machine will drift to ±0.02 mm or worse.
How many parts before changing the tool?
There is no universal number. In Inconel 718 with a 5 mm carbide tool, count the parts and inspect the edge at intervals; the wear land tells you when to change.
Use spindle load and chip color as the live signal. When load climbs by 15–20% at the same parameters, the edge is done. Changing on that signal costs less than one scrapped tenon.
Do you need a special fixture for one prototype?
No. For a single part, soft jaws machined to the plate outline plus a support block under the tenon are enough.
Production tooling only pays off when the run is long enough to amortize it. We quote both and let the volume decide.
