High temperature forging sits at the top of the hot working range. Carbon and alloy steel billets enter the die between roughly 1,050 °C and 1,250 °C, depending on grade and carbon content. At that temperature the flow stress drops to a fraction of its room-temperature value, so the metal fills thin ribs and tight corners that cold forming cannot reach.

Two things change at the same time. The workpiece is soft, and everything near it is not. Scale forms on the surface within seconds of leaving the furnace, and that oxide layer is abrasive against the die. The die itself is usually preheated to 150–300 °C to reduce thermal shock, but the surface still sees a steep gradient on every stroke.

For the engineer, the practical consequence is a short window. A billet that sits too long loses heat, the last corner does not fill, and the part is scrapped. Manual transfer depends on how fast a person can move, and that varies shift to shift. Automation exists mainly to make that window repeatable.

One more effect matters for later machining. Hot forged parts carry a scale layer and a decarburized skin, so the first cut has to get under it. If a shop skips that step, the cutter hits hard oxide and tool life drops fast.

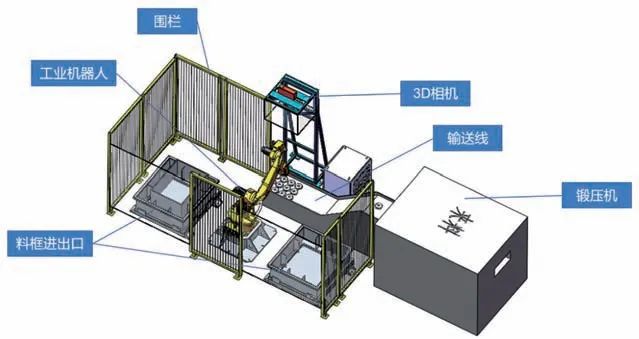

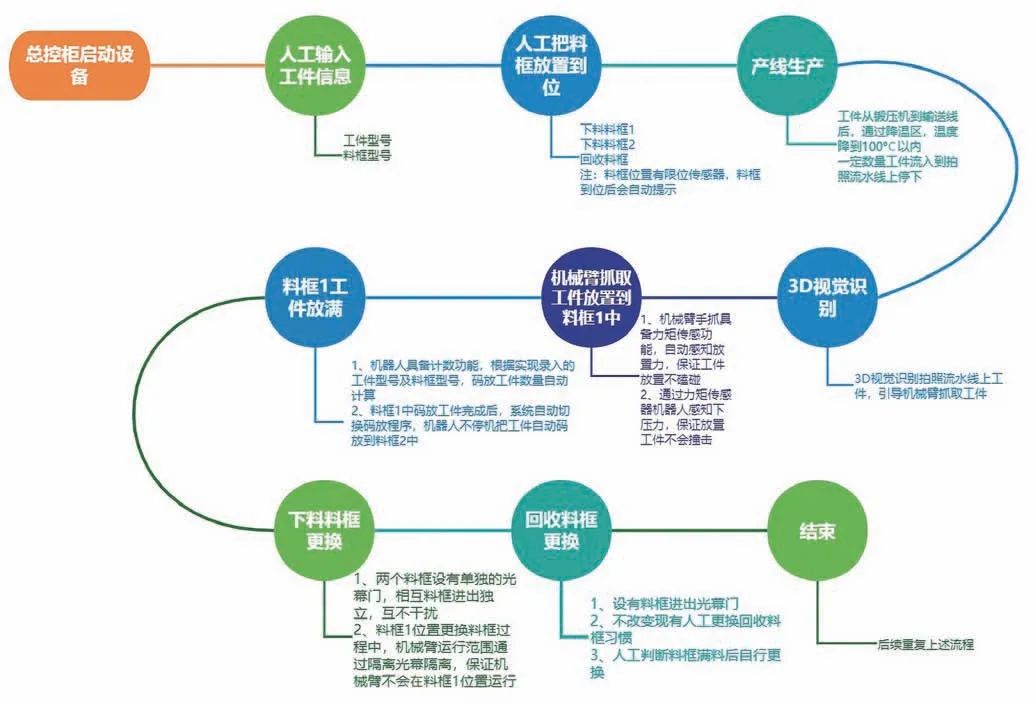

A forging cell is not one machine. It is a chain: furnace, extractor, transfer device, press, die lubrication, and unload conveyor. The automation layer links them so that a billet leaves the furnace at a set temperature and arrives in the die within a fixed number of seconds. Typical transfer times run 3–8 s for a medium press.

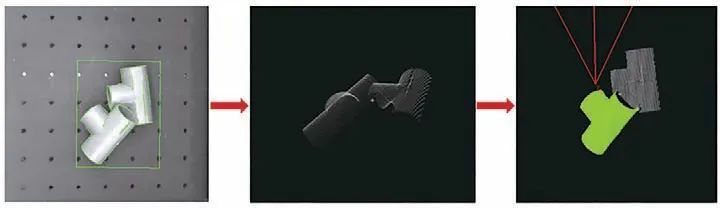

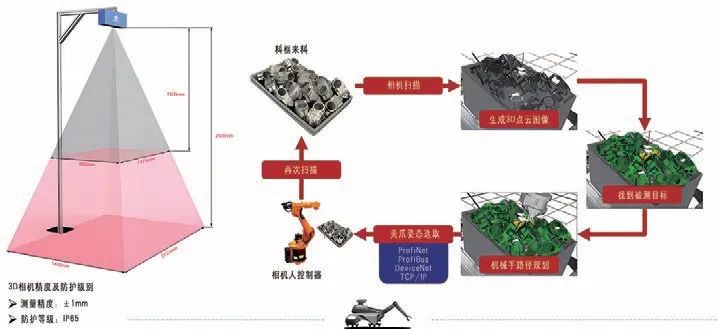

The transfer device is usually a servo gantry or a robot with a heat-rated end effector. Servo gantries win on speed and positional repeatability because the path is fixed. Robots win on flexibility, because the same arm can load the press, move the part to a trim station, and place it on a cooling conveyor.

Timing is the hard part. The furnace discharge, the press stroke, and the lubrication spray all have to be interlocked. If lubrication happens while the transfer arm is in the die space, the arm takes the spray and the die gets uneven coverage. Most cells sequence these three actions with a hard interlock, not with a soft schedule.

Temperature feedback closes the loop. An optical pyrometer at the furnace exit rejects billets outside the window before they reach the die. This single check removes a large share of scrap that manual lines absorb quietly.

A gripper that touches a 1,150 °C billet will not survive if it is built like a standard pneumatic jaw. End effectors for hot transfer use ceramic or refractory-metal contact pads, water-cooled bodies, and short contact times. The design rule is simple: minimize the area in contact and the seconds in contact.

Heat shielding protects the arm and the sensors, not just the operator. Radiant load falls with distance, so a shield placed 300 mm from the die face works far better than one wrapped directly on the arm. Forced air keeps the shield at a workable temperature and blows scale away from the tooling.

Die cooling and lubrication are usually the same station. A water-based graphite or synthetic lubricant drops die surface temperature and releases the part. Spray duration of 1–3 s per cycle is common. Too little and the die heat-checks early; too much and the die face cools unevenly, which distorts the next part.

Billet heating itself can be induction or gas. Induction heats faster and holds a tighter temperature band, which suits automation. Gas furnaces cost less to run at high volume but deliver a wider spread, so the rejection pyrometer has to work harder.

Automation pays when the part runs often enough that the setup is amortized. A family of similar forgings that shares one gripper and one die set is the best case. If every job needs a new end effector and a new transfer program, the engineering hours eat the labor savings.

It also pays when the manual job is genuinely hard to staff. Forging cells are hot, loud, and repetitive. Recruiting and retaining operators for that work is a real cost, and it shows up as turnover rather than as a line item on the quote.

It does not pay when the parts are large and low volume. A 200 kg forging on a 4,000 mm press needs a transfer device sized for that mass, and the cycle count is too low to recover it. Manual handling with a manipulator is often the better answer there.

It also does not pay when the process is still being developed. Freeze the die design and the temperature window first. Automating a process that is still changing means rebuilding the cell every time the die changes.

The first thing to fail is usually the end effector, not the robot. Contact pads wear, cooling lines clog, and gripper repeatability drifts. Check pad thickness and gripper closed position on a fixed interval rather than waiting for a dropped billet.

The second is the die. Thermal fatigue shows up as fine cracks on the die face, and those cracks print onto the forging. Tracking strokes per die against the crack pattern lets you pull the die before scrap appears. That tracking is one of the clearer benefits of an automated cell, because the stroke counter is already there.

The third is the pyrometer. Scale dust, oil mist, and drift all shift the reading. A misreading pyrometer either rejects good billets or passes cold ones. Clean the lens on schedule and verify against a reference at a known temperature.

Controls faults are the least glamorous and the most disruptive. A single prox switch on the transfer arm can stop the cell. Keep spare sensors on site and document the interlock sequence so a technician can trace it without the original integrator.
