Before CNC, an inlay was a fitting job, not a machining job. The artisan started with a line drawing transferred onto the base material: wood, brass, steel, or bone. The transfer was done with carbon paper, a pricked pattern, or a scribe. The outline had to be accurate because every later step followed it. On a 200 mm panel, a 0.3 mm error in the layout showed up as a visible gap at one corner of the inlay.

The recess was cut undersize on purpose. A chisel, gouge, or graver removed the bulk, then files and scrapers opened the pocket to the line. The inlay piece was shaped separately and offered up to the pocket again and again. Each test fit removed a little more material. This trial-and-error loop was slow, but it let the artisan compensate for grain direction, hardness changes, and the natural variation in hand-cut edges.

Depth control came from the tool and the eye. A carver set a shallow first pass, often 0.5 to 1.0 mm, and worked down in steps. Going too deep in one cut split the grain or tore the edge of the pocket. On metal work, the same logic applied with a graver: light passes, then a final scrape to seat the inlay flush.

This is why how inlays prior to CNC machines were made is best understood as a sequence of fits. There was no single setup that produced the finished pocket. The pocket and the inlay were matched to each other by hand, part by part.

A template was a pre-cut outline in wood, brass, or steel. The artisan clamped it to the base and followed its edge with a chisel, a knife, or a bearing-guided cutter in a router. The template did not cut the pocket. It constrained where the cut could go, which is what made two parts match.

Jigs did the same job for position and depth. A jig for a decorative metal inlay might hold a plate under a drill press so a series of holes landed on a fixed pitch. A carving jig could limit how deep a gouge could sink. Once the jig was set, the operator's skill mattered less and the setup mattered more.

Templates wore. A wooden template lost its edge after a few dozen parts, and the inlay outline drifted with it. Shops that ran long batches moved to brass or steel templates, which held their edge but cost more to make. The trade-off was the same one we still see today: setup cost against per-part cost.

For curved or irregular outlines, a template could not follow the shape in one pass. The artisan cut the outline in segments and blended the transitions by hand. That blending step is where most of the variation between two supposedly identical inlays came from.

On a flat pocket in soft wood, a good fitter could hold about ±0.1 mm on a 50 mm feature. On brass or steel, the same fitter might hold ±0.05 mm over a short distance, but the error grew with length. Over 300 mm, thermal movement and the straightness of the hand-cut edge pushed the practical limit to ±0.2 mm or worse.

Sharp internal corners were the hard part. A chisel leaves a radius equal to its edge, so a true square corner had to be undercut with a knife or a graver. Deep, narrow pockets were worse. A pocket 3 mm wide and 10 mm deep could be cut, but the walls often tapered because the tool had to reach in at an angle.

Repeating a complex pattern across many parts was the real limit. Ten identical inlays were possible with a good template. A hundred were possible with a steel template and a lot of fitting time. Beyond that, the labor cost per part stopped falling, and the variation between parts started to show in the assembled product.

Hand work also struggled with thin inlay material. A 0.5 mm veneer of shell or brass buckled easily during fitting. The artisan had to support it with a backing or bed it into a shallow recess with adhesive, which added steps and risk.

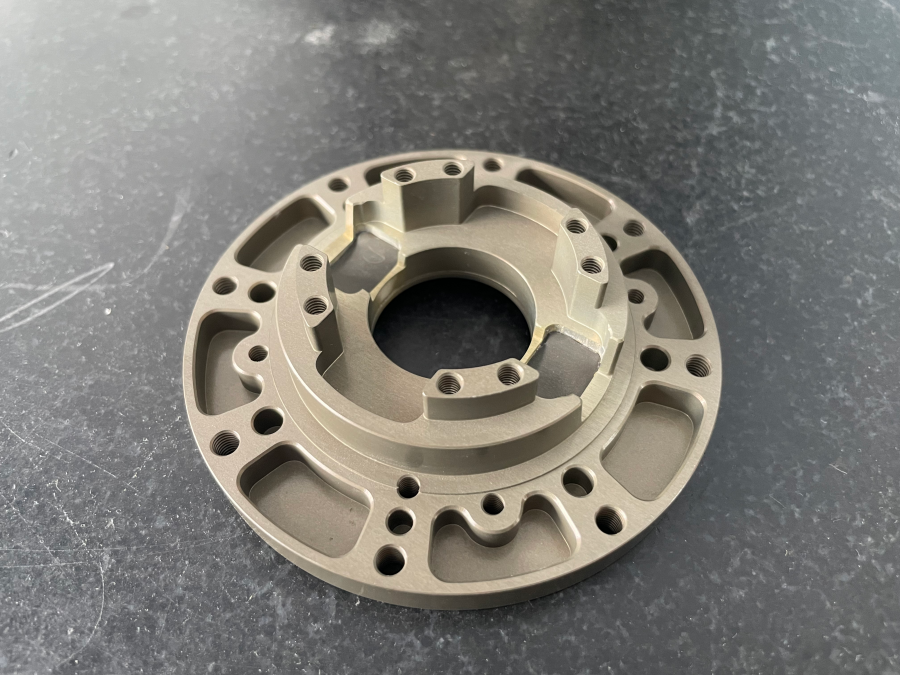

CNC replaces the trial-and-error fit with a toolpath. The pocket is cut to the drawing, and the inlay is cut to the same drawing, so the two match without hand fitting. On our 5-axis centers, we hold ±0.005 mm on inlay pockets and inlay pieces, and we can cut a sharp internal corner with a smaller tool or a corner-relief operation.

The setup cost moves to programming instead of template making. A one-off inlay with a complex outline is usually faster to program and cut than to hand-carve. A run of 10,000 identical inlays is straightforward once the first part is proven. This is the shift that made inlays common in production parts rather than only in custom work.

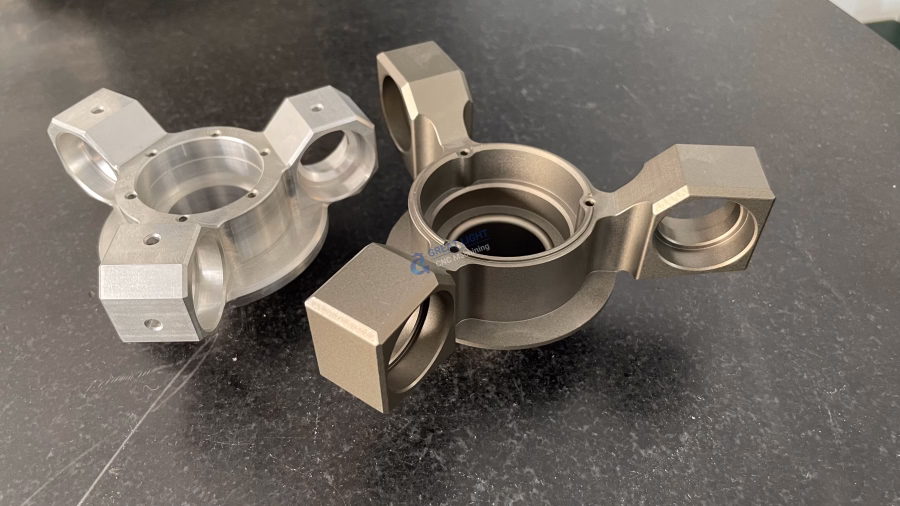

CNC also handles materials that hand tools struggle with: 17-4PH stainless, Ti-6Al-4V, and beryllium copper. These cut cleanly with the right feeds and speeds, and the inlay can be finished with bead blasting, anodizing, or laser marking if the drawing calls for it.

The hand methods did not disappear. For restoration work and for single decorative pieces, a carver still beats a machine on feel and on the ability to work around a flaw in the base material. But for anything with a tolerance and a repeat quantity, CNC is the practical route.
