Cycle-time guide for engineers

How Long Does CNC Machining Take?

Estimating machining time comes down to four numbers: setup, cutting, finishing, and queue. This guide walks through them in order so you can quote a realistic window before you send an RFQ. Written for design engineers and purchasing teams working on prototypes and small production runs.

Setup 0.5–4 hAluminum cuts 3–5× faster16 five-axis centers±0.005 mm tolerance

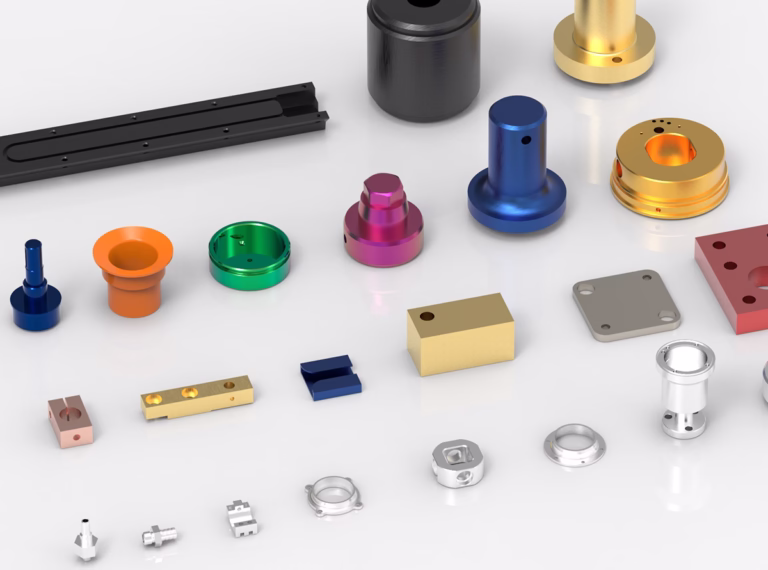

how long does cnc machining take on a vertical machining center
Short answer first

Key takeaways

Most parts land in one number rangeA typical 100 mm aluminum bracket with 8 holes runs 1–3 h of spindle time.
Setup is fixed, cutting is variableProgramming and fixturing cost the same on part 1 and part 500.
Material drives cycle time hardestTi-6Al-4V and 316 stainless cut at roughly 25–40% of 6061 aluminum speeds.
Feature count beats part sizeA small part with 30 features can take longer than a large simple plate.
Finishing is a second timelineAnodizing or plating adds calendar days, not spindle hours.
Cost drivers

What actually decides how long does cnc machining take

Machining time is a sum, not a guess. Spindle time, setup time, inspection, and queueing are four separate clocks, and only one of them scales with part quantity. Engineers who ask how long does cnc machining take usually want the first clock. Buyers care about the fourth. Both matter to the answer.

Start with material removal rate. On a 6061-T6 part, a 12 mm carbide end mill at 3,000–5,000 rpm and 1,500–2,500 mm/min feed removes material fast enough that roughing is rarely the bottleneck. Move the same tool path to 316L stainless and you drop to 800–1,200 rpm with roughly 300–600 mm/min feed. Cycle time triples. Titanium is slower again, and the tool wears faster, so operators reduce stepover to protect the cutter.

Then count features, not square millimeters. A 300 × 200 mm mounting plate with six clearance holes is a 40–70 minute job. A 60 mm manifold with nine intersecting bores, a 0.05 mm flatness callout, and two deep pockets can run 3–5 hours. Every tool change costs 10–40 seconds, and a part with 12 tools pays that tax repeatedly.

Finally, ask where the part sits in the shop schedule. A 2-hour cut with a 24-hour queue is a 26-hour answer. That is why the same drawing can come back as 3 days from one supplier and 8 days from another with identical cycle estimates.

  • 1
    Feature countTools, approaches, and repositioning set the floor on cycle time.
  • 2
    Material machinabilityAluminum to titanium spans a 4× spread in cutting speed.
  • 3
    Tolerance classTighter than ±0.02 mm adds semi-finish and finish passes.
  • 4
    QuantitySetup amortizes; per-part cut time does not.
Setup

Setup time: why the first part costs the most

Setup covers CAM programming, workholding, tool presetting, and the first-article check. For a straightforward 3-axis part, that runs 0.5–1.5 hours. A 5-axis part with two work offsets and a rotary table typically needs 2–4 hours, because the programmer has to verify tool reach and collision clearance for every orientation.

Workholding is where estimates quietly break. A rectangular block in a vise is nearly free. A thin-walled housing that needs soft jaws, a fixture plate, or vacuum clamping can add hours before the spindle ever turns. If your part has a wall under 1.5 mm, expect the shop to slow the finishing pass and possibly add support material.

On a batch of 50, setup is divided by 50 and nearly disappears from the per-part number. On a single prototype it can be 70% of the quoted time. This is the main reason prototype pricing looks disproportionate to a production quote on the same drawing.

One practical shortcut: send a 3D model with defined datums and a tolerance table. Shops that receive clean GD&T spend less time on clarification and programming, and those hours come off your lead time, not the shop's.

Geometry

Part geometry that stretches or shortens cycle time

Deep pockets are the classic time sink. Once depth exceeds roughly 3× the cutter diameter, the tool needs a longer flute length, which forces lower feed and smaller radial engagement. A 25 mm deep pocket in aluminum with a 6 mm cutter can take four times as long as the same pocket at 8 mm deep.

Thin walls behave similarly. Below 1.5 mm the part starts to deflect from cutting force, so operators take lighter passes and often add a semi-finish step. Anything under 0.8 mm usually needs custom support or a change in the machining strategy.

Undercuts and features on five faces push work to a 5-axis or mill-turn machine. That is not automatically slower. On a part with four angled faces, one 5-axis setup often beats three 3-axis setups, because you avoid re-fixturing and re-datuming. The crossover is typically around three distinct part orientations.

Complex 3D surfaces with tight curvature add point density to the tool path. A sculpted surface at Ra 0.8 μm needs a fine stepover, and finishing alone can run 2–4 hours on a part the size of your hand.

Tolerance and finish

How tolerance and surface finish add hours

A general tolerance of ±0.1 mm is one roughing pass plus one light finish pass. Tighten the critical features to ±0.005 mm and the shop adds a semi-finish pass, a finish pass, and temperature-stable inspection. Every additional pass is another full traverse of the surface.

Surface finish follows the same logic. As-machined at Ra 1.6–3.2 μm is the default. Pushing to Ra 0.8–1.6 μm requires a finer stepover and a sharper tool. Below Ra 0.8 μm, many shops switch to a separate finishing operation, which moves the part to a second machine queue.

Inspection time is real time. A part with three critical dimensions is checked with calipers and a micrometer in minutes. A part with 20 toleranced features and a positional callout of Ø0.05 mm goes on a CMM, and that can add an hour or more per batch.

Budget tolerance only where it performs a function. Applying ±0.005 mm across a whole drawing can double cycle time and add nothing to the assembly.

Do this in order

Step by step: estimate machining time for your part

Work through these five steps before you send an RFQ.

  • 1
    1. Classify material and machinabilityWrite down the alloy, not just 'aluminum'. 6061-T6 cuts at 3,000–5,000 rpm with a 12 mm end mill. 304 or 316L drops to 800–1,200 rpm. Ti-6Al-4V runs lower still, with 30–60 m/min surface speed. Use the ratio to scale any baseline estimate you already have.
  • 2
    2. Count tools and setups, not featuresList every tool the part needs and every orientation it is machined from. One to four tools in one setup is a short job. Eight or more tools across three orientations is a long one. Each tool change costs 10–40 seconds, and each new setup adds 30–90 minutes.
  • 3
    3. Identify the slowest single featureFind the deepest pocket, the thinnest wall, or the tightest tolerance. That feature sets the floor on cycle time, because the whole program inherits its feed and stepover limits. A 25 mm deep pocket with a 6 mm cutter is usually the answer.
  • 4
    4. Add finishing and inspectionDefault to as-machined Ra 1.6–3.2 μm and a general tolerance of ±0.1 mm. Add 30–60 minutes if the drawing calls for Ra 0.8–1.6 μm, and another 1–2 hours if a CMM report is required. Anodizing or plating adds 2–5 calendar days after machining, not spindle hours.
  • 5
    5. Add queue and shipping on topCycle time is not lead time. A shop running at capacity adds queue days. Ask for both numbers separately: 'spindle hours' and 'days to ship'. GreatLight quotes and returns a free DFM analysis within 12 hours, with production able to start in 24 hours and parts shipping in 3–5 days.
Reference numbers

Typical cycle time by part type and material

Ranges assume one setup, standard workholding, and as-machined finish. Use them as a starting point, not a quotation.

Part example6061 aluminum316L stainlessTi-6Al-4V
100 mm plate, 8 holes1–3 h3–7 h5–10 h
Thin-wall housing, 1.2 mm3–6 h8–14 h12–20 h
5-axis bracket, 4 angles2–5 h6–12 h9–16 h
Sculpted cover, Ra 0.8 μm4–8 h10–18 h14–24 h
Manifold, 9 intersecting bores5–10 h12–22 h18–30 h
Prototype batch of 10Setup + 10 × cutSetup + 10 × cutSetup + 10 × cut

Estimate the cut, then ask about the queue

Cycle time is four numbers: setup, cutting, finishing, and queue. Get all four before you commit to a date, and keep tight tolerances only where they do work.

FAQs

Questions engineers ask next

Does a bigger part always take longer to machine?

No. Cycle time tracks feature count and the slowest feature more than overall size. A 400 mm simple plate with six holes can finish faster than a 60 mm manifold with nine intersecting bores and a 0.05 mm flatness callout.

Size matters when it forces a larger machine, longer tool reach, or slower feeds to control deflection. GreatLight machines up to 4,000 mm, with travels of 4,000 × 400 × 150 mm on the largest platforms.

How much does quantity change the per-part time?

Setup is charged once, so it divides across the batch. If setup is 2 hours and each part cuts in 1 hour, one part costs 3 hours and ten parts cost 12 hours, or 1.2 hours each.

The cutting time itself barely moves. Tool wear, chip clearing, and inspection do not scale down, and very long runs sometimes need a tool change mid-batch.

Can 5-axis machining be faster than 3-axis?

Often yes, once a part needs three or more orientations. One 5-axis setup removes re-fixturing, re-datuming, and the error that comes with it.

For a flat plate with holes on one face, 3-axis wins. There is no reason to pay for simultaneous motion when a vise and a single setup already work.

How long does finishing add after machining?

Mechanical finishes like bead blasting or tumbling are usually same-day. Anodizing, plating, and powder coating are separate processes with their own queues, typically 2–5 days.

Laser marking is fast but has a limit: minimum character height is 1.5 mm. Plan marking size before the drawing is released.

What makes a quote come back slower than the cycle estimate?

Queue depth, material availability, and unclear drawings. If the shop has to order 17-4PH or Ti-6Al-4V bar stock, that lead time sits in front of machining.

Vague GD&T is the other common cause. A tolerance table with defined datums removes the back-and-forth and shortens both programming and first-article check.

Can I machine a prototype and a production run on the same timeline?

The cycle estimate transfers, the total timeline does not. A prototype absorbs full setup cost on one part. A run of 100 or more spreads it out.

GreatLight has no minimum order quantity, so a single prototype and a 10,000+ part run both go through the same process planning, with 100% inspection before shipment.

Send the drawing, get a time estimate in 12 hours

Upload your 3D model and tolerance table. We return a quotation with a free DFM analysis within 12 hours, and production can start within 24 hours.

12-hour quoteFree DFM analysis100% inspectionNo minimum order quantity
